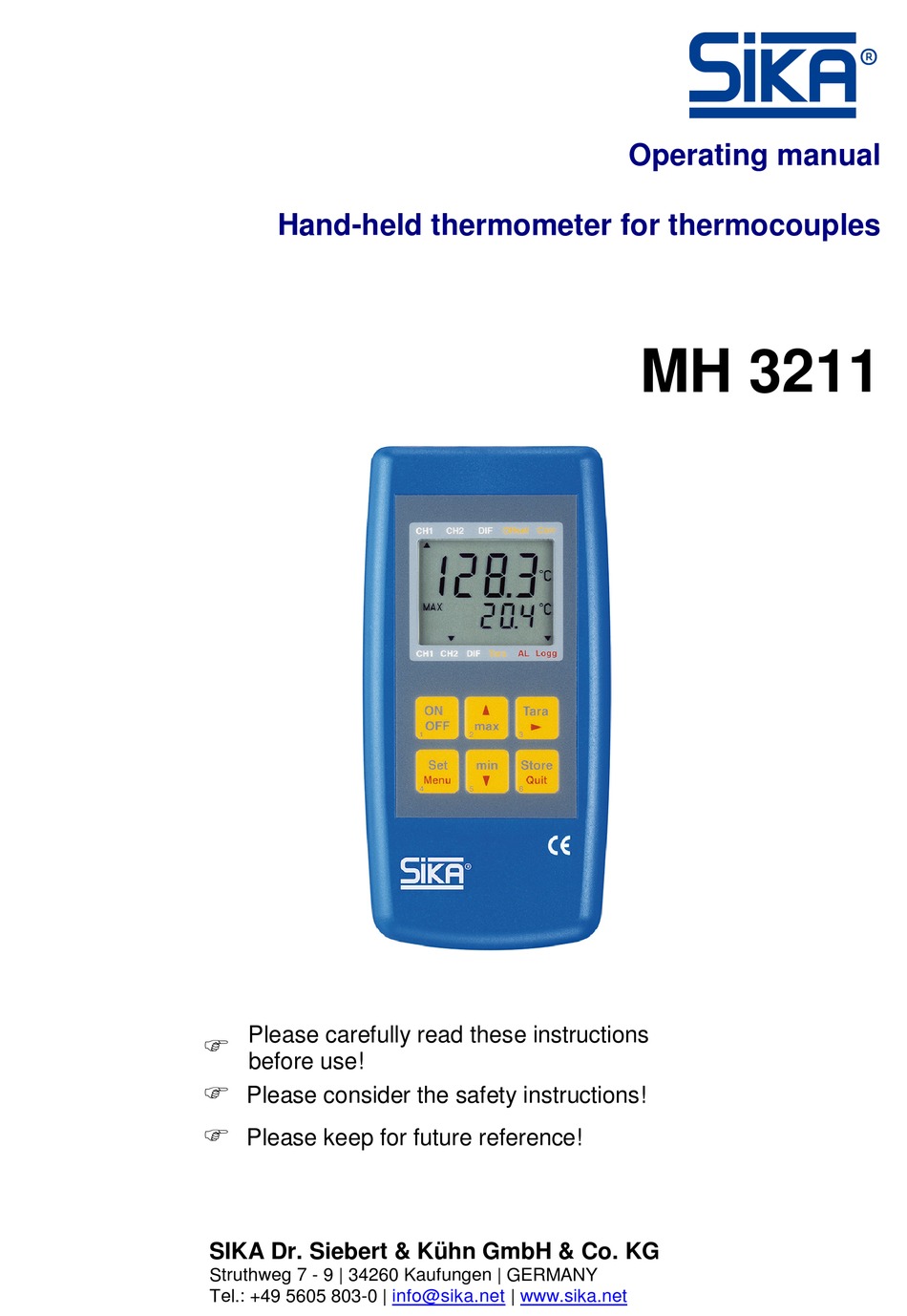

Hand-held thermometer for thermocouples
Please carefully read these instructions
before use!
Please consider the safety instructions!
Please keep for future reference!
SIKA Dr. Siebert & Kühn GmbH & Co. KG
Struthweg 7 - 9 | 34260 Kaufungen | GERMANY
Tel.: +49 5605 803-0 |
info@sika.net
|
www.sika.net
Operating manual
MH 3211
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SIKA MH 3211
Summary of Contents for SIKA MH 3211
- Page 1 before use! Please consider the safety instructions! Please keep for future reference! SIKA Dr. Siebert & Kühn GmbH & Co. KG Struthweg 7 - 9 | 34260 Kaufungen | GERMANY Tel.: +49 5605 803-0 | info@sika.net www.sika.net...
-
Page 2: Table Of Contents
Ba_MH3211_en Operating Manual MH 3211 page 2 of 14 Index 1 GENERAL NOTE ....................... 2 2 SAFETY..........................3 2.1 I ........................3 NTENDED 2.2 S .................... 3 AFETY SIGNS AND SYMBOLS 2.3 S ......................4 AFETY GUIDELINES 3 P RODUCT SPECIFICATION................... 5 3.1 S... -
Page 3: Safety
Ba_MH3211_en Operating Manual MH 3211 page 3 of 14 2 Safety 2.1 Intended Use This device is designed for temperature measurement. You can plug in a thermocouple sensor with Miniature-DIN-plug. The device features a lot of useful features as for example hold, correction factor for surface measurement, interface etc. -
Page 4: Safety Guidelines
Ba_MH3211_en Operating Manual MH 3211 page 4 of 14 2.3 Safety guidelines This device has been designed and tested in accordance with the safety regulations for electronic devices. However, its trouble-free operation and reliability cannot be guaranteed unless the standard safety measures and special safety advises given in this manual will be adhered to when using the device. -
Page 5: Roduct Specification
Ba_MH3211_en Operating Manual MH 3211 page 5 of 14 Product Specification 3.1 Scope of delivery The scope of supply includes: • Device with battery • Operating manual 3.2 Operation and maintenance advice • Battery operation: If ‘bAt’ is shown in the lower display the battery has been used up and needs to be replaced. -
Page 6: Handling
Ba_MH3211_en Operating Manual MH 3211 page 6 of 14 4 Handling 4.1 Display 1 Main display: measuring value Arrows show display options 3 Secondary display: display of min/max, hold corr: appears if offset- , scale correction or 4 correction for surface measurement is <> state of delivery. -
Page 7: Pop-Up Clip
Ba_MH3211_en Operating Manual MH 3211 page 7 of 14 4.4 Pop-up clip Handling: • Pull at label “open” in order to swing open the pop-up clip. • Pull at label “open” again to swing open the pop-up clip further. Pop-up clip at position 90°... -
Page 8: Device Configuration
Ba_MH3211_en Operating Manual MH 3211 page 8 of 14 6 Device Configuration To change device settings, press Set (key 4) for 2 seconds. This will call the configuration menu. The parameters can be changed with (key 2) or (key 5). -
Page 9: Remarks To Special Features
Ba_MH3211_en Operating Manual MH 3211 page 9 of 14 7 Remarks To Special Features 7.1 Base Address (’Adr.’) Using the interface converter GRS3105 it is possible to connect several instruments to a single interface. As a precondition the base addresses of all devices must not be identical. - Page 10 Ba_MH3211_en Operating Manual MH 3211 page 10 of 14 Supported interface functions Channel Code Function Read measurement value Read system state Read ID number Delete min. value Delete max. value Read min measuring range Read max measuring range Read measuring range unit...
-
Page 11: Adjustment
Ba_MH3211_en Operating Manual MH 3211 page 11 of 14 Adjustment 9.1 Zero Displacement A zero displacement can be carried out for the measured value: value displayed = value measured - offset Standard setting: 'off' = 0.0°, i.e. no zero displacement will be carried out. Together with the scale correction (see below) this factor is mainly used to compensate for sensor deviations. -
Page 12: Fault And System Messages
Measuring residuals at housing or sensor may be a risk for persons or environment Use an adequate transport package for reshipment, especially for fully functional devices. Please make sure that the device is protected in the package by enough packing materials. Add the completed reshipment form of the SIKA website https://sika.net/en/services/return-of-products-rma.html... -
Page 13: Disposal
Ba_MH3211_en Operating Manual MH 3211 page 13 of 14 11.2 Disposal Dispense exhausted batteries at destined gathering places The device must not be disposed in the unsorted municipal waste! Send the device directly to us (sufficiently stamped), considering the above if it should be disposed. - Page 14 Ba_MH3211_en Operating Manual MH 3211 page 14 of 14 Output: 3.5 mm audio plug, stereo Output function: serial interface Interface: Serial interface (3.5mm jack) can be connected to USB or RS232 interface of a PC via electrically isolated interface adapter USB3100, USB 3100 N, GRS3100 or GRS3105 (see accessories).
