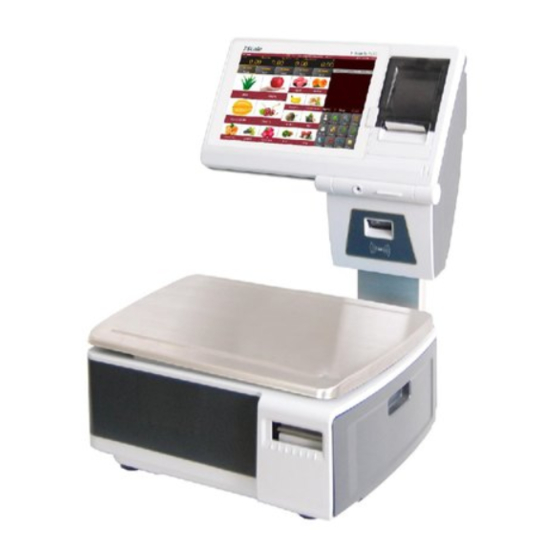

T Scale L10 Series Technical Manual

T-touch pos application
Hide thumbs
Table of Contents

Advertisement

Quick Links

T-Touch POS Application
Technical Manual
PL10/L10/L8 Series
A2.06
2017/05/31
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L10 Series and is the answer not in the manual?

Questions and answers

Related Manuals for T Scale L10 Series

Summary of Contents for T Scale L10 Series

  • Page 1 T-Touch POS Application Technical Manual PL10/L10/L8 Series A2.06 2017/05/31...

  • Page 2: Table Of Contents

    T-Touch T-Touch POS Scale CONTENTS 1. QUICK GUIDE ..........................1 1.1 Requirements ............................1 1.2 Interfaces ............................1 1.3 Power ..............................2 1.4 Label Printer - Label Roll Replacement ....................3 1.5 Ticket Printer -Ticket Roll Replacement ....................4 1.6 Power On / Off ............................ 5 2.
  • Page 3 T-Touch T-Touch POS Scale 3.1.10 Software Version ........................14 3.1.11 Extended Resolution (x10) ....................... 14 3.2 Sales Mode Operation ........................15 3.3 Manually Enter Unit Price/Quantity ....................18 3.4 Manual / Auto Accumulation ......................19 3.5 Delete Accumulated Item ......................... 20 3.6 Check out operation..........................
  • Page 4 T-Touch T-Touch POS Scale Data ........................... 49 4.7.1 Data Storing ..........................50 5. TECHNICAL OPERATION ........................ 54 5.1 Basic Information ..........................56 5.1.1 User Information ........................56 5.1.2 Currency ............................. 56 5.2 System Setting........................... 56 5.2.1 Date & Time ..........................56 5.2.2 Language ............................
  • Page 5 T-Touch T-Touch POS Scale 5.4.3 S/N Modify ..........................66 5.4.4 HDMI ............................66 5.5 Calibration ............................67 5.6 Communication ..........................69 5.6.1 Com0 ............................69 5.6.2. Com1 ............................69 5.6.3 Com2 ............................71 5.6.4 Server Setting ..........................71 5.6.5. Server Setting ..........................71 5.6.6 Eth0 ............................
  • Page 6 T-Touch T-Touch POS Scale WARNINGS 1. Check the power supply voltage before connecting the scale. Use only the correctly assigned power supply to avoid damages. 2. Avoid using the scale in hazardous environment. 3. Avoid sudden or strong impact to the scale. 4.
  • Page 7 INTRODUCTION T-Touch Ticket Printing Scale is specially designed for the supermarkets, chain network retail shops, etc. It is a Linux based system and uses Touch Operating System (TOS). Features Touch Operating System • 10” TFT LCD display (L10, P10) & 8” TFT LCD display (L8) •...

  • Page 8: Quick Guide

    1.2 Interfaces PL10 Series RJ - 11 RJ - 45 RS-232: Com1 RS-232: Com 2 Mini USB USB2.0 USB2.0 L10 Series RS-232: Com 2 RJ - 11 USB2. RJ - 45 RS-232: Com1 Mini USB...

  • Page 9: Power

    T-Touch T-Touch POS Scale L8 Series RS-232 Com 2 USB Port x RS-232 Com 1 RJ - 11 RJ - 45 Interface Quantity Description RJ11 Cash drawer（12V） For mouse, keyboard, barcode scanner RJ45 Ethernet RS-232 For printer or other supported equipment’s Mini USB For downloading system software 1.3 Power Key and Charger...

  • Page 10: Label Printer - Label Roll Replacement

    T-Touch T-Touch POS Scale L 10 Series Charging Cable Scale Power On Key L8 Series Power On key Adaptor Jack 1.4 Label Printer - Label Roll Replacement 1. Pull upward to remove the label roll Follow the arrow sign to correctly 2.

  • Page 11: Ticket Printer -Ticket Roll Replacement

    T-Touch T-Touch POS Scale 1.5 Ticket Printer -Ticket Roll Replacement 1. Push the lever to pop the cover up 3. Replace roll paper 2. Lift up to open 4. Pull a trip of the paper out 6. Tear paper 5. Close the cover...

  • Page 12: Power On / Off

    T-Touch T-Touch POS Scale 1.6 Power On / Off Power On Press and hold Power On key until to hear a “beep” sound to turn the scale on. Power Off Press key at the main page, and press “confirm” at the pop up screen to power off Power Off key Note: Press and hold the “Power on”...

  • Page 13: Main Menu

    T-Touch T-Touch POS Scale 2. MAIN MENU 2.1 Main Menu It is required to use the Username and Password to access the scale settings. To access the scale setyings, select Username from the list and input password. Default Username: technician Default password: 000000 Click here 4 times to input the username as “technician”...
  • Page 14 T-Touch T-Touch POS Scale Note: Username and password are case sensitive. Description Sale Key To enter sales page ID Key To enter ID setting page Data Key To import / export data Setting Key To enter setting page Pre-Key To arrange sales page window Report key To check the transaction records HDMI...

  • Page 15: Customer Display

    T-Touch T-Touch POS Scale 2.2 Customer Display Display/Indicator Description Product To display the selected product Total Weight To display product’s total weight Unit Price To display the unit price Total Price To display the total price Sub Total To display Sub Total Price Slogan To display slogan...

  • Page 16: Sale Window

    T-Touch T-Touch POS Scale Logo To display company logo/picture Sale Window L10 / PL10 Series L8 Series Display Function Description Zero Tare For displaying current weighing status Stable...
  • Page 17 T-Touch T-Touch POS Scale Range For display weighing range Mode For display operation mode Operator For display operator For capacity, division and minimum Capacity weight Software For displaying software version version Power For displaying power Date & Time For displaying date & Time Tare Display For displaying tare weight value Weight Display...
  • Page 18 T-Touch T-Touch POS Scale PLU Page For changing PLU Page Active Vendor For to display active vendor number & total number of the vendor sales Vendor Key For to choose the Vendor number For to clear current selection or entry of Clear Key product, price or quantity Enter product quantity (Product unit...

  • Page 19: Built-In Keypad

    T-Touch T-Touch POS Scale Check Out Key For to enter into the check out Note: PLU keys & function keys defined / designed as per the customized settings from the Mode settings. For more details, refer section 4.6. Mode; page 29 Operation Keys Selection. *L8 series are not compatible for to use “Sales List Display”...

  • Page 20: Operation

    T-Touch T-Touch POS Scale 3. OPERATION Function 3.1.1 Power-Up On Power-up, the scale will first show system T-Touch and follow by the company logo. After that, the scale will adjust the weight to new zero reference. Then, the main menu page will show. If user authentication exists, a login window will appear.

  • Page 21: Pre-Set Tare

    T-Touch T-Touch POS Scale Load container on the platform. Press key. Zero is displayed, and tare is subtracted. Remove container on the platform. Tared weight is displayed. It can only be set to one tare value. The tare value will be shown with a minus value.

  • Page 22: Sales Mode Operation

    T-Touch T-Touch POS Scale Sales Mode Operation L10/PL10 Series Sales Mode...
  • Page 23 T-Touch T-Touch POS Scale L8 Series Sales Mode with out sales list window *L8 series are a. Select a Vendor Select Vendor Group key , then the appropriate vendor key from the list. Select a Vendor key from the list Selected Vendor will be active for accumulation b.
  • Page 24 T-Touch T-Touch POS Scale Product could be selected from the direct PLU page/groups or with PLU search function. Ranking/Group Page/Group 1 Page/Group 2 Page/Group 3 More Page/Group Window list Note: Page/ Group list will be available according to the Pre-Key Settings. PLU (Product Look Up) Search Direct PLU (Product Look-up)：...

  • Page 25: Manually Enter Unit Price/Quantity

    T-Touch T-Touch POS Scale Use group key to select different product groups or categories. In-direct Product Look-up： Select key to enter product look-up page. a) Search for a product by its PLU number: b) Search for a product by its product name. 3.3 Manually Enter Unit Price/Quantity When product info is not pre-set in the scale, select to manually enter unit price;...

  • Page 26: Manual / Auto Accumulation

    T-Touch T-Touch POS Scale 3.4 Manual / Auto Accumulation Manual Accumulation: Use this setting to manually add the weighing/quantity value to the sales list. Select a PLU and place the item(s) on the scale. Once the stable indicator is shown on the display, press the Vendor key to update the sales list.

  • Page 27: Delete Accumulated Item

    T-Touch T-Touch POS Scale Once stable indicator is shown on the display, remove item from platform. The scale will make a long beeping sound, and sales list will be updated wtih the new sale item automatically. Continue the next session. 3.5 Delete Accumulated Item allowed to be deleted.

  • Page 28: Check Out Operation

    T-Touch T-Touch POS Scale allows to choose the items for to delete or undo. Select products from the list and click key to delete. Note: It is allowed to recover the deleted items by clicking key again. Note: If main UI window does not include a sales list, then items can only be delted from the check out window.
  • Page 29 T-Touch T-Touch POS Scale Click once key to complete the transaction and print the ticket 3.6.2 Detail / Normal Check Out “Press & Hold” key to enter into the the detail/normal Check out window. Sales List Window Discount value by Discount value by fixed amount fixed percentage...
  • Page 30 T-Touch T-Touch POS Scale Numeric Key For payment amount input The remaining payment will be Remain key generated automatically Clear Key To clear current number input Delete Key To delete sales item Reserved Payment Continue to payment process Back Key Return to the sales window Reserved Clear Key...
  • Page 31 T-Touch T-Touch POS Scale Reserved Discount Keys: Dicount keys are used to store fixed / percentage values. Press and hold keys to store values, numeric keys window will pop up. key is used for direct discount amount input. key is used for direct percentage discount input. Payment Operation: Three types of payments are allowed: Cash / Card / Coupon.

  • Page 32: Sales Return Operation

    T-Touch T-Touch POS Scale Select CASH for partial payment Select REMAIN key to complete the payment amount and select CARD Select SUBMIT to apply payment and select CONFIRM to complete the transaction Note: The check out window will display the change amount. Check Out Window’s “Print”...
  • Page 33 T-Touch T-Touch POS Scale Press and hold the key. The item will be add into sales list. The weight and price will be displayed as negative values. Once the returning accumulation is completed, Click once key to enter quick check out or press & hold to enter the normal the check out page.

  • Page 34: Plu Editing

    T-Touch T-Touch POS Scale 3.8 PLU Editing PLU key to edit new product information. Need to create a new PLU if none exist. Select a Click Edit key to enable editing. Once the information is updated, click Save key to confirm. Arrow keys Scroll up &...

  • Page 35: Menu Setting

    T-Touch T-Touch POS Scale 4. MENU SETTING 4.1 Main Menu Window Login / Logout To logout, click then click OK. To login, enter username and password and click “login” Default user name is: technician and default password is: 000000 Touch here 4 times to input a username that is not on the Touch here to select a list.

  • Page 36: Sales

    T-Touch T-Touch POS Scale Sales Click key to enter sales mode. Refer to section 3.1 Sales Mode Operation. ID Settings Click key to enter ID setting page，click return key “ ”to go back to main page。 Product List Product category Products under main category...

  • Page 37: Department & Category(S)

    T-Touch T-Touch POS Scale Departments Department settings Username Account settings Tax setting Barcode Barcode settings E Tag ID ESL tag ID settings Add or Edit Keys Arrow keys Scroll up & down Edit Key Editing entry information Delete Key Deleting an entry Add Key Add new entry Return Key...

  • Page 38: Product

    T-Touch T-Touch POS Scale 4.4.2 Product Select key to add PLU. Click key to add new product data and then click Product Item Description No. Item Description No. Item Description PLU number 6 numbers Electronic Tag Select ID from the list Product Code 13 digits Trace Scheme...

  • Page 39: Operator

    T-Touch T-Touch POS Scale 4.4.3 Operator Select key to add Admin or Operator username. Permission option can be assigned to the user. Operator: Scale operation only Admin: Scale management and operation 4.4.4 Tax Select key to enter Tax values Add different tax values for different products. 4.4.5 Barcode Select key to set barcode type.

  • Page 40: Etagid

    T-Touch T-Touch POS Scale Shift Commodity data position Middle Check Reserved for EAN 18 check sum End Check EAN 13 check sum Default Format Select barcode as default *Reserved function 4.4.6 EtagID An EtagID setting allows ESL (Electronic Shelf Labeling) ID configuration. ESL ID can be found from the ESL Tag. Each ESL ID must choose the appropriate Template from the drop down list Template Name...

  • Page 41: Settings

    T-Touch T-Touch POS Scale Settings Select key to enter scale settings. The “<<” key on the upper left corner is used to return to the previous page. Note: 1. Some parameters are encrypted and require a Technician or an Admin account to access. The default password is 000000.
  • Page 42 T-Touch T-Touch POS Scale L10 Series L8 Series...
  • Page 43 T-Touch T-Touch POS Scale Setting Menu Menu Sub Menu Description Company name Enter company details, PS: if print format has the option for Address the company details, it will print Telephone accordingly. Website Logo Reserved function for logo Basic information Slogan Enter slogan User...
  • Page 44 T-Touch T-Touch POS Scale Language For setting local language Backlight For setting backlight adjust Sound For Buzzer On/Off & Speaker volume Touch screen calibration Touch screen calibration Software update For application software or system software update System information For system properties *Password setting For “technician”...
  • Page 45 Manual: For printing based on the input number onwards. HDMI For turning On/Off HDMI Mode of operations. Note: Only applicable when it is connected to T-Scale’s “Media Box”. Used for HDMI settings. Label Printer For external Label Printer operation On/Off while accumulation. Printer_P10 For built-in Label printer On/Off while accumulation.
  • Page 46 T-Touch T-Touch POS Scale Communication Com0 Reserved for built-in printer Com1 RS232 port for connecting with printer or other devices Com2 RS232 port for connecting with printer or other devices Server Setting For connecting to TTC software Base Station IP For ESL Base Station IP address Eth0 IP address setting...
  • Page 47 T-Touch T-Touch POS Scale *Password Setting: Please set the “technician” password very carefully. Once the password is changed, the default password/existing password will be erased. **Reset Database: Please do the operation very carefully. Once the data is reset, it cannot be recovered. ***Videos: Video operations only support L10 /PL10 models.

  • Page 48: Pre-Key

    T-Touch T-Touch POS Scale Pre-Key Self-programming mode for creating a customized UI (User Interface) Pre-Key Mode Settings operation: Function Back Exit from the mode settings Clear To clear selected key data To fix keys for all pages Move To move a selected key to the specific empty location To increase selected key to right side To increase selected key to down side To decrease selected key to left side...
  • Page 49 T-Touch T-Touch POS Scale Create a customized page Select any key or click “Select All” key to select all keys for to edit. Click “Clear” key to clear the existing keys. It will ask to confirm. Click “Yes” to confirm Programmable Window for operation Click Clear key to clear selected keys.
  • Page 50 T-Touch T-Touch POS Scale By using keys can be adjusted to different keys alignment Select a grid to add a new key. Select page Key to add/edit pages to use as Groups/Category Select “More Page” to add additional group/category search key (more key). Select “Home”...
  • Page 51 T-Touch T-Touch POS Scale Select a key from the programmable location to add a new key. Select the “Page” key to choose the pages key from the list. New page key added into the specific location Selected key will be added into the selected location.
  • Page 52 T-Touch T-Touch POS Scale Operation Keys Selection Select “Function” key to add specific operation keys from the list. “Button” options are: Tare, Zero, Back, Search, Print, Cash Drawer, Feed, Clear, ACC, Menu. Function > Button Function Tare Tare key; The weight that was displayed will be store as the tare value and that value will be subtracted from the measurement, leaving zero on the display.
  • Page 53 T-Touch T-Touch POS Scale “Keypad” option can be choose Standard / Pre-Pack / Accumulation / POS / DaTongHua Keys Function >Key Pad Function Standard Standard Labeling Mode Keys; To select standard label operation default keys *Pre-Pack Pre-Packing Mode Keys; To select accumulation operation default keys *Accumulation Accumulation labeling mode Keys To select accumulation operation default keys *POS...
  • Page 54 T-Touch T-Touch POS Scale Dynamic Reserved function Scheduling By Category For displaying products automatically by category Escape Key; Press key for to go back to the previous mode *Specific mode of keys only for specific models “Preset keys” option can be chosen for additional vendor Keys (V1 ~ V10 ) and Tare keys (T1 ~ T10) * Preset keys are only applicable for specific models.
  • Page 55 T-Touch T-Touch POS Scale Once finish the UI keys editing, click “Back” key to go back to the main window. Warning message will ask to save changes. Click “Yes” to confirm and exit from the pre-key settings or click “No” to undo all changes and exit.

  • Page 56: Data

    T-Touch T-Touch POS Scale Data Click key on the main page. Choose the corresponding function to Export or Import. Export data： Insert USB stick and select the required data to export and click “Export”. Data will be exported to the USB stick under “scale_data”...

  • Page 57: Data Storing

    T-Touch T-Touch POS Scale Eg. product.csv data file & Scale user Information window 4.7.1 Data Storing USB Stick Main Folder Name: scale_data...
  • Page 58 T-Touch T-Touch POS Scale “scale_data” data - subfolders and files image_product - Folder for product images. • Format: “png” Resolution: 150x150 ~ 300x300. Size: 50KB ~ 100KB Name: alphanumeric. Optional HDMI Communication: Resolution: 950x540 or above Size: 50KB or above Note: If using high resolution pictures, scale operation will be slow and available FLASH free memory will be less.
  • Page 59 T-Touch T-Touch POS Scale Video: Format: “mp4” Frame Size: approximate 640x400 Size: recommend to use small size of videos 7” customer Display Picture: Format: “png” Max Resolution: 800x480. Size: 50kb or above Name: alphanumeric. translation – Folder for translated documents. •...
  • Page 60 T-Touch T-Touch POS Scale 8) Product_name：Product’s complete name 9) Abbr/ Product name abb.：Product name abbreviation for sales mode 10) Category：Product category；category_c : for serial number in the chart 11) Department：Products by department；department: for serial number in the chart 12) Pcs_flag：Enter number codes, 0 for no and 1 for yes to determine if products are calculated by quantity. 13) Default_pcs：...

  • Page 61: Technical Operation

    T-Touch T-Touch POS Scale 5. TECHNICAL OPERATION Sale Window : Click here 4 times for to go to menu. If it has Operator & Admin names, it will be displayed Free UI area: automatically for access If there is no data or UI doesn’t configure, sale window will be blank.
  • Page 62 T-Touch T-Touch POS Scale Click here 4 times to input the username as “technician” in the username field. If Operator & Admin account already exists, they will be displayed automatically Note: Access It’s required to use “Technician/Admin” password to access the Menu Settings.

  • Page 63: Basic Information

    T-Touch T-Touch POS Scale 5.1 Basic Information 5.1.1 User Information User information allows inputting company address, shop no, branch no, scale no for scale_data management & header & footer for the print formats. 5.1.2 Currency Currency settings: currency symbol from the drop down list or Input currency name 5.2 System Setting 5.2.1 Date &...

  • Page 64: Language

    T-Touch T-Touch POS Scale Set Date Set Time 5.2.2 Language T-Touch POS/Labeling scale allows selection of languages. The system will restart for the changes to take place. Note: If your language is not enabled, please contact your supplier to update the language. 5.2.3 Back Light Back light can be adjusted.

  • Page 65: Sound

    T-Touch T-Touch POS Scale 5.2.4 Sound Buzz: Check the box to enable/disable the buzzer sound while operating the scale. Sound: Speaker volume can be adjusted. Move Scroll bar to left (decrease) or to right (increase) to adjust the volume. Note: Speaker Sound volume adjustments are only applicable for L10, L15, PL10 &...

  • Page 66: System Information

    T-Touch T-Touch POS Scale Note: Insert the USB flash drive into the USB port for software update. File name should be TScaleUpdate in the USB/flash drive’s home directory System Update: Operating System can be upgraded by using system update option. Connect USB stick to the scale’s USB port.

  • Page 67: Set Password

    T-Touch T-Touch POS Scale 5.2.8 Set Password Set password allows change to the Technician Password. Input default Technician password as 000000 to change the password settings. Input new password for Technician and confirm by clicking Ok key. Once the password is changed, the old password will be erased.

  • Page 68: Reset Database

    T-Touch T-Touch POS Scale 5.2.9 Reset Database Reset database option allows you to reset different database. Reset Product: All Product ID will be clear Reset Keys: All UI settings will be clear Reset All Databases: All data will be clear Reset Report Database: All records will be clear Reset Product Image: All Product pictures will be clear Reset Product Audio: All suppler/Client ID will be...

  • Page 69: Weighing Setting

    T-Touch T-Touch POS Scale 5.3 Weighing Setting 5.3.1 Approval Setting Approval setting allows you to change the approval modes to None Approval, OIML etc. WARNING: If any approval setting except None Approval is selected, Weighing setting & Calibration will be blocked If it’s required to access back all functions and calibration, it will require to break the seal or open housing to access the CAL switch.

  • Page 70: Capacity & Main Weighing Unit

    T-Touch T-Touch POS Scale 5.3.3 Capacity & Main Weighing Unit Scale main weighing unit can be selected from the drop down list. Select weighing unit and input max scale capacity 5.3.4 ACC MinWeight Minimum weight can be set to less than 20d for the scale to print.

  • Page 71: Operation Setting

    T-Touch T-Touch POS Scale 5.4 Operation Setting 5.4.1 Scale Working Mode Click Scale Working Mode to change the scale operation mode to Single sale or Floating Sale’s Master/ Slave Operation. Click “Yes” to enter into the Working Mode. Display will show Master Slave Setting. Keys Function Single...

  • Page 72: Sleep Time

    T-Touch T-Touch POS Scale 5.4.1.2 Floating Sale Operation: Click “Floating Sale” option to enable floating scale network operation. For the Floating Sale Network Operation, a “Master” scale must be configured and “Slave” scales need to be inserted into the master scale. It allows up to 16 scales. Master Scale Settings a) Click “Master”...

  • Page 73: S/N Modify

    T-Touch T-Touch POS Scale 5.4.3 S/N Modify Ticket serial number can be set to print based on the date automatically or start from a manually enetered serial number. Auto: Click auto option to have the serial number based on the date.

  • Page 74: Calibration

    T-Touch T-Touch POS Scale 5.5 Calibration Calibration will help adjust the performance of the scales in different environment. Load Calibration Press Start key to begin calibration and follow the steps. 1: Unload, Empty the platform and make sure display shows zero. Press NEXT key.
  • Page 75 T-Touch T-Touch POS Scale 3: Load Calibration Weight Place the load on the platform same as the value entered in the calibration weight value. Press NEXT key. 4: Press NEXT when stable Wait for the stable indication, then Press NEXT key. Calibrate Finished Click “End”...

  • Page 76: Communication

    T-Touch T-Touch POS Scale 5.6 Communication 5.6.1 Com0 Built-in ticket printer settings. 5.6.2. Com1 It can be used to connect to printer / PC / score board etc. Select the serial port options, including transmit mode, baud rate, data bits, and stop bits. Mode: Selectable Off: (Com port off).
  • Page 77 Epson_LQ300k EPSON Dot Matrix Printer, LQ300/350 BL_F1182 T-Scale Built-in Label Printer *P10-60 ASCII ASCII mode of Printers operations *T-Scale L8, L10,TPUP dot matrix printer, EPSON TMU Series, etc. XP58_IMAGE T-Scale Built-in Ticket Printer (*graphics command mode) *L8, L10 LP2824 ZEBRA Label Printer; LP2824, LP2844,...

  • Page 78: Com2

    T-Touch T-Touch POS Scale 5.6.3 Com2 It can be used to connect to printer / PC / score board etc. See section 5.6.2. Com 1 for details. 5.6.4 Server Setting It’ allows connecting to PC back office software, a) Click “On” check box b) Server IP: input server IP same as per your computer c) Server port: 1000;...

  • Page 79: Specification

    T-Touch T-Touch POS Scale 6. SPECIFICATION 6.1 Dimension:...
  • Page 80 T-Touch T-Touch POS Scale...

  • Page 81: Specification

    T-Touch T-Touch POS Scale 6.2 Specification Capacity 6 ~ 30kg External Resolution 2 x 3000e Tare range Max-1d AD Type Sigma delta AD Speed Max. 60 times/second Weighing Unit kg, g, lb, Calibration Unit kg, g, lb Load Cell Excitation 5VDC Operation Temperature 0~40ºC...

  • Page 82: Troubleshooting

    T-Touch T-Touch POS Scale 7. TROUBLESHOOTING Problem Possible cause Common solutions Mains power is turned off Check power switch is turned on, Power supply is not plugged in and power LED is working. Cannot turn on Power supply faulty Verify the voltage going to the scale power Internal battery is not charged matches the power supply labels on...
  • Page 83 T-Touch T-Touch POS Scale Connect a mouse, use mouse to enter touch screen correction for to Touch screen Touch screen need do correction calibrate touch screen. incorrect Housing assembled by over tighten. Loose housing screws, if overtighten. Hold ON/OFF key for 6 seconds to restart the scale.
  • Page 84 T-Touch T-Touch POS Scale...
  • Page 85 T-Scale was founded in Taiwan in 1967 as Taiwan Scale Mfg Co., Ltd, the pioneer of mechanical manufacturer in Taiwan. Today, this privately owned company is recognized worldwide as a leading Electronic Weighing Scale Manufacturer. The core business of TSCALE is the development, manufacture, worldwide sales/marketing and service of electronic weighing instruments.
