WARNING: FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious injury, death, or property damage.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Leave the building immediately
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas supplier.
A barrier designed to reduce the risk of burns from
the hot viewing glass is provided with this appliance
and shall be installed for the protection of children
and other at-risk individuals.
This appliance may be installed in an aftermarket, permanently located, manufactured home
(USA only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. A conversion
kit is supplied with the appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Travis Industries, Inc.
Copyright 2019, T.I.

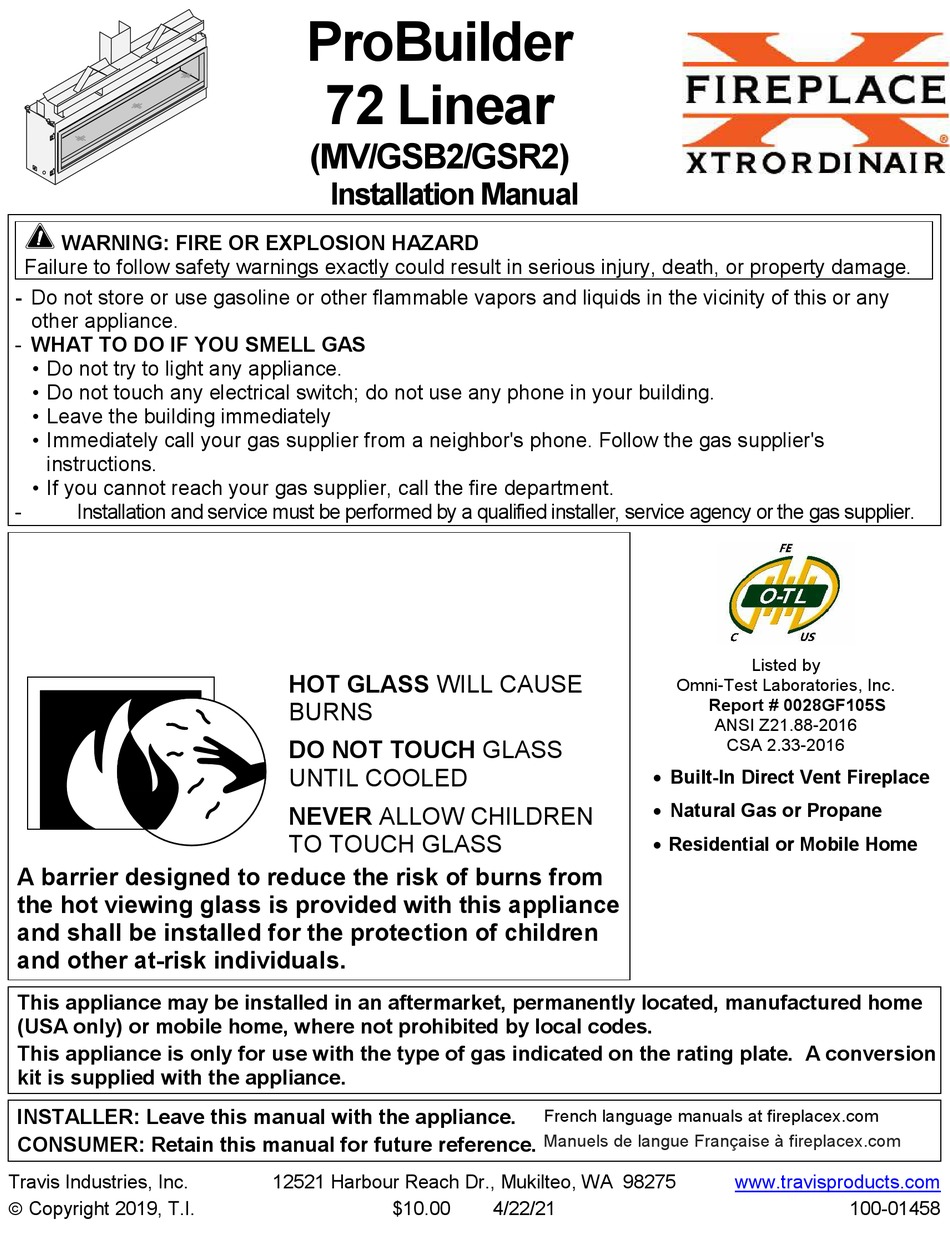

ProBuilder
72 Linear
(MV/GSB2/GSR2)
Installation Manual
HOT GLASS WILL CAUSE
BURNS
DO NOT TOUCH GLASS
UNTIL COOLED
NEVER ALLOW CHILDREN
TO TOUCH GLASS
12521 Harbour Reach Dr., Mukilteo, WA 98275
$10.00
Built-In Direct Vent Fireplace
Natural Gas or Propane
Residential or Mobile Home
French language manuals at fireplacex.com
Manuels de langue Française à fireplacex.com
4/22/21
Listed by
Omni-Test Laboratories, Inc.
Report # 0028GF105S
ANSI Z21.88-2016
CSA 2.33-2016
www.travisproducts.com
100-01458
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for FireplaceXtrordinair ProBuilder 72 MV
Summary of Contents for FireplaceXtrordinair ProBuilder 72 MV
- Page 1 ProBuilder 72 Linear (MV/GSB2/GSR2) Installation Manual WARNING: FIRE OR EXPLOSION HAZARD Failure to follow safety warnings exactly could result in serious injury, death, or property damage. - Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
-
Page 2: Overview
Introduction Overview This manual details the installation requirements for the Pro Builder 72 Linear fireplace. For operating and maintenance instructions, refer to the Pro Builder 72 Linear Owner's Manual. Listing Details This appliance was listed by OMNI Test Labs to ANSI Z21.88. The listing label is attached to the appliance near the gas control valve. -
Page 3: Table Of Contents
Table of Contents Vent Configuration: Horizontal Termination Overview ..............2 with Vertical Rise ............32 Listing Details ............2 Masonry Chimney Conversions ......33 Massachusetts Approval ......... 2 Class A Chimney Conversion ......... 34 Installation Options ..........6 Termination Requirements ........35 Heating Specifications .......... - Page 4 Safety Precautions Safety Warnings Failure to follow all of the requirements may result in property damage, bodily injury, or even death. Young children should be carefully supervised when they are in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns.
- Page 5 Safety Precautions Safety Warnings (continued) Because this heater can be controlled by a thermostat there is a possibility of the heater turning on and igniting any items placed on or near the appliance. Light the heater using the built-in igniter. Do not use matches or any other external device to light your heater.
-
Page 6: Installation Options
Features and Specifications Installation Options Residential or Mobile Home Internal or External Chase Straight or Corner Placement Bedroom Approved Raised or Floor Placement Heating Specifications Natural Gas Propane Approximate Heating Capacity (in square feet)* Up to 2,250 Up to 2,250 72 ProBuilder Maximum BTU Input Per Hour... -
Page 7: Packing List
Installation (for qualified installers only) Packing List LP (Propane) Conversion Kit - Burner Orifices (2)-(#54), Pilot Orifice (0.14 LP), LP Regulator Thimble (2-Piece Assembly) Pipe Shield, Header Shield (shipped attached to top of fireplace) Wall Switch, Cover Plate, and Wire (GSB2 and MV Only) ... -
Page 8: Massachusetts Requirements
Installation (for qualified installers only) Massachusetts Requirements NOTE: The following requirements reference various Massachusetts and national codes not contained in this document. Requirements for the Commonwealth of Massachusetts For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:... -
Page 9: Fireplace Placement Requirements
Installation (for qualified installers only) Fireplace Placement Requirements Fireplace must be installed on a level surface capable of supporting the fireplace and vent Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or carpet) ... -
Page 10: Televisions Placed Above The Fireplace
Installation (for qualified installers only) Televisions Placed Above the Fireplace The following section gives guidelines to place a television above the fireplace. IMPORTANT NOTE REGARDING TELEVISIONS AND THIS FIREPLACE Most television manufacturers instruct the homeowner not to place the television above a heat source like this fireplace. Doing so may decrease the longevity of the television and negate the warranty. -
Page 11: Minimum Framing Dimensions
Installation (for qualified installers only) Minimum Framing Dimensions Min. Framing - Without CoolSmart TV kit WARNING When using a CoolSmart TV kit, see section: “CoolSmart TV - Framing the Chase” on page 70. The fireplace enclosure must be a minimum 68” (1727mm) tall. Do not build into the fireplace enclosure. -
Page 12: Standoff Assembly
Installation (for qualified installers only) Standoff Assembly The side and rear standoffs must be assembled prior to placing the fireplace into position. These standoffs, when properly constructed, provide a guide for the required 1/2" clearance. NOTE: The rear standoffs are bent around the rear corners of the fireplace as shown below to the right. ©... -
Page 13: Minimum Vent "Bump Out" Application
Installation (for qualified installers only) Minimum Vent “Bump Out” application PB72 Linear LP & NG Installations 24” Vertical Vent Section (Min. Rise) Vent Approx. 58-3/4” (1493mm) Centerline FP Base to Approx. 72-3/4” (1848mm) Roof Eave © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install... -
Page 14: Nailing Brackets
Installation (for qualified installers only) Nailing Brackets The fireplace has nailing brackets on both sides. Secure the fireplace to the framing with the nailing brackets. NOTE: Make sure the fireplace is square and plumb when placed in the framing. Measured corner-to-corner the fireplace should be square. -
Page 15: Standard Vs. Extended Position
Installation (for qualified installers only) Standard vs. Extended Position There are two positions that the standoff/heat shield assembly can be installed. The standoffs are shipped in the standard (forward) position. If the unit is installed in the standard position no modification is needed. ... -
Page 16: Header And Pipe Shield Installation
Installation (for qualified installers only) Header and Pipe Shield Installation The header and pipe shield must be installed as shown below. NOTE: The header and pipe shields may be installed after the fireplace is in place and vent attached (this allows for the fireplace to fit into the framing underneath the header and for the vent to be installed more easily). - Page 17 Installation (for qualified installers only) Line up the holes on the pipe shield tabs with the holes on the top of the fireplace. Use the screws that secured the shield during shipping to attach the pipe shield to the top of the fireplace. ©...
- Page 18 Installation (for qualified installers only) Remove the (4) screws from each of the (2) header shields (keep the screws for reinstallation). Turn each of the shields over endwise and secure them back into place using the screws you just removed. The bent edge of the shields should be facing upward and toward the back of the fireplace (see illustration below).
- Page 19 Installation (for qualified installers only) When finished the fireplace should be configured like the picture below. © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install...
-
Page 20: Corner Installations
Installation (for qualified installers only) Corner Installations A typical 45° installation uses the framing dimensions shown in the illustration below (NOTE: all clearances still apply). (a) Corner to Wall (minimum) 76-7/16” (1942mm) (b) Corner to Center of Flue (typical) 31-1/4” (794mm) ©... -
Page 21: Outdoor Fireplace Installations
Installation (for qualified installers only) Outdoor fireplace installations Travis Industries Inc. gas-fired fireplaces are suitable for installation into outdoor areas protected from direct water impingement. In addition to maintaining listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of installed appliances (see the illustration to the right). -
Page 22: Removing The Front Panel
Installation (for qualified installers only) Removing the Front Panel The front cover may be removed to access the components. This is required when relocating the electrical or gas inlet location. To remove the front cover (a) Remove the center wingnuts. (b) Loosen the two outer screws. -
Page 23: Gas Line Requirements
Installation (for qualified installers only) Gas Line Requirements MASSACHUSETTS INSTALLATIONS - WARNING: THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN THE COMMONWEALTH OF MASSACHUSETTS. OTHER MASSACHUSETTS CODE REQUIREMENTS: Flexible connector must not be longer than 36 inches. ... -
Page 24: Gas Line Location
Installation (for qualified installers only) Gas Line Location NOTE FOR RIGID PIPE: When using rigid pipe, you may wish to disconnect the shutoff valve from the fireplace and route the pipe through the fireplace wall. First, disconnect the gas line from the shutoff valve. Disconnect the shutoff valve from the cover plate (4 screws outside fireplace). -
Page 25: Electrical Connection
Installation (for qualified installers only) Electrical Connection The electrical line to the grounded receptacle inside the fireplace must be installed by a qualified installer and must meet all local codes. Make sure the household breaker is shut off prior to working on any electrical lines. ... -
Page 26: Optional Wall Switch Or Thermostat Installation (Gsb And Mv Only)
Installation (for qualified installers only) Optional Wall Switch or Thermostat Installation (GSB and MV only) Do not connect 110-120 VAC to the gas control valve or wiring system of this fireplace. The switch and wiring must be installed by a qualified installer. This fireplace includes an optional wall switch (with wire) to operate the fireplace burner without accessing the internal on/off switch. -
Page 27: Vent Requirements
Installation (for qualified installers only) Vent Requirements The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each direct vent gas appliance must use its own separate vent system. -
Page 28: Vent Installation
Installation (for qualified installers only) Vent Installation Slide the vent sections together and turn 1/4 turn until the sections lock in place. Screws are not required to secure the vent. However, three screws may be used to secure vent sections together if desired. -
Page 29: Diffuser
Installation (for qualified installers only) Diffuser A diffuser is built into the appliance to adjust the flow rate of exhaust gases. Depending upon the vent configuration, you may be required to adjust the diffuser to the open position (see illustration below). The charts for vent configurations detail the correct diffuser position. -
Page 30: Minimum Vent Configuration
Installation (for qualified installers only) Minimum Vent Configuration Use 5x8” Diameter Coaxial Vent NOTE: Use the included thimble assembly whenever passing through a wall. (use on front and back of wall penetration). See picture below. The termination must fall within the shaded area shown in the chart. Use the indicated restrictor positions. ... -
Page 31: Vent Configuration: Vertical Termination
Installation (for qualified installers only) Vent Configuration: Vertical Termination Vent configurations 20’ or above (from the base of the fireplace) use 6-5/8” dia. vent. Connect a 8” to 6-5/8” reducer directly to the fireplace (98900165). NOTE: The included thimble assembly is not required and may be discarded. ... -
Page 32: Vent Configuration: Horizontal Termination With Vertical Rise
Installation (for qualified installers only) Vent Configuration: Horizontal Termination with Vertical Rise Vent configurations 20’ or above (from the base of the fireplace) use 6-5/8” dia. vent. Connect a 8” to 6-5/8” reducer directly to the fireplace (98900165). NOTE: For this configuration the included thimble assembly is not required and may be discarded. ... -
Page 33: Masonry Chimney Conversions
Installation (for qualified installers only) Masonry Chimney Conversions The vent may be adapted to utilize an existing masonry fireplace using the Duravent Co-Linear Adapter (sku#96200328). The vent must be installed following all directions included with the vent and those listed below: ... -
Page 34: Class A Chimney Conversion
Installation (for qualified installers only) Class A Chimney Conversion Duravent provides a conversion kit for those wishing to use an existing class A chimney to vent this direct fireplace. The illustration below gives an overview of this type of installation. See the instructions included with the kit for details. ... -
Page 35: Termination Requirements
Installation (for qualified installers only) Termination Requirements Venting terminals shall not be recessed into a wall or siding. Minimum 9" (229mm) clearance from any door or window Minimum 12" (305mm) above any grade, veranda, porch, deck or balcony Minimum 1" (25mm) from outside corner walls NOTE: Clearance in accordance with local installation codes and the requirements of the gas supplier. -
Page 36: Hearth Requirements
Installation (for qualified installers only) Hearth Requirements If installed near carpet or other combustible flooring, the fireplace must be raised so the base of the unit is above the carpet surface or flooring material. If the heater is installed at floor level, we recommend a non- combustible hearth to protect the flooring surface from discoloration or other negative impact from the heater. -
Page 37: Facing Requirements
Installation (for qualified installers only) Facing Requirements Non-combustible facing must extend from the base of the fireplace to 35-1/2”(902mm) above the base of the fireplace (see illustration below for details). Non-combustible facing must extend the entire width of the unit to the framing opening on both sides. ... -
Page 38: Standard Vs. Extended Position
Installation (for qualified installers only) Standard vs. Extended Position The nailing brackets on the side of the fireplace may be placed in the standard or extended position to best suit the facing being used (the header shield is also moved). Most installations use the standard nailing bracket position. -
Page 39: Facing Thicker Than 1-1/2
Installation (for qualified installers only) Facing Thicker than 1-1/2”. If using thick facing, make sure to leave the thick facing guide in place. Make sure to leave the screen assembly in the stock (fully in) position. You may leave the screen assembly in place while installing thick facing. You may wish to protect it with plastic (or other suitable material) to repel debris. -
Page 40: Screen Assembly Mounts
Installation (for qualified installers only) Screen Assembly Mounts The screen assembly mounts (located on outer front edges of the fireplace) are adjustable to allow the screen assembly to be positioned 1/2" to 1-/12” from the front of the fireplace. This allows facing to tuck under the screen assembly. -
Page 41: Do Not Drill Or Screw Zone
Installation (for qualified installers only) Do Not Drill or Screw Zone When using screws to secure tile-board or other non-combustible to the front of the fireplace, make sure to avoid the area on the front of the fireplace that is painted with the “DO NOT DRILL” shading. Make sure screws penetrate no more than ½”... -
Page 42: Mantel Requirements
Installation (for qualified installers only) Mantel Requirements Use the table below to determine the maximum mantel depth allowed. The mantel depth (measured from the non-combustible facing) must fall within the shaded portion of the table. Any material above the fireplace that protrudes more than 3/4” (19mm) from the non-combustible facing is considered a mantel and must meet the mantel requirements. -
Page 43: Mantel Clearances
Installation (for qualified installers only) Use of a Non-Combustible Mantel Below Listed Mantel Clearances Each gas fireplace has a unique set of mantel requirements. If you wish to place a non-combustible mantel at a lesser height than specified in this manual, it will need to meet the following requirements: ... -
Page 44: Finalizing The Installation
Installation (for qualified installers only) Finalizing the Installation 1. Remove the glass (see page 48). NOTE: If using propane (LP) convert the appliance prior to installing the media. 2. We recommend you purge the gas line at this time (with the glass removed). This allows gas to be detected once it enters the firebox, ensuring gas does not build up. -
Page 45: Air Shutter Adjustment
Installation (for qualified installers only) 6. Start the main burner and verify the burner ignites correctly. 7. Leak test all gas joints. Air Shutter Adjustment Let the heater burn for fifteen minutes (make sure the logs and glass are in place). The flames should be yellow with no sooting. -
Page 46: Location Of Controls
Installation (for qualified installers only) Location of Controls There is a door on the lower portion of the screen assembly to provide access to the manual controls on the fireplace. The door is held closed by two magnets. Open the door by gently pulling outward on the upper portion of the lower trim. -
Page 47: Mv Units Only - Starting The Pilot
Installation (for qualified installers only) MV Units Only - Starting the Pilot Remove the glass frame before starting the pilot. The pilot flame is required to ignite the main burners (it also plays a safety role). It should be left on once lit. It will stay lit unless the gas control valve is turned to "OFF"... -
Page 48: Pilot Fuel Conservation Timer (Mv Units)
Installation (for qualified installers only) Pilot Fuel Conservation Timer (MV units) 7 Day Pilot Shutoff Timer (MV Units) This appliance is equipped with a 7 day pilot shutoff timer. This timer helps conserve fuel and save money by turning the pilot off when the appliance is not used for 7 days (this timer is mandated in certain areas for conservation purposes). -
Page 49: Pilot Fuel Conservation Timer (Gsb & Gsr Units)
Installation (for qualified installers only) Pilot Fuel Conservation Timer (GSB & GSR units) 7 Day Pilot Shutoff Timer (applies to units in CPI mode only) This appliance may be equipped with a 7 day pilot shutoff timer. This timer helps conserve fuel and save money by turning the pilot off when the appliance is not used for 7 days (this timer is mandated in certain areas for conservation purposes). -
Page 50: Glass Frame Removal And Installation
Installation (for qualified installers only) Glass Frame Removal and Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance. - Page 51 Installation (for qualified installers only) 2. Remove the glass frame following the directions below. NOTE: Make sure the glass frame is all the way in place – It should be parallel with the front of the fireplace when installed. Replacement Glass Frame Part # 72 ProBuilder 250-04654 ©...
- Page 52 Installation (for qualified installers only) The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install...
-
Page 53: Barrier Screen Visual Deflector Adjustment
Installation (for qualified installers only) Barrier Screen Visual Deflector Adjustment The barrier screen assembly has an adjustable visual deflector along the lower edge. If the assembly is adjusted to accommodate thick facing material, adjust the deflector, as shown below, to block the view of the valve area. 1. -
Page 54: Crushed Glass Installation
Installation (for qualified installers only) Crushed Glass Installation Do not allow the crushed glass to block the air slots or to become too thick (maximum 1 layer deep on the burner). Failure to properly install glass may lead to sooting and improper burning. - Page 55 Installation (for qualified installers only) Spread an even layer of crushed glass over the media tray and burner. The glass must be only 1 layer thick on the burner but can be 2 layers thick on the media tray. Make sure no glass is in the pilot area indicated in the picture below.
-
Page 56: Lp Conversion Instructions
Installation (for qualified installers only) LP Conversion Instructions WARNING This conversion kit shall be installed by a qualified service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. - Page 57 Installation (for qualified installers only) 3. Remove both burners. Each is held in place with 6 screws (1/4” nutdriver). 4. Use a ¼” nut driver to remove (4) screws (2/per side) securing the air shutter retainers (left and right) to the fireplace.
- Page 58 Installation (for qualified installers only) 5. Follow the directions below to replace the orifice. 6. Reinstall the orifice gasket that was removed in step 6. The longer portion of the gasket should be at the bottom. 7. Reinstall the Air Shutter Retainers that were removed in Step 4. ©...
- Page 59 Installation (for qualified installers only) 8. Install the LP pilot orifice following the instructions below. (a) Use a 7/16” open-end wrench to remove the pilot hood. (b) Remove and discard the Natural Gas (NG) orifice. Place the LP orifice in the pilot assembly then replace the pilot hood, tightening the pilot hood until it is snug (do not over-tighten).
- Page 60 Installation (for qualified installers only) 9. Remove the regulator from the front of the gas control valve. There is an knob extension on the regulator knob that will need to be moved to the new regulator. To remove the extension pull toward you. Replace with the propane regulator, using the new gasket and screws included with the regulator.
-
Page 61: Wall Mount Remote Thermostat Installation (Optional For Gsb2 And Mv Only)
Installation (for qualified installers only) Wall Mount Remote Thermostat installation (optional for GSB2 and MV only) Packing List GS Wall Remote (4) AA Batteries Receiver Assembly (3) AAA Batteries Switch Blank Installation If Using the Optional Blower, Install it First The optional blower should be installed before installing the remote. - Page 62 Installation (for qualified installers only) Remove the switch from the dashboard by depressing the tabs on the top and the bottom of the switch housing while pressing the back of the switch forward through the hole in the dashboard. Replace the switch with the included switch blank (see pictures below).
- Page 63 Installation (for qualified installers only) Connect the on/off switch wires (disconnected earlier) to the connectors on the back of the receiver. -- For GSB2 appliances make sure to attach white wire to white wire, green wire to green wire. -- For MV appliances, wire orientation does not matter. Replace the dashboard.
-
Page 64: Wiring Diagram - Mv Version
Installation (for qualified installers only) Wiring Diagram – MV Version Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Optional Blower Wiring © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install... -
Page 65: Wiring Diagram - Gsb2 Version
Installation (for qualified installers only) Wiring Diagram – GSB2 Version Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install... -
Page 66: Wiring Diagram - Gsr2 Version
Installation (for qualified installers only) Wiring Diagram – GSR2 Version Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install... -
Page 67: Coolsmart Tv (Optional) - Installation Overview
Installation (for qualified installers only) CoolSmart TV (Optional) - Installation Overview The CoolSmart system is designed to redirect the convective heat of the fireplaces from the front of the unit, just above the glass, to a location higher on the wall. The use of this kit allows for reduced clearances to televisions and a recessed cavity above the fireplace. -
Page 68: Coolsmart Tv - Installation Requirements
Installation (for qualified installers only) CoolSmart TV - Installation Requirements Grill and Manifold Dimensions The grill may be installed over the facing to provide an aesthetic opening for the convection outlet. (2) 8-32 x 1-1/2” screws attach the trim to the upper manifold. This allows variable thickness of finish material. -
Page 69: Coolsmart Tv - Combustible "Over-Facing" (Optional)
Installation (for qualified installers only) CoolSmart TV - Combustible “Over-Facing” (Optional) WARNING When using the CoolSmart TV kit, Combustible material can be installed over the non-combustible board on the front of the fireplace. To be clear, there will be (2) layers of board over the front of the appliance, one non- combustible that covers the entire front of the fireplace, and a second layer that can be combustible material that is placed on top of the non-combustible board. -
Page 70: Coolsmart Tv - Framing The Chase
Installation (for qualified installers only) CoolSmart TV - Framing the Chase © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install... -
Page 71: Coolsmart Tv - Mantel Clearances
Installation (for qualified installers only) CoolSmart TV - Mantel Clearances When using the CoolSmart Kit the mantel clearances are revised (see illustration below). The mantel clearances in the manual may be disregarded when using this kit. © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install... - Page 72 Installation (for qualified installers only) 72 ProBuilder – Fireplace Preparation 1. Prepare the fireplace for installation into the framing by removing the two shields from the top of the header standoff assembly. Remove the standoffs from the shields. Set the shields, standoffs and fasteners aside for reinstallation.
-
Page 73: Coolsmart Tv - Fireplace Preparation
Installation (for qualified installers only) CoolSmart TV - Fireplace Preparation Use snips or diagonal cutters to snip the tab on the knockouts. Press on the far side away from the tap to pop the edge of the knockout up. Grab on to the knockout with pliers and bend it back and forth until the remaining tabs break free. Discard the knock out plate. -
Page 74: Using Oval Pipe To Get Past An Obstruction
Installation (for qualified installers only) Insert a starter collar into each of the (6) holes that were uncovered in the previous step and bend the tabs to secure the starter collar to the fireplace.. Seal the joints with silicone caulk or aluminum (U.L. 181A-P) tape Install the fireplace into the framed chase. - Page 75 Installation (for qualified installers only) © Travis Industries 4/22/21 - 1458 PB 72 MV/GSB2/GSR2 Install...
