Televes NanoKom 561621 Quick Start Manual

Televes reserves the right to modify the product

Highlights

Equipped with USOS (User Selectable Output Signal) technology: the installer selects the desired output level,
which remains stable. The device automatically adjusts gain according to the input signal variation.
Separate amplification and very low noise figure, thus respecting signal quality
Ultra-small ergonomic design
EasyF connection system
Can be powered in the 12 V-to-24 V range
Fully automated manufacturing, subject to the most stringent quality controls
High-screening Zamak chassis

Main features

https://www.televes.com/uk/567810-NanoKom mast amplifier kit and PicoKom power supply.html

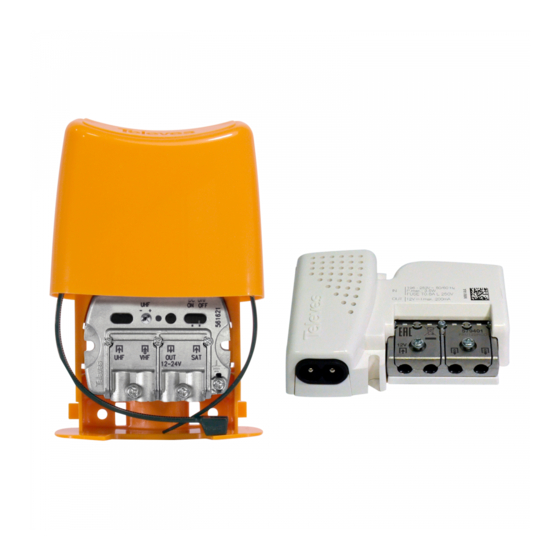

NanoKom mast amplifier kit
and PicoKom power supply
Ref. 561621 + Ref. 579401

The kit consists of:

Ref. 561621: NanoKom mast amplifier, 3 inputs: UHF-VHFmix-IFmix
Masthead amplifier for the amplification and combination of
terrestrial and satellite television signals coming from several
antennas.
Equipped with 3 inputs: the signal on the UHF input is amplified,
whereas the VHF and SAT signals are only mixed. Allows DC pass
towards the satellite input to power the LNB. Red compliant.
Ref. 579401: PicoKom power supply 12 V - 200 mA, 2 outputs
12 V-power supply (200 mA) that powers equipment through the
input coaxial cable while allowing the transmission of the TV signal.
Included in the installation to power either mast amplifiers or a BOSS
system.
Ref.567810
Art.Nr
EAN13 8424450174043
