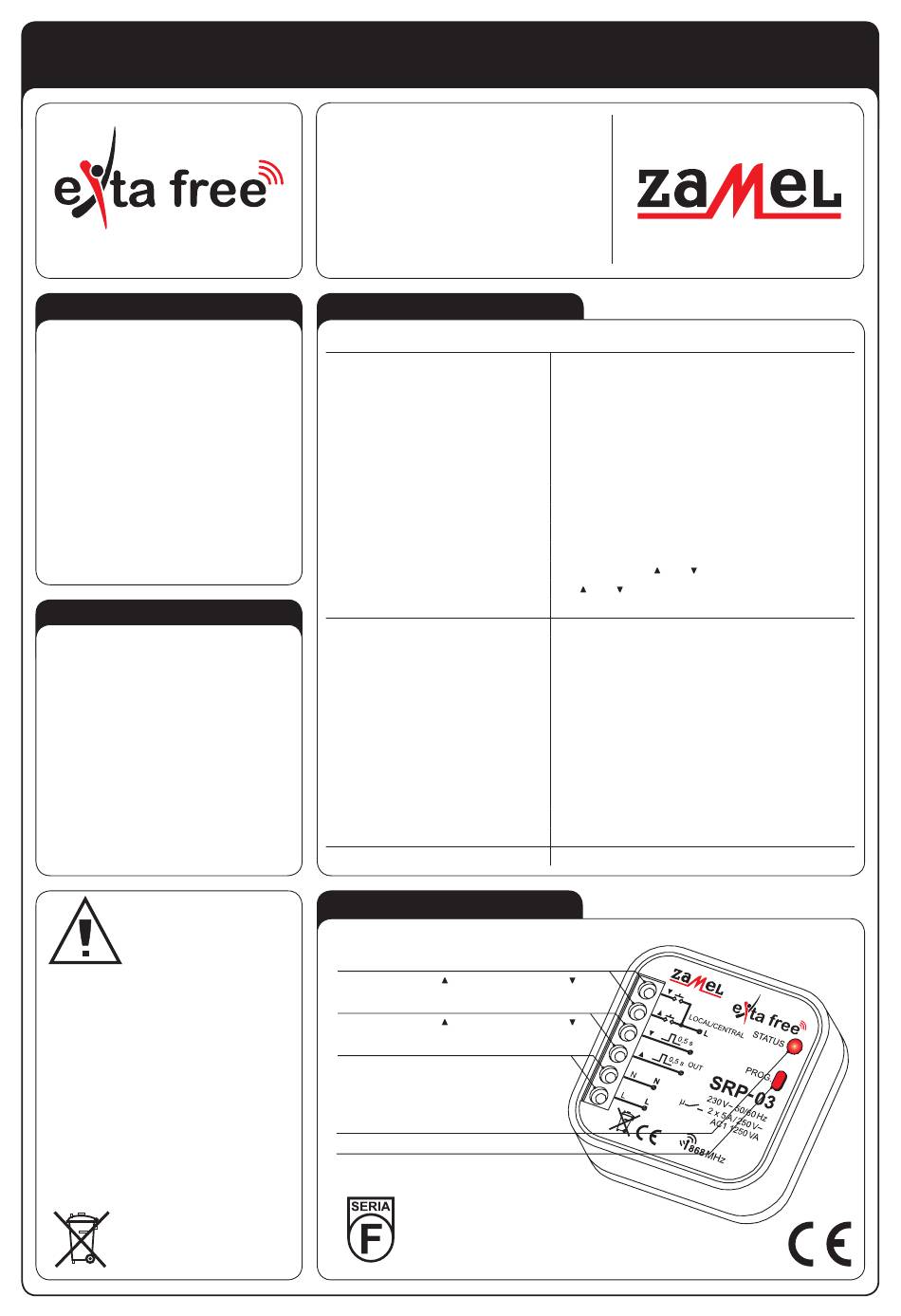

Zamel SRP-03 Manual Instruction

CENTRAL RADIO ROLLER BLINDS CONTROLLER SRP-03

DESCRIPTION

Radio roller blinds controller SRP-03 is
used to realise central control function of
roller blind drives. The device generates
central control impulses (full opening or
closing of a single roller blind or a group
of roller blinds, the impulse is 0,5 second
long). SRP-03 device can be used as an
element of wireless (EXTA FREE system
transmitters) or wired (roller blind switch-
es) central control - which allows for in-
tegration of wired roller blinds switches
(SRM-10, SRP-01 or devices of different
manufacturers) with wireless EXTA FREE
control system.

FEATURES

● used in wired and wireless central (group)
control of roller blind, sunblind and gate
drives, (electric motors of 230V AC),
● inputs of wired roller blind central control,
● integration with wired roller blind switches
SRM-10 and SRP-01 or devices of differ-
ent manufacturers,
● energy-saving device, possibility of con-
stant work,
● possibility of cooperation with any roller
blind switch (which is not equipped in
backlight elements),
The device is designed for sin-
gle-phase installation and must
be installed in accordance with
standards valid in a particular
country. The device should be
CAUTION! connected according to the
details included in this operating manual. Instal-
lation, connection and control should be carried
out by a qualified electrician staff, who act in ac-
cordance with the service manual and the device
functions.
In case of casing dismantling an electric shock
may occur, and the guarantee is lost then. Before
installation make sure the connection cables are
not under voltage. The cruciform head screw-
driver 3,5 mm should be used to instal the device.
Improper transport, storage, and use of the device
influence its wrong functioning. It is not advisable
to instal the device in the following cases: if any
device part is missing or the device is damaged or
deformed. In case of improper functioning of the
device contact the producer.
The symbol means selective
collecting of electrical and electronic
equipment.
It is forbidden to put the used
equipment together with other waste
ZAMEL Sp. z o.o.
ul. Zielona 27, 43-200 Pszczyna, Poland
tel. +48 (32) 210 46 65, fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl

TECHNICAL DATA

Input (supply) terminals: L, N
Input rated voltage: 230V AC
Input voltage tolerance: -15 ÷ +10 %
Nominal frequency: 50 / 60 Hz
Nominal power consumption: 0,4 W („stand-by" mode) / 0,7 W (operation mode)
Transmission: radio 868,32 MHz
Coding way: unidirectional
Maximum number of transmitters: 32
Optic signalling of transmitter's operation: LED red diode
Control terminals: LOCAL/CENTRAL (up), (down)
Roller blind motor power supply terminals: OUT (up), (down)
Relay contact parameters: 2NO 5A / 250V~ AC1 1250 VA (voltage contacts)
Number of terminal clamps: 6
Section of connecting cables: 0,2 ÷ 2,50 mm
Ambient temperature range: -10 ÷ +55
Operating position: free
Casing mounting: installation cable box Ø60 mm
Casing protection degree: IP20 (EN 60529)
Protection level: II
Overvoltage category: II
Pollution degree: 2
Surge voltage: 1 kV (EN 61000-4-5)
Dimensions: 47,5 x 47,5 x 20 mm
Reference standard: EN 60669, EN 60950, EN 61000

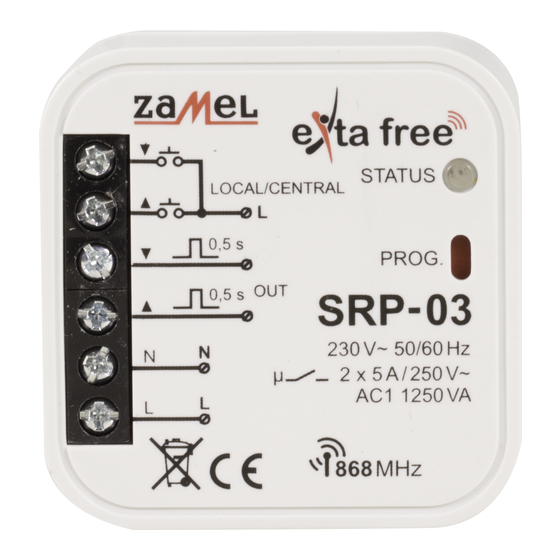

APPEARANCE

Central wired control terminals
(upward movement , downward movement )
Signal control output terminals
(upward movement , downward movement )
Input (supply) terminals (L, N)
Optic signalling of receiver's operation
Programming push-button
The ZAMEL company devices
which are characterised
with this sign can cooperate
with each other
MANUAL INSTRUCTION
SRP-03
Coding: addressing transmission
Range: up to 250 m in the open area
2
C
o
Weight: 0,039 kg
VER. 003_19.05.2011
