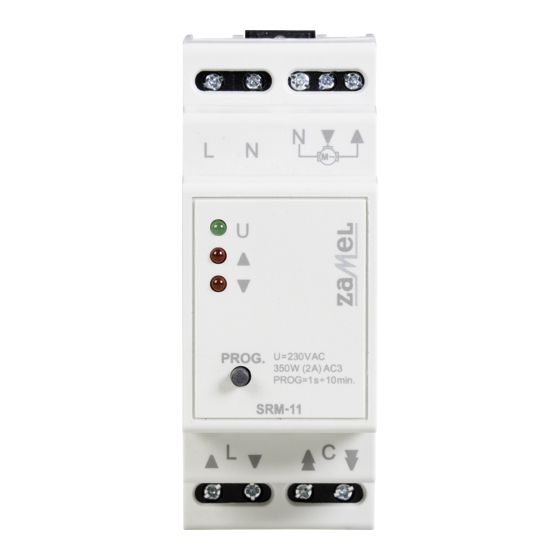

Zamel exta SRM-11 Instruction Manual

MOUNTING
1. Disconnect power supply by the phase
fuse, the circuit-breaker or the switch-
-disconnector combined to the proper
circuit.
2. Check if there is no voltage on the con-
nection cables by means of a special
measuring equipment.
3. Connect the device cables with the ter-
minals in accordance with the installing
diagram.
4. Mount SRM-11 in a junction box.
5. Switch on the power supply from the
mains and check if the device operates
properly.
CASING DIMENSIONS
The device is designed for a
single-phase installation and
must be installed in accor-
dance with standards valid
CAUTION
in a particular country. Installation, con-
nection and control should be carried out
by a qualified electrician staff, who act
in accordance with the instruction ma-
nual and the device functions. In case
of casing dismantling, the guarantee is
lost and an electric shock may occur.
Before installation make sure the con-
nection cables are not under voltage.
The cruciform head screwdriver 3,5 mm
should be used to install the device. Im-
proper transport, storage, and use of the
device influence its wrong functioning.
It is not advisable to install the device
in the following cases: if any device part
is missing or the device is damaged or
deformed. In case of improper functio-
ning of the device contact the producer.
The symbol means selective collecting of
electrical and electronic equipment.
It is forbidden to put the used equipment
together with other waste.
WARRANTY CARD
There is a 24-month guarantee on the product.
Salesman stamp and signature, date of sale.

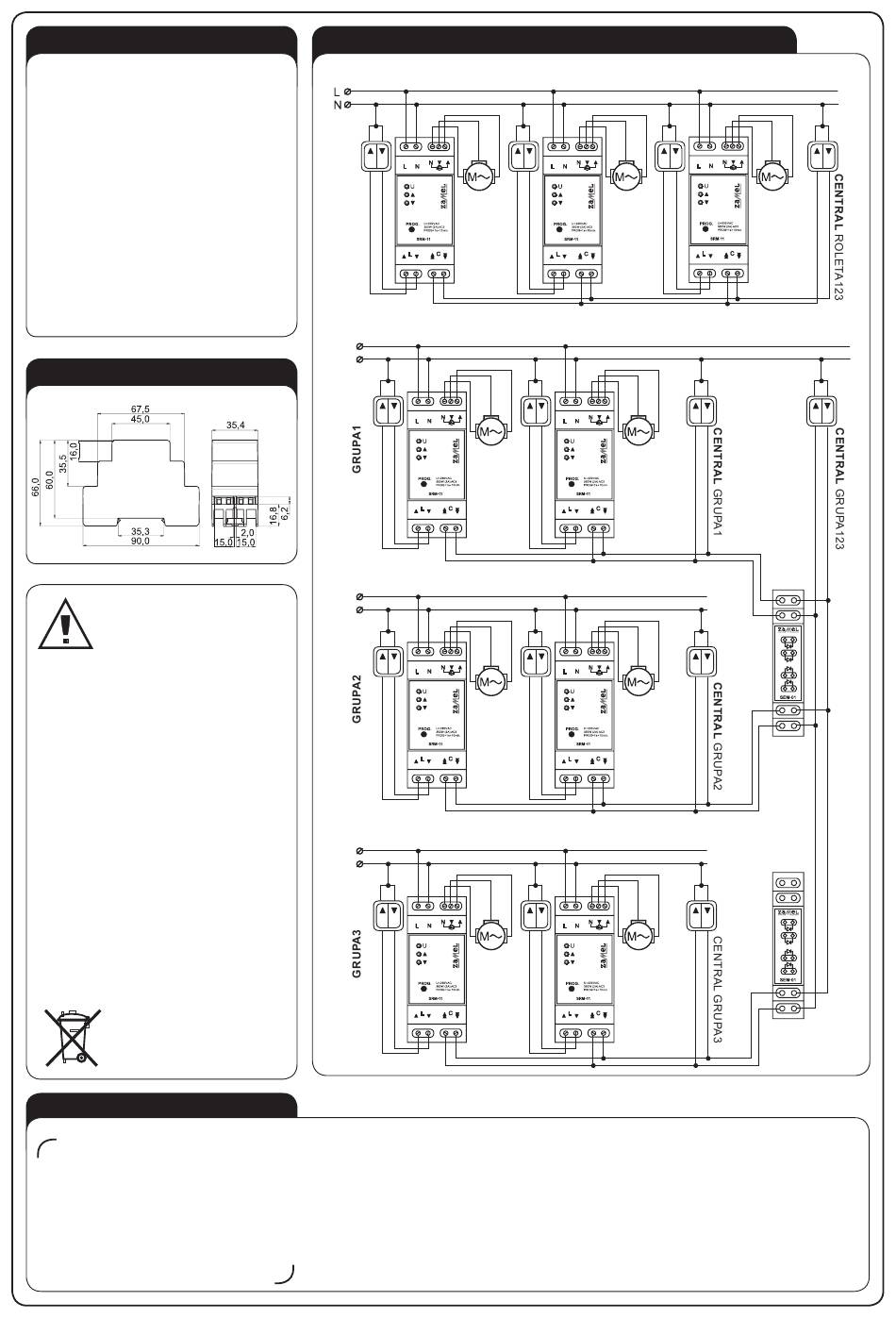

INSTALLATION EXAMPLES
Grupa rolet
LOCAL ROLETA1
230 V AC
Rozbudowana instalacja roletowa
LOCAL ROLETA1
L1
230 V AC
N
LOCAL ROLETA3
L2
230 V AC
N
LOCAL ROLETA5
L3
230 V AC
N
1. ZAMEL Sp. z o. o. assures a 24-month guarantee for the product.
2. The manufacturer's guarantee does not cover any of the following actions:
a) mechanical damage during transport, loading / unloading or under other circumstances,
b) damage caused by incorrect product mounting or misuse,
c) damage caused by unauthorised modifications made by the PURCHASER or any third parties to the product or any other devices
required for the product functioning,
d) damage caused by Act of God or any other incidents independent of the manufacturer – ZAMEL Sp. z o. o.
e) power supply (batteries) to be equipped with a device in the moment of sale (if they appear);
3. The PURCHASER shall lay any claims in writing in the place of purchase or to ZAMEL Sp. z o. o.
4. ZAMEL Sp. z o. o. is liable for processing any claim according to current Polish legislation.
5. ZAMEL Sp. z o. o. shall process the claim at its own discretion: product repair, replacement or money return.1
6. The manufacturer's guarantee is valid in the Republic of Poland.
7. The PURCHASER's statutory rights in any applicable legislation whether against the retailer arising from the purchase contract or
otherwise are not affected by this warranty.
LOCAL ROLETA2 LOCAL ROLETA3
LOCAL ROLETA2
LOCAL ROLETA4
LOCAL ROLETA6
