Zamel ledix SLR-13 Quick Start Manual

RGB controller 1 ÷ 10 V
SLR-13
Mounting in a Ø60 Mounting
junction box indoor only

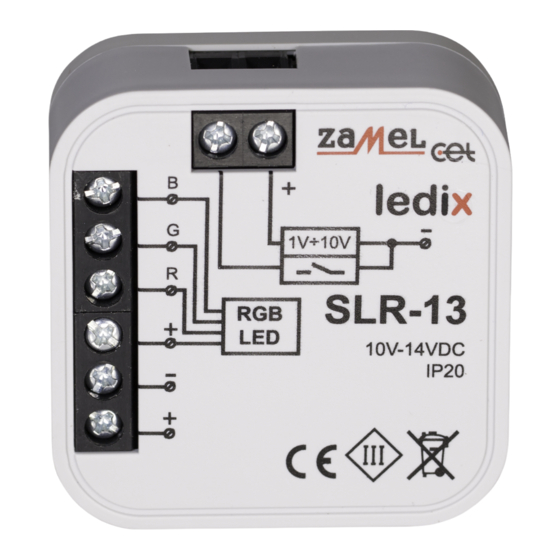

SLR-13 controller is designed to control RGB LED diodes in the common "+" system (LEDIX
series standard RGB fittings, strips and RGB modules) supplied with 1 ÷ 10 V DC. There is
a wired control in cooperation with a potentiometer in 1 ÷ 10 V standard. Characteristic
features:
• in cooperation with a potentiometer in 1 ÷ 10 V standard with the connector function, it
realises 3 RGB diodes control programmes: fluent colour selection - realised by turning the
potentiometer's knob, fluent brightening/dimming, switching on/switching off,
• light switching off realised by turning the potentiometer to the minimum,
• three transistor (MOSFET) outputs with a maximum capacity of 2,5 A / output
• a 9-bit resolution control guarantees fluent colour changes,
• easy adaptation and control of RGB LED products supplied with 10 ÷ 14 V DC in installa-
tions with dimmers in 1 ÷ 10 V standard,
• small dimensions (easy mounting in the Ø60 junction box),
• low power consumption in the standby mode - a device designed for a continuous opera-
tion.
PL 43-200 Pszczyna, ul. Zielona 27, Poland
tel: +48 32 449 15 00, fax: +48 32 449 15 02
10÷14 V DC / 0,1W; IP20
weight: 27 g
The symbol means selective collecting of electrical and electronic equipment.
It is forbidden to put the used equipment together with other waste.
Declaration of Conformity is on www.ledix.pl
SCAN
the technical
data
Cooperation with
a potentiometer
in 1÷10 standard
Cet Lighting Sp. z o.o.
e-mail: ledix@ledix.pl, www.ledix.pl
SLR-13 ENG Ver. 01
RGB controller
1 ÷ 10 V
SLR-13
10 ÷ 14 V DC
