UM2750
User manual
SPI display expansion board for STM32 Nucleo
Introduction
The
X-NUCLEO-GFX01M1
expansion board adds graphic user interface (GUI) capability to STM32 Nucleo boards.
It features a 2.2" SPI QVGA TFT display as well as a 64-Mbit SPI NOR Flash memory for storing graphic images, texts and
texture. The expansion board also offers a joystick for GUI navigation.
X-NUCLEO-GFX01M1 uses the ST morpho connector. It is compatible with the NUCLEO-F030R8, NUCLEO-F070RB,
NUCLEO-F072RB, NUCLEO-F091RC, NUCLEO-F401RE, NUCLEO-F410RB, NUCLEO-F411RE, NUCLEO-F446RE,
NUCLEO-G071RB, NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L412RB-P, NUCLEO-L433RC-P, NUCLEO-L452RE,
NUCLEO-L452RE-P
and
NUCLEO-L476RG
Nucleo boards.

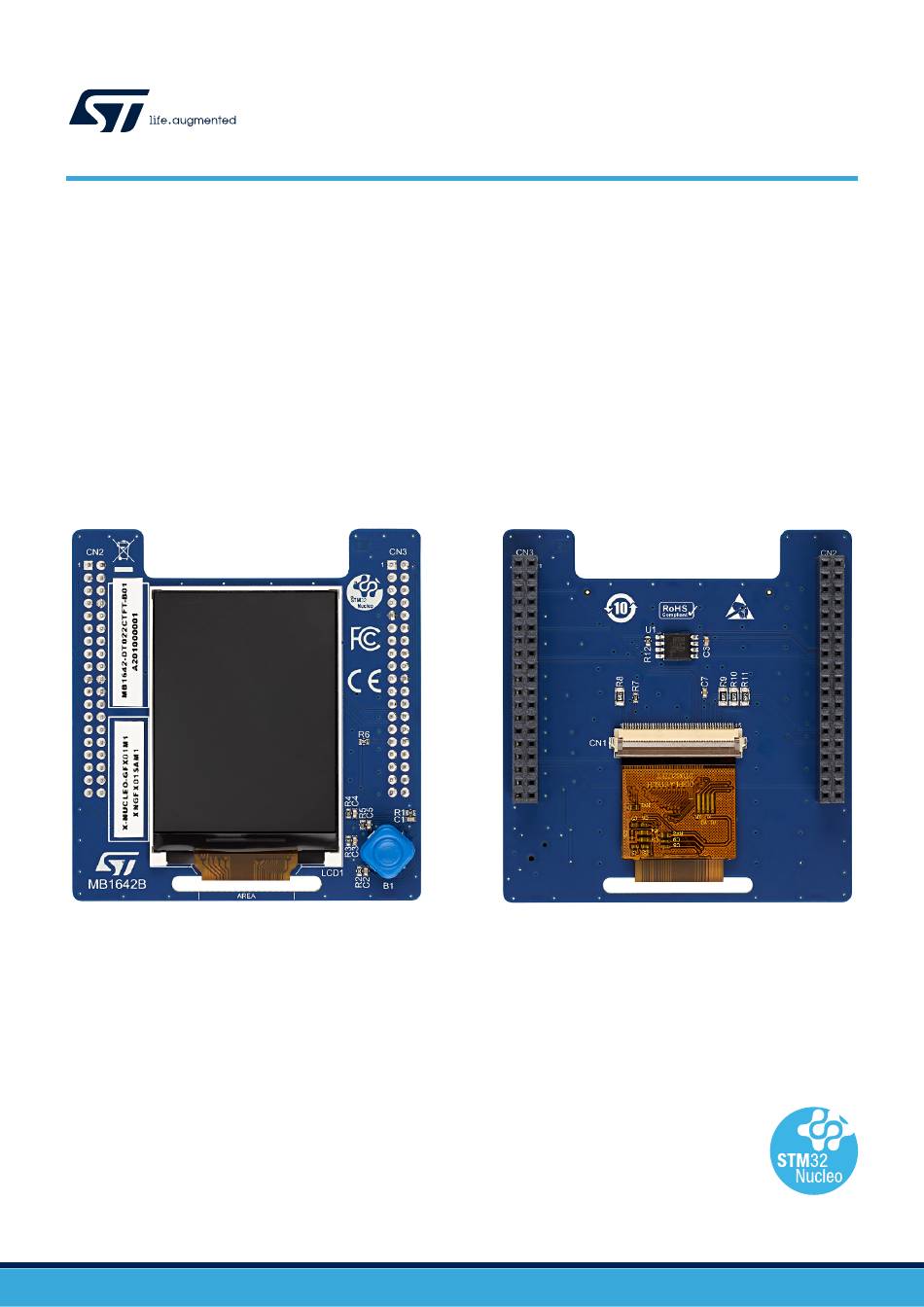

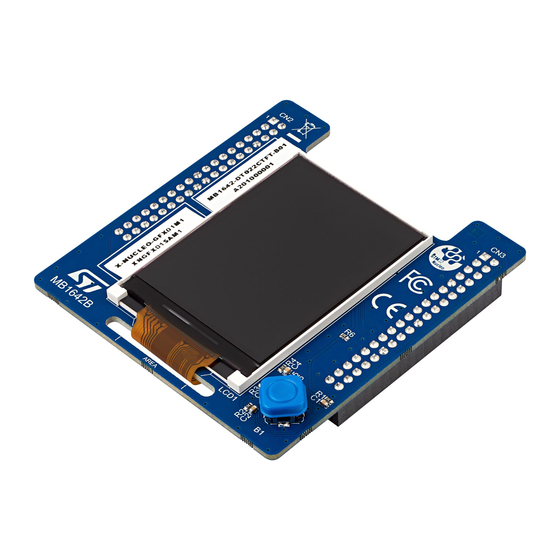

Figure 1.
X-NUCLEO-GFX01M1 top view
Figure 2.
X-NUCLEO-GFX01M1 bottom view
Pictures are not contractual.
UM2750 - Rev 1 - August 2020
www.st.com
For further information contact your local STMicroelectronics sales office.
