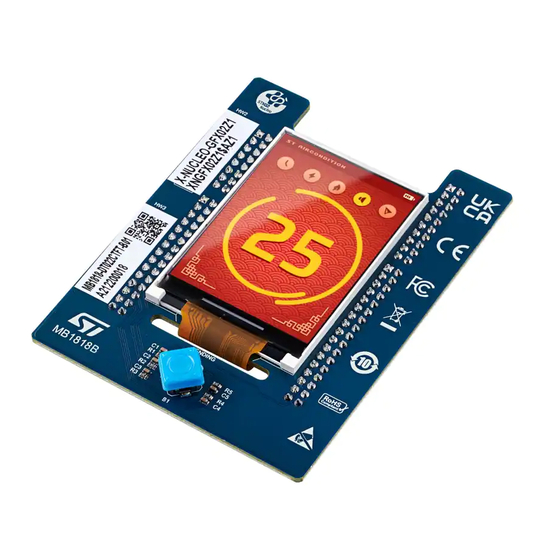

ST X-NUCLEO-GFX02Z1 User Manual

ST X-NUCLEO-GFX02Z1 User Manual

Display expansion board for stm32 nucleo-144

Advertisement

Quick Links

UM2905
User manual
Display expansion board for STM32 Nucleo-144
Introduction
The
X-NUCLEO-GFX02Z1
expansion board adds graphic user interface (GUI) capability to STM32 Nucleo-144 boards.
It features a 2.2" 8-bit parallel interface TFT display as well as a 64-Mbit Q-SPI NOR Flash memory for storing graphic images,
texts and texture. The expansion board also offers a joystick for GUI navigation.
X-NUCLEO-GFX02Z1
features the Zio connector. It is compatible with the NUCLEO-F412ZG, NUCLEO-F413ZH,
NUCLEO-
F446ZE, NUCLEO-F722ZE, NUCLEO-F746ZG, NUCLEO-F756ZG, NUCLEO-F767ZI, NUCLEO-H743ZI, NUCLEO-H723ZG,
NUCLEO-H753ZI, NUCLEO-H745ZI-Q, NUCLEO-H755ZI-Q, NUCLEO-H7A3ZI-Q, NUCLEO-L496ZG, NUCLEO-L496ZG-P,
NUCLEO-L4A6ZG, NUCLEO-L4P5ZG, NUCLEO-L4R5ZI, NUCLEO-L4R5ZI-P,
NUCLEO-L552ZE-Q
and
NUCLEO-U575ZI-Q
Nucleo-144 boards.

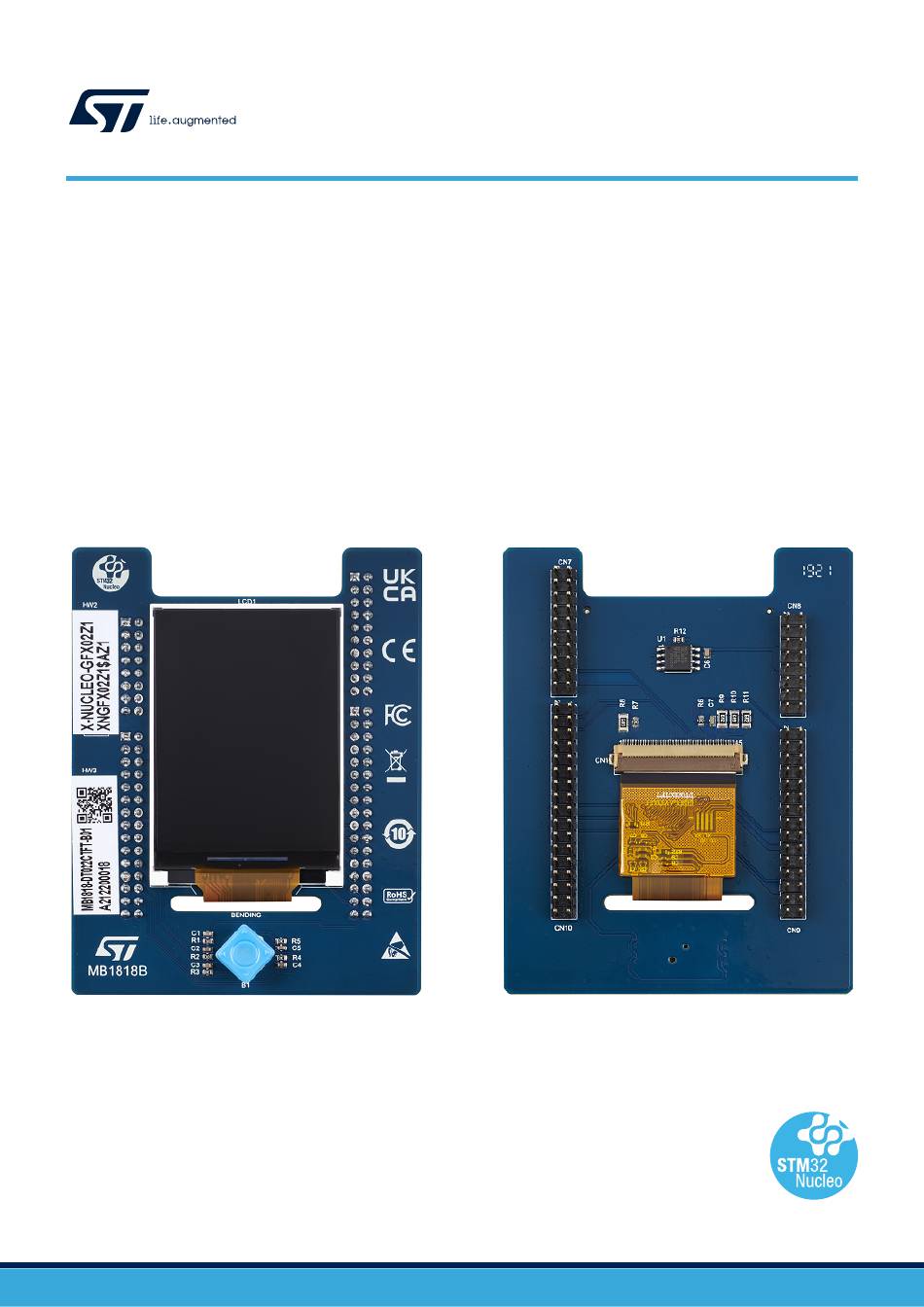

Figure 1.
X-NUCLEO-GFX02Z1 top view
Figure 2.
X-NUCLEO-GFX02Z1 bottom view
Pictures are not contractual.
UM2905 - Rev 2 - November 2021
www.st.com
For further information contact your local STMicroelectronics sales office.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the X-NUCLEO-GFX02Z1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ST X-NUCLEO-GFX02Z1

  • Page 1: Figure 1. X-Nucleo-Gfx02Z1 Top View

    NUCLEO-H753ZI, NUCLEO-H745ZI-Q, NUCLEO-H755ZI-Q, NUCLEO-H7A3ZI-Q, NUCLEO-L496ZG, NUCLEO-L496ZG-P, NUCLEO-L4A6ZG, NUCLEO-L4P5ZG, NUCLEO-L4R5ZI, NUCLEO-L4R5ZI-P, NUCLEO-L552ZE-Q NUCLEO-U575ZI-Q Nucleo-144 boards. Figure 1. X-NUCLEO-GFX02Z1 top view Figure 2. X-NUCLEO-GFX02Z1 bottom view Pictures are not contractual. UM2905 - Rev 2 - November 2021 www.st.com For further information contact your local STMicroelectronics sales office.
  • Page 2: Features

    UM2905 Features Features • 2.2” 8-bit parallel interface QVGA TFT LCD • 64-Mbit Q-SPI NOR Flash memory • Joystick for easy menu navigation • Compatible with selected STM32 Nucleo-144 boards using the Zio connector UM2905 - Rev 2 page 2/24...
  • Page 3: Ordering Information

    UM2905 Ordering information Ordering information To order the X-NUCLEO-GFX02Z1 module, refer to Table Table 1. Ordering information Order code Board reference X-NUCLEO-GFX02Z1 MB1818 ‑M processor. ® ® The STM32 Nucleo-144 boards feature STM32 32-bit microcontrollers based on the Arm Cortex Note: Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.
  • Page 4: Development Environment

    UM2905 Development environment Development environment Demonstration software The demonstration software supporting the X-NUCLEO-GFX02Z1 expansion board is available from the X-CUBE- DISPLAY STM32Cube Expansion Package and must be programmed into the corresponding Nucleo-144 board. The latest versions of the demonstration source code and associated documentation can be downloaded from www.st.com.
  • Page 5: Quick Start

    • Nothing should be loose in the board plastic bag or in the box To start using the X-NUCLEO-GFX02Z1 expansion board, follow the steps below: Plug the board onto a compatible STM32 Nucleo-144 development board Download the evaluation firmware and full documentation set from www.st.com/en/product/x-cube-display...
  • Page 6: Hardware Layout And Configuration

    Hardware layout and configuration Figure 3 Figure 4 help users to locate the different features on the X-NUCLEO-GFX02Z1 board. The mechanical dimensions of the X-NUCLEO-GFX02Z1 product are shown in Figure Figure 3. X-NUCLEO-GFX02Z1 PCB layout: top side 2.2" QVGA TFT LCD (LCD1)
  • Page 7: Figure 4. X-Nucleo-Gfx02Z1 Pcb Layout: Bottom Side

    UM2905 Hardware layout and configuration Figure 4. X-NUCLEO-GFX02Z1 PCB layout: bottom side 64-Mbit Q-SPI NOR Flash memory (U1) LCD ZIF connector (CN1) ST Zio connectors (CN7, CN8, CN9, CN10) UM2905 - Rev 2 page 7/24...
  • Page 8: Figure 5. X-Nucleo-Gfx02Z1 Mechanical Drawing

    UM2905 Hardware layout and configuration Figure 5. X-NUCLEO-GFX02Z1 mechanical drawing UM2905 - Rev 2 page 8/24...
  • Page 9: Power Supply

    UM2905 Power supply Power supply X-NUCLEO-GFX02Z1 is directly powered by a 3.3 V power supply provided by the Nucleo-144 development board through pin 7 of the CN8 connector. 8-bit parallel interface QVGA TFT LCD (LCD1) 5.2.1 Description The 8-bit parallel interface QVGA TFT LCD is connected to the 8-bit parallel interface (D0 to D7) of the STM32 device.
  • Page 10: Q-Spi Nor Flash Memory (U1)

    UM2905 Q-SPI NOR Flash memory (U1) Pin number Pin name Signal name STM32 GPIO Function LED_K2 Display backlight LED2 cathode LED_K3 Display backlight LED3 cathode Not connected Reserved for touch panel I2C_SCL I2C_SCL Reserved for touch panel PF14 I2C_SDA I2C_SDA Reserved for touch panel PF15 1.
  • Page 11: I/O Interface

    UM2905 Joystick (B1) 5.3.3 I/O interface Table 3. I/O configuration of the NOR Flash memory Pin number Pin name Signal name STM32 GPIO Function QSPI_NCS Chip select active high (1) (2) PD12 SIO1 QSPI_IO1 Q-SPI I/O1 (1) (2) SIO2 QSPI_IO2 Q-SPI I/O2 PE14 Ground...
  • Page 12: Zio Connectors (Cn7, Cn8, Cn9 And Cn10)

    UM2905 Zio connectors (CN7, CN8, CN9 and CN10) Zio connectors (CN7, CN8, CN9 and CN10) 5.5.1 Description The Zio connectors allow the X-NUCLEO-GFX02Z1 connection to a standard Nucleo-144 development board. 5.5.2 I/O interface Figure 6. Zio connectors pinout CN10 UM2905 - Rev 2...
  • Page 13: Table 5. I/O Configuration Of Zio Connector Cn7

    UM2905 Zio connectors (CN7, CN8, CN9 and CN10) Table 5. I/O configuration of Zio connector CN7 Pin number Pin name Signal name STM32 GPIO Function 1 - 7 Not connected Ground 9 - 15 Not connected DISP_D0 PD14 Data bus Not connected DISP_D1 PD15...
  • Page 14: Table 7. I/O Configuration Of Zio Connector Cn9

    UM2905 Zio connectors (CN7, CN8, CN9 and CN10) Table 7. I/O configuration of Zio connector CN9 Pin number Pin name Signal name STM32 GPIO Function Not connected DISP_NE1 Chip select 3 - 5 Not connected DISP_NWE Write enable Not connected DISP_NOE Read enable 9 - 11...
  • Page 15: Table 8. I/O Configuration Of Zio Connector Cn10

    UM2905 Zio connectors (CN7, CN8, CN9 and CN10) Table 8. I/O configuration of Zio connector CN10 Pin number Pin name Signal name STM32 GPIO Function Not connected DISP_D6 Data bus Ground RESET DISP_NRESET PE11 Reset active low Not connected FMARK DISP_TE PE13 Tearing effect output pin to synchronize MCU on frame writing...
  • Page 16: Product Information

    Evaluation tools marked as “ES” or “E” are not yet qualified and therefore not ready to be used as reference design or in production. Any consequences deriving from such usage will not be at ST charge. In no event, ST will be liable for any customer usage of these engineering sample tools as reference designs or in production.
  • Page 17: Federal Communications Commission (Fcc) And Ised Canada Compliance

    UM2905 Federal Communications Commission (FCC) and ISED Canada Compliance Statements Federal Communications Commission (FCC) and ISED Canada Compliance Statements FCC Compliance Statement Part 15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18: Ce Conformity

    UM2905 CE conformity CE conformity Warning EN 55032 / CISPR32 (2012) Class B product Warning: this device is compliant with Class B of EN55032 / CISPR32. In a residential environment, this equipment may cause radio interference. Avertissement : cet équipement est conforme à la Classe B de la EN55032 / CISPR 32. Dans un environnement résidentiel, cet équipement peut créer des interférences radio.
  • Page 19: Revision History

    UM2905 Revision history Table 9. Document revision history Date Revision Changes 9-Sep-2021 Initial release. Updated Product identification XNGFX02Z1$AZ1 and added Product 10-Nov-2021 identification XNGFX02Z1$AZ2. UM2905 - Rev 2 page 19/24...
  • Page 20: Table Of Contents

    X-NUCLEO-GFX02Z1 product history ........
  • Page 21 UM2905 Contents FCC Compliance Statement ........... . 17 ISED Compliance Statement .
  • Page 22: List Of Tables

    UM2905 List of tables List of tables Table 1. Ordering information..............3 Table 2.
  • Page 23: List Of Figures

    X-NUCLEO-GFX02Z1 PCB layout: bottom side ........
  • Page 24 ST’s terms and conditions of sale in place at the time of order acknowledgement. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of Purchasers’...
