Keysight Wireless Test Set
This help file provides documentation for the following
products:

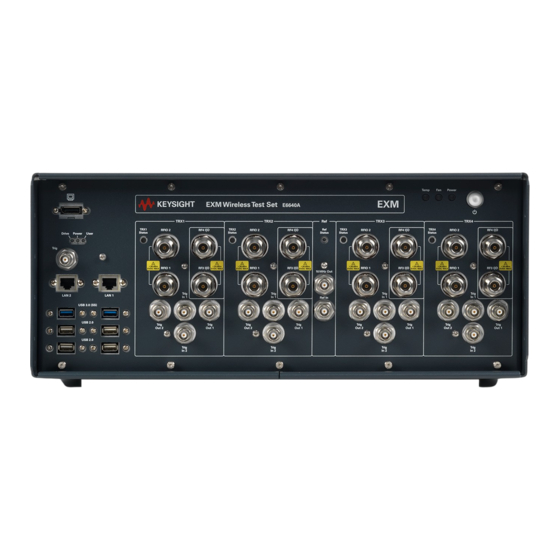

E6640A EXM Wireless Test Set
V9073B W-CDMA
& HSPA
Measurement
Applications User's
& Programmer's
Reference
Option 1FP W-CDMA
Option 2 FP HSPA

Advertisement

loading
Need help?

Need help?

Do you have a question about the E6640A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Keysight E6640A

Summary of Contents for Keysight E6640A

  • Page 1 Keysight Wireless Test Set This help file provides documentation for the following products: E6640A EXM Wireless Test Set V9073B W-CDMA & HSPA Measurement Applications User’s & Programmer’s Reference Option 1FP W-CDMA Option 2 FP HSPA...
  • Page 2 14 (June 1987) or DFAR 252.227- Notices Should Keysight and the user 7015 (b)(2) (November 1995), as © Keysight Technologies, Inc. have a separate written applicable in any technical data. 2014 agreement with warranty terms No part of this manual may be...
  • Page 3 Table of Contents Table of Contents V9073B W-CDMA & HSPA Measurement Applications User’s & Programmer’s Reference Table of Contents 1 About the Test Set Installing Application Software Viewing a License Key Obtaining and Installing a License Key Updating Measurement Application Software EXM Options and Accessories Front-Panel Features Display Annotations...
  • Page 4 Table of Contents STATus Subsystem Command Descriptions Operation Register Operation Condition Query Operation Enable Operation Event Query Operation Negative Transition Operation Positive Transition Preset the Status Byte Questionable Register Questionable Condition Questionable Enable Questionable Event Query Questionable Negative Transition Questionable Positive Transition Questionable Calibration Register Questionable Calibration Condition Questionable Calibration Enable...
  • Page 5 Table of Contents Questionable Frequency Positive Transition Questionable Integrity Register Questionable Integrity Condition Questionable Integrity Enable Questionable Integrity Event Query Questionable Integrity Negative Transition Questionable Integrity Positive Transition Questionable Integrity Signal Register Questionable Integrity Signal Condition Questionable Integrity Signal Enable Questionable Integrity Signal Event Query Questionable Integrity Signal Negative Transition Questionable Integrity Signal Positive Transition...
  • Page 6 Table of Contents Status Byte Query Trigger Self Test Query Wait-to-Continue 4 Input/Output Functions Input/Output Input/Output variables - Preset behavior RF Input Input Z Correction RF Input Port RF Input RFIO1 RFIO2 External Gain Ext Preamp More Information Restore Input/Output Defaults Data Source Inputs Capture Buffer...
  • Page 7 Table of Contents Set (Replace) Data (Remote Command Only) Merge Correction Data (Remote Command Only) Freq Ref In Sense Internal External Ext Ref Freq RF Output & Test Set Config RF Output RF Output RFIO1 RFIO2 HalfDuplex Config RF Input RF Output Output Config Trig Out...
  • Page 8 Table of Contents Sequence Analyzer IQ Analyzer (Basic) W-CDMA with HSPA+ GSM/EDGE/EDGE Evo Analog Demod Bluetooth TD-SCDMA with HSPA/8PSK cdma2000 1xEV-DO WLAN LTE-Advanced FDD LTE-Advanced TDD 802.16 OFDMA (WiMAX/WiBro) Application Mode Number Selection (Remote Command Only) Application Mode Catalog Query (Remote Command Only) Application Identification (Remote Commands Only) Current Application Model Current Application Revision...
  • Page 9 Table of Contents Restore Defaults Mode Setup Radio Device Demod HSPA Enable HSPA+ Enable Restore Mode Defaults Preset Type (Remote Command Only) Global Settings Global Center Freq Restore Defaults 6 System Functions File File Explorer Print Maximize/Restore Down Maximize Restore Down Page Setup Print Restore Down...
  • Page 10 Table of Contents List installed Options (Remote Command Only) Lock the Front-panel keys (Remote Command Only) List SCPI Commands (Remote Command Only) SCPI Version Query (Remote Command Only) Date (Remote Command Only) Time (Remote Command Only) Module Name (Remote Command Only) Module Index (Remote Command Only) Module Mnemonic (Remote Command Only) Module List (Remote Command Only)
  • Page 11 Table of Contents RF (Weekly use) Source (Weekly use) IF Alignment (Weekly use) (Remote Command Only) Show Alignment Statistics Restore Align Defaults Execute Expired Alignments (Remote Command Only) I/O Config SCPI LAN SCPI Telnet SCPI Socket SICL Server HiSLIP Server SCPI Socket Control Port (Remote Command Only) System IDN Response Factory...
  • Page 12 Table of Contents Date (Remote Command Only) Time (Remote Command Only) Module Name (Remote Command Only) Module Index (Remote Command Only) Module Mnemonic (Remote Command Only) Module List (Remote Command Only) Module Enable (Remote Command Only) Module Default (Remote Command Only) 7 Trigger Functions Trigger Trigger Source Presets...
  • Page 13 Table of Contents Trig Delay Auto/Holdoff Auto Trig Trig Holdoff 8 Channel Power Measurement AMPTD Y Scale Ref Value Range Range Adjust Range For Min Clip Pre-Adjust for Min Clip Peak to Average Mixer Level Offset Scale/Div Ref Position Auto Scaling Auto Couple More Information Auto/Man Active Function keys...
  • Page 14 Table of Contents Marker Y Axis Value (Remote Command only) Backward Compatibility SCPI Commands Marker Function Marker To Meas Remote Measurement Functions Measurement Group of Commands Current Measurement Query (Remote Command Only) Limit Test Current Results (Remote Command Only) Data Query (Remote Command Only) Calculate/Compress Trace Data Query (Remote Command Only) Calculate Peaks of Trace Data (Remote Command Only) Hardware-Accelerated Fast Power Measurement (Remote Command Only)
  • Page 15 Table of Contents Peak Search Print Quick Save Recall State More Information From File… Edit Register Names Register 1 thru Register 16 Register 1 thru Register 16 Sequences Source Sequence Open… Data (Import) Capture Buffer Open… Restart More Information Save State To File .
  • Page 16 Table of Contents 3D Color 3D Monochrome Flat Color Flat Monochrome Save As… Single (Single Measurement/Sweep) More Information Source RF Output Amplitude RF Power RF Power Range Set Reference Power Power Ref Amptd Offset Modulation Frequency Frequency Channel GSM/EDGE Channel Number Ranges W-CDMA Channel Number Ranges CDMA 2000 / 1xEVDO Channel Number Ranges LTE FDD Channel Number Ranges...
  • Page 17 Table of Contents Bus Trigger Command (Remote Command Only) AM Depth AM Rate FM Deviation FM Rate PM Deviation PM Rate List Sequencer Sequencer Initiate Sequence List Sequencer Setup Number of Steps Current Step Insert Step Before Delete Step Clear List Step Trigger Transition Time Radio Setup...
  • Page 18 Table of Contents Last Span Sweep/Control Acq Time Sweep Setup Auto Sweep Time Rules Pause Gate Gate On/Off Gate View On/Off Gate View Setup Gate View Acquisition Time Gate View Start Time Gate Delay Gate Length Gate Source Video (IF Envelope) External 1 External 2 RF Burst...
  • Page 19 Table of Contents Trigger Level Trig Slope Trig Delay Zero Span Delay Comp RF Burst Absolute Trigger Relative Trigger Trig Slope Trig Delay Periodic Timer Period Offset Reset Offset Display Sync Source External 1 External 2 RF Burst Trig Delay Auto/Holdoff Auto Trig Trig Holdoff...
  • Page 20 Table of Contents System Display Settings Annotation Local Settings Themes Bar Graph 9 ACP Measurement AMPTD Y Scale Ref Value Range Range Adjust Range For Min Clip Pre-Adjust for Min Clip Peak to Average Mixer Level Offset Scale/Div Ref Position Auto Scaling Auto Couple More Information...
  • Page 21 Table of Contents Couple Markers Marker All Off Marker X Axis Value (Remote Command only) Marker X Axis Position (Remote Command only) Marker Y Axis Value (Remote Command only) Backward Compatibility Remote Commands Marker Function Marker To Meas Remote Measurement Functions Measurement Group of Commands Current Measurement Query (Remote Command Only) Limit Test Current Results (Remote Command Only)
  • Page 22 Table of Contents Method for Carrier Carrier Coupling Offset/Limits Select Offset Offset Freq Integ BW Offset BW Res BW Video BW RBW Control Limits Select Offset Abs Limit Rel Lim (Car) Rel Limit (PSD) Fail Mask Offset Side Method for Offset Method for Offset Offset Frequency Define Carrier Result...
  • Page 23 Table of Contents State More Information From File… Edit Register Names Register 1 thru Register 16 Register 1 thru Register 16 Sequences Source Sequence Open… Data (Import) Capture Buffer Open… Restart More Information Save State To File . . . Edit Register Names More Information Register 1 thru Register 16...
  • Page 24 Table of Contents Save As… Single (Single Measurement/Sweep) More Information Source RF Output Amplitude RF Power RF Power Range Set Reference Power Power Ref Amptd Offset Modulation Frequency Frequency Channel GSM/EDGE Channel Number Ranges W-CDMA Channel Number Ranges CDMA 2000 / 1xEVDO Channel Number Ranges LTE FDD Channel Number Ranges LTE TDD Channel Number Ranges TDSCDMA Channel Number Ranges...
  • Page 25 Table of Contents AM Rate FM Deviation FM Rate PM Deviation PM Rate List Sequencer Sequencer Initiate Sequence List Sequencer Setup Number of Steps Current Step Insert Step Before Delete Step Clear List Step Trigger Transition Time Radio Setup Channel Frequency Power Waveform...
  • Page 26 Table of Contents Auto Sweep Time Rules Pause Gate Gate On/Off Gate View On/Off Gate View Setup Gate View Acquisition Time Gate View Start Time Gate Delay Gate Length Gate Source Video (IF Envelope) External 1 External 2 RF Burst Periodic Timer (Frame Trigger) Auto/Holdoff Gate Preset (Remote Command Only)
  • Page 27 Table of Contents Trig Delay Zero Span Delay Comp RF Burst Absolute Trigger Relative Trigger Trig Slope Trig Delay Periodic Timer Period Offset Reset Offset Display Sync Source External 1 External 2 RF Burst Trig Delay Auto/Holdoff Auto Trig Trig Holdoff User Preset User Preset User Preset All Modes...
  • Page 28 Table of Contents Range 1003 Range 1004 Adjust Range For Min Clip 1004 Pre-Adjust for Min Clip 1004 Peak to Average 1005 Mixer Level Offset 1005 Scale/Div 1006 Ref Position 1006 Auto Scaling 1007 Auto Couple 1008 More Information 1008 Auto/Man Active Function keys 1008 Auto/Man 1-of-N keys...
  • Page 29 Table of Contents Hardware-Accelerated Fast Power Measurement (Remote Command Only) 1038 Reset Fast Power Measurement (Remote Command Only) 1038 Define Fast Power Measurement (Remote Command Only) 1039 Define Fast Power Measurement Query (Remote Command Only) 1048 Configure Fast Power Measurement (Remote Command Only) 1049 Initiate Fast Power Measurement (Remote Command Only) 1050...
  • Page 30 Table of Contents Offset Freq Define 1086 Method 1088 Filter Alpha 1088 Meas Preset 1089 Mode 1090 Mode Preset 1091 How-To Preset 1092 Mode Setup 1094 Peak Search 1095 Print 1096 Quick Save 1097 Recall 1099 State 1099 More Information 1101 From File…...
  • Page 31 Table of Contents Source Sequence 1119 Save As . . . 1119 Data (Export) 1119 Measurement Results 1120 Meas Results File Contents 1120 Capture Buffer 1130 Save As . . . 1130 Screen Image 1131 Themes 1132 3D Color 1132 3D Monochrome 1133 Flat Color...
  • Page 32 Table of Contents Select Waveform 1172 ARB Setup 1177 Trigger Type 1179 Trigger Source 1183 Trigger Initiate 1184 Waveform Sequences 1184 Waveform Utilities 1195 Marker Utilities 1205 Header Utilities 1210 Bus Trigger Command (Remote Command Only) 1212 1212 1212 AM Depth 1212 AM Rate 1213...
  • Page 33 Table of Contents BeginningOfStep 1258 DataMarker 1258 Manual Trigger Now 1259 Remote Software Trigger (Remote command Only) 1260 Query List Sequence Initiation Armed Status (Remote Command Only) 1260 Source Preset 1260 Span X Scale 1261 Ref Value 1261 Scale/Div 1261 Ref Position 1262 Auto Scaling...
  • Page 34 Table of Contents Trigger Level 1300 Trig Slope 1300 Trig Delay 1300 External 1 1300 Trigger Level 1300 Trig Slope 1300 Trig Delay 1300 Zero Span Delay Comp 1300 External 2 1300 Trigger Level 1300 Trig Slope 1300 Trig Delay 1301 Zero Span Delay Comp 1301...
  • Page 35 Table of Contents Title 1310 Change Title 1310 Clear Title 1311 Graticule 1312 System Display Settings 1312 Annotation Local Settings 1312 Themes 1313 Abs Pwr Freq 1314 Abs Peak Pwr & Freq (Total Pwr Ref) 1314 Trace Window 1315 Results Window 1315 Abs Peak Pwr &...
  • Page 36 Table of Contents Adjust Range For Min Clip 1337 Pre-Adjust for Min Clip 1337 Peak to Average 1338 Mixer Level Offset 1338 Scale/Div 1339 Ref Position 1339 Auto Scaling 1340 Presel Center 1341 Presel Adjust 1341 Auto Couple 1342 More Information 1342 Auto/Man Active Function keys 1342...
  • Page 37 Table of Contents Remote Measurement Functions 1366 Measurement Group of Commands 1367 Current Measurement Query (Remote Command Only) 1369 Limit Test Current Results (Remote Command Only) 1369 Data Query (Remote Command Only) 1369 Calculate/Compress Trace Data Query (Remote Command Only) 1370 Calculate Peaks of Trace Data (Remote Command Only) 1375...
  • Page 38 Table of Contents Open… 1414 Data (Import) 1414 Capture Buffer 1415 Open… 1415 Restart 1416 More Information 1416 Save 1418 State 1418 To File . . . 1419 Edit Register Names 1421 More Information 1421 Register 1 thru Register 16 1422 Register 1 thru Register 16 1422...
  • Page 39 Table of Contents RF Power 1438 RF Power Range 1439 Set Reference Power 1439 Power Ref 1439 Amptd Offset 1440 Modulation 1441 Frequency 1441 Frequency 1442 Channel 1442 GSM/EDGE Channel Number Ranges 1443 W-CDMA Channel Number Ranges 1444 CDMA 2000 / 1xEVDO Channel Number Ranges 1445 LTE FDD Channel Number Ranges 1447...
  • Page 40 Table of Contents 1515 PM Deviation 1516 PM Rate 1516 List Sequencer 1516 Sequencer 1517 Initiate Sequence 1517 List Sequencer Setup 1518 Number of Steps 1518 Current Step 1518 Insert Step Before 1519 Delete Step 1519 Clear List 1519 Step Trigger 1519 Transition Time 1521...
  • Page 41 Table of Contents Gate View Acquisition Time 1571 Gate View Start Time 1571 Gate Delay 1572 Gate Length 1572 Gate Source 1573 Video (IF Envelope) 1574 External 1 1576 External 2 1578 RF Burst 1580 Periodic Timer (Frame Trigger) 1583 Auto/Holdoff 1594 Gate Preset (Remote Command Only)
  • Page 42 Table of Contents Period 1604 Offset 1604 Reset Offset Display 1604 Sync Source 1604 1604 External 1 1604 External 2 1605 RF Burst 1605 Trig Delay 1605 Auto/Holdoff 1605 Auto Trig 1605 Trig Holdoff 1605 User Preset 1606 User Preset 1606 User Preset All Modes 1607...
  • Page 43 Table of Contents Long Demod View Symb Power Window Y Ref Value 1647 Range 1647 Range 1648 Adjust Range For Min Clip 1648 Pre-Adjust for Min Clip 1649 Peak to Average 1649 Mixer Level Offset 1650 I Range 1650 1 V Peak 1651 0.5 V Peak 1651...
  • Page 44 Table of Contents µW Path Control 1666 Auto Couple 1667 More Information 1667 Auto/Man Active Function keys 1667 Auto/Man 1-of-N keys 1667 1669 Cont (Continuous Measurement/Sweep) 1670 File 1672 FREQ Channel 1673 Center Freq 1673 Center Frequency Presets 1674 RF Center Freq 1676 Ext Mix Center Freq 1677...
  • Page 45 Table of Contents Define Fast Power Measurement (Remote Command Only) 1700 Define Fast Power Measurement Query (Remote Command Only) 1709 Configure Fast Power Measurement (Remote Command Only) 1710 Initiate Fast Power Measurement (Remote Command Only) 1711 Fetch Fast Power Measurement (Remote Command Only) 1711 Execute Fast Power Measurement (Remote Command Only) 1711...
  • Page 46 Table of Contents Test Model 3 w/4 DPCH w/S-CCPCH (BTS only) 1732 Test Model 3 w/8 DPCH w/S-CCPCH (BTS only) 1732 Test Model 4 (BTS only) 1732 3GPP TS25.141, Table 6.6: Test Model 4 Active Channels 1733 Test Model 4 w/CPICH (BTS only) 1733 Test Model 4 w/no CPICH (BTS only) 1733...
  • Page 47 Table of Contents Symbol EVM Compensation 1756 Frequency Compensation 1756 Phase Compensation 1756 PICH Code Number 1757 MICH Code Number 1757 SCH Suppression 1758 S-CCPCH Symbol Rate (BTS only) 1759 S-CCPCH Code Number (BTS only) 1759 Packed Mode (Remote Command Only) 1760 Mode 1762...
  • Page 48 Table of Contents Register 1 thru Register 16 1787 Mass Storage Catalog  (Remote Command Only) 1788 Mass Storage Change Directory (Remote Command Only) 1789 Mass Storage Copy (Remote Command Only) 1789 Mass Storage Device Copy (Remote Command Only) 1789 Mass Storage Delete   (Remote Command Only) 1790 Mass Storage Data (Remote Command Only) 1790...
  • Page 49 Table of Contents W-CDMA Channel Number Ranges 1816 CDMA 2000 / 1xEVDO Channel Number Ranges 1817 LTE FDD Channel Number Ranges 1819 LTE TDD Channel Number Ranges 1821 TDSCDMA Channel Number Ranges 1821 Radio Setup 1822 Radio Standard 1823 Radio Band Link 1841 Set Reference Frequency 1841...
  • Page 50 Table of Contents Delete Step 1891 Clear List 1891 Step Trigger 1891 Transition Time 1893 Radio Setup 1894 Channel 1911 Frequency 1912 Power 1912 Waveform 1913 Step Duration 1920 Output Trigger 1922 Step Configuration (Remote Command Only) 1922 Clear List (Remote Command Only) 1930 Trigger Type 1931...
  • Page 51 Table of Contents Zero Span Delay Comp 1940 RF Burst 1940 Absolute Trigger 1940 Relative Trigger 1940 Trig Slope 1940 Trig Delay 1940 Periodic Timer 1940 Period 1940 Offset 1940 Offset Adjust (Remote Command Only) 1940 Reset Offset Display 1940 Sync Source 1940 1940...
  • Page 52 Table of Contents Trigger Bandwidth 1943 Auto/Holdoff 1943 Auto Trig 1943 Trig Holdoff 1943 Holdoff Type 1943 User Preset 1944 User Preset 1944 User Preset All Modes 1945 Save User Preset 1946 View/Display 1947 Display 1947 Annotation 1947 Meas Bar On/Off 1948 Screen 1949...
  • Page 53 Table of Contents Phase Error window 1965 EVM window 1966 Metrics window 1966 I/Q Error (Quad View) (MS) 1966 Magnitude Error window 1967 Phase Error window 1967 EVM window 1967 Metrics window 1968 Code Domain (Quad View) 1969 Code Domain (Quad View) (BTS) 1969 Power Bar Graph window 1970...
  • Page 54 Table of Contents Last Page 1983 Demod Bit Format (BTS only) 1983 Composite Chip Power 1984 View Selection (Remote Command only) 1985 View Selection by Name (Remote Command only) 1986 View Selection by Number (Remote Command only) 1986 13 Modulation Accuracy (Composite EVM) Measurement 1987 AMPTD Y Scale 1997...
  • Page 55 Table of Contents Ref Position: I/Q Error View – Mag Error Window 2012 Ref Position: I/Q Error View – Phase Error Window 2012 Ref Position: Slot CDE/EVM View – Evm Window 2013 Ref Position: Slot CDE/EVM View – Peak CDE Window 2013 Ref Position: Slot CDE/EVM View –...
  • Page 56 Table of Contents Meas 2040 Remote Measurement Functions 2040 Measurement Group of Commands 2041 Current Measurement Query (Remote Command Only) 2043 Limit Test Current Results (Remote Command Only) 2043 Data Query (Remote Command Only) 2043 Calculate/Compress Trace Data Query (Remote Command Only) 2044 Calculate Peaks of Trace Data (Remote Command Only) 2049...
  • Page 57 Table of Contents Symbol Boundary (BTS only) 2079 Test Model 1 (BTS only) 2082 Test Model 1 w/16 DPCH w/S-CCPCH (BTS only) 2082 Test Model 1 w/32 DPCH w/S-CCPCH (BTS only) 2083 Test Model 1 w/64 DPCH w/S-CCPCH (BTS only) 2083 Test Model 1 w/4 DPCH w/S-CCPCH (BTS only) 2084...
  • Page 58 Table of Contents DTX/Burst Detect 2113 Multi Channel Estimator 2113 Timing Estimation 2114 Frequency Error Tolerance Range 2114 PICH Code Number (BTS only) 2115 MICH Code Number (BTS only) 2115 S-CCPCH Symbol Rate (BTS only) 2116 S-CCPCH Code Number (BTS only) 2117 EVM Minimization by IQ Imbalance 2117...
  • Page 59 Table of Contents Edit Register Names 2144 More Information 2144 Register 1 thru Register 16 2145 Register 1 thru Register 16 2145 Mass Storage Catalog  (Remote Command Only) 2146 Mass Storage Change Directory (Remote Command Only) 2147 Mass Storage Copy (Remote Command Only) 2147 Mass Storage Device Copy (Remote Command Only) 2147...
  • Page 60 Table of Contents Frequency 2172 Channel 2172 GSM/EDGE Channel Number Ranges 2173 W-CDMA Channel Number Ranges 2174 CDMA 2000 / 1xEVDO Channel Number Ranges 2175 LTE FDD Channel Number Ranges 2177 LTE TDD Channel Number Ranges 2179 TDSCDMA Channel Number Ranges 2179 Radio Setup 2180...
  • Page 61 Table of Contents Number of Steps 2248 Current Step 2248 Insert Step Before 2249 Delete Step 2249 Clear List 2249 Step Trigger 2249 Transition Time 2251 Radio Setup 2252 Channel 2269 Frequency 2270 Power 2270 Waveform 2271 Step Duration 2278 Output Trigger 2280 Step Configuration (Remote Command Only)
  • Page 62 Table of Contents Sweep/Control 2302 Pause/Resume 2302 System 2303 Trace/Detector 2304 Trigger 2305 Free Run 2305 Video 2305 Trigger Level 2305 Trig Slope 2305 Trig Delay 2305 External 1 2305 Trigger Level 2305 Trig Slope 2305 Trig Delay 2305 Zero Span Delay Comp 2305 External 2 2305...
  • Page 63 Table of Contents Trig Slope 2308 Trig Delay 2308 Q Demodulated 2308 Trigger Level 2308 Trig Slope 2308 Trig Delay 2308 Input I 2308 Trigger Level 2308 Trig Slope 2308 Trig Delay 2308 Input Q 2308 Trigger Level 2308 Trig Slope 2309 Trig Delay 2309...
  • Page 64 Table of Contents Themes 2321 I/Q Measured Polar Graph 2322 I/Q Measured Polar Graph View (BTS) 2322 I/Q Measured Polar Vector window 2323 Metrics window 2323 I/Q Measured Polar Graph View (MS) 2324 I/Q Measured Polar Vector window 2325 Metrics window 2325 I/Q Polar Vec/ConstIn 2326...
  • Page 65 Table of Contents Pk CDE window 2347 Frequency Error window 2348 Slot CDE/EVM View (MS) 2348 EVM window 2349 Pk CDE window 2349 Frequency Error window 2349 14 QPSK EVM Measurement 2351 AMPTD Y Scale 2355 Range 2355 Range 2355 Adjust Range For Min Clip 2356 Pre-Adjust for Min Clip...
  • Page 66 Table of Contents CF Step 2375 Input/Output 2377 Marker 2378 Select Marker 2378 Marker Type 2378 Marker Properties 2379 Select Marker 2379 Relative To 2379 Marker Trace 2380 Couple Marker 2380 All Markers Off 2381 Marker X Axis Value (Remote Command only) 2381 Marker Chip Value (Remote Command only) 2382...
  • Page 67 Table of Contents Freq Error 2414 Spectrum 2415 Meas Preset 2415 Advanced 2415 EVM Result I/Q Offset 2416 RRC Filter Control 2416 Filter Alpha 2417 Chip Rate 2417 Mode 2418 Mode Preset 2419 How-To Preset 2420 Mode Setup 2422 Peak Search 2423 Next Peak 2423...
  • Page 68 Table of Contents Mass Storage Catalog  (Remote Command Only) 2445 Mass Storage Change Directory (Remote Command Only) 2446 Mass Storage Copy (Remote Command Only) 2446 Mass Storage Device Copy (Remote Command Only) 2446 Mass Storage Delete   (Remote Command Only) 2447 Mass Storage Data (Remote Command Only) 2447 Mass Storage Make Directory ...
  • Page 69 Table of Contents CDMA 2000 / 1xEVDO Channel Number Ranges 2474 LTE FDD Channel Number Ranges 2476 LTE TDD Channel Number Ranges 2478 TDSCDMA Channel Number Ranges 2478 Radio Setup 2479 Radio Standard 2480 Radio Band Link 2498 Set Reference Frequency 2498 Freq Reference 2499...
  • Page 70 Table of Contents Clear List 2548 Step Trigger 2548 Transition Time 2550 Radio Setup 2551 Channel 2568 Frequency 2569 Power 2569 Waveform 2570 Step Duration 2577 Output Trigger 2579 Step Configuration (Remote Command Only) 2579 Clear List (Remote Command Only) 2587 Trigger Type 2588...
  • Page 71 Table of Contents Trig Slope 2596 Trig Delay 2596 Periodic Timer 2596 Period 2596 Offset 2596 Offset Adjust (Remote Command Only) 2596 Reset Offset Display 2596 Sync Source 2596 2596 External 1 2597 External 2 2597 RF Burst 2597 Trig Delay 2597 Baseband I Q 2597...
  • Page 72 Table of Contents Holdoff Type 2599 User Preset 2600 User Preset 2600 User Preset All Modes 2601 Save User Preset 2602 View/Display 2603 View Selection by name (Remote Command Only) 2603 View Selection by number (Remote Command only) 2603 Display 2604 Annotation 2604...
  • Page 73 Table of Contents Info BW 2626 Filter Type 2626 Cont (Continuous Measurement/Sweep) 2628 File 2630 FREQ Channel 2631 Center Freq 2631 Center Frequency Presets 2632 RF Center Freq 2634 Ext Mix Center Freq 2635 I/Q Center Freq 2636 CF Step 2636 Input/Output 2638...
  • Page 74 Table of Contents Slot Offset 2669 Meas Delay 2670 Meas Intvl 2670 PCG Length 2671 Meas Method 2671 RRC Filter 2672 RRC Filter Auto 2672 RRC Filter State 2673 Capture Interval 2673 Capture Interval (Remote Command only) 2674 Scramble Code 2674 Meas Preset 2674...
  • Page 75 Table of Contents Mass Storage Change Directory (Remote Command Only) 2702 Mass Storage Copy (Remote Command Only) 2702 Mass Storage Device Copy (Remote Command Only) 2702 Mass Storage Delete   (Remote Command Only) 2703 Mass Storage Data (Remote Command Only) 2703 Mass Storage Make Directory ...
  • Page 76 Table of Contents LTE FDD Channel Number Ranges 2732 LTE TDD Channel Number Ranges 2734 TDSCDMA Channel Number Ranges 2734 Radio Setup 2735 Radio Standard 2736 Radio Band Link 2754 Set Reference Frequency 2754 Freq Reference 2755 Freq Offset 2756 Modulation Setup 2757 2757...
  • Page 77 Table of Contents Step Trigger 2804 Transition Time 2806 Radio Setup 2807 Channel 2824 Frequency 2825 Power 2825 Waveform 2826 Step Duration 2833 Output Trigger 2835 Step Configuration (Remote Command Only) 2835 Clear List (Remote Command Only) 2843 Trigger Type 2844 BeginningOfStep 2844...
  • Page 78 Table of Contents Trig Delay 2851 Periodic Timer 2851 Period 2851 Offset 2851 Offset Adjust (Remote Command Only) 2851 Reset Offset Display 2851 Sync Source 2851 2851 External 1 2852 External 2 2852 RF Burst 2852 Trig Delay 2852 Auto/Holdoff 2852 Auto Trig 2852...
  • Page 79 Table of Contents Phase Graph & Metrics 2866 Slot Phase Measurement 2866 Phase Error window 2866 Metrics window 2867 Slot Number 2867 Chip Phase Trace 2868 Prev Page 2869 Next Page 2869 Scroll Up 2869 Scroll Down 2869 First Page 2869 Last Page 2870...
  • Page 80 Table of Contents lxxx W-CDMA & HSPA Measurement Applications Reference...
  • Page 81 W-CDMA & HSPA Measurement Applications Reference 1 About the Test Set The X-Series E6640A EXM Wireless Test Set is a one-box tester consisting of instruments loaded into a M9018A PXI mainframe with a front impact cover. The mainframe has a common PC controller (located on the far left) and M9300A PXI Frequency Reference (located in the center of the rack).
  • Page 82 You may want to keep a copy of your license key in a secure location. To do this, you can print out a copy of the display showing the license numbers. If you should lose your license key, call your nearest Keysight Technologies service or sales office for assistance.
  • Page 83 If the application you are interested in licensing is not available, you will need to do a software update. (To display a list of installed applications, press System, Show, System.) Check the appropriate page of the Keysight web site for the latest available software versions, according to the name of your instrument, as follows: http://www.keysight.com/find/E6640A_software...
  • Page 84 View the Webpage, which you should click to display the home page). 3. Locate the Options & Accessories tab, as highlighted in the example below, which shows the home page for the E6640A. 4. Click the Options & Accessories tab, to display a list of available options and accessories for your instrument.
  • Page 85 "Front and Rear Panel Features") of the document: Latest available on line document: E6640A Getting Started Guide Embedded PDF installed with the latest firmware revision: If you are viewing this information as a Help file in the instrument, then you can click on the link above to open the PDF document.
  • Page 86 Display Annotations are fully detailed under the chapter "Front and Rear Panel Features" of the document: Latest available on line document: E6640A Getting Started Guide Embedded PDF installed with the latest firmware revision: If you are viewing this information as a Help file in the instrument, then you can click on the links above to open the PDF document.
  • Page 87 "Front and Rear Panel Features") of the document: Latest available on line document: E6640A Getting Started Guide Embedded PDF installed with the latest firmware revision: If you are viewing this information as a Help file in the instrument, then you can click on the link above to open the PDF document.
  • Page 88 1  About the Test Set Window Control Keys Window Control Keys The instrument provides three virtual-front-panel keys or four menu items for controlling windows. Virtual Front Panel The virtual-front-panel keys are Multi Window, Zoom, and Next Window. These are all “immediate action” keys.
  • Page 89 1  About the Test Set Window Control Keys Multi-Window The Multi Window front-panel key will toggle you back and forth between the Normal View and the last Multi Window View (Zone Span, Trace Zoom or Spectrogram) that you were in, when using the Swept SA measurement of the Spectrum Analyzer Mode. ...
  • Page 90 1  About the Test Set Window Control Keys RTSA measurements: Only two windows are available in the Spectrogram view under the Spectrum measurement and up to three windows are available in the Power vs. Time measurement, depending on the view set up. Remote Command :DISPlay:WINDow[:SELect] <number>...
  • Page 91 1  About the Test Set Mouse and Keyboard Control Mouse and Keyboard Control If you do not have access to the instrument front-panel, there are several ways that a mouse and PC Keyboard can give you access to functions normally accessed using the front-panel keys. For instrument lacking a physical front panel display, you can watch the instrument display via external monitor or remote desktop connection Right-Click...
  • Page 92 1  About the Test Set Mouse and Keyboard Control This method can be used to access any of the front-panel keys by using a mouse; as for example if you are accessing the instrument through Remote Desktop. The array of keys thus available is shown below: W-CDMA &...
  • Page 93 1  About the Test Set Mouse and Keyboard Control PC Keyboard If you have a PC keyboard plugged in (or via Remote Desktop), certain key codes on the PC keyboard map to front-panel keys on the GPSA front panel. These key codes are shown below: Front-panel key Key code Frequency...
  • Page 94 1  About the Test Set Mouse and Keyboard Control Front-panel key Key code Full Screen CTRL+SHIFT+B Return CTRL+SHIFT+R Mute Mute Inc Audio Volume Up Dec Audio Volume Down Help Control CTRL Enter Return Cancel Delete Backspace Backspace Select Space Up Arrow Down Arrow Down Left Arrow...
  • Page 95 1  About the Test Set Mouse and Keyboard Control This is a pictorial view of the table: W-CDMA & HSPA Measurement Applications Reference...
  • Page 96 For X-Series test sets, this information is contained in the document "Security Features and Document of Volatility". This document is not included in the instrument on-disk library, but it may be downloaded from the Keysight web site. To obtain a copy of the document, click on or browse to the following URL: http://www.keysight.com/find/security...
  • Page 97 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 2 About the W-CDMA Measurement Application This chapter provides overall information on W-CDMA, HSDPA and HSUPA communications systems, and describes W-CDMA (3GPP) measurements made by the test set.
  • Page 98 2  About the W-CDMA Measurement Application What Does the W-CDMA Application Do? What Does the W-CDMA Application Do? This test set can be used for testing a W-CDMA transmitter, including measuring HSDPA/HSUPA signals, manufactured according to the following standards documents: 3GPP TS 25.141 Base Station (BS) conformance testing (FDD) V6.10.0 (2005-06) 3GPP TS 25.211 Physical channels and mapping of transport channels onto physical channels (FDD) V6.5.0 (2005-06)
  • Page 99 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 3 Programming the Test Set This section provides introductory information about the programming documentation included with your product. "What Programming Information is Available?" on page 100 "STATus Subsystem " on page 139 "Common Commands"...
  • Page 100 What Programming Information is Available? The X-Series Documentation can be accessed through the Additional Documentation page in the instrument Help system. It can also be found online at: http://www.keysight.com/find/exm. The following resources are available to help you create programs for automating your X-Series...
  • Page 101 3  Programming the Test Set List of SCPI Commands List of SCPI Commands *CAL? *CLS *ESE <integer> *ESE? *ESR? *IDN? *OPC *OPC? *OPT? *RCL <register#> *RST *SAV <register#> *SRE <integer> *SRE? *STB? *TRG *TST? *WAI CALCulate:ACPower:LIMit:STATe OFF | ON | 0 | 1 CALCulate:ACPower:LIMit:STATe? CALCulate:ACPower:MARKer:AOFF CALCulate:ACPower:MARKer:COUPle[:STATe] ON | OFF | 1 | 0...
  • Page 102 3  Programming the Test Set List of SCPI Commands CALCulate:CDPower:ASET:THReshold? CALCulate:CDPower:ASET:THReshold:AUTO OFF | ON | 0 | 1 CALCulate:CDPower:ASET:THReshold:AUTO? CALCulate:CDPower:DTXBurst 0 | 1 | OFF | ON CALCulate:CDPower:DTXBurst? CALCulate:CDPower:IQPHase:ROTation <real> CALCulate:CDPower:IQPHase:ROTation? CALCulate:CDPower:MARKer:AOFF CALCulate:CDPower:MARKer:COUPle[:STATe] ON | OFF | 1 | 0 CALCulate:CDPower:MARKer:COUPle[:STATe]? CALCulate:CDPower:MARKer[1]|2|...|12:FUNCtion:RESult? CALCulate:CDPower:MARKer[1]|2|...|12:MAXimum...
  • Page 103 3  Programming the Test Set List of SCPI Commands CALCulate:CDPower:SWEep:OFFSet? CALCulate:CDPower:SWEep:TIME <integer> CALCulate:CDPower:SWEep:TIME? CALCulate:CDPower:TDPCh <integer> CALCulate:CDPower:TDPCh? CALCulate:CDPower:TDPCh:AUTO OFF | ON | 0 | 1 CALCulate:CDPower:TDPCh:AUTO? CALCulate:CDPower:TYPE RELative | ABSolute CALCulate:CDPower:TYPE? CALCulate:CHPower:LIMit:POWer <ampl> CALCulate:CHPower:LIMit:POWer? CALCulate:CHPower:LIMit:POWer:FAIL? CALCulate:CHPower:LIMit:POWer:STATe OFF | ON | 0 | 1 CALCulate:CHPower:LIMit:POWer:STATe? CALCulate:CHPower:LIMit:PSDensity <real>...
  • Page 104 3  Programming the Test Set List of SCPI Commands CALCulate:EVMQpsk:MARKer[1]|2|...12:FUNCtion:RESult? CALCulate:EVMQpsk:MARKer[1]|2|...12:MAXimum CALCulate:EVMQpsk:MARKer[1]|2|...12:MAXimum:LEFT CALCulate:EVMQpsk:MARKer[1]|2|...12:MAXimum:NEXT CALCulate:EVMQpsk:MARKer[1]|2|...12:MAXimum:RIGHt CALCulate:EVMQpsk:MARKer[1]|2|...12:MINimum CALCulate:EVMQpsk:MARKer[1]|2|...12:MODE POSition | DELTa | OFF CALCulate:EVMQpsk:MARKer[1]|2|...12:MODE? CALCulate:EVMQpsk:MARKer[1]|2|...12:PTPeak CALCulate:EVMQpsk:MARKer[1]|2|...12:REFerence <integer> CALCulate:EVMQpsk:MARKer[1]|2|...12:REFerence? CALCulate:EVMQpsk:MARKer[1]|2|...12:TRACe POLar | EVM | PERRor | MERRor CALCulate:EVMQpsk:MARKer[1]|2|...12:TRACe? CALCulate:EVMQpsk:MARKer[1]|2|...12:X <real> CALCulate:EVMQpsk:MARKer[1]|2|...12:X? CALCulate:EVMQpsk:MARKer[1]|2|...12:X:POSition <real> CALCulate:EVMQpsk:MARKer[1]|2|...12:X:POSition? CALCulate:EVMQpsk:MARKer[1]|2|...12:Y? CALCulate:FPOWer:POWer[1,2,...,999]?
  • Page 105 3  Programming the Test Set List of SCPI Commands CALCulate:PCONtrol:MARKer[1]|2|...|12:REFerence <integer> CALCulate:PCONtrol:MARKer[1]|2|...|12:REFerence? CALCulate:PCONtrol:MARKer[1]|2|...|12:TRACe RFENvelope | SPOWer | CPHase | APHase | DPHase CALCulate:PCONtrol:MARKer[1]|2|...|12:TRACe? CALCulate:PCONtrol:MARKer[1]|2|...|12:X <real> CALCulate:PCONtrol:MARKer[1]|2|...|12:X? CALCulate:PCONtrol:MARKer[1]|2|...|12:X:POSition <integer> CALCulate:PCONtrol:MARKer[1]|2|...|12:X:POSition? CALCulate:PCONtrol:MARKer[1]|2|...|12:Y? CALCulate:PCONtrol:SLOT:DELay <real> CALCulate:PCONtrol:SLOT:DELay? CALCulate:PCONtrol:SLOT:INTerval <real> CALCulate:PCONtrol:SLOT:INTerval? CALCulate:PCONtrol:SLOT:LENGth <real> CALCulate:PCONtrol:SLOT:LENGth? CALCulate:PCONtrol:SLOT:OFFSet <real> CALCulate:PCONtrol:SLOT:OFFSet? CALCulate:RHO:ASET:THReshold <rel_ampl>...
  • Page 106 3  Programming the Test Set List of SCPI Commands CALCulate:RHO:MARKer[1]|2|...|12:PTPeak CALCulate:RHO:MARKer[1]|2|...|12:REFerence <integer> CALCulate:RHO:MARKer[1]|2|...|12:REFerence? CALCulate:RHO:MARKer[1]|2|...|12:STATe OFF | ON | 0 | 1 CALCulate:RHO:MARKer[1]|2|...|12:STATe? CALCulate:RHO:MARKer[1]|2|...|12:TRACe CDPower | EVM | MERRor | PERRor | FERRor | EVMSlot | PCDE | POLar CALCulate:RHO:MARKer[1]|2|...|12:TRACe? CALCulate:RHO:MARKer[1]|2|...|12:X <real> CALCulate:RHO:MARKer[1]|2|...|12:X? CALCulate:RHO:MARKer[1]|2|...|12:X:POSition <real>...
  • Page 107 3  Programming the Test Set List of SCPI Commands CONF FSC CONFigure? CONFigure:ACP CONFigure:ACP:NDEFault CONFigure:ACPower CONFigure:CDPower CONFigure:CDPower CONFigure:CDPower:NDEFault CONFigure:CHPower CONFigure:CHPower CONFigure:CHPower:NDEFault CONFigure:EVMQpsk CONFigure:EVMQpsk CONFigure:EVMQpsk:NDEFault CONFigure:OBWidth CONFigure:OBWidth CONFigure:OBWidth:NDEFault CONFigure:PCONtrol CONFigure:PCONtrol CONFigure:PCONtrol:NDEFault CONFigure:RHO CONFigure:RHO CONFigure:RHO:NDEFault CONFigure:SEMask CONFigure:SEMask CONFigure:SEMask:NDEFault COUPle ALL | NONE DISPlay:<measurement>:ANNotation:TITLe:DATA <string>...
  • Page 108 3  Programming the Test Set List of SCPI Commands DISPlay:CDPower:TEXT:BFORmat? DISPlay:CDPower:VIEW:NSELect <integer> DISPlay:CDPower:VIEW:NSELect? DISPlay:CDPower:VIEW[:SELect] PGRaph | CDE | SEVM | QUAD | DBITs | LDEMod DISPlay:CDPower:VIEW[:SELect]? DISPlay:CDPower:VIEW5:WINDow2:TRACe:Y[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:CDPower:VIEW3:WINDow3:TRACe:Y[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:CDPower:VIEW3:WINDow2:TRACe:Y[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:CDPower:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:CDPower:VIEW3:WINDow[1]:TRACe:Y[:SCALe]:COUPle 0 | 1 | OFF | ON...
  • Page 109 3  Programming the Test Set List of SCPI Commands DISPlay:CDPower:VIEW2:WINDow2:TRACe:Y[:SCALe]:RLEVel? DISPlay:CDPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? DISPlay:CDPower:VIEW5:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? DISPlay:CDPower:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? DISPlay:CDPower:VIEW4:WINDow2:TRACe:Y[:SCALe]:RLEVel? DISPlay:CDPower:VIEW5:WINDow2:TRACe:Y[:SCALe]:RLEVel? DISPlay:CDPower:VIEW5:WINDow2:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:CDPower:VIEW3:WINDow3:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:CDPower:VIEW3:WINDow2:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:CDPower:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:CDPower:VIEW3:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:CDPower:VIEW3:WINDow2:TRACe:Y[:SCALe]:RPOSition? DISPlay:CDPower:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:RPOSition?
  • Page 110 3  Programming the Test Set List of SCPI Commands DISPlay:EVMQpsk:VIEW[1]:WINDow2:TRACe:POLar VC | VECTor | CONStln DISPlay:EVMQpsk:VIEW[1]:WINDow2:TRACe:POLar? DISPlay:EVMQpsk:VIEW[1]:WINDow2:TRACe:ROTQpi[:STATe] OFF | ON | 0 | 1 DISPlay:EVMQpsk:VIEW[1]:WINDow2:TRACe:ROTQpi[:STATe]? DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:COUPle? DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision <rel_ampl> DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:OBWidth:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition?
  • Page 111 3  Programming the Test Set List of SCPI Commands DISPlay:RHO:VIEW[1]:WINDow2:TRACe:IQCHips <integer> DISPlay:RHO:VIEW[1]:WINDow2:TRACe:IQCHips? DISPlay:RHO:VIEW[1]:WINDow2:TRACe:POLar VC | VECTor | CONStln DISPlay:RHO:VIEW[1]:WINDow2:TRACe:POLar? DISPlay:RHO:VIEW[1]:WINDow2:TRACe:ROTQpi[:STATe] 0 | 1 | OFF | ON DISPlay:RHO:VIEW[1]:WINDow2:TRACe:ROTQpi[:STATe]? DISPlay:RHO:VIEW2:WINDow3:TRACe:X[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:RHO:VIEW2:WINDow2:TRACe:X[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:RHO:VIEW2:WINDow[1]:TRACe:X[:SCALe]:COUPle 0 | 1 | OFF | ON DISPlay:RHO:VIEW2:WINDow[1]:TRACe:X[:SCALe]:COUPle? DISPlay:RHO:VIEW2:WINDow3:TRACe:X[:SCALe]:COUPle?
  • Page 112 3  Programming the Test Set List of SCPI Commands DISPlay:RHO:VIEW2:WINDow3:TRACe:Y[:SCALe]:PDIVision? DISPlay:RHO:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:PDIVision? DISPlay:RHO:VIEW6:WINDow3:TRACe:Y[:SCALe]:PDIVision? DISPlay:RHO:VIEW6:WINDow2:TRACe:Y[:SCALe]:PDIVision? DISPlay:RHO:VIEW3:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> DISPlay:RHO:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> DISPlay:RHO:VIEW2:WINDow2:TRACe:Y[:SCALe]:RLEVel <real> DISPlay:RHO:VIEW2:WINDow[1]:TRACe:Y[:SCALe]:RLEVel <real> DISPlay:RHO:VIEW2:WINDow3:TRACe:Y[:SCALe]:RLEVel <real> DISPlay:RHO:VIEW6:WINDow3:TRACe:Y[:SCALe]:RLEVel <freq> DISPlay:RHO:VIEW6:WINDow2:TRACe:Y[:SCALe]:RLEVel <real> DISPlay:RHO:VIEW2:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? DISPlay:RHO:VIEW6:WINDow3:TRACe:Y[:SCALe]:RLEVel? DISPlay:RHO:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? DISPlay:RHO:VIEW6:WINDow2:TRACe:Y[:SCALe]:RLEVel? DISPlay:RHO:VIEW2:WINDow3:TRACe:Y[:SCALe]:RLEVel? DISPlay:RHO:VIEW2:WINDow2:TRACe:Y[:SCALe]:RLEVel? DISPlay:RHO:VIEW3:WINDow[1]:TRACe:Y[:SCALe]:RLEVel? DISPlay:RHO:VIEW2:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:RHO:VIEW6:WINDow2:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:RHO:VIEW2:WINDow3:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:RHO:VIEW6:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer |...
  • Page 113 3  Programming the Test Set List of SCPI Commands DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom DISPlay:SEMask:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition? DISPlay:WINDow[1]:ANNotation[:ALL] OFF | ON | 0 | 1 DISPlay:WINDow[1]:ANNotation[:ALL]? DISPlay:WINDow:FORMat:TILE DISPlay:WINDow:FORMat:ZOOM DISPlay:WINDow[:SELect] <number> DISPlay:WINDow[:SELect]? DISPlay:WINDow[1]:TRACe:GRATicule:GRID[:STATe] OFF | ON | 0 | 1 DISPlay:WINDow[1]:TRACe:GRATicule:GRID[:STATe]? FEED:RF:PORT:OUTP RFIO1 FETCh:ACP[n]? FETCh:CDPower[n]? FETCh:CHPower:CHPower?
  • Page 114 3  Programming the Test Set List of SCPI Commands INPut[1]|2:LISN[:TYPE] FOURphase | ESH2Z5 | ENV216 | OFF INPut[1]|2:LISN[:TYPE]? INPut:MIXer EXTernal | INTernal INPut:MIXer? INST:NSEL 102 INST:NSEL 105 INSTrument:CATalog? INSTrument:COUPle:DEFault INSTrument:COUPle:FREQuency:CENTer ALL | NONE INSTrument:COUPle:FREQuency:CENTer? INSTrument:DEFault INSTrument:NSELect <integer> INSTrument:NSELect? INSTrument[:SELect] ‘SA’ | ’PNOISE’ | ’EDGE’ | ’GSM’ | ’BASIC’ INSTrument[:SELect] RECeiver INSTrument[:SELect] SA | RTSA | SEQAN | EMI | BASIC | WCDMA | EDGEGSM | WIMAXOFDMA | VSA | PNOISE | NFIGure | ADEMOD | BTooth | TDSCDMA | CDMA2K |...
  • Page 115 3  Programming the Test Set List of SCPI Commands MMEMory:MDIRectory <directory_name> MMEMory:MOVE <string>, <string>[, <string>, <string>] MMEMory:RDIRectory <directory_name> MMEMory:REGister:STATe:LABel <regnumber>, "label" MMEMory:REGister:STATe:LABel? <regnumber> MMEMory:STORe:RESults <string> MMEMory:STORe:RESults <string> MMEMory:STORe:RESults <string> MMEMory:STORe:RESults <string> MMEMory:STORe:RESults:MTABle|PTABle|SPECtrogram <filename> MMEMory:STORe:SCReen <filename> MMEMory:STORe:SCReen:THEMe TDColor | TDMonochrome | FCOLor | FMONochrome MMEMory:STORe:SCReen:THEMe? MMEMory:STORe:STATe 1, <filename>...
  • Page 116 3  Programming the Test Set List of SCPI Commands [:SENSe]:ACPower:BANDwidth:TYPE? [:SENSe]:ACPower:BANDwidth:VIDeo <freq> [:SENSe]:ACPower:BANDwidth:VIDeo? [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO OFF | ON | 0 | 1 [:SENSe]:ACPower:BANDwidth:VIDeo:AUTO? [:SENSe]:ACPower:BWIDth:INTegration [:SENSe]:ACPower:BWIDth[:RESolution] [:SENSe]:ACPower:BWIDth:SHAPe [:SENSe]:ACPower:BWIDth:TYPE [:SENSe]:ACPower:BWIDth:VIDeo [:SENSe]:ACPower:CARRier[1]|2:AUTO[:STATe] OFF | ON | 0 | 1 [:SENSe]:ACPower:CARRier[1]|2:AUTO[:STATe]? [:SENSe]:ACPower:CARRier[1]|2:COUNt <integer> [:SENSe]:ACPower:CARRier[1]|2:COUNt? [:SENSe]:ACPower:CARRier[1]|2:CPSD <real> [:SENSe]:ACPower:CARRier[1]|2:CPSD? [:SENSe]:ACPower:CARRier[1]|2:LIST:BANDwidth[:INTegration] <freq>, ...
  • Page 117 3  Programming the Test Set List of SCPI Commands [:SENSe]:ACPower:FREQuency:SPAN:PREVious [:SENSe]:ACPower:LIMit[:STATe] [:SENSe]:ACPower:METHod IBW | IBWRange | FAST | RBW [:SENSe]:ACPower:METHod? [:SENSe]:ACPower:OFFSet[1]|2:LIST:BWIDth[:INTegration] [:SENSe]:ACPower:OFFSet[1]|2:LIST:BWIDth:RESolution [:SENSe]:ACPower:OFFSet[1]|2:LIST:BWIDth:SHAPe [:SENSe]:ACPower:OFFSet[1]|2:LIST:BWIDth:TYPE [:SENSe]:ACPower:OFFSet[1]|2:LIST:BWIDth:VIDeo [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:ABSolute <real>, ... [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:ABSolute? [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth[:INTegration] <freq>, [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth[:INTegration]? [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:RESolution <freq>, ... [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:RESolution? [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:RESolution:AUTO ON|OFF|1|0, ... [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:RESolution:AUTO? [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:SHAPe GAUSsian|FLATtop, ...
  • Page 118 3  Programming the Test Set List of SCPI Commands [:SENSe]:ACPower:SWEep:TIME <time> [:SENSe]:ACPower:SWEep:TIME? [:SENSe]:ACPower:SWEep:TIME:AUTO OFF | ON | 0 | 1 [:SENSe]:ACPower:SWEep:TIME:AUTO? [:SENSe]:ACPower:SWEep:TIME:AUTO:RULes NORMal | ACCuracy [:SENSe]:ACPower:SWEep:TIME:AUTO:RULes? [:SENSe]:ACPower:TYPE TPRef | PSDRef [:SENSe]:ACPower:TYPE? [:SENSe]:ACPR:AVERage:COUNt [:SENSe]:ACPR:AVERage:TCONtrol [:SENSe]:ACPR:FILTer[:RRC]:ALPHa [:SENSe]:ACPR:FILTer[:RRC][:STATe] [:SENSe]:ACPR:OFFSet[1]|2:LIST:ABSolute (PSAW-CDMA, PSAcdma2000) [:SENSe]:ACPR:OFFSet[1]|2:LIST:BANDwidth [:SENSe]:ACPR:OFFSet[1]|2:LIST:BWIDth [:SENSe]:ACPR:SWEep:DETector[:FUNCtion] [:SENSe]:ACPR:SWEep:TYPE [:SENSe]:ACPR:TRIGger:SOURce...
  • Page 119 3  Programming the Test Set List of SCPI Commands [:SENSe]:CDPower:SBOundary:LIST[:BTS]:PRESet TM1D16 | TM1D32 | TM1D64 | TM1D16SC | TM1D32SC | TM1D64SC | TM2 | TM2SC | TM3D16 | TM3D32 | TM3D16SC | TM3D32SC | TM4 | TM4CP | TM5H2 | TM5H4 | TM5H8 | TM6H8 [:SENSe]:CDPower:SBOundary:LIST[:BTS]:REPLace <entry_id>, <symbol_rate>, <code_num>, QPSK | QAM16 | QAM64 [:SENSe]:CDPower:SCCPch:SPRead <integer>...
  • Page 120 3  Programming the Test Set List of SCPI Commands [:SENSe]:CHPower:DETector:AUTO? [:SENSe]:CHPower:DETector[:FUNCtion] NORMal | AVERage | POSitive | SAMPle | NEGative [:SENSe]:CHPower:DETector[:FUNCtion]? [:SENSe]:CHPower:FILTer[:RRC]:ALPHa <real> [:SENSe]:CHPower:FILTer[:RRC]:ALPHa? [:SENSe]:CHPower:FILTer[:RRC]:BANDwidth <real> [:SENSe]:CHPower:FILTer[:RRC]:BANDwidth? [:SENSe]:CHPower:FILTer[:RRC]:BWIDth [:SENSe]:CHPower:FILTer[:RRC][:STATe] OFF | ON | 0 | 1 [:SENSe]:CHPower:FILTer[:RRC][:STATe]? [:SENSe]:CHPower:FREQuency:SPAN <freq> [:SENSe]:CHPower:FREQuency:SPAN? [:SENSe]:CHPower:FREQuency:SPAN:FULL [:SENSe]:CHPower:FREQuency:SPAN:PREVious [:SENSe]:CHPower:SWEep:POINts <integer>...
  • Page 121 3  Programming the Test Set List of SCPI Commands [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude] 50 | 75 [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude]? [:SENSe]:CORRection:MS[:RF]:GAIN <rel_ampl> [:SENSe]:CORRection:MS[:RF]:GAIN? [:SENSe]:CORRection:MS[:RF]:LOSS <rel_ampl> [:SENSe]:CORRection:MS[:RF]:LOSS? [:SENSe]:CORRection:OFFSet[:MAGNitude] [:SENSe]:CORRection:SA[:RF]:GAIN <rel_ampl> [:SENSe]:CORRection:SA[:RF]:GAIN? [:SENSe]:EBWidth:AVERage:COUNt [:SENSe]:EBWidth:FREQuency:SPAN [:SENSe]:EBWidth:MAXHold [:SENSe]:EBWidth:XDB [:SENSe]:EVMQpsk:ALPHa [:SENSe]:EVMQpsk:AVERage:COUNt <integer> [:SENSe]:EVMQpsk:AVERage:COUNt? [:SENSe]:EVMQpsk:AVERage[:STATe] OFF | ON | 0 | 1 [:SENSe]:EVMQpsk:AVERage[:STATe]? [:SENSe]:EVMQpsk:AVERage:TCONtrol EXPonential | REPeat [:SENSe]:EVMQpsk:AVERage:TCONtrol?
  • Page 122 3  Programming the Test Set List of SCPI Commands [:SENSe]:FREQuency:CENTer? [:SENSe]:FREQuency:CENTer:STEP:AUTO OFF | ON | 0 | 1 [:SENSe]:FREQuency:CENTer:STEP:AUTO? [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> [:SENSe]:FREQuency:CENTer:STEP[:INCRement]? [:SENSe]:FREQuency:EMIXer:CENTer <freq> [:SENSe]:FREQuency:EMIXer:CENTer? [:SENSe]:FREQuency:IQ:CENTer <freq> [:SENSe]:FREQuency:IQ:CENTer? [:SENSe]:FREQuency:RF:CENTer <freq> [:SENSe]:FREQuency:RF:CENTer? [:SENSe]:HDUPlex:PORT:INPut RFIO3 | RFIO4 [:SENSe]:HDUPlex:PORT:OUTPut RFIO3 | RFIO4 [:SENSe]:MCPower:AVERage:COUNt (PSAPowerSuite, PSAW-CDMA, PSAcdma2000) [:SENSe]:MCPower:CARRier[1]|2:LIST:BANDwidth[:INTegration] (PSAPowerSuite) [:SENSe]:MCPower:CARRier[1]|2:LIST:BWIDth[:INTegration] (PSAPowerSuite) [:SENSe]:MCPower:CARRier[1]|2:LIST:PPResent (PSAPowerSuite)
  • Page 123 3  Programming the Test Set List of SCPI Commands [:SENSe]:OBWidth:DETector[:FUNCtion]? [:SENSe]:OBWidth:FREQuency:SPAN <freq> [:SENSe]:OBWidth:FREQuency:SPAN? [:SENSe]:OBWidth:FREQuency:SPAN:AUTO ON | OFF | 0 | 1 [:SENSe]:OBWidth:FREQuency:SPAN:AUTO? [:SENSe]:OBWidth:FREQuency:SPAN:FULL [:SENSe]:OBWidth:FREQuency:SPAN:PREVious [:SENSe]:OBWidth:MAXHold ON | OFF | 1 | 0 [:SENSe]:OBWidth:MAXHold? [:SENSe]:OBWidth:PERCent <real> [:SENSe]:OBWidth:PERCent? [:SENSe]:OBWidth:SWEep:POINts <integer> [:SENSe]:OBWidth:SWEep:POINts? [:SENSe]:OBWidth:SWEep:TIME <time> [:SENSe]:OBWidth:SWEep:TIME? [:SENSe]:OBWidth:SWEep:TIME:AUTO OFF | ON | 0 | 1 [:SENSe]:OBWidth:SWEep:TIME:AUTO?
  • Page 124 3  Programming the Test Set List of SCPI Commands [:SENSe]:POWer[:RF]:RANGe <real> [:SENSe]:POWer[:RF]:RANGe? [:SENSe]:POWer[:RF]:RANGe:MIXer:OFFSet <real> [:SENSe]:POWer[:RF]:RANGe:MIXer:OFFSet? [:SENSe]:POWer[:RF]:RANGe:OPTimize IMMediate [:SENSe]:POWer[:RF]:RANGe:OPTimize:ATTenuation OFF | ON | ELECtrical | COMBined [:SENSe]:POWer[:RF]:RANGe:OPTimize:ATTenuation? [:SENSe]:POWer[:RF]:RANGe:PARatio <real> [:SENSe]:POWer[:RF]:RANGe:PARatio? [:SENSe]:RADio:CONFigure:EHSPa[:STATe] OFF | ON | 0 | 1 [:SENSe]:RADio:CONFigure:EHSPa[:STATe]? [:SENSe]:RADio:CONFigure:HSDPa[:STATe] 0 | 1 | OFF | ON [:SENSe]:RADio:CONFigure:HSDPa[:STATe]? [:SENSe]:RADio:DEVice [:SENSe]:RADio:STANdard:DEVice BTS | MS...
  • Page 125 3  Programming the Test Set List of SCPI Commands [:SENSe]:RHO:SBOundary:LIST[:BTS]:APPend <symbol_rate>, <code_num>, QPSK | QAM16 | QAM64 [:SENSe]:RHO:SBOundary:LIST[:BTS]:CHANnel? <entry_id> [:SENSe]:RHO:SBOundary:LIST[:BTS]:INIT <symbol_rate>, <code_num>, QPSK | QAM16 | QAM64 [:SENSe]:RHO:SBOundary:LIST[:BTS]:NCHannels? [:SENSe]:RHO:SBOundary:LIST[:BTS]:PRESet TM1D16 | TM1D32 | TM1D64 | TM1D16SC | TM1D32SC | TM1D64SC | TM2 | TM2SC | TM3D16 | TM3D32 | TM3D16SC | TM3D32SC | TM4 | TM4CP | TM5H2 | TM5H4 | TM5H8 | TM6H8 [:SENSe]:RHO:SBOundary:LIST[:BTS]:REPLace <entry_id>, <symbol_rate>, <code_num>, QPSK | QAM16 | QAM64...
  • Page 126 3  Programming the Test Set List of SCPI Commands [:SENSe]:ROSCillator:SOURce:TYPE INTernal | EXTernal | SENSe | PULSe [:SENSe]:ROSCillator:SOURce:TYPE? [:SENSe]:SEMask:AVERage:COUNt <integer> [:SENSe]:SEMask:AVERage:COUNt? [:SENSe]:SEMask:AVERage[:STATe] ON | OFF | 1 | 0 [:SENSe]:SEMask:AVERage[:STATe]? [:SENSe]:SEMask:BANDwidth[1]|2:INTegration <bandwidth> [:SENSe]:SEMask:BANDwidth[1]|2:INTegration? [:SENSe]:SEMask:BANDwidth[1]|2[:RESolution] <bandwidth> [:SENSe]:SEMask:BANDwidth[1]|2[:RESolution]? [:SENSe]:SEMask:BANDwidth[1]|2[:RESolution]:AUTO OFF | ON | 1 | 0 [:SENSe]:SEMask:BANDwidth[1]|2[:RESolution]:AUTO? [:SENSe]:SEMask:BANDwidth:SHAPe ASENse | GAUSsian | FLATtop [:SENSe]:SEMask:BANDwidth:SHAPe?
  • Page 127 3  Programming the Test Set List of SCPI Commands [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:IMULti <integer>, ... [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:IMULti? [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth[:RESolution] <bandwidth>, ... [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth[:RESolution]? [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth[:RESolution]:AUTO OFF | ON | 1 | 0, ... [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth[:RESolution]:AUTO? [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:VIDeo <freq>, ... [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:VIDeo? [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:VIDeo:AUTO OFF | ON | 0 | 1, ... [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:VIDeo:AUTO? [:SENSe]:SEMask:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:VIDeo:RATio <real>, ...
  • Page 128 3  Programming the Test Set List of SCPI Commands [:SENSe]:SEMask:SWEep[1]|2:TIME? [:SENSe]:SEMask:SWEep[1]|2:TIME:AUTO OFF | 0 | ON | 1 [:SENSe]:SEMask:SWEep[1]|2:TIME:AUTO? [:SENSe]:SEMask:TYPE PSDRef | TPRef | SPRef [:SENSe]:SEMask:TYPE? [:SENSe]:SWEep:EGATe:DELay <time> [:SENSe]:SWEep:EGATe:DELay? [:SENSe]:SWEep:EGATe:EXTernal[1]|2:LEVel <voltage> [:SENSe]:SWEep:EGATe:EXTernal[1]|2:LEVel? [:SENSe]:SWEep:EGATe:LENGth <time> [:SENSe]:SWEep:EGATe:LENGth? [:SENSe]:SWEep:EGATe:POLarity NEGative | POSitive [:SENSe]:SWEep:EGATe:POLarity? [:SENSe]:SWEep:EGATe:SOURce EXTernal1 | EXTernal2 | LINE | FRAMe | RFBurst [:SENSe]:SWEep:EGATe:SOURce? [:SENSe]:SWEep:EGATe[:STATe] OFF | ON | 0 | 1...
  • Page 129 3  Programming the Test Set List of SCPI Commands BAND37 | BAND38 | BAND39 | BAND40 | BAND41 | BAND42 | BAND43 | BAND44 | BANDA | BANDB | BANDC | BANDD | BANDE | BANDF SOURce:FREQuency:CHANnels:BAND? SOURce:FREQuency:CHANnels:NUMBer <int> SOURce:FREQuency:CHANnels:NUMBer? SOURce:FREQuency[:CW] <freq>...
  • Page 130 3  Programming the Test Set List of SCPI Commands DOWN | UP, <freq>, <ampl>, <string>, TIME | COUNt | CONTinuous, <time>, ON | OFF | 1 | 0, [<int>], SOURce:LIST:STEP[1]|2|...|4..1000:SETup? SOURce:LIST:STEP[1]|2|3...1000:SETup:AMPLitude <double> SOURce:LIST:STEP[1]|2|3...1000:SETup:AMPLitude? SOURce:LIST:STEP[1]|2|3...1000:SETup:CNFRequency <double> SOURce:LIST:STEP[1]|2|3...1000:SETup:CNFRequency <double> SOURce:LIST:STEP[1]|2|3...1000:SETup:CNFRequency? SOURce:LIST:STEP[1]|2|3...1000:SETup:CNFRequency? SOURce:LIST:STEP[1]|2|3...1000:SETup:DURation:TCOunt <double> SOURce:LIST:STEP[1]|2|3...1000:SETup:DURation:TCOunt? SOURce:LIST:STEP[1]|2|3...1000:SETup:DURation:TYPE TIME | COUNt | CONTinuous | CABort...
  • Page 131 3  Programming the Test Set List of SCPI Commands SOURce:POWer:REFerence:STATe OFF | ON | 0 | 1 SOURce:POWer:REFerence:STATe? SOURce:PRESet SOURce:RADio:ARB:BASeband:FREQuency:OFFSet <freq> SOURce:RADio:ARB:BASeband:FREQuency:OFFSet? SOURce:RADio:ARB:CATalog? SOURce:RADio:ARB:DEFault:DIRectory <string> SOURce:RADio:ARB:DEFault:DIRectory? SOURce:RADio:ARB:DELete <string> SOURce:RADio:ARB:DELete:ALL SOURce:RADio:ARB:FCATalog? SOURce:RADio:ARB:HEADer:CLEar SOURce:RADio:ARB:HEADer:SAVE SOURce:RADio:ARB:LOAD <string> SOURce:RADio:ARB:LOAD:ALL <string> SOURce:RADio:ARB:MDEStination:ALCHold NONE | M1 | M2 | M3 | M4 SOURce:RADio:ARB:MDEStination:ALCHold? SOURce:RADio:ARB:MDEStination:PULSe NONE | M1 | M2 | M3 | M4 SOURce:RADio:ARB:MDEStination:PULSe?
  • Page 132 3  Programming the Test Set List of SCPI Commands SOURce:RADio:ARB:WAVeform <string> SOURce:RADio:ARB:WAVeform? SOURce:RADio:BAND:LINK DOWN | UP SOURce:RADio:BAND:LINK? SOURce:RADio:DEVice BTS | MS SOURce:RADio:DEVice? STATus:OPERation:CONDition? STATus:OPERation:ENABle <integer> STATus:OPERation:ENABle? STATus:OPERation[:EVENt]? STATus:OPERation:NTRansition <integer> STATus:OPERation:NTRansition? STATus:OPERation:PTRansition <integer> STATus:OPERation:PTRansition? STATus:PRESet STATus:QUEStionable:CALibration:CONDition? STATus:QUEStionable:CALibration:ENABle <integer> STATus:QUEStionable:CALibration:ENABle? STATus:QUEStionable:CALibration[:EVENt]? STATus:QUEStionable:CALibration:EXTended:FAILure:CONDition? STATus:QUEStionable:CALibration:EXTended:FAILure:ENABle <integer>...
  • Page 133 3  Programming the Test Set List of SCPI Commands STATus:QUEStionable:FREQuency:ENABle? STATus:QUEStionable:FREQuency[:EVENt]? STATus:QUEStionable:FREQuency:NTRansition <integer> STATus:QUEStionable:FREQuency:NTRansition? STATus:QUEStionable:FREQuency:PTRansition <integer> STATus:QUEStionable:FREQuency:PTRansition? STATus:QUEStionable:INTegrity:CONDition? STATus:QUEStionable:INTegrity:ENABle <integer> STATus:QUEStionable:INTegrity:ENABle? STATus:QUEStionable:INTegrity[:EVENt]? STATus:QUEStionable:INTegrity:NTRansition <integer> STATus:QUEStionable:INTegrity:NTRansition? STATus:QUEStionable:INTegrity:PTRansition <integer> STATus:QUEStionable:INTegrity:PTRansition? STATus:QUEStionable:INTegrity:SIGNal:CONDition? STATus:QUEStionable:INTegrity:SIGNal:ENABle <integer> STATus:QUEStionable:INTegrity:SIGNal:ENABle? STATus:QUEStionable:INTegrity:SIGNal[:EVENt]? STATus:QUEStionable:INTegrity:SIGNal:NTRansition <integer> STATus:QUEStionable:INTegrity:SIGNal:NTRansition? STATus:QUEStionable:INTegrity:SIGNal:PTRansition <integer> STATus:QUEStionable:INTegrity:SIGNal:PTRansition? STATus:QUEStionable:INTegrity:UNCalibrated:CONDition? STATus:QUEStionable:INTegrity:UNCalibrated:ENABle STATus:QUEStionable:INTegrity:UNCalibrated:ENABle? STATus:QUEStionable:INTegrity:UNCalibrated[:EVENt]?
  • Page 134 3  Programming the Test Set List of SCPI Commands SYSTem:APPLication:CATalog:REVision? <model> SYSTem:APPLication[:CURRent][:NAME]? SYSTem:APPLication[:CURRent]:OPTion? SYSTem:APPLication[:CURRent]:REVision? SYSTem:COMMunicate:LAN:SCPI:HISLip:ENABle OFF | ON | 0 | 1 SYSTem:COMMunicate:LAN:SCPI:HISLip:ENABle? SYSTem:COMMunicate:LAN:SCPI:SICL:ENABle OFF | ON | 0 | 1 SYSTem:COMMunicate:LAN:SCPI:SICL:ENABle? SYSTem:COMMunicate:LAN:SCPI:SOCKet:CONTrol? SYSTem:COMMunicate:LAN:SCPI:SOCKet:ENABle OFF | ON | 0 | 1 SYSTem:COMMunicate:LAN:SCPI:SOCKet:ENABle? SYSTem:COMMunicate:LAN:SCPI:TELNet:ENABle OFF | ON | 0 | 1 SYSTem:COMMunicate:LAN:SCPI:TELNet:ENABle?
  • Page 135 3  Programming the Test Set List of SCPI Commands SYSTem:MODule:ENABle "<mnemonic>", 0 | 1 SYSTem:MODule:ENABle? "<mnemonic>" SYSTem:MODule:INDex? SYSTem:MODule:LIST? SYSTem:MODule:MNEMonic? SYSTem:MODule:MODel? SYSTem:MODule:NAME? SYSTem:MODule:SERial? SYSTem:OPTions? SYSTem:PDOWn [NORMal | FORCe] SYSTem:PON:APPLication:LLISt <stringofINSTrument:SELectnames> SYSTem:PON:APPLication:LLISt? SYSTem:PON:APPLication:VMEMory[:AVAilable]? SYSTem:PON:APPLication:VMEMory:TOTal? SYSTem:PON:APPLication:VMEMory:USED? SYSTem:PON:APPLication:VMEMory:USED:NAME? <INSTrument:SELectname> SYSTem:PON:MODE SA | BASIC | ADEMOD | NFIGURE | PNOISE | CDMA2K | TDSCDMA | VSA | VSA89601 | WCDMA | WIMAXOFDMA SYSTem:PON:MODE? SYSTem:PON:TIME?
  • Page 136 3  Programming the Test Set List of SCPI Commands TRACe:OBWidth:TYPE? TRACe:SEMask:TYPE WRITe | AVERage | MAXHold | MINHold TRACe:SEMask:TYPE? TRIGger:<measurement>[:SEQuence]:IQ:SOURce EXTernal1 | EXTernal2 | IMMediate | IQMag | IDEMod | QDEMod | IINPut | QINPut | AIQMag TRIGger:<measurement>[:SEQuence]:IQ:SOURce? TRIGger:<measurement>[:SEQuence]:RF:SOURce EXTernal1 | EXTernal2 | IMMediate | LINE | FRAMe | RFBurst | VIDeo | IF | ALARm | LAN | TV TRIGger:<measurement>[:SEQuence]:RF:SOURce? TRIGger:<measurement>[:SEQuence]:SOURce EXTernal1 | EXTernal2 | IMMediate...
  • Page 137 3  Programming the Test Set List of SCPI Commands TRIGger[:SEQuence]:FRAMe:EXTernal1:SLOPe TRIGger[:SEQuence]:FRAMe:OFFSet <time> TRIGger[:SEQuence]:FRAMe:OFFSet? TRIGger[:SEQuence]:FRAMe:OFFSet:DISPlay:RESet TRIGger[:SEQuence]:FRAMe:PERiod <time> TRIGger[:SEQuence]:FRAMe:PERiod? TRIGger[:SEQuence]:FRAMe:RFBurst:LEVel:ABSolute TRIGger[:SEQuence]:FRAMe:RFBurst:SLOPe TRIGger[:SEQuence]:FRAMe:SYNC EXTernal1 | EXTernal2 | RFBurst | OFF TRIGger[:SEQuence]:FRAMe:SYNC EXTernal TRIGger[:SEQuence]:FRAMe:SYNC? TRIGger[:SEQuence]:FRAMe:SYNC:HOLDoff <time> TRIGger[:SEQuence]:FRAMe:SYNC:HOLDoff? TRIGger[:SEQuence]:FRAMe:SYNC:HOLDoff:STATe OFF | ON | 0 | 1 TRIGger[:SEQuence]:FRAMe:SYNC:HOLDoff:STATe? TRIGger[:SEQuence]:HOLDoff <time>...
  • Page 138 3  Programming the Test Set List of SCPI Commands TRIGger|TRIGger1|TRIGger2[:SEQuence]:OUTPut HSWP | MEASuring | MAIN | GATE | GTRigger | OEVen | SPOint | SSWeep | SSETtled | S1Marker | S2Marker | S3Marker | S4Marker | OFF TRIGger|TRIGger1|TRIGger2[:SEQuence]:OUTPut? TRIGger|TRIGger1|TRIGger2[:SEQuence]:OUTPut:POLarity POSitive | NEGative TRIGger|TRIGger1|TRIGger2[:SEQuence]:OUTPut:POLarity? UNIT:ACPower:POWer:PSD DBMHZ | DBMMHZ UNIT:ACPower:POWer:PSD?
  • Page 139 3  Programming the Test Set STATus Subsystem STATus Subsystem The following diagram shows the entire Status Register Subsystem implementation of the X Series instruments. Detailed Description The STATus subsystem remote commands set and query the status hardware registers. This system of registers monitors various events and conditions in the instrument.
  • Page 140 3  Programming the Test Set STATus Subsystem The operation and questionable status registers are sets of registers that monitor the overall instrument condition. They are accessed with the STATus:OPERation and STATus:QUEStionable commands in the STATus command subsystem. Each register set is made up of five registers: •...
  • Page 141 3  Programming the Test Set STATus Subsystem • *STB? (status byte) queries the value of the status byte register without erasing its contents. How to Use the Status Registers A program often needs to be able to detect and manage error conditions or changes in instrument status. There are two methods you can use to programmatically access the information in status registers: •...
  • Page 142 3  Programming the Test Set STATus Subsystem event register is cleared. Querying the event register allows you to detect that this condition occurred even if the condition no longer exists. The event register can only be cleared by querying it or sending the *CLS command.
  • Page 143 3  Programming the Test Set STATus Subsystem 2. It’s usually a good idea to start by clearing all the status registers with *CLS. 3. Sending the STAT:QUES:INT:ENAB 1024 command lets you monitor only bit 10 events, instead of the default monitoring all the bits in the register. The register default is for positive transition events (0 to 1 transition).
  • Page 144 3  Programming the Test Set STATus Subsystem The SRQ process sets the SRQ true. It also sets the status byte’s request service (RQS) bit to 1. Both actions are necessary to inform the controller that the instrument requires service. Setting the SRQ line only informs the controller that some device on the bus requires service.
  • Page 145 3  Programming the Test Set STATus Subsystem The Status Byte Register The RQS bit is read and reset by a serial poll. The same bit position (MSS) is read, non-destructively by the *STB? command. If you serial poll bit 6 it is read as RQS, but if you send *STB it reads bit 6 as MSS. For more information refer to IEEE 488.2 standards, section 11.
  • Page 146 3  Programming the Test Set STATus Subsystem Description 0, 1 These bits are always set to 0. A 1 in this bit position indicates that the SCPI error queue is not empty which means that it contains at least one error message. A 1 in this bit position indicates that the data questionable summary bit has been set.
  • Page 147 3  Programming the Test Set STATus Subsystem bit 6) to your numeric sum when you enable any bits for a service request. The command *SRE? returns the decimal value of the sum of the bits previously enabled with the *SRE <integer> command. The service request enable register presets to zeros (0).
  • Page 148 3  Programming the Test Set STATus Subsystem Description A 1 in this bit position indicates that all pending operations were completed following execution of the *OPC command. This bit is for GPIB handshaking to request control. Currently it is set to 0 because there are no implementations where the spectrum analyzer controls another instrument.
  • Page 149 3  Programming the Test Set STATus Subsystem byte register will be set to 1, send the command *ESE 192 (128 + 64). The command *ESE? returns the decimal value of the sum of the bits previously enabled with the *ESE <integer> command. The standard event status enable register presets to zeros (0).
  • Page 150 3  Programming the Test Set STATus Subsystem Power summary The instrument hardware has detected a power unleveled condition. Temperature summary The instrument is still warming up. Frequency summary The instrument hardware has detected an unlocked condition or a problem with the external frequency reference. Calibration summary The instrument has detected a hardware problem while doing the automatic internal alignment process.
  • Page 151 3  Programming the Test Set STATus Subsystem Operation Enable This command determines which bits in the Operation Event register, will set the Operation Status Summary bit (bit 7) in the Status Byte Register. The variable <integer> is the sum of the decimal values of the bits you want to enable.
  • Page 152 3  Programming the Test Set STATus Subsystem Mode Remote Command :STATus:OPERation:NTRansition <integer> :STATus:OPERation:NTRansition? Example STAT:OPER:NTR 1 Align Now operation complete will be reported to the Status Byte Register. Preset 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Operation Positive Transition This command determines which bits in the Operation Condition register will set the corresponding bit in the Operation Event register when the condition register bit has a positive transition (0 to 1).
  • Page 153 3  Programming the Test Set STATus Subsystem Questionable Register "Questionable Condition " on page 153 "Questionable Enable " on page 153 "Questionable Event Query " on page 154 "Questionable Negative Transition " on page 154 "Questionable Positive Transition" on page 154 Questionable Condition This query returns the decimal value of the sum of the bits in the Questionable Condition register.
  • Page 154 3  Programming the Test Set STATus Subsystem Questionable Event Query This query returns the decimal value of the sum of the bits in the Questionable Event register. The register requires that the associated PTR or NTR filters be set before a condition register bit can set a bit in the event register.
  • Page 155 3  Programming the Test Set STATus Subsystem Remote Command :STATus:QUEStionable:PTRansition <integer> :STATus:QUEStionable:PTRansition? Example STAT:QUES:PTR 16 Temperature summary ‘questionable asserted’ will be reported to the Status Byte Register. Preset 32767 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Calibration Register "Questionable Calibration Condition "...
  • Page 156 3  Programming the Test Set STATus Subsystem Mode Remote Command :STATus:QUEStionable:CALibration:ENABle <integer> :STATus:QUEStionable:CALibration:ENABle? Example STAT:QUES:CAL:ENAB 16384 Can be used to query if an alignment is needed, if you have turned off the automatic alignment process. 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00...
  • Page 157 3  Programming the Test Set STATus Subsystem 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Calibration Positive Transition This command determines which bits in the Questionable Calibration Condition register will set the corresponding bit in the Questionable Calibration Event register when the condition register bit has a positive transition (0 to 1).
  • Page 158 3  Programming the Test Set STATus Subsystem Example STAT:QUES:CAL:SKIP:COND? Preset Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Calibration Skipped Enable This command determines which bits in the Questionable Calibration Skipped Condition Register will set bits in the Questionable Calibration Skipped Event register, which also sets bit 11 of the Questionable Calibration Register.
  • Page 159 3  Programming the Test Set STATus Subsystem Questionable Calibration Skipped Negative Transition This command determines which bits in the Questionable Calibration Skipped Condition register will set the corresponding bit in the Questionable Calibration Skipped Event register when the condition register bit has a negative transition (1 to 0).
  • Page 160 3  Programming the Test Set STATus Subsystem "Questionable Calibration Extended Failure Positive Transition " on page 161 Questionable Calibration Extended Failure Condition This query returns the decimal value of the sum of the bits in the Questionable Calibration Extended Failure Condition register.
  • Page 161 3  Programming the Test Set STATus Subsystem Mode Remote Command :STATus:QUEStionable:CALibration:EXTended:FAILure[:EVENt]? Example STAT:QUES:CAL:EXT:FAIL? Preset Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Calibration Extended Failure Negative Transition This command determines which bits in the Questionable Calibration Extended Failure Condition register will set the corresponding bit in the Questionable Calibration Extended Failure Event register when the condition register bit has a negative transition (1 to 0).
  • Page 162 3  Programming the Test Set STATus Subsystem Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Calibration Extended Needed Register "Questionable Calibration Extended Needed Condition " on page 162 "Questionable Calibration Extended Needed Enable " on page 162 "Questionable Calibration Extended Needed Event Query "...
  • Page 163 3  Programming the Test Set STATus Subsystem 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Calibration Extended Needed Event Query This query returns the decimal value of the sum of the bits in the Questionable Calibration Extended Needed Event register.
  • Page 164 3  Programming the Test Set STATus Subsystem Questionable Calibration Extended Needed Positive Transition This command determines which bits in the Questionable Calibration Extended Needed Condition register will set the corresponding bit in the Questionable Calibration Extended Needed Event register when the condition register bit has a positive transition (0 to 1).
  • Page 165 3  Programming the Test Set STATus Subsystem Questionable Frequency Enable This command determines which bits in the Questionable Frequency Condition Register will set bits in the Questionable Frequency Event register, which also sets the Frequency Summary bit (bit 5) in the Questionable Register.
  • Page 166 3  Programming the Test Set STATus Subsystem Remote Command :STATus:QUEStionable:FREQuency:NTRansition <integer> :STATus:QUEStionable:FREQuency:NTRansition? Example STAT:QUES:FREQ:NTR 2 Frequency Reference ‘regained lock’ will be reported to the Frequency Summary of the Status Questionable register. Preset 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Frequency Positive Transition This command determines which bits in the Questionable Frequency Condition register will set the...
  • Page 167 3  Programming the Test Set STATus Subsystem The data in this register is continuously updated and reflects the current conditions. Mode Remote Command :STATus:QUEStionable:INTegrity:CONDition? Example STAT:QUES:INT:COND? Preset Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Integrity Enable This command determines which bits in the Questionable Integrity Condition Register will set bits in the Questionable Integrity Event register, which also sets the Integrity Summary bit (bit 9) in the Questionable Register.
  • Page 168 3  Programming the Test Set STATus Subsystem Questionable Integrity Negative Transition This command determines which bits in the Questionable Integrity Condition register will set the corresponding bit in the Questionable Integrity Event register when the condition register bit has a negative transition (1 to 0) The variable <integer>...
  • Page 169 3  Programming the Test Set STATus Subsystem "Questionable Integrity Signal Enable" on page 169 "Questionable Integrity Signal Event Query" on page 170 "Questionable Integrity Signal Negative Transition" on page 170 "Questionable Integrity Signal Positive Transition" on page 170 Questionable Integrity Signal Condition This query returns the decimal value of the sum of the bits in the Questionable Integrity Signal Condition register.
  • Page 170 3  Programming the Test Set STATus Subsystem Questionable Integrity Signal Event Query This query returns the decimal value of the sum of the bits in the Questionable Integrity Signal Event register. The register requires that the associated PTR or NTR filters be set before a condition register bit can set a bit in the event register.
  • Page 171 3  Programming the Test Set STATus Subsystem Mode Remote Command :STATus:QUEStionable:INTegrity:SIGNal:PTRansition <integer> :STATus:QUEStionable:INTegrity:SIGNal:PTRansition? Example STAT:QUES:INT:SIGN:PTR 4 Burst not found will be reported to the Integrity Summary of the Status Questionable register. Preset 32767 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Integrity Uncalibrated Register "Questionable Integrity Uncalibrated Condition "...
  • Page 172 3  Programming the Test Set STATus Subsystem Mode Remote Command :STATus:QUEStionable:INTegrity:UNCalibrated:ENABle :STATus:QUEStionable:INTegrity:UNCalibrated:ENABle? Example STAT:QUES:INT:UNC:ENAB 1 Oversweep (Meas Uncal) will be reported to the Integrity Summary of the Status Questionable register. Preset 32767 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Integrity Uncalibrated Event Query This query returns the decimal value of the sum of the bits in the Questionable Integrity Uncalibrated Event...
  • Page 173 3  Programming the Test Set STATus Subsystem Preset 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Integrity Uncalibrated Positive Transition This command determines which bits in the Questionable Integrity Uncalibrated Condition register will set the corresponding bit in the Questionable Integrity Uncalibrated Event register when the condition register bit has a positive transition (0 to 1).
  • Page 174 3  Programming the Test Set STATus Subsystem Mode Remote Command :STATus:QUEStionable:POWer:CONDition? Example STAT:QUES:POW:COND? Preset Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 Questionable Power Enable This command determines which bits in the Questionable Power Condition Register will set bits in the Questionable Power Event register, which also sets the Power Summary bit (bit 3) in the Questionable Register.
  • Page 175 3  Programming the Test Set STATus Subsystem Questionable Power Negative Transition This command determines which bits in the Questionable Power Condition register will set the corresponding bit in the Questionable Power Event register when the condition register bit has a negative transition (1 to 0).
  • Page 176 3  Programming the Test Set STATus Subsystem "Questionable Temperature Enable" on page 176 "Questionable Temperature Event Query" on page 176 "Questionable Temperature Negative Transition" on page 177 "Questionable Temperature Positive Transition" on page 177 Questionable Temperature Condition This query returns the decimal value of the sum of the bits in the Questionable Temperature Condition register.
  • Page 177 3  Programming the Test Set STATus Subsystem The register requires that the associated PTR or NTR filters be set before a condition register bit can set a bit in the event register. The data in this register is latched until it is queried. Once queried, the register is cleared Mode Remote Command...
  • Page 178 3  Programming the Test Set STATus Subsystem Temperature Summary of the Status Questionable register. Preset 32767 32767 Status Bits/OPC Sequential command dependencies Initial S/W Revision Prior to A.02.00 W-CDMA & HSPA Measurement Applications Reference...
  • Page 179 3  Programming the Test Set Common Commands Common Commands "All (Daily use)" on page 286 "Clear Status " on page 181 "Standard Event Status Enable " on page 182 "Standard Event Status Register Query " on page 182 "Identification Query " on page 183 "Operation Complete "...
  • Page 180 3  Programming the Test Set Common Commands If the Align RF subsystem succeeded in aligning (no interfering signal present), the elapsed time counter begins for Last Align Now, RF Time, and the temperature is captured for the Last Align Now, RF Temperature.
  • Page 181 3  Programming the Test Set Common Commands Mode Remote Command *CAL? Example *CAL? Notes *CAL? returns 0 if successful *CAL? returns 1 if failed :CALibration[:ALL]? is the same as *CAL? See additional remarks described with :CALibration[:ALL]? Everything about :CALibration[:ALL]? is synonymous with *CAL? including all conditions, status register bits, and couplings Initial S/W Revision Prior to A.02.00...
  • Page 182 3  Programming the Test Set Common Commands will also generate status bits. Initial S/W Revision Prior to A.02.00 Standard Event Status Enable Selects the desired bits from the standard event status enable register. This register monitors I/O errors and synchronization conditions such as operation complete, request control, query error, device dependent error, status execution error, command error, and power on.
  • Page 183 Key Path No equivalent key. See related key System, Show System. Remote Command *IDN? Example *IDN? Returns instrument identification information, such as: Keysight Technologies, E6640A, US01020004, E.14.50 Initial S/W Revision Prior to A.02.00 Modified at S/W Revision x.14.50 Operation Complete The *OPC command sets bit 0 in the standard event status register (SER) to “1”...
  • Page 184 3  Programming the Test Set Common Commands 2. Commands such as, *OPC/*OPC?/*WAI/*RST used to be global. They considered front panel operation in conjunction with the GPIB functionality. Now they are evaluated on a per channel basis. That is, the various rear panel remote ports and the front panel i/o are all considered separately.
  • Page 185 3  Programming the Test Set Common Commands Notes Registers 0 through 6 are accessible from the front panel in menu keys for Recall Registers. Status Bits/OPC The command is sequential. dependencies Initial S/W Revision Prior to A.02.00 *RST (Remote Command Only) *RST is equivalent to :SYST:PRES;:INIT:CONT OFF, which is a Mode Preset in the Single measurement state.
  • Page 186 3  Programming the Test Set Common Commands Service Request Enable This command enables the desired bits of the service request enable register. The query returns the value of the register, indicating which bits are currently enabled. Remote Command *SRE <integer> *SRE? Example *SRE 22 Enables bits 1, 2, and 4 in the service request enable register.
  • Page 187 3  Programming the Test Set Common Commands Self Test Query This query performs the internal self-test routines and returns a number indicating the success of the testing. A zero is returned if the test is successful, 1 if it fails. Remote Command *TST? Example...
  • Page 188 3  Programming the Test Set Common Commands W-CDMA & HSPA Measurement Applications Reference...
  • Page 189 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 4 Input/Output Functions...
  • Page 190 4  Input/Output Functions Input/Output Input/Output The Input/Output features are common across multiple Modes and Measurements. These common features are described in this section. See the Measurement description for information on features that are unique. The Input/Output key accesses the keys that control the Input/Output parameters of the instrument.  In general, these are functions associated with external connections to the analyzer, either to the inputs or the outputs. ...
  • Page 191 4  Input/Output Functions Input/Output [:SENSe]:FEED QONLy aliases to [:SENSe]:FEED:IQ:TYPE QONLy The query [:SENSe]:FEED? will always returns AIQ whatever the type of legacy parameters IQ | IONLy | QONLy has been used. Backwards Compatibility Most of the settings in the X-Series Input/Output system, including External Gain, Amplitude Notes Corrections settings and data, etc., are shared by all modes and are not changed by a mode switch.  ...
  • Page 192 4  Input/Output Functions Input/Output by one of the three ways: • by using the Restore Input/Output Defaults key on the first page of the input/output menu, • by using the System->Restore System Defaults->Input/Output Settings or, • by using the System -> Restore System Defaults->All. Also, they survive a Preset and a Power cycle. A very few of the Input/Output settings do respond to a Mode Preset;...
  • Page 193 4  Input/Output Functions Input/Output Key Path Input/Output, RF Input Remote Command [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude] 50|75 [:SENSe]:CORRection:IMPedance[:INPut][:MAGNitude]? Example CORR:IMP 75 sets the input impedance correction to 75 ohms. CORR:IMP? Preset This is unaffected by a Preset but is set to 50 ohms on a "Restore Input/Output Defaults" or "Restore System Defaults->All"...
  • Page 194 :FEED:RF:PORT RFIN Notes On E6640A with hardware M9430A, if RF Input is selected as RF Input Port, you need to choose the settings in the Half Duplex Config menu to determine which port (RFIO3 or RFIO4) will be used. On E6640A with hardware M9431A, this setting is not supported. If the SCPI command is sent with this setting, an error is generated, –221, “Settings conflict;option not installed” ...
  • Page 195 4  Input/Output Functions Input/Output External Gain Compensates for gain or loss in the measurement system outside the spectrum analyzer. The External Gain is subtracted from the amplitude readout (or the loss is added to the amplitude readout). So, the displayed signal level represents the signal level at the output of the device-under-test, which can be the input of an external device that provides gain or loss.
  • Page 196 4  Input/Output Functions Input/Output Remote Command [:SENSe]:CORRection:SA[:RF]:GAIN <rel_ampl> [:SENSe]:CORRection:SA[:RF]:GAIN? Example CORR:SA:GAIN 10 sets the Ext Gain value to 10 dB CORR:SA:GAIN –10 sets the Ext Gain value to –10 dB (that is, an attenuation of 10 dB) Notes Does not auto return. Dependencies The reference level limits are determined in part by the External Gain/Atten, Max Mixer Level, and RF Atten.
  • Page 197 4  Input/Output Functions Input/Output Overload detection and reporting will apply when the USB preamplifier is connected to USB.  The USB Preamplifier has its own overload detector which reports overloads to the instrument over USB. This generates an error condition, “Input Overload;USB Preamp.” If, while the USB Preamp is connected to USB, a measurement is selected that does not support the USB preamplifier, the "No result;...
  • Page 198 4  Input/Output Functions Input/Output Sets an external attenuation value for BTS (Base Transceiver Station) tests. Key Path Input/Output, External Gain Remote Command [:SENSe]:CORRection:BTS[:RF]:GAIN <rel_ampl> [:SENSe]:CORRection:BTS[:RF]:GAIN? Example CORR:BTS:GAIN 10 sets the Ext Gain value to 10 dB CORR:BTS:GAIN –10 sets the Ext Gain value to –10 dB (that is, a loss of 10 dB.) Notes Does not auto return.
  • Page 199 4  Input/Output Functions Input/Output Restore Input/Output Defaults This selection causes the group of settings and data associated with the Input/Output key to be a reset to their default values. In addition, when a Source is installed, licensed and selected, Restore Input/Output defaults will initiate a Source Preset. ...
  • Page 200 4  Input/Output Functions Input/Output Inputs Sets the measurement to use the input selections (RF, AREF, I/Q) Key Path Input/Output, Data Source Example FEED:DATA INP causes the measurement to look at the input selection Notes Does not auto return. Readback Inputs Initial S/W Revision Prior to A.02.00 Capture Buffer...
  • Page 201 4  Input/Output Functions Input/Output Notes This is command only, there is no query Dependencies Grayed out in the SA measurement. Backwards [:SENSe]:FEED:SOURce:STORe Compatibility SCPI Initial S/W Revision Prior to A.02.00 Corrections This key accesses the Amplitude Corrections menu. Amplitude Corrections arrays can be entered, sent over SCPI, or loaded from a file.  They allow you to correct the response of the analyzer for various use cases. ...
  • Page 202 4  Input/Output Functions Input/Output Preset Corrections arrays are reset (deleted) by Restore Input/Output Defaults.  They survive shutdown and restarting of the analyzer application, which means they will survive a power cycle. Initial S/W Revision A.02.00 Modified at S/W Revision x.14.50 Select Correction Specifies the selected correction.
  • Page 203 4  Input/Output Functions Input/Output which DOES contain an antenna unit, a Mass Storage error is generated.  This command will generate an “Option not available” error unless you have the proper option installed in your instrument.  Preset Not affected by a Preset. Set to OFF by Restore Input/Output Defaults State Saved Saved in instrument state.
  • Page 204 4  Input/Output Functions Input/Output When an array with an Antenna Unit other than "None" is turned on, the Y Axis Unit of the analyzer is forced to that unit.  When this array is turned on, and it contains an Antenna Unit other than “None”, the Y Axis Unit of the analyzer is forced to that Antenna Unit., and all other Y Axis Unit choices are grayed out.
  • Page 205 4  Input/Output Functions Input/Output dBµA/m Sets the antenna unit to dBµA/m. If this correction is turned on, and Apply Corrections is on, the Y Axis Unit will then be forced to dBµA/m and all other Y Axis Unit selections will be grayed out. Key Path Input/Output, Corrections, Properties, Antenna Unit Example...
  • Page 206 4  Input/Output Functions Input/Output Frequency Interpolation This setting controls how the correction values per-bucket are calculated. We interpolate between frequencies in either the logarithmic or linear scale. This setting is handled and stored individually per correction set. "Interpolation" on page 206 Key Path Input/Output, Corrections, Properties Remote Command...
  • Page 207 4  Input/Output Functions Input/Output On a linear scale (like that of the spectrum analyzer), this translates to: If we interpolate on a linear scale, we assume that the two points are connected by a straight line on the linear scale, as below: W-CDMA &...
  • Page 208 4  Input/Output Functions Input/Output The correction to be used for each bucket is taken from the interpolated correction curve at the center of the bucket. Description Sets an ASCII description field which will be stored in an exported file.  Can be displayed in the active function area by selecting as the active function, if desired to appear in a screen capture.
  • Page 209 RFIO1 and RFIO2 are not available in E6607C and E6630A GPSout (GNSSout) are only available in E6607C and E6630A RFIO3 and RFIO4 are only available on E6640A with hardware M9431A. RFIN and RFOut are not available on E6640A with hardware M9431A...
  • Page 210 4  Input/Output Functions Input/Output RFIO1 The port that the current corrections will be applied to.  Pressing this key again allows the user access to the menu for specifying which internal device the corrections for RFIO 1 will be applied to. Key Path Input/Output, Corrections, Properties, RF Port Remote Command...
  • Page 211 4  Input/Output Functions Input/Output Key Path Input/Output, Corrections, Properties, RF Port Remote Command [:SENSe]:CORRection:CSET[1]|2|...|8:RF:PORT:RFIO2 SOURce | ANALyzer | BOTH [:SENSe]:CORRection:CSET[1]|2|...|8:RF:PORT:RFIO2? Example :CORR:CSET:RF:PORT:RFIO2 BOTH Preset Both State Saved Saved in State Correct Source Sets the corrections for the RFIO2 port to be applied to the source. Key Path Input/Output, Corrections, Properties, RF Port Example...
  • Page 212 4  Input/Output Functions Input/Output correction for all amplitude corrections which are currently on, although the total, accumulated correction for all corrections which are turned on is still applied to the data traces. Because corrections data is always in dB, but the Y-axis of the analyzer is in absolute units, it is necessary to establish a reference line for display of the Corrections data.
  • Page 213 4  Input/Output Functions Input/Output Frequency Lets you edit the frequency of the current row. Key Path Input/Output, Corrections, Edit Notes There is no value readback on the key. 1 THz Initial S/W Revision A.02.00 Amplitude Lets you edit the Amplitude of the current row. Key Path Input/Output, Corrections, Edit Notes...
  • Page 214 4  Input/Output Functions Input/Output deletion is only performed if you press OK or Enter. Key Path Input/Output, Corrections Remote Command [:SENSe]:CORRection:CSET[1]|2|...|6:DELete Example CORR:CSET:DEL CORR:CSET1:DEL CORR:CSET4:DEL Notes Pressing this key when no corrections are present is accepted without error. Initial S/W Revision A.02.00 Apply Corrections Applies amplitude corrections, which are marked as ON to the measured data.
  • Page 215 4  Input/Output Functions Input/Output Remote Correction Data Set Commands This section describes the remote (SCPI) commands used to put values into correction sets. See the correction / table editor section of the Input/Output section for the information on front panel entry of correction data.
  • Page 216 4  Input/Output Functions Input/Output Preset Empty after Restore Input/Output Defaults.  Survives shutdown/restart of analyzer application (including power cycle) Freq:  0 Hz Amptd:  –1000 dBm Freq:  1 THz Amptd:  +1000 dBm Initial S/W Revision A.02.00 Modified at S/W Revision A.14.00  Freq Ref In Specifies the frequency reference as being the internal reference at the rear panel input labeled EXT REF IN, a 1 pulse per second signal at the EXT REF IN input,, external reference or sensing the presence of a signal at the EXT REF IN input.
  • Page 217 4  Input/Output Functions Input/Output (s) the reference input types (in SCPI commands, and in the Virtual Front Panel menus ) are blanked and unavailable for use. Key Path Input/Output Remote Command [:SENSe]:ROSCillator:SOURce:TYPE INTernal | EXTernal | SENSe | PULSe [:SENSe]:ROSCillator:SOURce:TYPE? Dependencies The PULSe parameter, and support of the 1 pps signal at the EXT REF IN input, are not available in firmware prior to A.13.00. ...
  • Page 218 4  Input/Output Functions Input/Output Notes For PSA compatibility the command form is provided and is directly mapped to [:SENSe]:ROSCillator:SOURce:TYPE Note: The SCPI command does nothing for non-controlling instances. Initial S/W Revision Prior to A.02.00 Sense If Sense is selected, the instrument checks whether a signal is present at the external reference connector. ...
  • Page 219 4  Input/Output Functions Input/Output Ext Ref Freq This key tells the analyzer the frequency of the external reference. When the external reference is in use (either because the reference has been switched to External or because the Reference has been switched to Sense and there is a valid external reference present) this information is used by the analyzer to determine the internal settings needed to lock to that particular external reference signal. ...
  • Page 220 :FEED:RF:PORT:OUTP RFO Notes On E6640A with hardware M9430A, if RF Output is selected as RF Output Port, you need to choose the settings in the Half Duplex Config menu to determine which port (RFIO3 or RFIO4) will be used. On E6640A with hardware M9431A, this setting is not supported. If the SCPI command is sent with this setting, an error is generated, –221, “Settings conflict;option not installed”...
  • Page 221 Output Port menu, which will correspond to RFIO3 and RFIO4. Key Path Input/Output, RF Output & Test Set Config Dependencies This menu is available on E6640A with hardware M9430A. It’s not available on E6640A with hardware M9431A. State Saved Saved in State Initial S/W Revision A.14.00...
  • Page 222 4  Input/Output Functions Input/Output is selected as “RF Output”, “RF Input” will be set to RFIO3 automatically. Preset RFIO3 State Saved Saved in State Initial S/W Revision A.14.00 RF Output Specify the RF Output port from RFIO3 and RFIO4. Key Path Input/Output, RF Output &...
  • Page 223 4  Input/Output Functions Input/Output TRIG2:OUTP GATE Dependencies The second Trigger output (Trig 2 Out) does not appear in all models; in models that do not support it, the Trig 2 Out key is blanked, and sending the SCPI command for this output generates an error, “Hardware missing;...
  • Page 224 4  Input/Output Functions Input/Output Sweeping (HSWP) Selects the Sweeping Trigger signal to be output to the Trig 1 Out, or Trig 2 Out, connector when a measurement is made. This signal has historically been known as "HSWP" (High = Sweeping), and is 5 V TTL level with 50 ohm output impedance.
  • Page 225 4  Input/Output Functions Input/Output Gate Selects the gate signal to be output to the Trig 1 Out, or Trig 2 Out, connector. The gate signal has been delayed and its length determined by delay and length settings. When the polarity is positive, a high on the Trig 1 Out, or Trig 2 Out, represents the time the gate is configured to pass the signal.
  • Page 226 4  Input/Output Functions Input/Output State Saved Saved in instrument state Initial S/W Revision Prior to A.02.00 Selects no signal to be output to the Trig 1 Out, or Trig 2 Out, connector. Key Path Input/Output, Output Config, Trig 1/2 Output Example TRIG1:OUTP OFF Readback...
  • Page 227 4  Input/Output Functions Input/Output Source Marker 4 Trigger output at marker 4 in current playing Waveform file. Key Path Input/Output, Output Config, Trig 1/2 Output Example :TRIG1:OUTP S4M ReadBack Marker 4 Initial S/W Revision A.05.01 Analog Out This menu lets you control which signal is fed to the “Analog Out” connector on the analyzer rear panel. See ...
  • Page 228 4  Input/Output Functions Input/Output Nominal Range exc. Analog Out (10% overrange) Scale Factor Notes terminated at the mixer. Linear Video 0 – 1 V 100%/V Linear referenced to Ref Level, 1 V out for RF terminated envelope at the Ref Level. Demod (varies with analyzer setting) Audio...
  • Page 229 4  Input/Output Functions Input/Output Remote Command INPut[1]|2:LISN[:TYPE] FOURphase|ESH2Z5| ENV216 | OFF INPut[1]|2:LISN[:TYPE]? Example :INP:LISN FOUR Notes FOURPhase and ESH2-Z5 R&S ESH2-Z5 (four phases and protective earth are controllable) ENV216 R&S ENV216 (two phases and highpass are controllable) Remote control deactivated This query will return :- FOUR when ESH2-Z5 is selected.
  • Page 230 4  Input/Output Functions Input/Output is selected. If the grayed out key is pressed, an advisory message is generated. If the equivalent SCPI command is sent, this same message is generated as part of a “–221, Settings conflicts; LISN function not available” warning. Preset Set to off on a "Restore Input/Output Defaults"...
  • Page 231 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 5 Mode Functions...
  • Page 232 5  Mode Functions Mode Mode The Mode key allows you to select the available measurement applications or “Modes”. Modes are a collection of measurement capabilities packaged together to provide an instrument personality that is specific to your measurement needs. Each application software product is ordered separately by Model Number and must be licensed ...
  • Page 233 Prior to A.02.00 More Information The Mode name appears on the banner after the word “Keysight” followed by the Measurement Title.  For example, for the IQ Analyzer mode with the Complex Spectrum measurement running: It is possible to specify the order in which the Modes appear in the Mode menu, using the Configure Applications utility (System, Power On, Configure Applications). ...
  • Page 234 5  Mode Functions Mode 1. Close and restart the analyzer program without changing your configured preloads.  This may free up enough memory to load the requested Mode, depending on your configured preloads 2. Clear out all preloads and close and restart the analyzer program with only the requested application preloaded, and with that application running. ...
  • Page 235 5  Mode Functions Mode Key Path Mode Example INST:SEL BASIC INST:NSEL 8 Initial S/W Revision Prior to A.02.00 W-CDMA with HSPA+ Selects the W-CDMA with HSPA+ mode for general purpose measurements of signals following this standard. There are several measurements available in this mode. If you are using the Help feature, this mode must be currently active to access its detailed information.
  • Page 236 5  Mode Functions Mode Bluetooth Selects the Bluetooth mode for Bluetooth specific measurements. There are several measurements available in this mode. If you are using the Help feature, this mode must be currently active to access its detailed information. If it is not active, exit the Help feature (Esc key), select the mode, and re-access Help.
  • Page 237 5  Mode Functions Mode If you are using the Help feature, this mode must be currently active to access its detailed information. If it is not active, exit the Help feature (Esc key), select the mode, and re-access Help. Key Path Mode Example INST:SEL CDMA1XEV...
  • Page 238 5  Mode Functions Mode LTE-Advanced TDD As LTE-Advanced TDD  and LTE TDD modes are converged into one single application, the single softkey under Mode menu is designed  to select the coverged mode.  The display mode of the LTE TDD and LTE- Advanced TDD are distinguished by the licenses.
  • Page 239 5  Mode Functions Mode Sequence Analyzer SEQAN I/Q Analyzer (Basic) BASIC WCDMA with HSPA+ WCDMA GSM/EDGE/EDGE Evo EDGEGSM Analog Demod ADEMOD Bluetooth BTooth TD-SCDMA with HSPA/8PSK TDSCDMA cdma2000 CDMA2K 1xEV-DO CDMA1XEV LTE TDD LTETDD LTE-Advanced FDD LTEAFDD LTE-Advanced TDD LTEATDD WLAN ...
  • Page 240 5  Mode Functions Mode Backwards VSA (E4406A) :INSTrument:CATalog? returned a list of installed INSTrument:SELECT items as a comma separated Compatibil list of string values: ity Notes "BASIC","GSM","EDGEGSM","CDMA","NADC","PDC","WCDMA","CDMA2K","CDMA1XEV","IDEN","WIDEN","WL AN","SERVICE" X-Series uses the ESA/PSA compatible query of a string contain comma separated values: "SA,PNOISE,NFIGURE,BASIC,CDMA,CDMA2K,WCDMA,CDMA1XEV,EDGEGSM,GSM,NADC,PDC,TDSCDMA,DMOD ULATION,WLAN"...
  • Page 241 5  Mode Functions Mode "1.0.0.0" String length is a maximum of 23 characters. (each numeral can be an integer + 3 decimal points) Preset Not affected by a Preset State Saved Not saved in state, the value will be the selected application when a Save is done. Initial S/W Revision Prior to A.02.00 Current Application Options...
  • Page 242 5  Mode Functions Mode Application Catalog Model Numbers Returns a list of Model Numbers for the installed and licensed applications (Modes). Remote Command :SYSTem:APPLication:CATalog[:NAME]? Example :SYST:APPL:CAT? Notes Returned value is a quoted string of a comma separated list of Model Numbers. Example, if SAMS and Phase Noise are installed and licensed: "N9060A,N9068A"...
  • Page 243 5  Mode Functions Mode State Saved Not saved in instrument state. Initial S/W Revision Prior to A.02.00 Detailed List of Modes This section contains an alphabetical list of Modes available in the X-Series, along with a brief description of each Mode. Note that with the exception of the 89601 VSA, only licensed applications appear in the Mode menu. ...
  • Page 244 5  Mode Functions Mode • Over 35 general-purpose analog and digital demodulators ranging from 2FSK to 4096QAM • Flexible and custom IQ and OFDM signal analysis for single carrier • Standards specific modulation analysis including:                 −Cellular: GSM/EDGE, cdma2000, W-CDMA, TD-SCDMA, LTE(FDD/TDD), −LTE-Advanced and more −Wireless networking: 802.11a/b/g, 802.11n, 802.ac, 802.16 WiMAX (fixed/mobile), WiSUN (MR-FSK PHY)
  • Page 245 5  Mode Functions Mode Bluetooth Selects the Bluetooth mode for Bluetooth specific measurements. There are several measurements available in this mode. If you are using the Help feature, this mode must be currently active to access its detailed information. If it is not active, exit the Help feature (Esc key), select the mode, and re-access Help.
  • Page 246 5  Mode Functions Mode the Signal Analysis Mode using the Swept SA measurement. These frequency domain and time domain measurements can be used to output I/Q data results when measuring complex modulated digital signals. If you are using the Help feature, this mode must be currently active to access its detailed information. If it is not active, exit the Help feature (Esc key), select the mode, and re-access Help.
  • Page 247 5  Mode Functions Mode Key Path Mode Example INST:SEL LTEAFDD INST:NSEL 107 Notes When the N9080A/80B–1FP exists, the display mode name is LTE. When the N9080A/80B–1FP and N9080B–2FP all exist, the display mode name is LTE FDD & LTE-A FDD. Backwards INST:SEL LTE Compatibility SCPI...
  • Page 248 5  Mode Functions Mode INST:NSEL 400 Initial S/W Revision A.05.01 TD-SCDMA with HSPA/8PSK Selects the TD-SCDMA mode for general purpose measurements of signals following this standard. There are several measurements available in this mode. If you are using the Help feature, this mode must be currently active to access its detailed information. If it is not active, exit the Help feature (Esc key), select the mode, and re-access Help.
  • Page 249 5  Mode Functions Mode Global Settings Opens a menu that allows you to switch certain Meas Global parameters to a Mode Global state. These switches apply to all Modes that support global settings.  No matter what Mode you are in when you set the “Global Center Frequency”...
  • Page 250 5  Mode Functions Mode Restore Defaults This key resets all of the functions in the Global Settings menu to Off. This also occurs when System, Restore Defaults, All Modes is pressed. Key Path Mode Setup, Global Settings Remote Command :INSTrument:COUPle:DEFault Example INST:COUP:DEF Backwards...
  • Page 251 RAD:STAN:DEV MS RAD:STAN:DEV? Preset State Saved Saved in instrument state. Range BTS | MS For E6640A, the Radio Device is restricted to MS only, BTS is not selectable. Backwards [:SENSe]:RADio:DEVice Compatibility SCPI Initial S/W Revision Prior to A.02.00 Demod Accesses the Demod menu.
  • Page 252 5  Mode Functions Mode Setup HSPA Enable Allows you to specify the HSDPA/HSUPA option enable On or Off. This selection is necessary because some of the auto detection functions that expect an HSPA signal are less tolerant when the signal is noisy or distorted.
  • Page 253 5  Mode Functions Mode Setup Restore Mode Defaults Resets the state for the currently active mode by resetting the mode persistent settings to their factory default values, clearing mode data and by performing a Mode Preset. This function will never cause a mode switch.
  • Page 254 5  Mode Functions Mode Setup Global Center Freq The software maintains a Mode Global value called “Global Center Freq”.  When the Global Center Freq key is switched to On in any mode, the current mode’s center frequency is copied into the Global Center Frequency, and from then on all modes that support global settings use the Global Center Frequency.
  • Page 255 5  Mode Functions Mode Setup Example INST:COUP:DEF Backwards :GLOBal:DEFault Compatibility SCPI Initial S/W Revision Prior to A.02.00 W-CDMA & HSPA Measurement Applications Reference...
  • Page 256 5  Mode Functions Mode Setup W-CDMA & HSPA Measurement Applications Reference...
  • Page 257 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 6 System Functions...
  • Page 258 6  System Functions File File Opens a menu that enables you to access various standard and custom Windows functions. Press any other front-panel key to exit Key Path Front-panel key Initial S/W Revision Prior to A.02.00 File Explorer Opens the standard Windows File Explorer. The File Explorer opensin the My Documents directory for the current user.
  • Page 259 6  System Functions File Key Path File Initial S/W Revision Prior to A.02.00 Print The Print key opens a Print dialog for configured printing (for example, to the printer of your choice).  Refer to your Microsoft Windows Operating System manual for more information. Maximize/Restore Down These keys allow the Instrument Application to be maximized and then restored to its prior state.
  • Page 260 6  System Functions File Key Path File Initial S/W Revision Prior to A.02.00 Paper size, the printer paper source, the page orientation and the margins are all settable. Just like any standard Windows dialog, you may navigate the dialog using the front-panel keys, or a mouse. There are no SCPI commands for controlling these parameters.
  • Page 261 6  System Functions File The :HCOPy command is equivalent to pressing the PRINT key.  The HCOPy:ABORt command can be used to abort a print which is already in progress.  Sending HCOPy:ABORt will cause the analyzer to stop sending data to the printer, although the printer may continue or even complete the print, depending on how much data was sent to the printer before the user sent the ABORt command.
  • Page 262 6  System Functions File Exit This key, when pressed, will exit the Instrument Application. A dialog box is used to confirm that you intended to exit the application: Key Path File Mode Notes The Instrument Application willclose. No further SCPI commands can be sent. Use with caution! Initial S/W Revision Prior to A.02.00 W-CDMA &...
  • Page 263 6  System Functions Print Print This front-panel key is equivalent to performing a File, Print, OK. It immediately performs the currently configured Print to the Default printer. The :HCOPy command is equivalent to pressing the PRINT key.  The HCOPy:ABORt command can be used to abort a print which is already in progress. ...
  • Page 264 6  System Functions System System Opens a menu of keys that access various configuration menus and dialogs. Key Path Front-panel key Notes No remote command for this key specifically. Initial S/W Revision Prior to A.02.00 Show Accesses a menu of choices that enable you to select the information window you want to view. Key Path System Mode...
  • Page 265 6  System Functions System Repeat (RPT) - This field shows the number of consecutive instances of the event, uninterrupted by other events. If an event occurs 5 times with no other intervening event, the value of repeat will be 5. If the value of Repeat is 1 the field does not display.
  • Page 266 6  System Functions System Next Page Next Page and Previous Page menu keys move you between pages of the log, if it fills more than one page. These keys are grayed out in some cases: • If on the last page of the log, the Next Page key is grayed-out •...
  • Page 267 6  System Functions System Key Path System, Show, Errors Mode Remote Command :SYSTem:ERRor:VERBose OFF|ON|0|1 :SYSTem:ERRor:VERBose? Example :SYST:ERR:VERB ON Preset This is unaffected by Preset but is set to OFF on a “Restore System Defaults->Misc” State Saved Range On | Off Initial S/W Revision Prior to A.02.00 Refresh...
  • Page 268 6  System Functions System not put into the SCPI error queue by default. Normally the status bit is the only way for detecting these errors remotely. It is possible to enable Input Overload reporting to the SCPI queue, by issuing the :SYSTem:ERRor:OVERload ON command.
  • Page 269 6  System Functions System The Previous Page is grayed-out if the first page of information is presently displayed. The Next Page menu key is grayed-out if the last page is information is presently displayed. Key Path System, Show Mode Example SYST:SHOW SYST Backwards Compatibility The hardware statistics that are displayed in the PSA Show System screen have been moved to a...
  • Page 270 6  System Functions System Remote Command :SYSTem:CSYStem? Example :SYST:CSYS? Notes The return value is the Computer System name and service pack level. Initial S/W Revision Prior to A.12.00 Hardware The show hardware screen is used to view details of the installed hardware. This information can be used to determine versions of hardware assemblies and field programmable devices, in the advent of future upgrades or potential repair needs.
  • Page 271 6  System Functions System "List installed Options (Remote Command Only)" on page 317 "Lock the Front-panel keys (Remote Command Only)" on page 318 "List SCPI Commands (Remote Command Only)" on page 318 "SCPI Version Query (Remote Command Only)" on page 318 "Date (Remote Command Only)"...
  • Page 272 6  System Functions System The front panel ‘Local’ key (Cancel/Esc) has no effect if Klock is ON. Mode Remote Command :SYSTem:KLOCk OFF|ON|0|1 :SYSTem:KLOCk? Example :SYST:KLOC ON Notes Keyboard lock remains in effect until turned-off or the instrument is power-cycled Preset Initialized to OFF at startup, unaffected by Preset State Saved Initial S/W Revision...
  • Page 273 6  System Functions System Example :SYST:DATE “2006,05,26” Notes <year> is the four digit representation of year. (for example, 2006) <month> is the two digit representation of year. (for example. 01 to 12) <day> is the two digit representation of day. (for example, 01 to 28, 29, 30, or 31) depending on the month and year Unless the current account has Power User or Administrator privileges, an error will be generated by this command and no action will be taken.
  • Page 274 6  System Functions System Module Index (Remote Command Only) Query only. This will return the index of this xSA instance. This index is used as the device number in a VISA address (“hlislip#”). Mode Remote Command :SYSTem:MODule:INDex? Example :SYST:MOD:IND? Notes It returns 0 if this instance’s device number in a VISA address is 0.
  • Page 275 6  System Functions System it returns: TRX1,TRX1,Enabled,0,5023,5025,3574,E6640AModules.config#TRX1 TRX2,TRX2,Disabled,1,5123,5125,3575,E6640AModules.config#TRX2 TRX3,TRX3,Disabled,2,5223,5225,3576,E6640AModules.config#TRX3 TRX4,TRX4,Disabled,3,5323,5325,3577,E6640AModules.config#TRX4 Preset Not affected by Preset, reset to 0 with Restore System Defaults Misc. State Saved Initial S/W Revision A.13.80 Module Enable (Remote Command Only) Query and command. The query SYST:MOD:ENAB? “<mnemonic>” returns “0” for disabled, “1” for enabled.
  • Page 276 6  System Functions System Preset Not affected by Preset and Restore System Defaults Misc. State Saved Initial S/W Revision A.13.80 Module Default (Remote Command Only) Query and command. The query SYST:MOD:DEF? returns the mnemonic of the default configuration. The command SYST:MOD:DEF “mnemonic>” will set that configuration as the default. If the configuration was disabled, the module default command on it will enable this confutation.
  • Page 277 6  System Functions System Remote Command :SYSTem:MODule:MODel? Example :SYSTem:MODule:MODel? Notes This query will return model number. e.g. “M9430A” Preset Not affected by Preset, State Saved Initial S/W Revision E.14.14 Module Model Serial Number (Remote Command Only) Query only. The query “:SYST: MODule:SERial?” will return model serial number of the current module. Mode Remote Command :SYSTem:MODule:SERial?
  • Page 278 6  System Functions System Mode and Input/Output Defaults When the analyzer is powered on in Mode and Input/Output Defaults, it performs a Restore Mode Defaults to all modes in the instrument and also performs a Restore Input/Output Defaults. Persistent parameters (such as Amplitude Correction tables or Limit tables) are not affected at power on, even though they are normally cleared by Restore Input/Output Defaults and/or Restore Mode Defaults.
  • Page 279 6  System Functions System In products that run multiple instances of the X-Series Application, each instance has a unique Last State. An instrument can never power up for the first time in Last. If line power to the analyzer is interrupted, for example by pulling the line cord plug or by switching off power to a test rack, Power On Last State may not work properly.
  • Page 280 6  System Functions System State Saved Initial S/W Revision Prior to A.02.00 Configure Applications The Configure Applications utility can be used to: • select applications for preload • determine how many applications can fit in memory at one time • specify the order of the Modes in the Mode menu.  This utility consists of a window with instructions, a set of “Select Application”...
  • Page 281 System Access to Configure Applications utility A version of the utility runs the first time you power up the analyzer after purchasing it from Keysight. The utility automatically configures preloads so that as many licensed applications as possible are preloaded while keeping the total estimated virtual memory usage below the limit.
  • Page 282 6  System Functions System Deselect All Clears the marks from all applications in the selection list, except the Power On application. The Power On application cannot be eliminated from the pre-load list. Key Path System, Power On, Configure Applications Initial S/W Revision A.02.00 Move Up The application list is the order that applications appear in the Mode Menu.
  • Page 283 6  System Functions System Key Path System, Power On, Configure Applications Remote Command :SYSTem:PUP:PROCess Example :SYST:PUP:PROC   This is the SCPI command for restarting the analyzer.  You must Wait after this command for the instrument application to restart Notes The softkey will be grayed-out when the virtual memory of the selected applications exceeds 100% of the limit.
  • Page 284 6  System Functions System If you press any key other than OK or Enter, it is construed as a Cancel, because the only path that will actually cause the reset to be executed is through OK or Enter. Key Path System, Power On Example :SYST:DEF PON...
  • Page 285 6  System Functions System • "Configuration Application Memory (Remote Command Only)" on page 286 Configuration list (Remote Command Only) This remote command is used to set or query the list of applications to be loaded in-memory. Remote Command :SYSTem:PON:APPLication:LLISt <string of INSTrument:SELect names> :SYSTem:PON:APPLication:LLISt? Example :SYST:PON:APPL:LLIS "SA,BASIC,WCDMA"...
  • Page 286 6  System Functions System Preset Not affected by Preset Initial S/W Revision A.02.00 Configuration Application Memory (Remote Command Only) This remote command is used to query the amount of Virtual Memory a particular application consumes. Remote Command :SYSTem:PON:APPLication:VMEMory:USED:NAME? <INSTrument:SELect name> Example :SYST:PON:APPL:VMEM:USED:NAME? CDMA2K Notes...
  • Page 287 6  System Functions System period between power-up of the TRX and invoking the “All” alignment. The instrument stops any measurement currently underway, performs the alignment, then restarts the measurement from the beginning (similar to pressing the Restart key). If an interfering user signal is present at the RF Input, the alignment is performed on all subsystems except the RF.
  • Page 288 6  System Functions System Successful completion will clear bit 14 in the Status Questionable Calibration register. An interfering user signal is not grounds for failure of Align Now, All. However, bits 11 and 12 are set in the Status Questionable Calibration register to indicate Align Now, RF is required. An interfering user supplied signal will result in the instrument requiring an Align Now, RF with the interfering signal removed.
  • Page 289 6  System Functions System All but RF Immediately executes an alignment of all subsystems except the RF subsystem  which includes both the source and the analyzer in the TRX module . The instrument will stop any measurement currently underway, perform the alignment, and then restart the measurement from the beginning (similar to pressing the Restart key).
  • Page 290 6  System Functions System Mode Remote Command :CALibration:NRF:NPENding Example CAL:NRF:NPEN Notes :CALibration:NRF:NPENding is the same as :CALibration:NRF including all conditions, status register bits, except that this scpi command does not BLOCK the scpi session, so the user should use status register bits to query if the calibration is successfully completed or not.
  • Page 291 6  System Functions System Key Path System, Alignments, Align Now Mode Remote Command :CALibration:RF :CALibration:RF? Example :CAL:RF Notes :CALibration:RF? returns 0 if successful :CALibration:RF? returns 1 if failed (including interfering user signal) While Align Now, RF is performing the alignment, bit 0 in the Status Operation register is set. Completion, or termination, will clear bit 0 in the Status Operation register.
  • Page 292 6  System Functions System Source (Weekly use) Accesses source alignment processes that are immediate action operations. They perform complete operations and run until they are complete. Immediately executes an IQ alignment, and power level alignment.  The instrument stops any sequence of the source, performs the alignment, then restarts the sequence from the beginning.
  • Page 293 6  System Functions System IF Alignment (Weekly use) (Remote Command Only) Immediately executes an alignment of the IF subsystem which includes both the source and the analyzer in the TRX module. The instrument stops any measurement currently underway, perform the alignment, and then restart the measurement from the beginning (similar to pressing the Restart key). ...
  • Page 294 6  System Functions System completed or not. Typical usage is: 1) :CALibration:IF:NPENding (Start a IF calibration) 2) :STATus:OPERation:CONDition?  (Check if the calibration is completed or not, If bit 0 is set, then the system is doing calibration, the user should  repeat this scpi query until the bit is cleared ) 3):STATus:QUEStionable:CALibration:CONDition? (Check if bit 4 is set or not.
  • Page 295 6  System Functions System the screen is being displayed. Initial S/W Revision Prior to A.02.00 Key Path Visual annotation in the Show Alignment Statistics screen Mode Remote Command :SYSTem:PON:TIME? Example :SYST:PON:TIME? Notes Value is the time since the most recent start-up in seconds. State Saved Initial S/W Revision Prior to A.02.00...
  • Page 296 6  System Functions System was executed. State Saved Initial S/W Revision Prior to A.02.00 Key Path Visual annotation in the Show Alignment Statistics screen Mode Remote Command :CALibration:TIME:LRF? Example :CAL:TIME:LRF? Notes Value is the elapsed time, in seconds, since the last successful Align Now, RF was executed, either individually or as a component of Align Now, All.
  • Page 297 6  System Functions System Example :CAL:TEMP:LIF? Notes Value is in degrees Centigrade at which the last successful Align IF was executed. State Saved Initial S/W Revision A.14.50 Key Path Visual annotation in the Show Alignment Statistics screen Mode Remote Command :CALibration:TIME:SOURce:LALL? Example :CAL:TIME:SOUR:LALL?
  • Page 298 6  System Functions System The parameters affected are: Parameter Setting Timebase DAC Calibrated Timebase DAC setting Calibrated value Auto Align State Normal (if the instrument is not operating with default alignment data, Off otherwise) Auto Align All but RF Auto Align Alert Time &...
  • Page 299 6  System Functions System I/O Config Activates a menu for identifying and changing the I/O configuration for remote control. Key Path System Initial S/W Revision Prior to A.02.00 SCPI LAN Activates a menu for identifying and changing the SCPI over a LAN configuration. There are a number of different ways to send SCPI remote commands to the instrument over LAN.
  • Page 300 6  System Functions System Key Path System, I/O Config, SCPI LAN Mode Remote Command :SYSTem:COMMunicate:LAN:SCPI:SOCKet:ENABle OFF|ON|0|1 :SYSTem:COMMunicate:LAN:SCPI:SOCKet:ENABle? Example :SYST:COMM:LAN:SCPI:SOCK:ENAB OFF Preset This is unaffected by a Preset but is set to ON with a “Restore System Defaults->Misc” State Saved Range On | Off Initial S/W Revision Prior to A.02.00...
  • Page 301 6  System Functions System HiSLIP Server Turns the HiSLIP server capability On or Off, enabling you to limit SCPI access over LAN through the HiSLIP server. HiSLIP stands for High Speed LAN Instrument Protocol and is part of the IVI–6.1 specification. Here is an example of a VISA connection string used to connect to the HiSLIP Server on an X-Series Spectrum Analyzer: TCPIP0::a-n9030a–93016::hislip0::INSTR...
  • Page 302 6  System Functions System System IDN Response This key allows you to specify a response to the *IDN? query, or to return the analyzer to the Factory response if you have changed it. To choose the factory-set response, press the Factory key. To specify your own response, press the User key, and enter your desired response.
  • Page 303 6  System Functions System If you enter a null string (for example, by clearing the User String while editing and then pressing Done) the analyzer automatically reverts to the Factory setting. Note: In products that run multiple instances of the X-Series Application, all instances use the same User System IDN response.
  • Page 304 6  System Functions System Example SYST:DEF State Saved Initial S/W Revision Prior to A.02.00 Restore Input/Output Defaults Causes the group of settings and data associated with Input/Output front-panel key to be a reset to their default values. This level of Restore System Defaults does not affect any other system settings, mode settings and does not cause a mode switch.
  • Page 305 6  System Functions System Key Path System, Restore System Defaults Example :SYST:DEF PON Initial S/W Revision Prior to A.02.00 Restore Align Defaults This selection causes the Alignment system settings to be a reset to their default values. This does not affect any Alignment data stored in the system.
  • Page 306 6  System Functions System Miscellaneous Setting Default Value Save Type State State Save To Register 1 Screen Save To SCREEN000.png DISP:ENABle Full Screen SCPI Telnet SCPI Socket SICL Server Softkey Language English System Annotation Display Theme TDColor System IDN Response Factory result of *IDN? System IDN Response selection Factory...
  • Page 307 It does not affect the User Preset file or any user saved files. Confirmation is required to restore the factory default values. The confirmation dialog is: If you are using an Keysight USB External Mixer, then you will need to perform a Refresh USB Mixer Connection after Restoring All Defaults.
  • Page 308 Example :SYST:DEF ALL Notes If using Keysight USB External Mixer, perform a Refresh USB Mixer Connection (SCPI command :MIX:BAND USB) following a Restore All Defaults. Couplings An All will cause the currently running measurement to be aborted and get all modes to a consistent state, so it is unnecessary to couple any settings.
  • Page 309 6  System Functions System Or use Alt-Tab:  press and hold the Alt key and press and release the Tab key until the Analyzer logo is showing in the window in the center of the screen, as above, then release the Alt key. Key Path System Notes...
  • Page 310 6  System Functions System Example SYST:LKEY:DEL ‘N9073A–1FP”, ”027253AD27F83CDA5673A9BA5F427FDA5E4F25AEB1017638211AC9F60D9C639FE539735909C551DE0 A91” Notes The <”OptionInfo”> contains the feature and the version. You must specify the feature but can omit the version. If you omit the version, the system regards it as the latest one, if more than one version is installed. The <”LicenseInfo”>...
  • Page 311 6  System Functions System <”LicenseInfo”> contains the signature, the expiration date, and serial number if transportable. Return Value Example: “B043920A51CA” Initial S/W Revision Prior to A.02.00 Remote Command :SYSTem:HID? Notes Return value is the host ID as a string Initial S/W Revision Prior to A.02.00 Security Accesses capabilities for operating the instrument in a security controlled environment.
  • Page 312 6  System Functions System Read-Write Selection for allowing full read-write access to the USB ports. Key Path System, Security, USB Example :SYST:SEC:USB:WPR OFF          Will set USB ports to Read-Write Initial S/W Revision A.04.00 Read only Selection for disabling write access to the USB ports. Key Path System, Security, USB Example...
  • Page 313 6  System Functions System The CXA models in which the AC/DC Switch field is called Fixed Atten and that omit the mechanical attenuation fields are the N9000A–503/507 models. Modular HWs only have time and temperature information in Show Hardware Statistics. The data will be updated only when the Show Hardware Statistics menu key is pressed, it will not be updated while the screen is displayed.
  • Page 314 A.12.50 Show Result This key gives you access to show results of the following self tests: • Source self-test results • E6607C embedded MPA or E6640A/E6650A RFIO self-test results • E6607C FEC self-test results W-CDMA & HSPA Measurement Applications Reference...
  • Page 315 6  System Functions System Key Path System, Diagnostics, Self Test Initial S/W Revision A.12.50 FEC Self Test Results Provides a display of last FEC test results, the display should appear listing model number, serial number and test time at the top of display, and then list test date/time, test name, measured value, valid range and pass/fail of each FEC test item, the tabular data should be directly printable. ...
  • Page 316 Example SYST:TEST:WCTS:FEC:RES? Notes The output is an IEEE Block format of the Show FEC Self Test Results contents. Each line is separated with a new-line character. Initial S/W Revision A.12.50 Keysight Converged SYSTem:COMMunicate:LAN:ADDRess <string> :SYSTem:COMMunicate:LAN[:SELF]:IP <string> Address SYSTem:COMMunicate:LAN:ADDRess? :SYSTem:COMMunicate:LAN[:SELF]:IP? Gateway SYSTem:COMMunicate:LAN:DGATeway <string>...
  • Page 317 6  System Functions System Key Path System Mode Notes No equivalent remote command for this key. Initial S/W Revision A.05.01 System Remote Commands (Remote Commands Only) The commands in this section have no front-panel key equivalent. "System Powerdown (Remote Command Only)" on page 317 "List installed Options (Remote Command Only)"...
  • Page 318 6  System Functions System State Saved Initial S/W Revision Prior to A.02.00 Lock the Front-panel keys (Remote Command Only) Disables the instrument keyboard to prevent local input when the instrument is controlled remotely. Annunciation showing a “K” for ‘Klock” (keyboard lock) alerts the local user that the keyboard is locked. Klock is similar to the GPIB Local Lockout function;...
  • Page 319 6  System Functions System Example :SYST:VERS? Initial S/W Revision Prior to A.02.00 Date (Remote Command Only) The recommended access to the Date, Time, and Time zone of the instrument is through the Windows native control (Control Panel or accessing the Task Bar). You may also access this information remotely, as shown in this command and Time (below).
  • Page 320 6  System Functions System Mode Remote Command :SYSTem:MODule:NAME? Example :SYST:MOD:NAME? Notes If the first instance displays on the xSA main window, the return string is “TRX1”. If the second instance displays on the main window, the return string is “TRX2”. If the third instance displays on the main window, the return string is ‘TRX3”.
  • Page 321 6  System Functions System Preset Not affected by Preset and Restore System Defaults Misc. State Saved Initial S/W Revision A.13.80 Module List (Remote Command Only) Query only. This will return the list of defined mnemonics that can be used in the command line “/Process:<mnemonic>”...
  • Page 322 6  System Functions System SCPI>>syst:err? <<+0,”No error” SCPI>>syst:mod:enab “TRX1”,0 SCPI>>syst:err? <<–221,”Settings conflict;Cannot disable default process configuration ‘TRX1’” Mode Remote Command :SYSTem:MODule:ENABle? “<mnemonic>” :SYSTem:MODule:ENABle “<mnemonic>”,0|1 Example :SYST:MOD:ENAB? “TRX1” :SYST:MOD:ENAB “TRX4”,0 Preset Not affected by Preset and Restore System Defaults Misc. State Saved Initial S/W Revision A.13.80 Module Default (Remote Command Only)
  • Page 323 6  System Functions System :SYSTem:MODule:DEFault “<mnemonic>” Example :SYST:MOD:DEF? :SYST:MOD:DEF “TRX1” Preset Not affected by Preset, reset to “Left” with Restore System Defaults Misc. State Saved Initial S/W Revision A.13.80 W-CDMA & HSPA Measurement Applications Reference...
  • Page 324 6  System Functions System W-CDMA & HSPA Measurement Applications Reference...
  • Page 325 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 7 Trigger Functions...
  • Page 326 7  Trigger Functions Trigger Trigger Accesses a menu of keys to control the selection of the trigger source and the setup of each of the trigger sources.  The analyzer is designed to allow triggering from a number of different sources, for example, Free Run, Video, External, RF Burst, and so forth.
  • Page 327 7  Trigger Functions Trigger the EXTernal2 parameter will generate a “Hardware missing; Not available for this model number” message. Preset See table below Status Bits/OPC The Status Operation Register bit 5 "Waiting for Trigger" is set at the same time as the Sweeping or dependencies Measuring bit is set.
  • Page 328 7  Trigger Functions Trigger TD-SCDMA, source.  When the trigger source changes to 1xEVDO, LTE, RFBurst, External1 or External2, the gate state LTETDD, CMMB, is set to on, and the gate source is set ISDB-T, MSR identically with the trigger source. When the trigger source changes to IMMediate, VIDeo, LINE, FRAMe or IF, the gate state is set to off.
  • Page 329 7  Trigger Functions Trigger T/H, DTMB, LTE, LTETDD, CMMB, ISDB-T, Digital Cable TV, MSR WCDMA WCDMA PCON WCDMA QPSK WCDMA, C2K, All except 1xEVDO CDMA1xEVDO: IMMediate CDMA1xEVDO: EXT1 All except SA and IQ not BASIC supported LTETDD: LTETDD: BTS: External 1 BTS: External MS: Periodic Timer...
  • Page 330 7  Trigger Functions Trigger EDGE EVM EDGE/GSM IQMag EDGE ORFS EDGE/GSM Periodic Timer IQ not supported Combined WCDMA IQ not supported WCDMA Combined EDGE/GSM IQ not supported List Power WCDMA, IQ not Step EDGE/GSM supported Transmit LTETDD LTETDD: LTETDD: On/Off BTS: External 1 BTS: External Power...
  • Page 331 7  Trigger Functions Trigger TRIG:RF:SOUR VID Selects video triggering for the SANalyzer measurement and the RF input.  For SAN, do not use the <measurement> keyword. Notes Not all measurements have all the trigger sources available to them. Check the trigger source documentation for your specific measurement to see what sources are available.
  • Page 332 7  Trigger Functions Trigger −IMMediate - free run triggering −EXTernal1 (or EXTernal) - triggers on an externally connected trigger source on the rear panel −EXTernal2 - triggers on an externally connected trigger source on the front panel −IQMag - triggers on the magnitude of the I/Q signal −IDEMod - triggers on the I/Q signal's demodulated I voltage −QDEMod - triggers on the I/Q signal's demodulated Q voltage −IINPut - triggers on the I channel's ADC voltage...
  • Page 333 7  Trigger Functions Trigger The following examples show trigger setup parameters using an external trigger source. Example 1 illustrates the trigger conditions with negative slope and no trigger occurs during trigger Holdoff time. Example 2 illustrates the trigger conditions with positive slope, trigger delay, and auto trigger time. Free Run Pressing this key, when it is not selected, selects free-run triggering.
  • Page 334 7  Trigger Functions Trigger Video (IF Envelope) Pressing this key, when it is not selected, selects the video signal as the trigger. The Video trigger condition is met when the video signal (the filtered and detected version of the input signal, including both RBW and VBW filtering) crosses the video trigger level.
  • Page 335 7  Trigger Functions Trigger given yourself effective gain with an amplitude correction factor, the Video Trigger will not fire until you have dropped the trigger line that far below the displayed signal level, rather than simply dropping it down to the displayed signal level.  Note that other corrections, specifically External Gain and Ref Level Offset, modify the actual trace data as it is taken and therefore ARE taken into account by Trig Level.
  • Page 336 7  Trigger Functions Trigger Remote Command :TRIGger[:SEQuence]:SLOPe POSitive|NEGative :TRIGger[:SEQuence]:SLOPe? Example TRIG:SLOP NEG Preset POSitive State Saved Saved in instrument state Backwards Compatibility In ESA/PSA, the Trigger Slope was global to all triggers.  In the X-Series, the slope can be set Notes individually for each Trigger Source. ...
  • Page 337 7  Trigger Functions Trigger Remote Command :TRIGger[:SEQuence]:DELay <time> :TRIGger[:SEQuence]:DELay? :TRIGger[:SEQuence]:DELay:STATe OFF|ON|0|1 :TRIGger[:SEQuence]:DELay:STATe? Example TRIG:DEL 1 ms Preset 1 us State Saved Saved in instrument state Backwards Compatibility In ESA/PSA, the Trigger Delay was global to all triggers.  In the X-Series, the delay can be set Notes individually for each Trigger Source. ...
  • Page 338 7  Trigger Functions Trigger Dependencies Grayed out if in use by Point Trigger in the Source Setup menu.  Forced to Free Run if already selected and Point Trigger is set to External 1. State Saved Saved in instrument state Status Bits/OPC dependencies The Status Operation Register bit 5 "Waiting for Trigger"...
  • Page 339 7  Trigger Functions Trigger :TRIGger[:SEQuence]:EXTernal1:SLOPe? Example TRIG:EXT1:SLOP NEG Couplings This same slope is used in the Ext1 selection for the trigger source in the Trigger menu and for the period timer sync source (in the Trigger menu and in the Gate Source menu). Preset POSitive State Saved...
  • Page 340 7  Trigger Functions Trigger Notes and RFB triggers. The legacy :TRIGger[:SEQuence]:OFFSet command is supported for the VIDeo, LINE, EXT1, and EXT2 triggers. Initial S/W Revision Prior to A.02.00 Zero Span Delay Comp On/Off In zero span, there is a natural delay in the signal path, which comes from the RBW filter.  This is usually desirable, as it allows you to trigger on events and also see those events, because the signal is delayed from the trigger event.  ...
  • Page 341 7  Trigger Functions Trigger State Saved Saved in instrument state Status Bits/OPC dependencies The Status Operation Register bit 5 "Waiting for Trigger" is set at the same time as the Sweeping or Measuring bit is set. It is cleared when the trigger actually occurs (that is, after the trigger event occurs and all the applicable trigger criteria have been met).
  • Page 342 7  Trigger Functions Trigger Preset POSitive State Saved Saved in instrument state Backwards :TRIGger[:SEQuence]:FRAMe:EXTernal2:SLOPe Compatibility SCPI Backwards Compatibility The legacy :TRIGger[:SEQuence]:SLOPe command affects the slopes for the VID, LINE, EXT1, EXT2, Notes and RFB triggers. Initial S/W Revision Prior to A.02.00 Trig Delay Controls a time delay during which the analyzer will wait to begin a sweep after meeting the trigger criteria.
  • Page 343 7  Trigger Functions Trigger from the trigger event.   However, in some cases it is desirable to eliminate this delay, so that trigger events line up exactly with the zero time point in zero span.  You can use the Zero Span Delay Comp On/Off feature to enable or disable zero span delay compensation.
  • Page 344 7  Trigger Functions Trigger Absolute Trigger Level Sets the absolute trigger level for the RF burst envelope. When using the External Mixing path, the Absolute Trigger Level is uncalibrated because the factory default was set to accommodate the expected IF levels for the RF path. Key Path Trigger, RF Burst Scope...
  • Page 345 7  Trigger Functions Trigger Relative Trigger Level Sets the relative trigger level for the RF burst envelope. In some models, the relative burst trigger function is implemented in hardware.  In other models, without the advanced triggering hardware required, the relative burst trigger function is implemented in software in some measurements, and is unavailable in other measurements.
  • Page 346 7  Trigger Functions Trigger had ONLY relative burst triggering Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.04.00 Trigger Slope It is set positive to trigger on a rising edge and negative to trigger on a falling edge. Key Path Trigger, RF Burst Remote Command...
  • Page 347 7  Trigger Functions Trigger Preset Off, 1.000 us State Saved Saved in instrument state –150 ms 500 ms Default Unit Backwards Compatibility The legacy :TRIGger[:SEQuence]:DELay command affects the delay for the VID, LINE, EXT1, EXT2, Notes and RFB triggers. Initial S/W Revision Prior to A.02.00 Periodic Timer (Frame Trigger) Pressing this key, when it is not selected, selects the internal periodic timer signal as the trigger.
  • Page 348 7  Trigger Functions Trigger measure spurious transmissions at an offset from the carrier that is larger than the bandwidth of the RF burst trigger. In this application, we can set the Periodic Timer to a 20.00 ms period and adjust the offset from that timer to position our trigger just where we want it.
  • Page 349 7  Trigger Functions Trigger Example TRIG:FRAM:PER 100 ms Dependencies The invalid data indicator turns on when the period is changed, until the next sweep/measurement completes. Couplings The same period is used in the Gate Source selection of the period timer. Preset 20 ms GSM: 4.615383...
  • Page 350 7  Trigger Functions Trigger delay the timing of the trigger event. Notes When the SCPI command is sent the value shown on the key (and the Active Function, if this happens to be the active function) is updated with the new value. However, the actual amount sent to the hardware is the delta value, that is, the current accumulated offset value minus the previous accumulated offset value.
  • Page 351 7  Trigger Functions Trigger Example TRIG:FRAM:SYNC EXT2 Dependencies In some models, there is no second External input.  In these models, the External 2 key is blanked and the EXTernal2 parameter will generate a “Hardware missing; Not available for this model number” message.
  • Page 352 7  Trigger Functions Trigger Measuring bit is set. It is cleared when the trigger actually occurs (that is, after the trigger event occurs and all the applicable trigger criteria have been met). A corresponding pop-up message ("Waiting for trigger") is generated if no trigger signal appears after approximately 2 sec. This message goes away when a trigger signal appears.
  • Page 353 7  Trigger Functions Trigger State Saved Saved in instrument state Backwards :TRIGger[:SEQuence]:EXTernal:SLOPe Compatibility SCPI For backward compatibility, the parameter EXTernal is mapped to EXTernal1 Backwards :TRIGger[:SEQuence]:FRAMe:EXTernal1:SLOPe Compatibility SCPI Backwards Compatibility The legacy :TRIGger[:SEQuence]:SLOPe command affects the slopes for the VID, LINE, EXT1, EXT2, Notes and RFB triggers.
  • Page 354 7  Trigger Functions Trigger Example TRIG:EXT2:LEV 1.1 V Couplings This same level is used for the Ext2 trigger source in the Trigger menu, for the Ext2 selection in the Periodic Timer sync source (in the Trigger menu and in the Gate Source menu), and also for the Ext2 selection in the Gate Source menu.
  • Page 355 7  Trigger Functions Trigger Key Path Trigger Example TRIG:SOUR RFB                 Swept SA measurement TRIG:<meas>:SOUR RFB   Measurements other than Swept SA State Saved Saved in instrument state Status Bits/OPC dependencies The Status Operation Register bit 5 "Waiting for Trigger" is set at the same time as the Sweeping or Measuring bit is set.
  • Page 356 7  Trigger Functions Trigger State Saved Saved in instrument state –200 dBm 100 dBm Default Unit depends on the current selected Y-Axis unit Backwards :TRIGger[:SEQuence]:FRAMe:RFBurst:LEVel:ABSolute Compatibility SCPI Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.04.00 Key Path Trigger, RF Burst Remote Command :TRIGger[:SEQuence]:RFBurst:LEVel:TYPE ABSolute|RELative...
  • Page 357 7  Trigger Functions Trigger Trig Delay This setting delays the measurement timing relative to the Periodic Timer. Key Path Trigger, Periodic Timer Remote Command :TRIGger[:SEQuence]:FRAMe:DELay <time> :TRIGger[:SEQuence]:FRAMe:DELay? :TRIGger[:SEQuence]:FRAMe:DELay:STATe OFF|ON|0|1 :TRIGger[:SEQuence]:FRAMe:DELay:STATe? Notes Note that delay is used when the sync source is not set to OFF. If the sync source is set to OFF, offset is used.
  • Page 358 7  Trigger Functions Trigger :TRIGger[:SEQuence]:ATRigger? :TRIGger[:SEQuence]:ATRigger:STATe OFF|ON|0|1 :TRIGger[:SEQuence]:ATRigger:STATe? Example TRIG:ATR:STAT ON TRIG:ATR 100 ms Notes The "time that the analyzer will wait" starts when the analyzer is ready for a trigger, which may be hundreds of ms after the data acquisition for a sweep is done. The "time" ends when the trigger condition is satisfied, not when the delay ends.
  • Page 359 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 8 Channel Power Measurement The Channel Power measurement is used to find the total power present in a specified bandwidth. The power spectral density (the power in the signal normalized to 1 Hz) is also reported (In WLAN mode or WLAN radio standard in SA mode, the peak power spectral density for 1 MHz is reported).
  • Page 360 8  Channel Power Measurement Measurement Commands for Channel Power These commands are used to measure the total rms power in a specified integration bandwidth.  Use :INSTrument:SELect to set the mode. :CONFigure:CHPower :CONFigure:CHPower:NDEFault :INITiate:CHPower :FETCh:CHPower[n]? :MEASure:CHPower[n]? :READ:CHPower[n]? :FETCh:CHPower:CHPower? :MEASure:CHPower:CHPower? :READ:CHPower:CHPower? :FETCh:CHPower:DENSity? :MEASure:CHPower:DENSity? :READ:CHPower:DENSity For more measurement related commands, see the SENSe subsystem, and the section...
  • Page 361 8  Channel Power Measurement Remote CommandResults for Channel Power Measurement For WLAN, see Error! Reference source not found. Command Return Value FETCh:CHPower[n]? Refer to the table below. MEASure:CHPower[n]? READ:CHPower[n]? FETCh:CHPower:CHPower? Returns the Channel Power (dBm) MEASure:CHPower:CHPower? (BW compatibility functionality) READ:CHPower:CHPower? FETCh:CHPower:DENSity? Returns the Power Spectral Density (dBm/Hz) MEASure:CHPower:DENSity?
  • Page 362 8  Channel Power Measurement Remote Command Results for WLAN Channel Power Measurement Results Returned n=1 (or not Returns scalar results: specified) When the radio standard is NOT WLAN 802.11ac 80 + 80 MHz: 1. Channel Power is a floating point number representing the total channel power in the specified integration bandwidth.
  • Page 363 8  Channel Power Measurement AMPTD Y Scale AMPTD Y Scale Accesses a menu of functions that enable you to set the vertical scale parameters. The parameter values are measurement independent, except all Attenuation valuesand the Internal Preamp selection, which are the same across all measurements.
  • Page 364 8  Channel Power Measurement AMPTD Y Scale Range Represents the amplitude of the largest sinusoidal signal that could be present within the IF without being clipped by the ADC. For signals with high peak-to-average ratios, the range may need to exceed the rms signal power by a fair amount to avoid clipping.
  • Page 365 8  Channel Power Measurement AMPTD Y Scale Remote Command [:SENSe]:POWer[:RF]:RANGe:OPTimize:ATTenuation OFF | ON | ELECtrical | COMBined [:SENSe]:POWer[:RF]:RANGe:OPTimize:ATTenuation? Notes This parameter is shared with old XA platform which uses AutoAtten. To keep the backward compatibility, ELECtrical and COMBined still can be used. Then, upon receiving ELECtrical and COMBined, these enums will be interpreted as aliases of ON.
  • Page 366 8  Channel Power Measurement AMPTD Y Scale Remote Command [:SENSe]:POWer[:RF]:RANGe:MIXer:OFFSet <real> [:SENSe]:POWer[:RF]:RANGe:MIXer:OFFSet? Example POW:RANG:MIX:OFFS –5 dB Preset 0 dB State Saved Saved in instrument state –35 dB 30 dB Initial S/W Revision A.13.00 Scale/Div Sets the units per division of the vertical scale in the logarithmic display. However, since the Auto Scaling is defaulted to On, this value is automatically determined by the measurement result.
  • Page 367 8  Channel Power Measurement AMPTD Y Scale Key Path AMPTD Y Scale Mode SA, WCDMA, C2K, WIMAX OFDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD, Digital Cable TV, WLAN, MSR, LTEAFDD, LTEATDD Remote Command :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom :DISPlay:CHPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition? Example DISP:CHP:VIEW:WIND:TRAC:Y:RPOS CENT...
  • Page 368 8  Channel Power Measurement Auto Couple Auto Couple The Auto Couple feature provides a quick and convenient way to automatically couple multiple instrument settings. This helps ensure accurate measurements and optimum dynamic range. When the Auto Couple feature is activated, either from the front panel or remotely, all parameters of the current measurement that have an Auto/Manual mode are set to Auto mode and all measurement settings dependent on (or coupled to) the Auto/Man parameters are automatically adjusted for optimal performance.
  • Page 369 8  Channel Power Measurement Auto Couple W-CDMA & HSPA Measurement Applications Reference...
  • Page 370 8  Channel Power Measurement Accesses a menu of functions that enable you to specify and control the video and resolution bandwidths. You can also select the type of filter for the measurement and set the filter bandwidth. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Res BW...
  • Page 371 8  Channel Power Measurement Couplings Sweep time is coupled to the RBW. As the RBW changes, the sweep time (if set to Auto) is changed to maintain amplitude calibration. Video bandwidth (VBW) is coupled to the RBW. As the resolution bandwidth changes, the video bandwidth (if set to Auto) changes to maintain the ratio of VBW/RBW (10:1).
  • Page 372 8  Channel Power Measurement [:SENSe]:CHPower:BANDwidth:VIDeo? [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO ON|OFF|1|0 [:SENSe]:CHPower:BANDwidth:VIDeo:AUTO? Example CHP:BAND:VID 2.4 MHz CHP:BAND:VID? CHP:BAND:VID:AUTO OFF CHP:BAND:VID:AUTO? Notes You must be in the Spectrum Analysis mode, W-CDMA mode, cdma2000 mode, DVB-T/H mode, DTMB (CTTB) mode, ISDB-T mode, CMMB mode, Digital Cable TV mode, LTE mode, LTE TDD mode, WLAN mode, 1xEVDO mode, MSR,LTE-Advanced FDD/TDD mode or WIMAX OFDMA mode to use this command.
  • Page 373 8  Channel Power Measurement State Saved Saved in instrument state. 1 Hz 50 MHz Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Filter Type Selects the type of bandwidth filter that is used. The choices are Gaussian or Flat top. Key Path Mode SA, WCDMA, C2K, WIMAX OFDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE,...
  • Page 374 8  Channel Power Measurement Cont (Continuous Measurement/Sweep) Cont (Continuous Measurement/Sweep) Sets the analyzer for Continuous measurement operation. The single/continuous state is Meas Global so the setting will affect all measurements. If you are Paused, pressing Cont does a Resume. Key Path Front-panel key Remote Command :INITiate:CONTinuous OFF|ON|0|1...
  • Page 375 8  Channel Power Measurement Cont (Continuous Measurement/Sweep) the INIT:CONT 0 command will place the analyzer in Single Sweep but will have no effect on the current sequence until k = N, at which point the current sequence will stop and the instrument will go to the idle state.
  • Page 376 8  Channel Power Measurement File File "File" on page 258 W-CDMA & HSPA Measurement Applications Reference...
  • Page 377 8  Channel Power Measurement FREQ Channel FREQ Channel Accesses a menu of keys that allow you to control the Frequency and Channel parameters of the instrument. Some features in the Frequency menu are the same for all measurements – they do not change as you change measurements.  ...
  • Page 378 8  Channel Power Measurement FREQ Channel Example FREQ:CENT 50 MHz FREQ:CENT UP changes the center frequency to 150 MHz if you use FREQ:CENT:STEP 100 MHz to set the center frequency step size to 100 MHz FREQ:CENT? Notes This command sets either the RF or I/Q Center Frequency depending on the selected input. For RF input it is equivalent to FREQ:RF:CENT For I/Q input it is equivalent to FREQ:IQ:CENT Preset and Max values are dependent on Hardware Options (5xx)
  • Page 379 8  Channel Power Measurement FREQ Channel above) 1.805 GHz 3.6 GHz 3.7 GHz (all but N9000A) 1.505 GHz 3.0 GHz 3.08 GHz (N9000A) 3.505 GHz 7.0 GHz 7.1 GHz (all but N9000A) 3.755 GHz 7.5 GHz 7.58 GHz (N9000A) 1.805 GHz 3.6 GHz 8.5 GHz (all but N9038A) 4.205 GHz...
  • Page 380 8  Channel Power Measurement FREQ Channel can’t tune below TG turned on while TG on) 9 kHz 3.0 GHz 3.08 GHz 9 kHz 6.0 GHz 6.05 GHz The following table shows the Center Frequency Presets for modes other than Spectrum Analyzer: Mode CF Preset for RF WCDMA...
  • Page 381 8  Channel Power Measurement FREQ Channel Source Numerator, Source Denominator and Power Sweep. Preset See table above State Saved Saved in instrument state. –79.999995 MHz, unless Source Mode is set to Tracking, in which case it is limited by the minimum frequency of the Source See table above.
  • Page 382 8  Channel Power Measurement FREQ Channel When Restore Input/Output Defaults is performed, the mixer presets to the 11970A, whose Start and Stop frequencies are 26.5 and 40 GHz respectively. The center of these two frequencies is 33.25 GHz. Therefore, after a Restore Input/Output Defaults, if you go into External Mixing and do a Mode Preset while in the Spectrum Analyzer Mode, the resulting Center Freq is 33.25 GHz.
  • Page 383 8  Channel Power Measurement FREQ Channel Key Path FREQ Channel Remote Command [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> [:SENSe]:FREQuency:CENTer:STEP[:INCRement]? [:SENSe]:FREQuency:CENTer:STEP:AUTO OFF|ON|0|1 [:SENSe]:FREQuency:CENTer:STEP:AUTO? Example FREQ:CENT:STEP:AUTO ON FREQ:CENT:STEP 500 MHz FREQ:CENT UP increases the current center frequency value by 500 MHz FREQ:CENT:STEP? FREQ:CENT:STEP:AUTO? Notes Preset and Max values are depending on Hardware Options (503, 507, 508, 513, 526) Notes Preset and Max values are dependent on Hardware Options (5xx) Dependencies...
  • Page 384 8  Channel Power Measurement Input/Output Input/Output "Input/Output" on page 190 W-CDMA & HSPA Measurement Applications Reference...
  • Page 385 8  Channel Power Measurement Marker Marker Accesses a menu that enables you to select, set up and control the markers for the current measurement. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Select Marker Displays 12 markers available for selection. Key Path Marker Initial S/W Revision...
  • Page 386 8  Channel Power Measurement Marker Properties Accesses the marker properties menu. Key Path Marker Initial S/W Revision Prior to A.02.00 Select Marker Displays 12 markers available for selection. Key Path Marker Initial S/W Revision Prior to A.02.00 Relative To Sets the reference marker to which the selected marker is relative. Key Path Marker, Properties Mode...
  • Page 387 8  Channel Power Measurement Marker Key Path Marker Mode SA, WCDMA, C2K, WIMAX OFDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD, Digital Cable TV, WLAN, MSR, LTEAFDD, LTEATDD Remote Command :CALCulate:CHPower:MARKer:AOFF Example CALC:CHP:MARK:AOFF Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Marker X Axis Value (Remote Command Only)
  • Page 388 8  Channel Power Measurement Marker CALC:CHP:MARK10:X:POS? Notes The query returns the marker’s absolute X Axis value in trace points if the control mode is Normal, or the offset from the marker’s reference marker in trace points if the control mode is Delta. Preset After a preset, all markers are turned OFF, so Marker X Axis Value query returns a not a number (NAN).
  • Page 389 8  Channel Power Measurement Marker W-CDMA & HSPA Measurement Applications Reference...
  • Page 390 8  Channel Power Measurement Marker Function Marker Function There are no ‘Marker Functions’ supported in Channel Power, so this front-panel key displays a blank menu when pressed. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 W-CDMA & HSPA Measurement Applications Reference...
  • Page 391 8  Channel Power Measurement Marker To Marker To There is no ‘Marker To’ functionality supported in Channel Power measurement, so this front-panel key displays a blank key menu when pressed. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 W-CDMA &...
  • Page 392 8  Channel Power Measurement Meas Meas The information in this section is common to all measurements. For key and remote command information for a specific measurement, refer to the section that describes the measurement of interest. Measurements available under the Meas key are specific to the current Mode. When viewing Help for measurements, note the following: Operation for some keys differs between measurements.
  • Page 393 8  Channel Power Measurement Meas Measurement Group of Commands Measure Commands: :MEASure:<measurement>[n]? This is a fast single-command way to make a measurement using the factory default instrument settings. These are the settings and units that conform to the Mode Setup settings (e.g. radio standard) that you have currently selected. •...
  • Page 394 8  Channel Power Measurement Meas the factory default instrument settings. It does not initiate the taking of measurement data unless INIT:CONTinuous is ON. If you change any measurement settings after using the CONFigure command, the READ command can be used to initiate a measurement without changing the settings back to their defaults.
  • Page 395 8  Channel Power Measurement Meas measurement and you send READ:ACP? it will initiate a new measurement using the same instrument settings. • Initiates the measurement and puts valid data into the output buffer. If a measurement other than the current one is specified, the instrument will switch to that measurement before it initiates the measurement and returns results.
  • Page 396 8  Channel Power Measurement Meas Remote Command :CALCulate:DATA[n]? Notes The return trace depends on the measurement. In CALCulate:<meas>:DATA[n], n is any valid subopcode for the current measurement. It returns the same data as the FETCh:<measurement>? query where <measurement> is the current measurement.
  • Page 397 8  Channel Power Measurement Meas • CFIT or curve fit - applies curve fitting routines to the data. <soffset> and <length> are required to define the data that you want. <roffset> is an optional parameter for the desired order of the curve equation. The query will return the following values: the x-offset (in seconds) and the curve coefficients ((order + 1) values).
  • Page 398 8  Channel Power Measurement Meas • RMS - returns a single value that is the average power on a root-mean-squared voltage scale (arithmetic rms) of the data point values for the specified region(s) of trace data. See the following equation. For I/Q trace data, the rms of the magnitudes of the I/Q pairs is returned.
  • Page 399 8  Channel Power Measurement Meas where Xi is a data point value, X is the arithmetic mean of the data point values for the specified region (s), and n is the number of data points in the specified region(s). where |Xi| is the magnitude of an I/Q pair, X is the mean of the magnitudes for the specified region(s), and n is the number of data points in the specified region(s).
  • Page 400 8  Channel Power Measurement Meas Sample Trace Data - Not Constant Envelope (See below for explanation of variables.) <soffset> - start offset is an optional real number. (It is in seconds for time-domain traces, and is a dimensionless index 0 to Npoints – 1, for frequency-domain traces). It specifies the amount of data at the beginning of the trace that will be ignored before the decimation process starts.
  • Page 401 8  Channel Power Measurement Meas Calculate Peaks of Trace Data (Remote Command Only) Returns a list of all the peaks for the currently selected measurement and sub-opcode [n]. The peaks must meet the requirements of the peak threshold and excursion values. n = any valid sub-opcode for the current measurement.
  • Page 402 8  Channel Power Measurement Meas excursion value stored under the Peak Criteria menu. Values must be provided for threshold and excursion. The sorting and display line parameters are optional (defaults are AMPLitude and ALL). Note that there is always a Y-axis value for the display line, regardless of whether the display line state is on or off.
  • Page 403 8  Channel Power Measurement Meas Notes Option FP2 is required. Initial S/W Revision A.14.00 Define Fast Power Measurement (Remote Command Only) Fast Power acquisitions are configured using the DEFine command. This command accepts a comma- delimited string of configuration parameters and their appropriate values, which are all specified in the subsection below.
  • Page 404 8  Channel Power Measurement Meas DC Coupled Example CALC:FPOW:POW1:DEF "DCCoupled=True" Notes The DC coupled parameter allows the user to specify whether the DC blocking capacitor is utilized. Set parameter to true when measuring frequencies below 10 MHz. Preset False Range True (DC Coupled) or False (AC Coupled) Default Unit Boolean...
  • Page 405 8  Channel Power Measurement Meas Do Spur Suppression Example CALC:FPOW:POW1:DEF "DoSpurSuppression=True" Notes When measuring very low level signals, or when large out-of-band inputs are input into the analyzer, sometimes unwanted spurs and residuals can appear in the measured spectrum.  Spur suppression is a method to help minimize the levels of these internally generated spurs and residuals.
  • Page 406 8  Channel Power Measurement Meas Default Unit Initial S/W A.14.00 Revision IF Gain Example CALC:FPOW:POW1:DEF "IFGain=10" Notes The IF gain parameter allows the user to specify the gain at the IF stage anywhere from –6 to 16 dB (1 dB steps).
  • Page 407 8  Channel Power Measurement Meas Mechanical Attenuation Example CALC:FPOW:POW1:DEF "MechAttenuation=10" Notes The mechanical attenuation value parameter sets the amount of mechanical attenuation anywhere from 0 to 70 dB (2 dB steps). Preset 0 dB Range 0 – 70 dB (2 dB steps) Default Unit Initial S/W A.14.00...
  • Page 408 8  Channel Power Measurement Meas Preset 0 Hz Default Unit Initial S/W A.14.00 Revision Trigger Delay Example CALC:FPOW:POW1:DEF "TriggerDelay=0.025" Notes The trigger delay parameter sets the time after an external trigger is detected until the measurement is performed. Preset Range 0 –...
  • Page 409 8  Channel Power Measurement Meas Trigger Source Example CALC:FPOW:POW1:DEF "TriggerSource=Ext1" Notes The trigger source parameter allows the user to choose between measurement’s  triggering freely or controlled by an external input. Ext1 and Ext2 correspond to Trigger 1 In and Trigger 2 In, respectively. Preset Free Range...
  • Page 410 8  Channel Power Measurement Meas Default Unit Boolean Initial S/W Revision A.14.00 Channel Bandwidth Array Example CALC:FPOW:POW1:DEF "Bandwidth=[3.84e6, 5e6, 3.84e6]" Notes The bandwidth parameter array defines the bandwidth of each channel that will be measured. All array parameters should have the same number of elements. Alternatively, if all the elements are the same value, a single number with no square brackets can be used to define the parameter.
  • Page 411 8  Channel Power Measurement Meas Channel Measurement Function Array Example CALC:FPOW:POW1:DEF "Function=[BandPower, PeakPower, BandPower]" Notes This parameter array defines what measurement is being made for each individually-specified channel: BandPower: Total power within the specified bandwidth of the channel (dBm) BandDensity: Total power density within the specified bandwidth of the channel (dBm/Hz) PeakPower: The peak power value within the specified bandwidth of the channel (dBm) PeakFrequency: The frequency which corresponds to the peak power value within the specified bandwidth of the channel.
  • Page 412 8  Channel Power Measurement Meas Preset [0.99] Range 0 – 1.0 Initial S/W A.14.00 Revision Channel x-dB Bandwidth Array Example CALC:FPOW:POW1:DEF " XdBBandwidth =[–6.02, –3.01, –1.0]" Notes This parameter only applies for channels whose Function is set to XdBBandwidth. The X dB bandwidth parameter is used to specify the power relative to the peak channel power over which the bandwidth is calculated.
  • Page 413 8  Channel Power Measurement Meas This command query is used to retrieve a list of all defined parameters in an ASCII format. The following is an example of the returned results: "DCCoupled=False,ElecAttBypass=True,ElecAttenuation=0,IFGain=0,MechAttenuation=0,PreAmpMode=Off,PreSelectorOffset =0,UsePreSelector=False,ExternalReferenceFrequency=10000000,FrequencyReferenceSource=AutoExternalFrequencyRefer ence,IFType=B40M,LOMode=SLW,SignalInput=FpMainRf,AcquisitionTime=0.001,CenterFrequency=1000000000,Resolution BW=0,ResolutionBWMode=BestSpeed,DetectorType=RmsAverage,Bandwidth=[1000000],OffsetFrequency=[0],Function= [BandPower],FilterType=[IBW],FilterAlpha=[0.22],OccupiedBandwidthPercent=[0.99],XdBBandwidth=[– 3.01],DoNoiseCorrection=False,DoSpurSuppression=False,MeasurementMethod=HardwareFFT,IncludePowerSpectrum=Fals e,TriggerDelay=0,TriggerLevel=1.2,TriggerSlope=Positive,TriggerSource=Free,TriggerTimeout=1" A.14.00 Configure Fast Power Measurement (Remote Command Only) The configure command begins hardware setup and returns immediately, with no acquisition made.
  • Page 414 8  Channel Power Measurement Meas Initiate Fast Power Measurement (Remote Command Only) The INITiate command begins an acquisition and returns immediately. The results of the measurement can be retrieved using FETCh. Mode Remote Command :CALCulate:FPOWer:POWer[1,2,…,999]:INITiate Example :CALC:FPOW:POW1:INIT Notes Option FP2 is required. Initial S/W Revision A.14.00 Fetch Fast Power Measurement (Remote Command Only)
  • Page 415 8  Channel Power Measurement Meas Binary Read Fast Power Measurement (Remote Command Only) This command query is used as shorthand for an INIT command immediately followed by a FETC? command. The returned results are in a binary format. Mode Remote :CALCulate:FPOWer:POWer[1,2,…,999]:READ? Command :CALCulate:FPOWer:POWer[1,2,…,999]:READ1?
  • Page 416 8  Channel Power Measurement Meas Spectrum Data 1. Number of points in the spectrum data, k [4 byte int] 2. Start frequency of spectrum data (Hz) [8 byte double] 3. Step frequency of spectrum data (Hz) [8 byte double] 4. FFT bin at 1st point (dBm) [4 byte float] 5.
  • Page 417 8  Channel Power Measurement Meas ASCii - Amplitude values are in ASCII, in the current Y Axis Unit, one ASCII character per digit, values separated by commas, each value in the form: SX.YYYYYEsZZ Where: S = sign (+ or -) X = one digit to left of decimal point Y = 5 digits to right of decimal point E = E, exponent header...
  • Page 418 8  Channel Power Measurement Meas Setup Meas Setup Displays the setup menu for the currently selected measurement. The parameters included in this menu are as follows. Averaging IF Gain Channel Power Span Integrated Bandwidth Filter Bandwidth Root Raised Cosine (RRC) Filter Key Path Front-panel key Initial S/W Revision...
  • Page 419 8  Channel Power Measurement Meas Setup DVB-T/H: 20 DTMB (CTTB): 20 ISDB-T: 10 CMMB: 10 Digital Cable TV: 10 WLAN: 10 LTEAFDD, LTEATDD:200 State Saved Saved in instrument state. 10000 Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Avg Mode Allows you to select the type of termination control used for the averaging function.
  • Page 420 8  Channel Power Measurement Meas Setup Integ BW Specifies the range of integration used in calculating the power in the channel. The integration bandwidth (IBW) is displayed on the trace as two markers connected by an arrow. Key Path Meas Setup Mode SA, WCDMA, C2K, WIMAX OFDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD, Digital Cable TV, WLAN, LTEAFDD, LTEATDD...
  • Page 421 8  Channel Power Measurement Meas Setup if Radio Std is 802.11ac (80 MHz + 80 MHz): 80 MHz State Saved Saved in instrument state. 100 Hz Hardware Maximum Span Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00, A.14.50 Method Turns the Root Raised Cosine (RRC) filter On or Off.
  • Page 422 8  Channel Power Measurement Meas Setup Method Turns the Root Raised Cosine (RRC) filter On or Off. The α value (roll off) for the filter is set to the value of the Filter Alpha parameter, and the RRC filter bandwidth is set to the Filter BW parameter. Key Path Meas Setup Mode...
  • Page 423 8  Channel Power Measurement Meas Setup mode, LTE TDD mode, WLAN mode,WIMAX OFMDA mode or W-CDMA mode to use this command. Use :INSTrument:SELect to set the mode. Dependencies For CDMA2K mode, this key is blank. For 1xEVDO mode, this key is blank. For MSR mode, this key is blank.
  • Page 424 8  Channel Power Measurement Meas Setup WIMAX OFDMA: 10MHz DVB-T/H: 8MHz DTMB (CTTB): 7.56MHz ISDB-T: 5.6MHz CMMB: 7.512MHz Digital Cable TV: 6.9MHz WLAN: if Radio Std is 802.11a/g(OFDM/DSSS-OFDM): 16.6 MHz if Radio Std is 802.11b: 22 MHz if Radio Std is 802.11n(20MHz): 17.8 MHz if Radio Std is 802.11n(40MHz: 36.6 MHz State Saved Saved in instrument state.
  • Page 425 8  Channel Power Measurement Meas Setup Example CALC:CHP:LIM:POW 16.00 CALC:CHP:LIM:POW? CALC:CHP:LIM:POW:STAT ON CALC:CHP:LIM:POW:STAT? Notes This parameter and PSD Limit can determine Pass/Fail criteria. If (( power limit = On) and (PSD limit= Off) ) Pass if (power test passes) Fail if (power test fails) If (( power limit = On) and (PSD limit= On) ) Pass if ( both power test and PSD test pass) Fail if ( either of power test or PSD test fails)
  • Page 426 8  Channel Power Measurement Meas Setup :CALCulate:CHPower:LIMit:PSDensity? :CALCulate:CHPower:LIMit:PSDensity:STATe OFF|ON|0|1 :CALCulate:CHPower:LIMit:PSDensity:STATe? Example CALC:CHP:LIM:PSD 4.00 CALC:CHP:LIM:PSD? CALC:CHP:LIM:POW:STAT ON CALC:CHP:LIM:POW:STAT? Notes This parameter and Power Limit can determine Pass/Fail criteria. If (( power limit = On) and (PSD limit= Off) ) Pass if (power test passes) Fail if (power test fails) If (( power limit = On) and (PSD limit= On) ) Pass if ( both power test and PSD test pass)
  • Page 427 8  Channel Power Measurement Meas Setup Notes This command is query only. When Power Limit is off, the returned value is always 0 (pass). When Power Limit is on, the returned value is 0(pass) while power test passes and 1(fail) while power test fails.
  • Page 428 8  Channel Power Measurement Meas Setup Meas Preset Restores all the measurement parameters to their default values. Key Path Meas Setup Mode SA, WCDMA, C2K, WIMAX OFDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD, Digital Cable TV, WLAN, MSR, LTEAFDD, LTEATDD Remote Command :CONFigure:CHPower Example...
  • Page 429 8  Channel Power Measurement Mode Mode "Mode" on page 232 W-CDMA & HSPA Measurement Applications Reference...
  • Page 430 8  Channel Power Measurement Mode Preset Mode Preset Returns the active mode to a known state. Mode Preset does the following for the currently active mode: • Aborts the currently running measurement. • Brings up the default menu for the mode, with no active function. •...
  • Page 431 8  Channel Power Measurement Mode Preset User Preset. Initial S/W Revision Prior to A.02.00 How-To Preset The table below shows all possible presets, their corresponding SCPI commands and front-panel access (key paths). Instrument settings depend on the current measurement context. Some settings are local to the current measurement, some are global (common) across all the measurements in the current mode, and some are global to all the available modes.
  • Page 432 8  Channel Power Measurement Mode Preset Power On Mode Preset :SYSTem:PON:TYPE MODE System Menu Power On User Preset :SYSTem:PON:TYPE USER System Menu Power On Last State :SYSTem:PON:TYPE LAST System Menu W-CDMA & HSPA Measurement Applications Reference...
  • Page 433 8  Channel Power Measurement Mode Setup Mode Setup "Mode Setup" on page 251 W-CDMA & HSPA Measurement Applications Reference...
  • Page 434 8  Channel Power Measurement Peak Search Peak Search Places the selected marker on the trace point with the maximum y-axis value. Pressing Peak Search with the selected marker Off causes the selected marker to be set to Normal, then a peak search is immediately performed.
  • Page 435 8  Channel Power Measurement Print Print "Print" on page 263 W-CDMA & HSPA Measurement Applications Reference...
  • Page 436 8  Channel Power Measurement Quick Save Quick Save The Quick Save front-panel key repeats the most recent save that was performed from the Save menu, with the following exceptions: • Register saves are not remembered as Saves for the purpose of the Quick Save function •...
  • Page 437 8  Channel Power Measurement Quick Save If you enter a file name for a given file type, then the prefix becomes the filename you entered instead of the default prefix, followed by an underscore. The last four letters (the suffix) are the 4-digit number. For example, if you save a measurement results file as “fred.csv”, then the next auto file name chosen for a measurement results save will be fred_0000.csv.
  • Page 438 8  Channel Power Measurement Recall Recall The Recall menu lets you choose what you want to recall, and where you want to recall it from. Among the types of files you can recall are States andTraces. In addition, an Import (Data) option lets you recall a number of data types stored in CSV files (as used by Excel and other spreadsheet programs).
  • Page 439 8  Channel Power Measurement Recall The content of a state file includes all of the settings and data required to return the analyzer as closely as possible to the Mode it was in, with the exact settings that were in place, when the save occurred. The Mode settings in each state file include the settings that are affected by Mode Preset, as well as the additional settings affected by Restore Mode Defaults;...
  • Page 440 8  Channel Power Measurement Recall • Executes a *CLS If the file specified is empty an error is generated. If the specified file does not exist, another error is generated. If there is a mismatch between the file and the proper file type, an error is generated. If there is a mismatch between file version or model number or instrument version or model number, a warning is displayed.
  • Page 441 8  Channel Power Measurement Recall Listed below are the functions of the various fields in the dialog, and the corresponding softkeys: Open Performs the recall of the specified file. While the recall is being performed, the floppy icon appears briefly in the Meas bar.
  • Page 442 8  Channel Power Measurement Recall Accesses a menu that enables you to sort the files within the File Open dialog. Only one sorting type can be selected at a time and the sorting happens immediately. The sorting types are By Date, By Name, By extension, and By Size.
  • Page 443 8  Channel Power Measurement Recall modified. In addition, you can use the Edit Register Names key under Save, State to enter custom names for each register. In products that run multiple instances of the X-Series Application, recalling the same register name on each instance is a way to share setups between the instances.
  • Page 444 8  Channel Power Measurement Recall After the recall completes, the message "Register <register number> recalled" appears in the message bar.  If you are in the Spectrum Analyzer Mode, and you are recalling a register that was saved in the Spectrum Analyzer Mode, then after the recall, you will still be in the Recall Register menu. If the Recall causes you to switch modes, then after the Recall, you will be in the Frequency menu.
  • Page 445 8  Channel Power Measurement Recall Example :MMEM:LOAD:SEQ:SLIS "MySequence.txt" Dependencies Only available in XOBT Initial S/W Revision A.05.00 Open… When you press “Open”, the analyzer brings up a Windows dialog and a menu entitled “File Open.” This menu allows you to navigate to the various fields in the Windows dialog without using a keyboard or mouse.
  • Page 446 8  Channel Power Measurement Recall Capture Buffer Capture Buffer functionality is available only in the Code Domain and Modulation Accuracy measurements. The captured data is raw (unprocessed). Key Path Recall, Data Mode WCDMA Example MMEM:LOAD:CAPT "MyCaptureData.bin" This loads the file of capture data (on the default file directory path) into the instrument. Dependencies Capture Buffer data is only available for the Code Domain and Modulation Accuracy measurements.
  • Page 447 8  Channel Power Measurement Restart Restart The Restart function restarts the current sweep, or measurement, or set of averaged/held sweeps or measurements. If you are Paused, pressing Restart does a Resume. The Restart function is accessed in several ways: • Pressing the Restart key •...
  • Page 448 8  Channel Power Measurement Restart Even when set for Single operation, multiple sweeps may be taken when Restart is pressed (for example, when averaging/holding is on). Thus when we say that Restart "restarts a measurement," we may mean: • It restarts the current sweep •...
  • Page 449 8  Channel Power Measurement Save Save The Save menu lets you choose what you want to save and where you want to save it. Among the types of files you can save are States, Traces, and Screen Images. In addition, an Export (Data) option lets you save a number of data types as CSV files for easy import into Excel and other spreadsheet programs.
  • Page 450 8  Channel Power Measurement Save After saving to a register, that register’s menu key is updated with the date the time, unless a custom label has been entered for that key. After saving to a register, you remain in the Save State menu, so that you can see the Register key update.
  • Page 451 8  Channel Power Measurement Save the file will be overwritten. Using the C: drive is strongly discouraged, since it runs the risk of being overwritten during an instrument software upgrade. While the save is being performed, the floppy icon appears briefly in the Meas bar. File/Folder List Enables you to navigate to the center of the dialog that contains the list of files and folders.
  • Page 452 8  Channel Power Measurement Save This key corresponds to the Cancel selection in the dialog. It causes the current Save As request to be cancelled.  The ESC key does the same thing. Key Path Save, State Mode Notes Brings up Save As dialog for saving a State Save Type Initial S/W Revision Prior to A.02.00 Edit Register Names...
  • Page 453 8  Channel Power Measurement Save consequence of this is that the names will be persistent through a power cycle. Also, if a named state file is transferred to another analyzer, it will bring its custom name along with it.  If you try to edit the name of an empty register, the analyzer will first save the state to have a file to put the name in.
  • Page 454 8  Channel Power Measurement Save what date and time it was last modified. In addition, you can use the Edit Register Names key to enter custom names for each register. In products that run multiple instances of the X-Series Application, save with different register name if you do not want to overwrite the register of another running instance.
  • Page 455 8  Channel Power Measurement Save Mass Storage Change Directory (Remote Command Only) Key path SCPI Only Remote Command :MMEMory:CDIRectory [<directory_name>] :MMEMory:CDIRectory? Notes The string must be a valid logical path. Changes the default directory for a mass memory file system. The <directory_name> parameter is a string.
  • Page 456 8  Channel Power Measurement Save Mass Storage Delete   (Remote Command Only) Key path SCPI Only Remote Command :MMEMory:DELete <file_name>[,<directory_name>] Notes The string must be a valid logical path. Removes a file from the specified directory. The <file_name> parameter specifies the file name to be removed.
  • Page 457 8  Channel Power Measurement Save Two forms of parameters are allowed. The first form has two parameters. In this form, the first parameter specifies the source, and the second parameter specifies the destination. The second form has four parameters. In this form, the first and third parameters specify the source. The second and fourth parameters specify the directories.
  • Page 458 8  Channel Power Measurement Save Source Sequence The list of parameters, that configure steps, that makes up a sequence for the Source. The Source sequence is a sequence of flexible configurable steps that can be set anywhere in the instruments frequency range. Key Path Save, Sequences Example...
  • Page 459 8  Channel Power Measurement Save Notes The menu is built from whatever data types are available for the mode. So the key locations in the sub menu will vary. No SCPI command directly controls the Data Type that this key controls. The Data Type is included in the MMEM:STORe commands.
  • Page 460 8  Channel Power Measurement Save • Average Mode • Average Number • Average State • Center Frequency • Detector • Electrical Atten • Electrical Atten State • IFGain • IFGainAuto • Impedance • Integ BW • Internal Preamp • Internal Preamp Band •...
  • Page 461 8  Channel Power Measurement Save MeasResult SA:CHP A.10.53 N9030A 526 ALV ATP B1X B1Y B25 B40 BBA CR3 CRP DCF DDA DP2 DRD EA3 EDP EMC EP1 ERC ESC ESP EXM FSA LFE LNP MAT MPB NFE NUL P26 PFR PNC RTL RTS S40 SB1 SEC SM1 TVT YAS YAV Auto Sweep Time Rules Normal...
  • Page 462 8  Channel Power Measurement Save Capture Buffer Allows you to store captured data for reuse in demod measurements using ‘Save/Recall’ functionality for ‘Capture Buffer.’ ‘Capture Buffer’ is saved and loaded as IQ Data with properties which show Sample Rate, Length, IF BW, etc. Use Capture Buffer to perform analysis of the same captured data using ‘Code Domain’...
  • Page 463 8  Channel Power Measurement Save Screen Image Pressing Screen Image accesses a menu of functions that enable you to specify a format and location for the saved screen image. It brings up a menu that allows you to specify the color scheme of the Screen Image (Themes) or navigate to the Save As dialog to perform the actual save.
  • Page 464 8  Channel Power Measurement Save Remote Command :MMEMory:STORe:SCReen <filename> Example :MMEM:STOR:SCR "myScreen.png" This stores the current screen image in the file MyScreenFile.png in the default directory. Initial S/W Revision Prior to A.02.00 Themes Accesses a menu of functions that enable you to choose the theme to be used when saving the screen image.
  • Page 465 8  Channel Power Measurement Save Key Path Save, Screen Image, Themes Example MMEM:STOR:SCR:THEM TDM Readback 3D Mono Initial S/W Revision Prior to A.02.00 Flat Color Selects a format that is best when the screen is to be printed on an ink printer. Key Path Save, Screen Image, Themes Example...
  • Page 466 8  Channel Power Measurement Single (Single Measurement/Sweep) Single (Single Measurement/Sweep) Sets the analyzer for Single measurement operation. The single/continuous state is Meas Global, so the setting will affect all the measurements. If you are Paused, pressing Single does a Resume. "More Information"...
  • Page 467 8  Channel Power Measurement Source Source Opens a menu of keys that access various source configuration menus and settings. In the  test set, pressing this key also causes the central view area to change and display the Source Control Main view. Key Path Front-panel key RF Output...
  • Page 468 8  Channel Power Measurement Source RF Power Allows you to adjust the power level of the source using the numeric keypad, step keys, or RPG. Pressing any digit, 0 through 9, on the numeric keypad brings up the unit terminator. Please refer to the "RF Power Range "...
  • Page 469 8  Channel Power Measurement Source RF Power Range RF Output Port Frequency Range Min Output Power Max Output Power High Power RF Out 10 MHz ≤ f ≤ 6 GHz –150 dBm 20 dBm 10 MHz ≤ f ≤ 6 GHz RFIO 1 &...
  • Page 470 8  Channel Power Measurement Source Where: reference power equals the original RF Power entered under Source>Amplitude>RF Power and set as the reference power entered power equals a new value entered under Source>Amplitude>Amptd Offset For more information on Reference Frequency refer to  "Set Reference Power "...
  • Page 471 8  Channel Power Measurement Source Where: entered power equals the amplitude entered under Source>Amplitude>RF Power offset power equals the value previously entered and set under Source>Amplitude>Amptd Offset Key Path Source, Amplitude Remote Command :SOURce:POWer[:LEVel][:IMMediate]:OFFSet <rel_ampl> :SOURce:POWer[:LEVel][:IMMediate]:OFFSet? Example :SOUR:POW:OFFS 0.00 dB Dependencies This setting is unavailable, and is grayed out when the List Sequencer is turned ON.
  • Page 472 Option 504 = 3.8 GHz Option 506 = 6.00 GHz For E6640A, if license 5WC is present,the frequency range should be limited to: 1.1GHz–1.7GHz, 2.4GHz–2.5GHz, 4.8GHz–6.0GHz. If the user-defined frequency is outside of range, UI will report an error message called “Settings conflict; Frequency is outside available range”.
  • Page 473 8  Channel Power Measurement Source Key Path Source, Frequency Remote Command :SOURce:FREQuency:CHANnels:NUMBer <int> :SOURce:FREQuency:CHANnels:NUMBer? Example :SOUR:FREQ:CHAN:NUMB 1 Notes This key is grayed out when the "Radio Standard" on page 2736 is set to NONE. This key is grayed out on E6630A. Dependencies This key is grayed out when the "Radio Standard"...
  • Page 474 8  Channel Power Measurement Source Band Link (Device) Range Frequency (MHz) Downlink (BS) 306 ≤ n ≤ 340 489.000 + 0.20*(n–306) GSM 850 Uplink (MS) 824.200 + 0.20*(n–128) 128 ≤ n ≤ 251 Downlink (BS) 128 ≤ n ≤ 251 869.200 + 0.20*(n–128) GSM 700 Uplink (MS)
  • Page 475 8  Channel Power Measurement Source Band Link (Device) Range Frequency (MHz) Band IX Downlink 9237 ≤ n ≤ 9387 n÷5 Uplink n÷5 8762 ≤ n ≤ 8912 Band X Downlink 3112 ≤ n ≤ 3388 n÷5 + 1490 n÷5 + 1430.1 3412 ≤...
  • Page 476 8  Channel Power Measurement Source Band Link (Device) Range Frequency (MHz) Japan Cellular Band Uplink (MS, 1 ≤ N ≤ 799 0.0125×(N+ 915.000 reverse link) 801 ≤ N ≤ 1039 0.0125×(N–800)+ 898.000 1041 ≤ N ≤ 1199 0.0125×(N–1040)+ 887.000 1201 ≤ N ≤ 1600 0.0125×(N–1200)+ 893.000 Downlink (BS, 1 ≤...
  • Page 477 8  Channel Power Measurement Source Band Link (Device) Range Frequency (MHz) Downlink (BS, 0 ≤ N ≤ 1299 1930.000 + 0.050×N forward link) Uplink (MS, 0 ≤ N ≤ 899 1710.000 + 0.050×N reverse link) Downlink (BS, 0 ≤ N ≤ 899 2100.000 + 0.050×N forward link) US 2.5 GHz...
  • Page 478 8  Channel Power Measurement Source The relation between EARFCN and the carrier frequency in MHz for the uplink is given by the following equation where FUL_low and NOffs-UL are given in table 5.4.4–1 and NUL is the uplink EARFCN. FUL = FUL_low + 0.1(NUL – NOffs-UL) Band Downlink Uplink...
  • Page 479 8  Channel Power Measurement Source LTE TDD Channel Number Ranges The carrier frequency in the uplink and downlink is designated by the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) in the range 0 – 65535. The relation between EARFCN and the carrier frequency in MHz for the downlink is given by the following equation, where FDL_low and NOffs-DL are given in table 5.4.4–1 and NDL is the downlink EARFCN.
  • Page 480 8  Channel Power Measurement Source Nt = 5*F 0.0 MHz ≤ F≤ 3276.6 MHz where F is the carrier frequency in MHz Additional channels applicable to operation in the frequency band defined in sub-clause 5.2(d) are defined via the following UARFCN definition: Nt = 5 * (F –...
  • Page 481 8  Channel Power Measurement Source Radio Standard Allows access to the channel band sub-menus to select the desired radio standard. When you have selected the radio standard, you can then set an active channel band. The radio standard and the active channel band allow you to use ...
  • Page 482 8  Channel Power Measurement Source E-GSM Selects E-GSM as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example :SOUR:FREQ:CHAN:BAND EGSM Initial S/W Revision A.05.00 R-GSM Selects R-GSM as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example :SOUR:FREQ:CHAN:BAND RGSM Initial S/W Revision...
  • Page 483 8  Channel Power Measurement Source GSM 480 Selects GSM 480 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example :SOUR:FREQ:CHAN:BAND GSM480 Initial S/W Revision A.05.00 GSM 850 Selects GSM 850 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example...
  • Page 484 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDI Initial S/W Revision A.05.00 Band II Selects Band II as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDII Initial S/W Revision...
  • Page 485 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDVI Initial S/W Revision A.05.00 Band VII Selects Band VII as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDVII Initial S/W Revision...
  • Page 486 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDXI Initial S/W Revision A.05.00 Band XII Selects Band XII as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDXII Initial S/W Revision...
  • Page 487 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard Initial S/W Revision A.05.00 US CELL Selects US Cell as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND USCELL Initial S/W Revision A.05.00...
  • Page 488 8  Channel Power Measurement Source Example :SOUR:FREQ:CHAN:BAND NMT Initial S/W Revision A.05.00 IMT 2000 Selects IMT 2000 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND IMT2K Initial S/W Revision A.05.00 Upper 700 Selects Upper 700 as the active channel band.
  • Page 489 8  Channel Power Measurement Source Example :SOUR:FREQ:CHAN:BAND PAMR800 Initial S/W Revision A.05.00 2.5GHz IMT EXT Selects 2.5 GHz IMT EXT as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND IMTEXT Initial S/W Revision A.05.00 US PCS 1.9GHz...
  • Page 490 8  Channel Power Measurement Source Example :SOUR:FREQ:CHAN:BAND PUBLIC Initial S/W Revision A.05.00 C2K Lower 700 Selects C2K Lower 700 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND LOWER Initial S/W Revision A.05.00 Sets LTE FDD as the radio standard for use and accesses the LTE FDD specific channel band sub-menus..
  • Page 491 8  Channel Power Measurement Source BAND 4 Selects BAND 4 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND4 Initial S/W Revision A.09.50 BAND 5 Selects BAND 5 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 492 8  Channel Power Measurement Source BAND 9 Selects BAND 9 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND9 Initial S/W Revision A.09.50 BAND 10 Selects BAND 10 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 493 8  Channel Power Measurement Source BAND 14 Selects BAND 14 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND14 Initial S/W Revision A.09.50 BAND 17 Selects BAND 17 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 494 8  Channel Power Measurement Source BAND 21 Selects BAND 21 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND21 Initial S/W Revision A.09.50 BAND 24 Selects BAND 24 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 495 8  Channel Power Measurement Source BAND 28 Selects BAND 28 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND28 Initial S/W Revision A.14.00 BAND 31 Selects BAND 31 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 496 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND35 Initial S/W Revision A.11.50 BAND 36 Selects BAND 36 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND36 Initial S/W Revision...
  • Page 497 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND40 Initial S/W Revision A.11.50 BAND 41 Selects BAND 41 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND41 Initial S/W Revision...
  • Page 498 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard Initial S/W Revision A.11.50 BAND A Selects BAND A as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDA Initial S/W Revision A.11.50 BAND B...
  • Page 499 8  Channel Power Measurement Source Example :SOUR:FREQ:CHAN:BAND BANDE Initial S/W Revision A.11.50 BAND F Selects BAND F as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDF Initial S/W Revision A.11.50 Radio Band Link Allows you to specify the channel band type as either uplink or downlink link direction.
  • Page 500 8  Channel Power Measurement Source Where: reference frequency equals the original RF frequency entered under Source>Frequency>Frequency and set as the reference frequency entered frequency equals a new value entered under Source>Frequency>Frequency In addition, the displayed frequency value will be the same as the value entered under Source>Frequency>Frequency.
  • Page 501 8  Channel Power Measurement Source :SOUR:FREQ:REF:STATe ON Dependencies This setting is unavailable, and is grayed out when the List Sequencer is turned ON. Couplings The frequency reference state is coupled to the frequency reference set immediate action. When the reference set immediate action key is pressed, or the SCPI command issued, it turns the frequency reference state ON.
  • Page 502 8  Channel Power Measurement Source :SOURce:FREQuency:OFFSet? Example :SOUR:FREQ:OFFS 0 Hz Dependencies This setting is unavailable, and is grayed out when the List Sequencer is turned ON. Preset 0 Hz –100.00 GHz 100.00 GHz Initial S/W Revision A.05.00 Modulation Setup Allows access to the menus for setting up the available modulation types: "ARB"...
  • Page 503 8  Channel Power Measurement Source The ARB can only be turned on when there is a waveform file selected for playback. On the GUI If no waveform is selected, this key is grayed out. If you send the SCPI command to turn the ARB on with no waveform selected for playback, the ARB state remains OFF and an error is generated.
  • Page 504 8  Channel Power Measurement Source none of the waveform segments is loaded. If the ARB is ON, and you attampt to play a waveform sequence but not all the waveform segments within the sequence could be found to be loaded into ARB memory, an error is generated. The selected waveform keeps the previous value and ARB state remains On.
  • Page 505 8  Channel Power Measurement Source Remote Command :SOURce:RADio:ARB:LOAD <string> Example :SOUR:RAD:ARB:LOAD “D: VARB\testwaveform.bin” :SOUR:RAD:ARB:LOAD “NVWFM:testwaveform.bin” Notes Because loading the file involves a delay of unpredictable length, this command should be followed by the query *OPC?, which holds off subsequent commands until the loading operating is complete. <string>...
  • Page 506 8  Channel Power Measurement Source when the ARB memory is full, the copy ceases, and an error is generated. If you specify a directory over SCPI, but the directory does not exist, an error is generated.  If the ARB is ON, a user then loads or deletes file to ARB memory, the playing waveform segment may not keep phase continuity during the ARB memory operation.
  • Page 507 8  Channel Power Measurement Source Delete Segment From ARB Mem Allows you to remove a segment from ARB playback memory. Key Path Source, Modulation Setup, ARB, Select Waveform, Segments in ARB Memory Remote Command :SOURce:RADio:ARB:DELete <string> Example :SOUR:RAD:ARB:DEL “testwaveform.bin” Notes <string>...
  • Page 508 8  Channel Power Measurement Source Query ARB Memory File List (Remote Command Only) Queries the test set for the list of waveform segments in the ARB memory. This command returns a string for waveform segment names in ARB memory. If you want a string list of waveform segments in the ARB memory, use "Query ARB Memory Full File List (Remote Command Only)"...
  • Page 509 Example :SOUR:RAD:ARB:RSC 100.00 Notes This setting cannot be set in E6640A. Grey out on menu and the value is fixed at 70.00%. Dependencies When a new waveform is selected for playback the settings contained within the associated waveform header file are applied to the ARB. The run-time scaling is one of the values stored within the header file.
  • Page 510 8  Channel Power Measurement Source Key Path Source, Modulation Setup, ARB, ARB Setup Remote Command :SOURce:RADio:ARB:BASeband:FREQuency:OFFSet <freq> :SOURce:RADio:ARB:BASeband:FREQuency:OFFSet? Example :SOUR:RAD:ARB:BAS:FREQ:OFFS 0.00 Hz Dependencies When a new waveform is selected for playback the settings contained within the associated waveform header file are applied to the ARB. The baseband frequency offset is one of the values stored within the header file.
  • Page 511 8  Channel Power Measurement Source Range Free Run | Trigger + Run | Reset + Run Initial S/W Revision A.05.00 Free Run Selects Free Run as the trigger response for the continuous trigger type. Free Run sets the waveform generator to play a waveform sequence or segment continuously, without waiting for a trigger. In this mode, the waveform generator does not respond to triggers.
  • Page 512 8  Channel Power Measurement Source :SOURce:RADio:ARB:RETRigger? Example :SOUR:RAD:ARB:RETR OFF Notes ON: Buffered Trigger OFF: No Retrigger Immediate: Restart on Trigger This is defined as an enumerated SCPI command, with ON|OFF being considered as enumerated types rather than Boolean. This means the query will return OFF instead of 0, and ON instead of 1. Preset Range No Retrigger | Buffered Trigger | Restart on Trigger...
  • Page 513 8  Channel Power Measurement Source Segment Advance Sets the active trigger type to Segment Advance. If Segment Advance is already selected as the active trigger type, pressing this key allows access to the segment advance trigger type setup menu. Segment Advance triggering allows you to control the playback of waveform segments within a waveform sequence.
  • Page 514 Example :SOUR:RAD:ARB:TRIGger EXT2 Notes Note: When on E6640A, trigger 2 is a bi-directional trigger port. So when trigger 2 has been configured as OUTPUT type, choosing External 2 as the input trigger for the current step will generate error. Initial S/W Revision A.05.00...
  • Page 515 8  Channel Power Measurement Source Trigger Initiate Used to initiate an immediate trigger event if the trigger source is set to Trigger Key. Key Path Source, Modulation Setup, ARB Notes No remote command, SCPIfront panel only. Initial S/W Revision A.05.00 Waveform Sequences Allows access to the waveform sequence sub-menus.
  • Page 516 8  Channel Power Measurement Source Key Path Source, Modulation Setup, ARB, Waveform Sequences, Build New Sequence Notes No remote command, SCPIfront panel only. Waveform segment name string length upper limit is 128 chars. Please do NOT insert waveform which name string exceeds 128 chars. Initial S/W Revision A.05.00 Insert Waveform...
  • Page 517 8  Channel Power Measurement Source NOTE: When a waveform file is loaded to ARB memory, burst timing adjustments are made automatically, based on whether or not a Multiport Adapter is connected to the test set and powered on. If the connection/power status of the Multiport Adapter is changed after a waveform file has been loaded, it needs to be loaded again.
  • Page 518 8  Channel Power Measurement Source Example :SOUR:RAD:ARB:LOAD:ALL “D: varb” Notes <string> - specifies the directory on the HDD to load the files into ARB memory from. When in Sequence Analyzer mode, and Include Source is Yes, an attempt to load all files from a directory to ARB memory is rejected with an error.
  • Page 519 8  Channel Power Measurement Source Key Path Source, Modulation Setup, ARB, Select Waveform Initial S/W Revision A.05.00 Delete Segment From ARB Mem Allows you to remove a segment from ARB playback memory. Key Path Source, Modulation Setup, ARB, Select Waveform, Segments in ARB Memory Remote Command :SOURce:RADio:ARB:DELete <string>...
  • Page 520 8  Channel Power Measurement Source If the ARB is ON and you load a file to ARB memory or delete a file from ARB memory, the playing waveform segment may not keep phase continuity during the ARB memory operation. The waveform will be replayed after the ARB operation is finished.
  • Page 521 8  Channel Power Measurement Source Segments in ARB Memory This key functions the same as "Segments in ARB Memory" on page 2830. Key Path Source, Modulation Setup, ARB, Waveform Sequences, Build New Sequence, Insert New Waveform Initial S/W Revision Prior to A.09.00 Delete Segment From ARB Memory This key functions the same as "Delete Segment From ARB Mem"...
  • Page 522 8  Channel Power Measurement Source Key Path Source, Modulation Setup, ARB, Waveform Sequences, Build New Sequence, Edit Selected Waveform Notes No remote command, SCPIfront panel only. Preset 65535 Initial S/W Revision A.05.00 Marker 1 Allows you to enable or disable marker 1 for the currently selected waveform. For a waveform sequence, you can enable and disable markers on a per-segment basis, allowing you to output markers from some waveform segments within the sequence, but not for others.
  • Page 523 8  Channel Power Measurement Source Waveform Notes No remote command, front panel only. Preset Enabled Range Enabled|Disabled Initial S/W Revision A.05.00 Marker 4 Allows you to enable or disable marker 4 for the currently selected waveform. For a waveform sequence, you can enable and disable markers on a per-segment basis, allowing you to output markers from some waveform segments within the sequence, but not for others.
  • Page 524 8  Channel Power Measurement Source This command writes a waveform sequence file to the hard disk. You must specify the waveform sequence file path and filename which will be saved on the hard disk, and the waveform segment file path and name which will be nested into the waveform sequence file.
  • Page 525 8  Channel Power Measurement Source This variable specifies the number of times a segment or sequence plays before moving on to the next segment or sequence. <marker> - Enum Type NONE – This choice disables all four markers for the waveform. Disabling markers means that the waveform sequence ignores the segments or sequence marker settings.
  • Page 526 Allows you access to the Multi - Pack License sub-menus. Pressing this key also changes the central view area to display the Multi -Pack License Management view. On modular instrument like E6630A or E6640A, multi-pack license operations are only allowed on the default module, i.e. “Left” module for E6630A or “TRX1” module for E6640A.
  • Page 527 8  Channel Power Measurement Source Add Waveform Pressing this key accesses the Add Waveform sub-menu. It also changes the central display area to display the Multi-Pack License Waveform Add view. Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses Dependencies This key is only available if there is at least one slot available within at least one multi-pack license.
  • Page 528 8  Channel Power Measurement Source Key Path Source, Modulation Setup, ARB, Select Waveform Initial S/W Revision A.05.00 Load Segment To ARB Memory Allows you to load the selected file into ARB memory. On the front panel you select the file for loading to the ARB memory by highlighting the desired file in the list.
  • Page 529 8  Channel Power Measurement Source case, a GUI only warning message –800, “Operation complete; Loaded <filename> successfully, but no license <required licenses> installed”. User can install required licenses according to <required licenses> string to license it, or multi-pack license it. Initial S/W Revision A.05.00 Load All To ARB Memory...
  • Page 530 8  Channel Power Measurement Source Default Directory... Allows you to change the default directory. It is used as a search location for waveform segments that are required to be loaded into ARB memory for playback of a waveform sequence, and as a search location for selecting waveforms using SCPI.
  • Page 531 8  Channel Power Measurement Source Default Directory … This key functions the same as "Default Directory..." on page 2830 Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses, Add Waveform, Segment on Hard Drive Initial S/W Revision Prior to A.09.00 Replace Waveform Pressing this key accesses the Replace Waveform submenu.
  • Page 532 8  Channel Power Measurement Source Segments on Hard Disk This key functions the  same as  "Segments on Hard Disk" on page 2828. Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses, Replace Waveform Initial S/W Revision Prior to A.09.00 Load Segment To ARB Memory This key functions the same as "Load Segment To ARB Memory"...
  • Page 533 8  Channel Power Measurement Source Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses Remote Command :SYSTem:LKEY:WAVeform:CLEar <int> :SYSTem:LICense[:FPACk]:WAVeform:CLEar <int> Example SYST:LKEY:WAV:CLE 1 :SYST:LIC:WAV:CLE 1 Notes The second SCPI :SYSTem:LICense[:FPACk]:WAVeform:CLEar is provided to be consistent with the style of Agilent  signal sources. You can use either one of them. Waveform slot number <int>...
  • Page 534 8  Channel Power Measurement Source Slot Status Query (Remote Command Only) Returns the status of the specified slot. Remote Command :SYSTem:LKEY:WAVeform:STATus? <int> :SYSTem:LICense[:FPACk]:WAVeform:STATus? <int> Example :SYST:LKEY:WAV:STAT? 1 <"Locked" :SYST:LIC:WAV:STAT? 1 <"Locked" Notes The second SCPI :SYSTem:LICense[:FPACk]:WAVeform:STATus is provided to be consistent with the style of Agilent ...
  • Page 535 8  Channel Power Measurement Source :SYST:LIC:WAV:USED? Notes The second SCPI :SYSTem:LICense[:FPACk]:WAVeform:USED is provided to be consistent with the style of Agilent  signal sources. You can use either one of them. Initial S/W Revision A.05.00 Slot Waveform Name Query (Remote Command Only) Returns the waveform name of the specified slot Remote Command :SYSTem:LKEY:WAVeform:NAME? <int>...
  • Page 536 8  Channel Power Measurement Source If  no waveform stored in the specified slot, then “0” is returned Initial S/W Revision A.12.00 Locked Waveform Name List Query (Remote Command Only) Returns the waveform name list of locked. Remote Command :SOURce:RADio:ARB:MPLicensed:NAME:LOCKed? Example SOUR:RAD:ARB:MPL:NAME:LOCKed? <"CDMA2K_27.wfm", "GSM_MCS1.WFM", "c2kWfm.wfm"...
  • Page 537 8  Channel Power Measurement Source Mkr 1 Polarity Allows you to set the polarity of marker 1. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Polarity Remote Command :SOURce:RADio:ARB:MPOLarity:MARKer1 POSitive|NEGative :SOURce:RADio:ARB:MPOLarity:MARKer1? Example :SOUR:RAD:ARB:MPOL:MARK1 NEG Dependencies When a new waveform is selected for playback the settings contained within the associated waveform header file are applied to the ARB.
  • Page 538 8  Channel Power Measurement Source waveform header file are applied to the ARB. The marker polarity is one of the values stored within the header file. If the newly selected waveform file has an associated header file, the marker polarity is updated with the value from the header file.
  • Page 539 8  Channel Power Measurement Source Marker points should be set before using this function. Enabling this function without setting maker points may create a continuous low or high signal, dependant on the marker polarity. This causes either no RF output, or a continuous RF output. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing Remote Command...
  • Page 540 8  Channel Power Measurement Source Marker 3 Sets marker 3 to be used for the pulse/RF blanking function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, Pulse/RF Blank Example :SOUR:RAD:ARB:MDES:PULS M3 Initial S/W Revision A.05.00 Marker 4 Sets marker 4 to be used for the pulse/RF blanking function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, Pulse/RF Blank Example...
  • Page 541 8  Channel Power Measurement Source Marker 1 Sets marker 1 to be used for the ALC hold function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, ALC Hold Example :SOUR:RAD:ARB:MDES:PULS M1 Initial S/W Revision A.05.00 Marker 2 Sets marker 2 to be used for the ALC hold function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, ALC Hold Example...
  • Page 542 8  Channel Power Measurement Source Clear Header Allows you to clear the header information from the file header associated with the currently selected waveform. Key Path Source, Modulation Setup, ARB, Header Utilities Remote Command :SOURce:RADio:ARB:HEADer:CLEar Example :SOUR:RAD:ARB:HEAD:CLE Notes Attempting to clear the header details via SCPI when no waveform was selected for playback will generate an error.
  • Page 543 8  Channel Power Measurement Source Bus Trigger Command (Remote Command Only) Used to initiate an immediate trigger event if the trigger source is set to Bus. Remote Command :SOURce:RADio:ARB:TRIGger:INITiate Example :SOUR:RAD:ARB:TRIG:INIT Initial S/W Revision A.05.00 Allows access to the menu for configuring the Amplitude Modulation. Key Path Source, Modulation Setup Initial S/W Revision...
  • Page 544 8  Channel Power Measurement Source AM Rate Allows you to set the internal amplitude modulation rate. Key Path Source, Modulation Setup, AM Remote Command :SOURce:AM:INTernal:FREQuency :SOURce:AM:INTernal:FREQuency? Example :SOUR:AM:INT:FREQ 40.0 Hz Preset 400.0 Hz 10 Hz 40 kHz Initial S/W Revision A.05.00 Allows access to the menu for configuring the frequency modulation.
  • Page 545 8  Channel Power Measurement Source Remote Command :SOURce:FM[:DEViation] :SOURce:FM[:DEViation]? Example :SOUR:FM 1.00 kHz Preset 1.00 Hz 1.00 Hz 100.00 kHz Initial S/W Revision A.05.00 FM Rate Allows you to set the internal frequency modulation rate. Key Path Source, Modulation Setup, FM Remote Command :SOURce:FM:INTernal:FREQuency :SOURce:FM:INTernal:FREQuency?
  • Page 546 8  Channel Power Measurement Source Preset Range On | Off Initial S/W Revision A.05.00 PM Deviation Allows you to set the phase modulation deviation. Key Path Source, Modulation Setup, PM Remote Command :SOURce:PM[:DEViation] :SOURce:PM[:DEViation]? Example :SOUR:PM 1.00 rad Preset 0.1 rad 0.1 rad 20.0 rad Initial S/W Revision...
  • Page 547 8  Channel Power Measurement Source tabular form. The details of the SCPI for configuring the list sequencer can be found in "Step Configuration (Remote Command Only)" on page 2835. Once the List Sequencer has been configured using the front panel, SCPI, or loading in a tab delimited file, the sequence must be initiated using the front panel Initiate Sequence key or the corresponding SCPI command.
  • Page 548 8  Channel Power Measurement Source and an error will be generated. There is a blocking SCPI query which can be used to query if source list sequence being initiated successfully or not. (see "Query List Sequence Initiation Armed Status (Remote Command Only)" on page 2846 Query Source List Sequence Armed Status) Dependencies...
  • Page 549 8  Channel Power Measurement Source Notes No remote command, front panel only. Preset Step Count Initial S/W Revision A.05.00 Insert Step Before Allows you to insert a new step, containing default values, before the currently selected step. Inserting a step will automatically increase the Step Count parameter by 1. If sequence already reaches upper limit of 1000 steps, then insert more step will be rejected and popup error –221, “Setting Conflict;...
  • Page 550 8  Channel Power Measurement Source Key Path Source, List Sequencer, List Sequencer Setup Remote Command :SOURce:LIST:STEP[1]|2|3…1000:SETup:INPut:TRIGger IMMediate | INTernal | EXTernal2 | KEY | BUS | EXTernal4 :SOURce:LIST:STEP[1]|2|3…1000:SETup:INPut:TRIGger? Example :SOUR:LIST:STEP2:SET:INP:TRIG BUS :SOUR:LIST:STEP2:SET:INP:TRIG? Notes SCPI is supported after A.09.40 Preset Free Run Range Free Run | Internal | Manual (Trigger Key) | Bus | External 2| EXTernal4 Initial S/W Revision...
  • Page 551 SCPI is supported after A.09.40 Notes Note: When on E6640A, trigger 2 is a bi-directional trigger port. So when trigger 2 has been configured as OUTPUT type, choosing External 2 as the input trigger for the current step will generate error.
  • Page 552 8  Channel Power Measurement Source If the Transition Time value is shorter than the time necessary for the hardware to settle and a List Sequence is initiated, a warning is generated. If the Transition Time value is longer than the Step Duration, an error is generated when initiating a source list sequence.
  • Page 553 8  Channel Power Measurement Source BAND39 | BAND40 | BAND41 | BAND42 | BAND43 | BAND44 | BANDA | BANDB | BANDC | BANDD | BANDE | BANDF :SOURce:LIST:STEP[1]|2|3…1000:SETup: RADio:BAND? Example :SOUR:LIST:STEP2:SET:RAD:BAND PGSM :SOUR:LIST:STEP2:SET:RAD:BAND? Notes SCPI is supported after A.09.40 Initial S/W Revision A.05.00 None...
  • Page 554 8  Channel Power Measurement Source R-GSM Selects R-GSM as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision A.05.00 DCS 1800 Selects DCS 1800 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision...
  • Page 555 8  Channel Power Measurement Source GSM 700 Selects GSM 700 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision A.05.00 T-GSM 810 Selects T-GSM 810 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision...
  • Page 556 8  Channel Power Measurement Source Band IV Selects Band IV as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision A.05.00 Band V Selects Band V as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision...
  • Page 557 8  Channel Power Measurement Source Band X Selects Band X as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision A.05.00 Band XI Selects Band XI as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision...
  • Page 558 8  Channel Power Measurement Source CDMA 2000 / 1xEVDO Pressing this key once selects CDMA 2000/1xEVDO as the radio standard and the current CDMA 2000/1xEVDO band as the active channel band. Pressing this key again allows access to the sub-menus for selecting a different CDMA 2000/1xEVDO band.
  • Page 559 8  Channel Power Measurement Source Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision A.05.00 IMT 2000 Selects IMT 2000 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision A.05.00 Upper 700...
  • Page 560 8  Channel Power Measurement Source Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision A.05.00 US PCS 1.9GHz Selects US PCS 1.9 GHz as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision...
  • Page 561 8  Channel Power Measurement Source Pressing this key once selects LTE FDD as the radio standard and the current LTE FDD band as the active channel band. Pressing this key again allows access to the sub-menus for selecting a different LTE FDD band.
  • Page 562 8  Channel Power Measurement Source BAND 6 Selects BAND 6 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.09.50 BAND 7 Selects BAND 7 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 563 8  Channel Power Measurement Source BAND 12 Selects BAND 12 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.09.50 BAND 13 Selects BAND 13 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 564 8  Channel Power Measurement Source BAND 20 Selects BAND 20 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.09.50 BAND 21 Selects BAND 21 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 565 8  Channel Power Measurement Source BAND 28 Selects BAND 28 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.14.00 BAND 31 Selects BAND 31 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 566 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND35 Initial S/W Revision A.11.50 BAND 36 Selects BAND 36 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND36 Initial S/W Revision...
  • Page 567 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND40 Initial S/W Revision A.11.50 BAND 41 Selects BAND 41 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND41 Initial S/W Revision...
  • Page 568 8  Channel Power Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard Initial S/W Revision A.11.50 BAND A Selects BAND A as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDA Initial S/W Revision A.11.50 BAND B...
  • Page 569 8  Channel Power Measurement Source Example :SOUR:FREQ:CHAN:BAND BANDE Initial S/W Revision A.11.50 BAND F Selects BAND F as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDF Initial S/W Revision A.11.50 Radio Band Link Allows you to specify the radio band link direction for the steps within the list sequence.
  • Page 570 8  Channel Power Measurement Source This SCPI is used to setup channel number or frequency setting, according to current Radio Band setting. If Radio Band is “NONE”, then it’s frequency. If Radio Band is not “NONE”, then it’s channel number. Couplings The channel number is coupled to the step frequency value.
  • Page 571 8  Channel Power Measurement Source Key Path Source, List Sequencer, List Sequencer Setup Remote Command :SOURce:LIST:STEP[1]|2|3…1000:SETup:AMPLitude <double> :SOURce:LIST:STEP[1]|2|3…1000:SETup:AMPLitude? Example :SOUR:LIST:STEP2:SET:AMPL –50dBm :SOUR:LIST:STEP2:SET:AMPL? Notes SCPI is supported after A.09.40 Notes Amplitude corrections can be specified for use with the source. In the event of amplitude corrections being applied, the valid ranges for the RF power do not change dependant on the current amplitude correction setting.
  • Page 572 8  Channel Power Measurement Source Preset Range Waveform | Continue Previous | CW | Off Initial S/W Revision A.05.00 Sets the current step to output a CW tone. Key Path Source, List Sequencer, List Sequencer Setup, Waveform Example :SOUR:LIST:STEP2:SET:WAV “CW” Notes SCPI is supported after A.09.40 Initial S/W Revision...
  • Page 573 8  Channel Power Measurement Source Key Path Source, List Sequencer, List Sequencer Setup, Waveform Example :SOUR:LIST:STEP2:SET:WAV “Off” Notes SCPI is supported after A.09.40 Initial S/W Revision A.05.00 Segments on Hard Disk Allows you access to the sub-menus for loading waveform segments from the hard disk into ARB memory. The default directory is: D: varb.
  • Page 574 8  Channel Power Measurement Source When in Sequence Analyzer mode, and Include Source is Yes, an attempt to load a file to ARB memory will be rejected with an error. When Include Source is Noand if there is insufficient free ARB memory to load the selected waveform, an error is generated.
  • Page 575 8  Channel Power Measurement Source Change Directory... Allows you to change the currently selected directory on the hard disk. Pressing this key opens a standard windows change directory dialog allowing you to select the new directory of interest. The current directory is used for manually loading waveform segments into ARB memory for playback, and as a search location for waveform segments that are required to be loaded into ARB memory for playback of a waveform sequence or a list sequence.
  • Page 576 8  Channel Power Measurement Source memory is rejected with an error. When Include Source is No and you specify a file that does not exist within ARB memory, an error is generated. It is possible to delete files from within the ARB memory when the ARB is ON. However, if you attempt to delete the file that is currently playing an error is generated.
  • Page 577 8  Channel Power Measurement Source Load Segment To ARB Memory This key functions the same as "Load Segment To ARB Memory" on page 2828. Key Path Source, List Sequencer, List Sequencer Setup, Waveform, Segment on Hard Drive Initial S/W Revision Prior to A.09.00 Load All To ARB Memory This key functions the same as ...
  • Page 578 8  Channel Power Measurement Source Delete All From ARB Memory This key functions the same as  "Delete All From ARB Memory" on page 2831. Key Path Source, List Sequencer, List Sequencer Setup, Waveform, Segments in ARB Memory, Segment in ARB Memory Initial S/W Revision Prior to A.09.00 Step Duration...
  • Page 579 8  Channel Power Measurement Source When Step Duration is Continuous Abort this parameter specifies the maximum duration that the waveform will continue to play after a step trigger is received before the transition to the next waveform will occur. Duration is limited to a maximum of 20 seconds. If the Transition Time value is longer than the Step Duration Time, an error is generated when initiating a source list sequence.
  • Page 580 8  Channel Power Measurement Source Key Path Source, Modulation Setup, ARB Dependencies This key is only available if there is currently a waveform selected for playback. If no waveform is selected, the key is grayed out. Initial S/W Revision A.05.00 Continuous Sets the current step to be played continuously until the next step starts.
  • Page 581 8  Channel Power Measurement Source BUS | EXTernal2, <time>, NONE | PGSM | EGSM | RGSM | DCS1800 | PCS1900 | TGSM810 | GSM450 | GSM480 | GSM700 | GSM850 | BANDI | BANDII | BANDIII | BANDIV | BANDV | BANDVI | BANDVII | BANDVIII | BANDIX | BANDX | BANDXI | BANDXII | BANDXIII | BANDXIV | BANDXIX | USCELL | USPCS | JAPAN | KOREAN | NMT | IMT2K | UPPER | SECOND | PAMR400 | PAMR800 | IMTEXT | PCS1DOT9G | AWS | US2DOT5G | PUBLIC | LOWER | NONE | BAND1 |...
  • Page 582 8  Channel Power Measurement Source Duration" on page 2833. 9. Time or Count <time/int> – specifies time duration in seconds or play count of the ARB file associated with the step. For further details of this setting, including the valid ranges for the time or play count setting, "Time"...
  • Page 583 8  Channel Power Measurement Source :SOUR:LIST:SET:TRAN:TIME? Notes The command is to setup below parameter array of whole list sequence. Transition Time <time> – specifies the transition time for the stepin seconds. For details of the valid ranges for the transition time see "Transition Time"...
  • Page 584 8  Channel Power Measurement Source 9|BAND20|BAND21|BAND24|BAND25|BAND26|BAND33|BAND34|BAND35|BAND36|BAND37|BAND38|BAND39|BAND40|BAN D41|BAND42|BAND43|BANDA|BANDB|BANDC|BANDD|BANDE|BANDF The range is 1 to 1000 which is determined by the number of steps you have configured. For details see "Number of Steps" on page 2803. A.09.40 W-CDMA & HSPA Measurement Applications Reference...
  • Page 585 8  Channel Power Measurement Source Step Configuration of Radio Band Link parameter list (Remote Command Only) This SCPI command is to configure “Radio Band Link” parameter array of the whole List Sequencer at one time. The number of array is same as step number defined in "Number of Steps"...
  • Page 586 8  Channel Power Measurement Source legal step number will be updated. Dependencies The range is 1 to 1000 which is determined by the number of steps you have configured. For details "Number of Steps" on page 2803. Initial S/W Revision A.09.40 Step Configuration of Power parameter list (Remote Command Only) This SCPI command is to configure “Power”parameter array of the whole List Sequencer at one time.
  • Page 587 8  Channel Power Measurement Source CONT – continues playback of the ARB file from the previous step CW – outputs a CW tone OFF – disable RF output If input parameter number exceeds the step number defined by "Number of Steps" on page 2803Number of Steps then generate error ", and only those parametes whose index number falls in number of steps will be updated.
  • Page 588 8  Channel Power Measurement Source Example :SOUR:LIST:SET:TOC 1s,2s,3s :SOUR:LIST:SET:TOC? :SOUR:LIST:SET:TOC 5,6,7 :SOUR:LIST:SET:TOC? Notes The command is to setup below parameter array of whole list sequence. Time or Count <time/int> – specifies time duration in seconds or play count of the ARB file associated with the step.
  • Page 589 8  Channel Power Measurement Source Remote Command :SOURce:LIST:SETup:CLEar Example :SOUR:LIST:SETup:CLE Initial S/W Revision A.05.00 Trigger Type Allows access to the sub-menu for selecting the output trigger type for the list sequencer globally. It cannot be changed between different sequence steps. Key Path Source, List Sequencer Remote Command...
  • Page 590 8  Channel Power Measurement Source Key Path Source, List Sequencer, Trigger Type, DataMarker Example :SOUR:LIST:TRIG:TYPE:MARK M1 Notes SCPI is supported after A.14.00 Initial S/W Revision A.14.00 Marker 2 Sets the output trigger maker routing to Marker 2 for DataMarker  in  the whole source sequence. Key Path Source, List Sequencer, Trigger Type, DataMarker Example...
  • Page 591 8  Channel Power Measurement Source Remote Software Trigger (Remote command Only) During execution of a list sequence, the sequence will halt and wait at any step that has Step Trigger set to “Bus”. Sending this command will trigger the step and continue the sequence. Remote Command :SOURce:LIST:TRIGger:INITiate[:IMMediate] Example...
  • Page 592 8  Channel Power Measurement Span X Scale Span X Scale Accesses a menu of functions that enable you set the horizontal scale parameters. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Span Changes the frequency range symmetrically about the center frequency. The default (and minimum) Span is calculated using the number of carriers and the carrier width where;...
  • Page 593 8  Channel Power Measurement Span X Scale Preset SA: 3 MHz WCDMA: 7.5 MHz C2K: 1.845 MHz WIMAX OFDMA: 20 MHz 1xEVDO: 2.0MHz DVB-T/H: 10MHz DTMB (CTTB): 10MHz ISDB-T: 10MHz CMMB: 10MHz LTE: 7.5 MHz LTETDD: 7.5 MHz Digital Cable TV: 10MHz WLAN: if Radio Std is 802.11a/g(OFDM/DSSS-OFDM): 30 MHz if Radio Std is 802.11b: 37.5MHz...
  • Page 594 8  Channel Power Measurement Span X Scale WLAN mode, 1xEVDO mode or WIMAX OFDMA mode to use this command. Use :INSTrument:SELect to set the mode. Dependencies For MSR mode, this key is blank. For LTE-Advanced FDD/TDD mode, this key is blank. In order to keep backwards compitible with the legacy LTE FDD/TDD, the scpi command is supported in LTE &...
  • Page 595 8  Channel Power Measurement Sweep/Control Sweep/Control Accesses a menu of functions that enable you to set up and control the acquisition timeand source for the current measurement. See Key and Command Descriptions – Sweep/Control for more information. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Acq Time...
  • Page 596 8  Channel Power Measurement Sweep/Control 4000 s Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Sweep Setup Accesses a menu that enables you to set the sweep state for the current measurement. Key Path Sweep/Control Initial S/W Revision Prior to A.02.00 Auto Sweep Time Rules Switches the analyzer between normal and accuracy sweep states.
  • Page 597 8  Channel Power Measurement Sweep/Control Pause Pauses a measurement after the current data acquisition is complete. When Paused, the label on the key changes to Resume. Pressing the Resume key resumes the measurement at the point it was at when paused.
  • Page 598 8  Channel Power Measurement Sweep/Control Dependencies When in the ACP measurement: • When Meas Method is RBW or FAST, this function is unavailable and the key is grayed out. • Whenever Gate is on, Meas Method, RBW or FAST is unavailable and keys for those are grayed out.
  • Page 599 8  Channel Power Measurement Sweep/Control • Gate View automatically turns off whenever a Span other than Zero is selected. • Gate View automatically turns off if you press the Last Span key while in Gate View, and the instrument returns to the Span it was in before entering Gate View (even if that is Zero Span). •...
  • Page 600 8  Channel Power Measurement Sweep/Control Turning Gate View off returns the analyzer to the Normal measurement view. In the Swept SA, the normal measurement view is the single-window Swept SA view. When returning to this view, the Swept SA measurement returns to the Span it was in before entering Gate View (even if that is Zero Span).
  • Page 601 8  Channel Power Measurement Sweep/Control Gate View Setup Accesses a menu that enables you to setup parameters relevant to the Gate View Key Path Sweep/Control, Gate Scope Meas Global Initial S/W Revision A.10.00 Gate View Acquisition Time Controls the acquisition time in the Gate View window. To provide an optimal view of the gate signal, the analyzer initializes Gate View Acq Time based on the current settings of Gate Delay and Gate Length.
  • Page 602 8  Channel Power Measurement Sweep/Control Preset 0 ms State Saved Saved in instrument state 500 ms Initial S/W Revision A.10.00 Gate Delay Controls the length of time from the time the gate condition goes True until the gate is turned on. Key Path Sweep/Control, Gate Remote Command...
  • Page 603 8  Channel Power Measurement Sweep/Control Notes Units of time are required or no units; otherwise an invalid suffix error message will be generated. Preset 461.6 us WiMAX OFDMA: 50 us GSM/EDGE: 200 us WLAN: 1.54 ms WLAN: 32 us State Saved Saved in instrument state 100 ns Backwards...
  • Page 604 8  Channel Power Measurement Sweep/Control Video (IF Envelope) Pressing this key, when it is not selected, selects the video signal as the trigger. The Video trigger condition is met when the video signal (the filtered and detected version of the input signal, including both RBW and VBW filtering) crosses the video trigger level.
  • Page 605 8  Channel Power Measurement Sweep/Control you have dropped the trigger line that far below the displayed signal level, rather than simply dropping it down to the displayed signal level.  Note that other corrections, specifically External Gain and Ref Level Offset, modify the actual trace data as it is taken and therefore ARE taken into account by Trig Level.
  • Page 606 8  Channel Power Measurement Sweep/Control :TRIGger[:SEQuence]:SLOPe? Example TRIG:SLOP NEG Preset POSitive State Saved Saved in instrument state Backwards Compatibility In ESA/PSA, the Trigger Slope was global to all triggers.  In the X-Series, the slope can be set Notes individually for each Trigger Source.  For backward compatibility, the global SLOPe command updates all instances of trigger slope (VID, LINE, EXT1, EXT2, TV, RFB).
  • Page 607 8  Channel Power Measurement Sweep/Control selection in the Gate Source menu. Preset 1.2 V State Saved Saved in instrument state –5 V Default Unit Backwards :TRIGger[:SEQuence]:EXTernal:LEVel Compatibility SCPI For backward compatibility, the parameter EXTernal is mapped to EXTernal1 Backwards :TRIGger[:SEQuence]:FRAMe:EXTernal1:LEVel Compatibility SCPI Initial S/W Revision Prior to A.02.00...
  • Page 608 8  Channel Power Measurement Sweep/Control Key Path Trigger, External 1 Remote Command :TRIGger[:SEQuence]:EXTernal1:DELay:COMPensation OFF|ON|0|1 :TRIGger[:SEQuence]:EXTernal1:DELay:COMPensation? Example TRIG:EXT1:DEL:COMP ON Dependencies No effect except in zero-span, but not locked out in nonzero spans. Blanked in modes that do not support zero-span measurements.  If the SCPI command is sent when the key is blanked, an error is returned: ...
  • Page 609 8  Channel Power Measurement Sweep/Control Key Path Trigger, External 2 Remote Command :TRIGger[:SEQuence]:EXTernal2:LEVel :TRIGger[:SEQuence]:EXTernal2:LEVel? Example TRIG:EXT2:LEV 1.1 V Couplings This same level is used for the Ext2 trigger source in the Trigger menu, for the Ext2 selection in the Periodic Timer sync source (in the Trigger menu and in the Gate Source menu), and also for the Ext2 selection in the Gate Source menu.
  • Page 610 8  Channel Power Measurement Sweep/Control events line up exactly with the zero time point in zero span.  You can use the Zero Span Delay Comp On/Off feature to enable or disable zero span delay compensation. Key Path Trigger, External 2 Remote Command :TRIGger[:SEQuence]:EXTernal2:DELay:COMPensation OFF|ON|0|1 :TRIGger[:SEQuence]:EXTernal2:DELay:COMPensation?
  • Page 611 8  Channel Power Measurement Sweep/Control Absolute Trigger Level Sets the absolute trigger level for the RF burst envelope. When using the External Mixing path, the Absolute Trigger Level is uncalibrated because the factory default was set to accommodate the expected IF levels for the RF path. Key Path Trigger, RF Burst Scope...
  • Page 612 8  Channel Power Measurement Sweep/Control Relative Trigger Level Sets the relative trigger level for the RF burst envelope. In some models, the relative burst trigger function is implemented in hardware.  In other models, without the advanced triggering hardware required, the relative burst trigger function is implemented in software in some measurements, and is unavailable in other measurements.
  • Page 613 8  Channel Power Measurement Sweep/Control had ONLY relative burst triggering Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.04.00 Trigger Slope It is set positive to trigger on a rising edge and negative to trigger on a falling edge. Key Path Trigger, RF Burst Remote Command...
  • Page 614 8  Channel Power Measurement Sweep/Control Periodic Timer Triggering: This feature selects the internal periodic timer signal as the trigger. Trigger occurrences are set by the Periodic Timer parameter, which is modified by the Sync Source and Offset. The figure below shows the action of the periodic timer trigger. Before reviewing the figure, we’ll explain some uses for the periodic trigger.
  • Page 615 8  Channel Power Measurement Sweep/Control Period Sets the period of the internal periodic timer clock. For digital communications signals, this is usually set to the frame period of your current input signal. In the case that sync source is not set to OFF, and the external sync source rate is changed for some reason, the periodic timer is synchronized at the every external synchronization pulse by resetting the internal state of the timer circuit.
  • Page 616 8  Channel Power Measurement Sweep/Control that internal offset is unknown, we will just call that the accumulated offset. Whenever the Offset parameter is changed, you are changing that accumulated offset. You can reset the displayed offset using Reset Offset Display. Changing the display does not change the value of the accumulated offset, and you can still make additional changes to accumulated offset.
  • Page 617 8  Channel Power Measurement Sweep/Control Remote Command :TRIGger[:SEQuence]:FRAMe:ADJust <time> Example TRIG:FRAM:ADJ 1.2 ms Notes Note also that Offset is used only when the sync source is set to OFF, otherwise delay is used, see section "Trig Delay" on page 357 An increase in the "offset"...
  • Page 618 8  Channel Power Measurement Sweep/Control For convenience you may adjust the level and slope of the selected sync source in a conditional branch setup menu accessed from the Sync Source menu. Note that these settings match those in the Trigger and Gate Source menus;...
  • Page 619 8  Channel Power Measurement Sweep/Control TRIG:<meas>:SOUR EXT1   Measurements other than Swept  SA Dependencies Grayed out if in use by Point Trigger in the Source Setup menu.  Forced to Free Run if already selected and Point Trigger is set to External 1. State Saved Saved in instrument state Status Bits/OPC...
  • Page 620 8  Channel Power Measurement Sweep/Control :TRIGger[:SEQuence]:EXTernal1:SLOPe? Example TRIG:EXT1:SLOP NEG Couplings This same slope is used in the Ext1 selection for the trigger source in the Trigger menu and for the period timer sync source (in the Trigger menu and in the Gate Source menu). Preset POSitive State Saved...
  • Page 621 8  Channel Power Measurement Sweep/Control Key Path Trigger, External 2 Remote Command :TRIGger[:SEQuence]:EXTernal2:LEVel :TRIGger[:SEQuence]:EXTernal2:LEVel? Example TRIG:EXT2:LEV 1.1 V Couplings This same level is used for the Ext2 trigger source in the Trigger menu, for the Ext2 selection in the Periodic Timer sync source (in the Trigger menu and in the Gate Source menu), and also for the Ext2 selection in the Gate Source menu.
  • Page 622 8  Channel Power Measurement Sweep/Control In some models, a variety of burst trigger circuitry is available, resulting in various available burst trigger bandwidths.  The analyzer automatically chooses the appropriate trigger path based on the hardware configuration and other settings of the analyzer. Key Path Trigger Example...
  • Page 623 8  Channel Power Measurement Sweep/Control RF Burst selection in the Gate Source menu Preset –20 dBm State Saved Saved in instrument state –200 dBm 100 dBm Default Unit depends on the current selected Y-Axis unit Backwards :TRIGger[:SEQuence]:FRAMe:RFBurst:LEVel:ABSolute Compatibility SCPI Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.04.00...
  • Page 624 8  Channel Power Measurement Sweep/Control Sync Holdoff Sync Holdoff specifies the duration that the sync source signal must be kept false before the transition to true to be recognized as the sync timing. The periodic timer phase is aligned when the sync source signal becomes true, after the Holdoff time is satisfied.
  • Page 625 8  Channel Power Measurement Sweep/Control Key Path Trigger, Auto/Holdoff Remote Command :TRIGger[:SEQuence]:ATRigger <time> :TRIGger[:SEQuence]:ATRigger? :TRIGger[:SEQuence]:ATRigger:STATe OFF|ON|0|1 :TRIGger[:SEQuence]:ATRigger:STATe? Example TRIG:ATR:STAT ON TRIG:ATR 100 ms Notes The "time that the analyzer will wait" starts when the analyzer is ready for a trigger, which may be hundreds of ms after the data acquisition for a sweep is done.
  • Page 626 8  Channel Power Measurement Sweep/Control Gate Preset (Remote Command Only) Presets the time-gated spectrum analysis capability. This command sets gate parameter values to the ESA preset values, as follows: Gate trigger type = edge Gate polarity = positive Gate delay = 1 us Gate length = 1 us Remote Command [:SENSe]:SWEep:TIME:GATE:PRESet ...
  • Page 627 8  Channel Power Measurement Sweep/Control Remote Command [:SENSe]:SWEep:TIME:GATE:LEVel HIGH|LOW [:SENSe]:SWEep:TIME:GATE:LEVel? ESA compatibility Preset HIGH Initial S/W Revision Prior to A.02.00 Points Sets the number of points per sweep. The resolution of setting the acquisition time depends on the number of points selected. If Preset is selected, the number of points per sweep defaults to 1001. The current value of points is displayed parenthetically, next to the acquisition time in the lower-right corner of the display.
  • Page 628 8  Channel Power Measurement Sweep/Control 20001 Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 W-CDMA & HSPA Measurement Applications Reference...
  • Page 629 8  Channel Power Measurement System System "System" on page 264 W-CDMA & HSPA Measurement Applications Reference...
  • Page 630 8  Channel Power Measurement Trace/Detector Trace/Detector Accesses a menu of functions that enable you to control the detectors for the current measurement. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Trace Type Allows you to select the type of trace you want to use for the current measurement. The first page of this menu contains a 1–of–N selection of the trace type (Clear Write, Average, Max Hold, Min Hold) for the selected trace.
  • Page 631 8  Channel Power Measurement Trace/Detector • Normal–the detector determines the peak of the CW-like signals, and it yields alternating maximums and minimums of noise-like signals. This is also referred to as Rosenfell detection. • Average–the detector determines the average of the signal within the sweep points. The averaging method depends upon the Average Type selection (voltage, power or log scales).
  • Page 632 8  Channel Power Measurement Trace/Detector Remote Command [:SENSe]:CHPower:DETector[:FUNCtion] NORMal | AVERage | POSitive | SAMPle | NEGative [:SENSe]:CHPower:DETector[:FUNCtion]? Example CHP:DET NORM CHP:DET? Notes When you manually select a detector (instead of selecting Auto), that detector is used regardless of other analyzer settings. The Normal detector determines the peak of CW-like signals, and it yields alternating maximums and minimums of noise-like signals.
  • Page 633 8  Channel Power Measurement Trigger Trigger "Trigger" on page 326 Free Run "Free Run " on page 333 Video "Video (IF Envelope) " on page 1574 Trigger Level "Trigger Level " on page 1574 Trig Slope "Trig Slope " on page 1575 Trig Delay "Trig Delay "...
  • Page 634 8  Channel Power Measurement Trigger Trig Delay "Trig Delay " on page 342 Zero Span Delay Comp "Zero Span Delay Comp On/Off" on page 1579 RF Burst "RF Burst " on page 1591 Absolute Trigger "Absolute Trigger Level" on page 1592 Relative Trigger "Relative Trigger Level"...
  • Page 635 8  Channel Power Measurement Trigger Trigger Level "Trigger Level " on page 1589 Trig Slope "Trig Slope " on page 1589 External 2 "External 2 " on page 1590 Trigger Level "Trigger Level " on page 1590 Trig Slope "Trig Slope " on page 1591 RF Burst "RF Burst "...
  • Page 636 8  Channel Power Measurement User Preset User Preset Accesses a menu that gives you the following three choices: • User Preset – recalls a state previously saved using the Save User Preset function. • User Preset All Modes – presets all of the modes in the analyzer •...
  • Page 637 8  Channel Power Measurement User Preset • Clears the input and output buffers. • Sets the Status Byte to 0. Key Path User Preset Remote Command :SYSTem:PRESet:USER Example :SYST:PRES:USER:SAVE:SYST:PRES:USER Notes :SYST:PRES:USER:SAVE is used to save the current state as the user preset state. Clears all pending OPC bits.
  • Page 638 8  Channel Power Measurement User Preset Recalling a User Preset file has the same issues that recalling a Save State file has. Some settings may need to be limited and therefore re-coupled, since the capabilities of the mode may have changes when the User Preset file was last saved.
  • Page 639 8  Channel Power Measurement View/Display View/Display Accesses a menu of functions that enable you to control the instrument display as well as turn the bar graph On and Off. The results of the measurement can be displayed as a single spectrum trace view or displayed with a Bar Graph trace on the spectrum trace.
  • Page 640 8  Channel Power Measurement View/Display If the current mode is WLAN and the format is WLAN 802.11ac 80+80 MHz, the spectrum view is changed a little so that the results of both carrier segments can be displayed. Spectrum View with Bar Graph off for WLAN 802.11ac (80 + 80 MHz): Spectrum View with Bar Graph on for WLAN 802.11ac (80 + 80 MHz): W-CDMA &...
  • Page 641 8  Channel Power Measurement View/Display Power Results: The spectrum trace and power bars are displayed in the upper window. Total carrier power, total PSD and total format carrier power are displayed in the lower window. Total format carrier power is total power of carriers of the same Radio Format.
  • Page 642 8  Channel Power Measurement View/Display State Saved Saved in instrument state Range Power Results|Carrier Info Initial S/W Revision A.10.00 Selects the results view. The following SCPI command allows you to select the desired measurement view by enumeration. Key Path No equivalent front-panel key Mode MSR, LTEAFDD, LTEATDD Remote Command...
  • Page 643 8  Channel Power Measurement View/Display View selection by name (ISDB-T, CMMB only) Selects the results view. The following SCPI command allows you to select the desired measurement view by enumeration. Key Path No equivalent front-panel key Mode ISDB-T, CMMB Remote Command :DISPlay:CHPower:VIEW[:SELect] RFSPectrum|SHOUlder :DISPlay:CHPower:VIEW[:SELect]? Example...
  • Page 644 8  Channel Power Measurement View/Display 4. Active Function annotation: this is the active function display in the meas bar, and all of the active function values displayed on softkeys. See the figure below. Each type of annotation can be turned on and off individually. Key Path View/Display, Display Initial S/W Revision...
  • Page 645 8  Channel Power Measurement View/Display Dependencies Grayed out and forced to OFF when System Display Settings, Annotation is set to Off. Preset This should remain Off through a Preset when System DisplaySettings, Annotation is set to Off. State Saved Saved in instrument state. Initial S/W Revision Prior to A.02.00 Screen...
  • Page 646 8  Channel Power Measurement View/Display Key Path View/Display, Display, Annotation Remote Command :DISPlay:ACTivefunc[:STATe] ON|OFF|1|0 :DISPlay:ACTivefunc[:STATe]? Example DISP:ACT OFF Dependencies Grayed out and forced to OFF when System Display Settings, Annotation is set to Off. Preset This should remain Off through a Preset when System DisplaySettings, Annotation is set to Off State Saved Saved in instrument state.
  • Page 647 8  Channel Power Measurement View/Display Press Change Title to enter a new title through the alpha editor. Press Enter or Return to complete the entry. Press ESC to cancel the entry and preserve your existing title. The display title will replace the measurement name. It remains for this measurement until you press Change Title again, or you recall a state, or a Preset is performed.
  • Page 648 8  Channel Power Measurement View/Display Graticule Pressing Graticule turns the display graticule On or Off. It also turns the graticule y-axis annotation on and off. Key Path View/Display, Display Remote Command :DISPlay:WINDow[1]:TRACe:GRATicule:GRID[:STATe] OFF|ON|0|1 :DISPlay:WINDow[1]:TRACe:GRATicule:GRID[:STATe]? Example DISP:WIND:TRAC:GRAT:GRID OFF Notes The graticule is the set of horizontal and vertical lines that make up the grid/divisions for the x-axis and y-axis.
  • Page 649 8  Channel Power Measurement View/Display Themes Accesses a menu of functions that enable you to choose the theme to be used when saving the screen image. The Themes option is the same as the Themes option under the Display and Page Setup dialogs. It allows you to choose between themes to be used when saving the screen image.
  • Page 650 8  Channel Power Measurement View/Display Flat Color Selects a format that is best when the screen is to be printed on an ink printer. Key Path Save, Screen Image, Themes Example MMEM:STOR:SCR:THEM FCOL Readback Flat Color Initial S/W Revision Prior to A.02.00 Flat Monochrome Selects a format that is like Flat Color.
  • Page 651 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 9 ACP Measurement ACP is a measurement of the amount of interference, or power, in an adjacent frequency channel. The results are displayed as a bar graph or as spectrum data, with measurement data at specified offsets.
  • Page 652 9  ACP Measurement Measurement Commands for ACP The following commands are used to retrieve the measurement results: :CONFigure:ACP :CONFigure:ACP:NDEFault :INITiate:ACP :FETCh:ACP[n]? :READ:ACP[n]? :MEASure:ACP[n]? For more measurement related commands, see the SENSe subsystem, and the section "Remote Measurement Functions" on page 2642.
  • Page 653 9  ACP Measurement Remote Command Results for ACP Measurement Condition Results Returned Mode = SA Not specified Returns 3 comma-separated values that correspond to: mode, Radio or n = 1 Reference carrier power, Std = None, lower-adjacent channel power (dBc), and Number of upper-adjacent channel power (dBc).
  • Page 654 9  ACP Measurement Condition Results Returned 7. Upper offset A - relative power (dB) 8. Upper offset A - absolute power (dBm) 9. Lower offset B - relative power (dB) 10. Lower offset B - absolute power (dBm) 11. Upper offset B - relative power (dB) 12.
  • Page 655 9  ACP Measurement Condition Results Returned Meas Type = n = 2 Returns 48 scalar results, in the following order: Total power 1. Channel (1) - relative power (dB) reference 2. Channel (1) - absolute power (dBm) 3. Channel (2) - relative power (dB) 4.
  • Page 656 9  ACP Measurement Condition Results Returned 45. Lower offset F - relative power (dB) 46. Lower offset F - absolute power (dBm/Hz or dBm/MHz) 47. Upper offset F - relative power (dB) 48. Upper offset F - absolute power (dBm/Hz or dBm/MHz) If the results are not available, –999.0 is returned.
  • Page 657 9  ACP Measurement Condition Results Returned n = 4 Returns <Num Pts> comma-separated scalar values representing the Y values in Trace 1 n = 5 Returns <Num Pts> comma-separated scalar values representing the Y values in Trace 2 n = 6 Returns <Num Pts>...
  • Page 658 9  ACP Measurement AMPTD Y Scale AMPTD Y Scale Accesses a menu of functions that enable you to set the vertical scale parameters. The parameter values are measurement independent, except all Attenuation values and the Internal Preamp selections, which are the same across all measurements. Key Path Front-panel key Initial S/W Revision...
  • Page 659 9  ACP Measurement AMPTD Y Scale Range Represents the amplitude of the largest sinusoidal signal that could be present within the IF without being clipped by the ADC. For signals with high peak-to-average ratios, the range may need to exceed the rms signal power by a fair amount to avoid clipping.
  • Page 660 9  ACP Measurement AMPTD Y Scale [:SENSe]:POWer[:RF]:RANGe:OPTimize:ATTenuation? Notes This parameter is shared with old XA platform which uses AutoAtten. To keep the backward compatibility, ELECtrical and COMBined still can be used. Then, upon receiving ELECtrical and COMBined, these enums will be interpreted as aliases of ON. Then, when queried, ON will be returned.
  • Page 661 9  ACP Measurement AMPTD Y Scale [:SENSe]:POWer[:RF]:RANGe:MIXer:OFFSet? Example POW:RANG:MIX:OFFS –5 dB Preset 0 dB State Saved Saved in instrument state –35 dB 30 dB Initial S/W Revision A.13.00 Scale/Div Sets the units-per-division of the vertical scale in the logarithmic display. However, since the Auto Scaling is defaulted to On, this value is automatically determined by the measurement result.
  • Page 662 9  ACP Measurement AMPTD Y Scale Remote Command :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition TOP | CENTer | BOTTom :DISPlay:ACPower:VIEW[1]:WINDow[1]:TRACe:Y[:SCALe]:RPOSition? Example DISP:ACP:VIEW:WIND:TRAC:Y:RPOS CENT DISP:ACP:VIEW:WIND:TRAC:Y:RPOS? Notes You must be in the mode that includes ACP measurements to use this command.  Use :INSTrument:SELect to set the mode. Preset State Saved Saved in instrument state.
  • Page 663 9  ACP Measurement Auto Couple Auto Couple The Auto Couple feature provides a quick and convenient way to automatically couple multiple instrument settings. This helps ensure accurate measurements and optimum dynamic range. When the Auto Couple feature is activated, either from the front panel or remotely, all parameters of the current measurement that have an Auto/Manual mode are set to Auto mode and all measurement settings dependent on (or coupled to) the Auto/Man parameters are automatically adjusted for optimal performance.
  • Page 664 9  ACP Measurement Auto Couple W-CDMA & HSPA Measurement Applications Reference...
  • Page 665 9  ACP Measurement Accesses a menu of functions that enable you to specify and control the video and resolution bandwidths. You can also select the type of filter for the measurement and set the filter bandwidth. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Res BW...
  • Page 666 9  ACP Measurement DVB-T/H: 39 kHz DTMB (CTTB): 39 kHz ISDB-T: 39 kHz CMMB: 39 kHz LTE: 100 kHz LTETDD: 100 kHz Digital Cable TV: 39 kHz MSR: 100 kHz State Saved Saved in instrument state. 1 Hz 8 MHz Backwards [:SENSe]:ACPower:BWIDth[:RESolution] Compatibility SCPI...
  • Page 667 9  ACP Measurement Method RBW: grayed out (1.2 MHz) Method IBW: 150 kHz TD-SCDMA: 300 kHz 1xEVDO: 300 kHz DVB-T/H: 390 kHz DTMB (CTTB): 390 kHz ISDB-T: 390 kHz CMMB: 390 kHz LTE, LTETDD: Auto LTETDD: 1 MHz SA: ON WCDMA: OFF WIMAX OFDMA: OFF TD-SCDMA: OFF...
  • Page 668 9  ACP Measurement Key Path BW, RBW Control Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command [:SENSe]:ACPower:BANDwidth:SHAPe GAUSsian|FLATtop [:SENSe]:ACPower:BANDwidth:SHAPe? Example ACP:BAND:SHAP GAUS ACP:BAND:SHAP? Dependencies When Meas Method is FAST, this key is grayed out and disabled. If the key is pressed, an advisory message is generated.
  • Page 669 9  ACP Measurement W-CDMA & HSPA Measurement Applications Reference...
  • Page 670 9  ACP Measurement Cont (Continuous Measurement/Sweep) Cont (Continuous Measurement/Sweep) Sets the analyzer for Continuous measurement operation. The single/continuous state is Meas Global so the setting will affect all measurements. If you are Paused, pressing Cont does a Resume. Key Path Front-panel key Remote Command :INITiate:CONTinuous OFF|ON|0|1...
  • Page 671 9  ACP Measurement Cont (Continuous Measurement/Sweep) the INIT:CONT 0 command will place the analyzer in Single Sweep but will have no effect on the current sequence until k = N, at which point the current sequence will stop and the instrument will go to the idle state.
  • Page 672 9  ACP Measurement File File "File" on page 258 W-CDMA & HSPA Measurement Applications Reference...
  • Page 673 9  ACP Measurement FREQ Channel FREQ Channel Accesses a menu of keys that allow you to control the Frequency and Channel parameters of the instrument. Some features in the Frequency menu are the same for all measurements – they do not change as you change measurements.  ...
  • Page 674 9  ACP Measurement FREQ Channel Example FREQ:CENT 50 MHz FREQ:CENT UP changes the center frequency to 150 MHz if you use FREQ:CENT:STEP 100 MHz to set the center frequency step size to 100 MHz FREQ:CENT? Notes This command sets either the RF or I/Q Center Frequency depending on the selected input. For RF input it is equivalent to FREQ:RF:CENT For I/Q input it is equivalent to FREQ:IQ:CENT Preset and Max values are dependent on Hardware Options (5xx)
  • Page 675 9  ACP Measurement FREQ Channel above) 1.805 GHz 3.6 GHz 3.7 GHz (all but N9000A) 1.505 GHz 3.0 GHz 3.08 GHz (N9000A) 3.505 GHz 7.0 GHz 7.1 GHz (all but N9000A) 3.755 GHz 7.5 GHz 7.58 GHz (N9000A) 1.805 GHz 3.6 GHz 8.5 GHz (all but N9038A) 4.205 GHz 8.4 GHz...
  • Page 676 9  ACP Measurement FREQ Channel can’t tune below TG turned on while TG on) 9 kHz 3.0 GHz 3.08 GHz 9 kHz 6.0 GHz 6.05 GHz The following table shows the Center Frequency Presets for modes other than Spectrum Analyzer: Mode CF Preset for RF WCDMA 1 GHz...
  • Page 677 9  ACP Measurement FREQ Channel Source Numerator, Source Denominator and Power Sweep. Preset See table above State Saved Saved in instrument state. –79.999995 MHz, unless Source Mode is set to Tracking, in which case it is limited by the minimum frequency of the Source See table above.
  • Page 678 9  ACP Measurement FREQ Channel When Restore Input/Output Defaults is performed, the mixer presets to the 11970A, whose Start and Stop frequencies are 26.5 and 40 GHz respectively. The center of these two frequencies is 33.25 GHz. Therefore, after a Restore Input/Output Defaults, if you go into External Mixing and do a Mode Preset while in the Spectrum Analyzer Mode, the resulting Center Freq is 33.25 GHz.
  • Page 679 9  ACP Measurement FREQ Channel Key Path FREQ Channel Remote Command [:SENSe]:FREQuency:CENTer:STEP[:INCRement] <freq> [:SENSe]:FREQuency:CENTer:STEP[:INCRement]? [:SENSe]:FREQuency:CENTer:STEP:AUTO OFF|ON|0|1 [:SENSe]:FREQuency:CENTer:STEP:AUTO? Example FREQ:CENT:STEP:AUTO ON FREQ:CENT:STEP 500 MHz FREQ:CENT UP increases the current center frequency value by 500 MHz FREQ:CENT:STEP? FREQ:CENT:STEP:AUTO? Notes Preset and Max values are depending on Hardware Options (503, 507, 508, 513, 526) Notes Preset and Max values are dependent on Hardware Options (5xx) Dependencies...
  • Page 680 9  ACP Measurement Input/Output Input/Output "Input/Output" on page 190 W-CDMA & HSPA Measurement Applications Reference...
  • Page 681 9  ACP Measurement Marker Marker Accesses a menu that enables you to select, set up and control the markers for the current measurement. Note that this hard key and all sub keys are unavailable when "Meas Method" on page 747 is set to RBW.
  • Page 682 9  ACP Measurement Marker Preset OFF|OFF|OFF|OFF|OFF|OFF|OFF|OFF|OFF|OFF|OFF|OFF State Saved Saved in instrument state. Range Normal|Delta|Off Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Properties Accesses the marker properties menu. Note that this key is unavailable when "Meas Method" on page 747 is set to RBW.
  • Page 683 9  ACP Measurement Marker Preset 2|3|4|5|6|7|8|9|10|11|12|1 State Saved Saved in instrument state. Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Marker Trace Selects the trace that you want your marker to be placed on. A marker is associated with one and only one trace.
  • Page 684 9  ACP Measurement Marker Couple Markers When this function is On, moving any marker causes an equal X axis movement of every other marker which is not Off. By “equal X axis movement” we mean that we preserve the difference between each marker’s X axis value (in the fundamental x-axis units of the trace that marker is on) and the X axis value of the marker being moved (in the same fundamental x-axis units).
  • Page 685 9  ACP Measurement Marker Example CALC:ACP:MARK3:X 0 CALC:ACP:MARK3:X? Notes The query returns the marker’s absolute X Axis value if the control mode is Normal, or the offset from the marker’s reference marker if the control mode is Delta. If the marker is Off the response is not a number.
  • Page 686 9  ACP Measurement Marker Marker Y Axis Value (Remote Command only) Returns the marker Y axis value in the current marker Y axis unit. Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command :CALCulate:ACPower:MARKer[1]|2|...|12:Y? Example CALC:ACP:MARK11:Y?
  • Page 687 9  ACP Measurement Marker Function Marker Function There are no Marker Functions supported in the ACP measurement. The front-panel key will display a blank key menu when pressed. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 W-CDMA & HSPA Measurement Applications Reference...
  • Page 688 9  ACP Measurement Marker To Marker To There is no Marker To functionality supported in ACP. The front-panel key will display a blank key menu when pressed. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 W-CDMA & HSPA Measurement Applications Reference...
  • Page 689 9  ACP Measurement Meas Meas The information in this section is common to all measurements. For key and remote command information for a specific measurement, refer to the section that describes the measurement of interest. Measurements available under the Meas key are specific to the current Mode. When viewing Help for measurements, note the following: Operation for some keys differs between measurements.
  • Page 690 9  ACP Measurement Meas Measurement Group of Commands Measure Commands: :MEASure:<measurement>[n]? This is a fast single-command way to make a measurement using the factory default instrument settings. These are the settings and units that conform to the Mode Setup settings (e.g. radio standard) that you have currently selected. •...
  • Page 691 9  ACP Measurement Meas the factory default instrument settings. It does not initiate the taking of measurement data unless INIT:CONTinuous is ON. If you change any measurement settings after using the CONFigure command, the READ command can be used to initiate a measurement without changing the settings back to their defaults.
  • Page 692 9  ACP Measurement Meas measurement and you send READ:ACP? it will initiate a new measurement using the same instrument settings. • Initiates the measurement and puts valid data into the output buffer. If a measurement other than the current one is specified, the instrument will switch to that measurement before it initiates the measurement and returns results.
  • Page 693 9  ACP Measurement Meas Remote Command :CALCulate:DATA[n]? Notes The return trace depends on the measurement. In CALCulate:<meas>:DATA[n], n is any valid subopcode for the current measurement. It returns the same data as the FETCh:<measurement>? query where <measurement> is the current measurement.
  • Page 694 9  ACP Measurement Meas • CFIT or curve fit - applies curve fitting routines to the data. <soffset> and <length> are required to define the data that you want. <roffset> is an optional parameter for the desired order of the curve equation. The query will return the following values: the x-offset (in seconds) and the curve coefficients ((order + 1) values).
  • Page 695 9  ACP Measurement Meas • RMS - returns a single value that is the average power on a root-mean-squared voltage scale (arithmetic rms) of the data point values for the specified region(s) of trace data. See the following equation. For I/Q trace data, the rms of the magnitudes of the I/Q pairs is returned. See the following equation. This function is very useful for I/Q trace data.
  • Page 696 9  ACP Measurement Meas where Xi is a data point value, X is the arithmetic mean of the data point values for the specified region (s), and n is the number of data points in the specified region(s). where |Xi| is the magnitude of an I/Q pair, X is the mean of the magnitudes for the specified region(s), and n is the number of data points in the specified region(s).
  • Page 697 9  ACP Measurement Meas Sample Trace Data - Not Constant Envelope (See below for explanation of variables.) <soffset> - start offset is an optional real number. (It is in seconds for time-domain traces, and is a dimensionless index 0 to Npoints – 1, for frequency-domain traces). It specifies the amount of data at the beginning of the trace that will be ignored before the decimation process starts.
  • Page 698 9  ACP Measurement Meas Calculate Peaks of Trace Data (Remote Command Only) Returns a list of all the peaks for the currently selected measurement and sub-opcode [n]. The peaks must meet the requirements of the peak threshold and excursion values. n = any valid sub-opcode for the current measurement.
  • Page 699 9  ACP Measurement Meas excursion value stored under the Peak Criteria menu. Values must be provided for threshold and excursion. The sorting and display line parameters are optional (defaults are AMPLitude and ALL). Note that there is always a Y-axis value for the display line, regardless of whether the display line state is on or off.
  • Page 700 9  ACP Measurement Meas Notes Option FP2 is required. Initial S/W Revision A.14.00 Define Fast Power Measurement (Remote Command Only) Fast Power acquisitions are configured using the DEFine command. This command accepts a comma- delimited string of configuration parameters and their appropriate values, which are all specified in the subsection below.
  • Page 701 9  ACP Measurement Meas DC Coupled Example CALC:FPOW:POW1:DEF "DCCoupled=True" Notes The DC coupled parameter allows the user to specify whether the DC blocking capacitor is utilized. Set parameter to true when measuring frequencies below 10 MHz. Preset False Range True (DC Coupled) or False (AC Coupled) Default Unit Boolean Initial S/W...
  • Page 702 9  ACP Measurement Meas Do Spur Suppression Example CALC:FPOW:POW1:DEF "DoSpurSuppression=True" Notes When measuring very low level signals, or when large out-of-band inputs are input into the analyzer, sometimes unwanted spurs and residuals can appear in the measured spectrum.  Spur suppression is a method to help minimize the levels of these internally generated spurs and residuals.
  • Page 703 9  ACP Measurement Meas Default Unit Initial S/W A.14.00 Revision IF Gain Example CALC:FPOW:POW1:DEF "IFGain=10" Notes The IF gain parameter allows the user to specify the gain at the IF stage anywhere from –6 to 16 dB (1 dB steps). This is an advanced feature, and for most cases this should remain at its default value of 0 dB. Preset 0 dB Range...
  • Page 704 9  ACP Measurement Meas Mechanical Attenuation Example CALC:FPOW:POW1:DEF "MechAttenuation=10" Notes The mechanical attenuation value parameter sets the amount of mechanical attenuation anywhere from 0 to 70 dB (2 dB steps). Preset 0 dB Range 0 – 70 dB (2 dB steps) Default Unit Initial S/W A.14.00...
  • Page 705 9  ACP Measurement Meas Preset 0 Hz Default Unit Initial S/W A.14.00 Revision Trigger Delay Example CALC:FPOW:POW1:DEF "TriggerDelay=0.025" Notes The trigger delay parameter sets the time after an external trigger is detected until the measurement is performed. Preset Range 0 – 1 s Default Unit Seconds Initial S/W...
  • Page 706 9  ACP Measurement Meas Trigger Source Example CALC:FPOW:POW1:DEF "TriggerSource=Ext1" Notes The trigger source parameter allows the user to choose between measurement’s  triggering freely or controlled by an external input. Ext1 and Ext2 correspond to Trigger 1 In and Trigger 2 In, respectively. Preset Free Range...
  • Page 707 9  ACP Measurement Meas Default Unit Boolean Initial S/W Revision A.14.00 Channel Bandwidth Array Example CALC:FPOW:POW1:DEF "Bandwidth=[3.84e6, 5e6, 3.84e6]" Notes The bandwidth parameter array defines the bandwidth of each channel that will be measured. All array parameters should have the same number of elements. Alternatively, if all the elements are the same value, a single number with no square brackets can be used to define the parameter.
  • Page 708 9  ACP Measurement Meas Channel Measurement Function Array Example CALC:FPOW:POW1:DEF "Function=[BandPower, PeakPower, BandPower]" Notes This parameter array defines what measurement is being made for each individually-specified channel: BandPower: Total power within the specified bandwidth of the channel (dBm) BandDensity: Total power density within the specified bandwidth of the channel (dBm/Hz) PeakPower: The peak power value within the specified bandwidth of the channel (dBm) PeakFrequency: The frequency which corresponds to the peak power value within the specified bandwidth of the channel.
  • Page 709 9  ACP Measurement Meas Preset [0.99] Range 0 – 1.0 Initial S/W A.14.00 Revision Channel x-dB Bandwidth Array Example CALC:FPOW:POW1:DEF " XdBBandwidth =[–6.02, –3.01, –1.0]" Notes This parameter only applies for channels whose Function is set to XdBBandwidth. The X dB bandwidth parameter is used to specify the power relative to the peak channel power over which the bandwidth is calculated.
  • Page 710 9  ACP Measurement Meas This command query is used to retrieve a list of all defined parameters in an ASCII format. The following is an example of the returned results: "DCCoupled=False,ElecAttBypass=True,ElecAttenuation=0,IFGain=0,MechAttenuation=0,PreAmpMode=Off,PreSelectorOffset =0,UsePreSelector=False,ExternalReferenceFrequency=10000000,FrequencyReferenceSource=AutoExternalFrequencyRefer ence,IFType=B40M,LOMode=SLW,SignalInput=FpMainRf,AcquisitionTime=0.001,CenterFrequency=1000000000,Resolution BW=0,ResolutionBWMode=BestSpeed,DetectorType=RmsAverage,Bandwidth=[1000000],OffsetFrequency=[0],Function= [BandPower],FilterType=[IBW],FilterAlpha=[0.22],OccupiedBandwidthPercent=[0.99],XdBBandwidth=[– 3.01],DoNoiseCorrection=False,DoSpurSuppression=False,MeasurementMethod=HardwareFFT,IncludePowerSpectrum=Fals e,TriggerDelay=0,TriggerLevel=1.2,TriggerSlope=Positive,TriggerSource=Free,TriggerTimeout=1" A.14.00 Configure Fast Power Measurement (Remote Command Only) The configure command begins hardware setup and returns immediately, with no acquisition made.
  • Page 711 9  ACP Measurement Meas Initiate Fast Power Measurement (Remote Command Only) The INITiate command begins an acquisition and returns immediately. The results of the measurement can be retrieved using FETCh. Mode Remote Command :CALCulate:FPOWer:POWer[1,2,…,999]:INITiate Example :CALC:FPOW:POW1:INIT Notes Option FP2 is required. Initial S/W Revision A.14.00 Fetch Fast Power Measurement (Remote Command Only)
  • Page 712 9  ACP Measurement Meas Binary Read Fast Power Measurement (Remote Command Only) This command query is used as shorthand for an INIT command immediately followed by a FETC? command. The returned results are in a binary format. Mode Remote :CALCulate:FPOWer:POWer[1,2,…,999]:READ? Command :CALCulate:FPOWer:POWer[1,2,…,999]:READ1? Example...
  • Page 713 9  ACP Measurement Meas Spectrum Data 1. Number of points in the spectrum data, k [4 byte int] 2. Start frequency of spectrum data (Hz) [8 byte double] 3. Step frequency of spectrum data (Hz) [8 byte double] 4. FFT bin at 1st point (dBm) [4 byte float] 5.
  • Page 714 9  ACP Measurement Meas ASCii - Amplitude values are in ASCII, in the current Y Axis Unit, one ASCII character per digit, values separated by commas, each value in the form: SX.YYYYYEsZZ Where: S = sign (+ or -) X = one digit to left of decimal point Y = 5 digits to right of decimal point E = E, exponent header s = sign of exponent (+ or -)
  • Page 715 9  ACP Measurement Meas Setup Meas Setup Displays the setup menu for the currently selected measurement. The functions included in the measurement setup menu include setting the parameters for the carriers, offsets, bandwidths, measurement methods and types. This menu also allows you to turn noise correction on and off. Key Path Front-panel key Initial S/W Revision...
  • Page 716 9  ACP Measurement Meas Setup Avg Mode Enables you to set the averaging mode. This determines the averaging action after the specified number of data acquisitions (average count) is reached. When set to Exponential (Exp) the measurement averaging continues using the specified number of averages to compute each averaged value.
  • Page 717 9  ACP Measurement Meas Setup Remote Command [:SENSe]:ACPower:CARRier[1]|2:COUNt <integer> [:SENSe]:ACPower:CARRier[1]|2:COUNt? Example ACP:CARR:COUN 1 ACP:CARR:COUN? Notes Carrier sub op code. 1 for BTS, 2 for MS. Default is BTS. Note that Carrier sub op code 2 is supported only in Non-SA modes. In the SA mode, Carrier sub op code 1 is used for both BTS and MS.
  • Page 718 9  ACP Measurement Meas Setup Notes Carrier sub op code. 1 for BTS, 2 for MS. Default is BTS. Note that Carrier sub op code 2 is supported only in Non-SA modes. In the SA mode, Carrier sub op code 1 is used for both BTS and MS. You must be in the mode that includes ACP measurements to use this command.
  • Page 719 9  ACP Measurement Meas Setup Couplings Coupled to the Center Frequency. If the center frequency changes, the Ref Carrier Frequency is calculated using the following three steps; Ref Freq1 = Ctr Freq - (Total of all Carrier Widths / 2) Ref Freq2 = Ref Freq1 + (Total of all Carrier Widths up to Ref Carrier) Ref Freq = Ref Freq2 + (0.5 * Carrier Width of Ref Carrier) If reference carrier frequency changes the Center Frequency is calculated using the following three...
  • Page 720 9  ACP Measurement Meas Setup When set to Man, the result is referenced to the last measured value, or you may specify the reference for the multi-carrier power measurement. Relative values are displayed, referenced to the “Power Reference” value. Key Path Meas Setup, Carrier Setup, Power Ref Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE,...
  • Page 721 9  ACP Measurement Meas Setup Key Path Meas Setup, Carrier Setup, Power Ref Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD, Digital Cable TV, MSR Remote Command [:SENSe]:ACPower:CARRier[1]|2:CPSD <real> [:SENSe]:ACPower:CARRier[1]|2:CPSD? Example ACP:CARR:CPSD 25 ACP:CARR:CPSD? Notes Although the default value is defined, the value is recalculated by the measurement result just after measurement.
  • Page 722 9  ACP Measurement Meas Setup Couplings Max value is the number of available carriers, so this value might change when the number of carriers is changed. Preset State Saved Number of available carriers Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Carrier Pwr Present Configures the carriers for this measurement.
  • Page 723 9  ACP Measurement Meas Setup Preset State Saved Saved in instrument state. Range Yes|No Backwards [:SENSe]:MCPower:CARRier[1]|2:LIST:PPResent (PSA Power Suite) Compatibility SCPI Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Carrier Spacing Sets the width of the carrier spacing. This will be the value applied to all the current slots, whether they are carriers or spaces.
  • Page 724 9  ACP Measurement Meas Setup TD-SCDMA: 1.6 MHz DVB-T/H: 8 MHz DTMB (CTTB): 8 MHz ISDB-T: 6 MHz CMMB: 8 MHz LTE: 5 MHz LTETDD: 5 MHz Digital Cable TV: 8 MHz State Saved Saved in instrument state. 0 Hz 1 GHz Backwards [:SENSe]:MCPower:CARRier[1]|2:LIST:WIDTh (PSA Power Suite)
  • Page 725 9  ACP Measurement Meas Setup :INSTrument:SELect to set the mode. Couplings Coupled to the number of carriers. When the SCPI command is sent, the number of carriers is set to the number of entries in the parameter list. Preset SA: 2 MHz WCDMA: 3.84 MHz WIMAX OFDMA: 10 MHz C2K: 1.23MHz...
  • Page 726 9  ACP Measurement Meas Setup Notes The binary values translate as follows: 1|ON = RRC Weighted 0|OFF = Integ BW Maximum of Array length depends on the number of carriers. You must be in the mode that includes ACP measurements to use this command. Use :INSTrument:SELect to set the mode.
  • Page 727 9  ACP Measurement Meas Setup Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Carrier Coupling Couples carrier settings to carrier #1. The coupled parameters are Carrier Power Present, Carrier Spacing, Measurement Noise Bandwidth, Method, and Filter Alpha. Parameter Name Carrier Coupling Key Path...
  • Page 728 9  ACP Measurement Meas Setup Offset/Limits Accesses a menu of functions that contains Offset, Offset Freq/Offset To Edge, Offset Integ BW, Upper Offset Limit and Lower Offset parameters. Key Path Meas Setup Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.13.00 Select Offset Selects the offset to configure.
  • Page 729 9  ACP Measurement Meas Setup <freq>, <freq>, <freq>, <freq> [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST[:FREQuency]? [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:STATe OFF | ON | 0 | 1, OFF | ON | 0 | 1, OFF | ON | 0 | 1, OFF | ON | 0 | 1, OFF | ON | 0 | 1, OFF | ON | 0 | 1 [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:STATe? Example...
  • Page 730 9  ACP Measurement Meas Setup DTMB (CTTB): ON, ON, OFF, OFF, OFF, OFF|ON, ON, OFF, OFF, OFF, OFF CDMA1xEVDO: ON, ON, OFF, OFF, OFF, OFF| ON, ON, OFF, OFF, OFF, OFF ISDB-T: ON, ON, OFF, OFF, OFF, OFF|ON, ON, OFF, OFF, OFF, OFF CMMB: ON, ON, ON, ON, OFF, OFF|ON, ON, ON, ON, OFF, OFF LTE, LTETDD: ON, ON, OFF, OFF, OFF, OFF|ON, OFF, OFF, OFF, OFF, OFF Digital Cable TV: ON, ON, OFF, OFF, OFF, OFF|ON, ON, OFF, OFF, OFF, OFF...
  • Page 731 9  ACP Measurement Meas Setup Couplings Changing Integ BW might affect the Span. See Span section for details. Preset SA: 2 MHz, 2 MHz, 2 MHz, 2 MHz, 2 MHz, 2 MHz|2 MHz, 2 MHz, 2 MHz, 2 MHz, 2 MHz, 2 MHz WCDMA: 3.84 MHz, 3.84 MHz, 3.84 MHz, 3.84 MHz, 3.84 MHz, 3.84 MHz|3.84 MHz, 3.84 MHz, 3.84 MHz, 3.84 MHz, 3.84 MHz, 3.84 MHz WIMAX OFDMA: 10 MHz, 10 MHz, 10 MHz, 10 MHz, 10 MHz, 10 MHz| 10 MHz, 10 MHz, 10 MHz,...
  • Page 732 9  ACP Measurement Meas Setup Res BW Sets the resolution bandwidth. If an unavailable bandwidth is entered with the numeric keypad, the closest available bandwidth is selected. Key Path Meas Setup, Offset/Limits Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:RESolution <freq>,...
  • Page 733 9  ACP Measurement Meas Setup DVB-T/H: 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz|39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz DTMB (CTTB): 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz|39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz ISDB-T: 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz|39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz, 39 kHz...
  • Page 734 9  ACP Measurement Meas Setup In the SA mode, Offset sub op code 1 is used for both BTS and MS. You must be in the mode that includes ACP measurements to use this command. Use :INSTrument:SELect to set the mode. Dependencies When Meas Method is RBW or FAST, this key is grayed out and disabled.
  • Page 735 9  ACP Measurement Meas Setup Filter Type Selects the type of bandwidth filter that is used. Key Path Meas Setup, Offset/Limits, Offset BW, RBW Control Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:LIST:BANDwidth:SHAPe GAUSsian | FLATtop, GAUSsian | FLATtop, GAUSsian | FLATtop, GAUSsian | FLATtop,...
  • Page 736 9  ACP Measurement Meas Setup Notes Offset sub op code. 1 for BTS, 2 for MS. Default is BTS. Note that Offset sub op code 2 is supported only in Non-SA modes. In the SA mode, Offset sub op code 1 is used for both BTS and MS. You must be in the mode that includes ACP measurements to use this command.
  • Page 737 9  ACP Measurement Meas Setup Abs Limit Enters an absolute limit value, which sets the absolute amplitude levels to test against for each of the custom offsets. The list must contain six (6) entries. If there is more than one offset, the offset closest to the carrier channel is the first one in the list.
  • Page 738 9  ACP Measurement Meas Setup Digital Cable TV: 50 dBm, 50 dBm, 50 dBm, 50 dBm, 50 dBm, 50 dBm|50 dBm, 50 dBm, 50 dBm, 50 dBm, 50 dBm, 50 dBm State Saved Saved in instrument state. –200.0 dBm 50.0 dBm Backwards [:SENSe]:ACPR:OFFSet[1]|2:LIST:ABSolute (PSA W-CDMA, PSA cdma2000 ) Compatibility SCPI...
  • Page 739 9  ACP Measurement Meas Setup Preset SA: –45, –60, 0 , 0, 0, 0|–45, –60, 0, 0, 0, 0 WCDMA: –44.2, –49.2, –49.2, –49.2, –49.2, –49.2|–32.2, –42.2, –42.2, –42.2 , –42.2, –42.2 C2K: 0, 0, 0, 0, 0, 0|0, 0, 0, 0, 0, 0 WIMAX OFDMA: –50,–60,0,0,0,0 TD-SCDMA: –40, –45, –45, –45, –45, –45|–33, –43, –43, –43 , –43, –43 1xEVDO: ...
  • Page 740 9  ACP Measurement Meas Setup LTE, LTETDD: –44.2, –44.2, –44.2, –44.2, –44.2, –44.2|–29.2, –29.2, –29.2, –29.2, –29.2, –29.2 State Saved Saved in instrument state. –150.0 50.0 Backwards :CALCulate:MCPower:OFFSet:LIST:LIMit:POSitive[:UPPer]:DATA (PSA Power Suite) Compatibility SCPI Initial S/W Revision A.04.00 Modified at S/W Revision A.13.00 Negative Offset Limit Enables you to set the upper limit for the lower segment of the specified offset pair.
  • Page 741 9  ACP Measurement Meas Setup Rel Limit (PSD) Enters a relative limit value for the level of the power spectral density. This sets the amplitude levels to test against for any custom offsets. The amplitude level is relative to the power spectral density. If multiple offsets are available, the list contains six (6) entries.
  • Page 742 9  ACP Measurement Meas Setup 50.0 dB Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00, A.13.00 Fail Mask Accesses a menu that enables you to select one of the logic keys for the fail conditions between the measurement results and the test limits.
  • Page 743 9  ACP Measurement Meas Setup Preset SA, WCDMA, C2K, TD-SCDMA: REL, REL, REL, REL, REL, REL|REL, REL, REL, REL, REL, REL WIMAX OFDMA: REL, REL, REL, REL, REL, REL DVB-T/H: REL, REL, REL, REL, REL, REL DTMB (CTTB): OR,AND, AND,AND, REL, REL CDMA1xEVDO: REL, REL, ABS, REL, REL, REL| REL, REL, ABS, REL, REL, REL ISDB-T : REL, REL, REL, REL, REL, REL CMMB : OR,AND, AND,AND, REL, REL...
  • Page 744 9  ACP Measurement Meas Setup Range Neg|Both|Pos Initial S/W Revision A.03.00 Modified at S/W Revision A.13.00 Method for Offset This key allows you to turn RRC filtering of each offset on or off. The value (roll off) for the filter will be set to the value of the Filter Alpha parameter.
  • Page 745 9  ACP Measurement Meas Setup Method for Offset This key allows you to turn RRC filtering of each offset on or off. The value (roll off) for the filter will be set to the value of the Filter Alpha parameter. Key Path Meas Setup, Offset/Limits Mode...
  • Page 746 9  ACP Measurement Meas Setup Example ACP:OFFS:LIST:FILT:ALPH 0.5, 0.5, 0.5, 0.5, 0.5, 0.5 ACP:OFFS:LIST:FILT:ALPH? Notes This parameter is not available for cdma2000 and 1xEVDO. You must be in the mode that includes ACP measurements to use this command. Use :INSTrument:SELect to set the mode. Preset SA: 0.22, 0.22, 0.22, 0.22, 0.22, 0.22|0.22, 0.22, 0.22, 0.22, 0.22, 0.22 WCDMA: 0.22, 0.22, 0.22, 0.22, 0.22, 0.22|0.22, 0.22, 0.22, 0.22, 0.22, 0.22...
  • Page 747 9  ACP Measurement Meas Setup Key Path Meas Setup, Offset/Limits Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:TYPE CTOCenter | CTOEdge | ETOCenter | ETOEdge [:SENSe]:ACPower:OFFSet[1]|2[:OUTer]:TYPE? Example ACP:OFFS:TYPE ETOC ACP:OFFS:TYPE? Notes You must be in the mode that includes ACP measurements to use this command.
  • Page 748 9  ACP Measurement Meas Setup Filtered IBW (max dynamic range) — the ACP Path is used to compute ACP when an ACP path is available. This method increases dynamic range, but increases measurement time as it limits the resolution bandwidth. This method is useful for improving dynamic range on a W-CDMA signal because a sharp cutoff bandpass filter is used.
  • Page 749 9  ACP Measurement Meas Setup WIMAX OFDMA: IBW 1xEVDO: IBW DVB-T/H: IBW DTMB (CTTB): IBW ISDB-T: IBW CMMB: IBW Digital Cable TV: IBW State Saved Saved in instrument state. Range Integration BW|Filtered IBW (max dynamic range)|RBW|Fast Readback Text IBW|Filtered IBW|RBW|Fast Backwards [:SENSe]:ACPR:SWEep:TYPE Compatibility SCPI...
  • Page 750 9  ACP Measurement Meas Setup Key Path Meas Setup Mode A, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command :UNIT:ACPower:POWer:PSD DBMHZ|DBMMHZ :UNIT:ACPower:POWer:PSD? Example UNIT:ACP:POW:PSD DBMMHZ UNIT:ACP:POW:PSD? Couplings When the PSD unit is changed, the PSD reference result of the “MEAS|READ|FETCH:ACP[n]?” is also changed by the PSD unit basis (in either dBm/Hz or dBm/MHz).
  • Page 751 9  ACP Measurement Meas Setup LTE, LTETDD: ON State Saved Saved in instrument state. Range On|Off Backwards [:SENSe]:MCPower:LIMit[:STATe] Compatibility SCPI [:SENSe]:ACPower:LIMit[:STATe] Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Meas Preset Restores all the measurement parameters to their default values. Key Path Meas Setup Mode...
  • Page 752 9  ACP Measurement Meas Setup return a value of BS Offset A. Preset SA, WIMAX OFDMA, LTE, LTETDD: OFF WCDMA: ON C2K: NO TD-SCDMA: ON State Saved Saved in instrument state. Backwards [:SENSe]:ACPR:FILTer[:RRC][:STATe] Compatibility SCPI [:SENSe]:MCPower:FILTer[:RRC][:STATe] Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.03.00 Offset Filter Alpha (Backward Compatibility SCPI)
  • Page 753 9  ACP Measurement Meas Setup Method for Carrier (Backward Compatibility SCPI) Mode SA, WCDMA, WIMAX OFDMA, TD-SCDMA, LTE, LTETDD Remote Command [:SENSe]:ACPower:CARRier[1]|2:LIST:METHod IBW|RRC, … [:SENSe]:ACPower:CARRier[1]|2:LIST:METHod? Example ACP:CARR2:LIST:METH RRC ACP:CARR2:LIST:METH? Notes You must be in the mode that includes ACP measurements to use this command. Use :INSTrument:SELect to set the mode.
  • Page 754 9  ACP Measurement Mode Mode "Mode" on page 232 W-CDMA & HSPA Measurement Applications Reference...
  • Page 755 9  ACP Measurement Mode Preset Mode Preset Returns the active mode to a known state. Mode Preset does the following for the currently active mode: • Aborts the currently running measurement. • Brings up the default menu for the mode, with no active function. •...
  • Page 756 9  ACP Measurement Mode Preset User Preset. Initial S/W Revision Prior to A.02.00 How-To Preset The table below shows all possible presets, their corresponding SCPI commands and front-panel access (key paths). Instrument settings depend on the current measurement context. Some settings are local to the current measurement, some are global (common) across all the measurements in the current mode, and some are global to all the available modes.
  • Page 757 9  ACP Measurement Mode Preset Power On Mode Preset :SYSTem:PON:TYPE MODE System Menu Power On User Preset :SYSTem:PON:TYPE USER System Menu Power On Last State :SYSTem:PON:TYPE LAST System Menu W-CDMA & HSPA Measurement Applications Reference...
  • Page 758 9  ACP Measurement Mode Setup Mode Setup "Mode Setup" on page 251 W-CDMA & HSPA Measurement Applications Reference...
  • Page 759 9  ACP Measurement Peak Search Peak Search Places the selected marker on the trace point with the maximum y-axis value. Key Path Peak Search Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command :CALCulate:ACPower:MARKer[1]|2|...|12:MAXimum Example CALC:ACP:MARK2:MAX...
  • Page 760 9  ACP Measurement Peak Search Next Pk Left Moves the selected marker to the nearest peak to the left of the current marker that meets all enabled peak criteria. Key Path Peak Search Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command :CALCulate:ACPower:MARKer[1]|2|...|12:MAXimum:LEFT...
  • Page 761 9  ACP Measurement Peak Search Key Path Peak Search Mode SA, WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command :CALCulate:ACPower:MARKer[1]|2|...|12:MINimum Example CALC:ACP:MARK:MIN Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 W-CDMA &...
  • Page 762 9  ACP Measurement Print Print "Print" on page 263 W-CDMA & HSPA Measurement Applications Reference...
  • Page 763 9  ACP Measurement Quick Save Quick Save The Quick Save front-panel key repeats the most recent save that was performed from the Save menu, with the following exceptions: • Register saves are not remembered as Saves for the purpose of the Quick Save function •...
  • Page 764 9  ACP Measurement Quick Save If you enter a file name for a given file type, then the prefix becomes the filename you entered instead of the default prefix, followed by an underscore. The last four letters (the suffix) are the 4-digit number. For example, if you save a measurement results file as “fred.csv”, then the next auto file name chosen for a measurement results save will be fred_0000.csv.
  • Page 765 9  ACP Measurement Recall Recall The Recall menu lets you choose what you want to recall, and where you want to recall it from. Among the types of files you can recall are States andTraces. In addition, an Import (Data) option lets you recall a number of data types stored in CSV files (as used by Excel and other spreadsheet programs).
  • Page 766 9  ACP Measurement Recall The content of a state file includes all of the settings and data required to return the analyzer as closely as possible to the Mode it was in, with the exact settings that were in place, when the save occurred. The Mode settings in each state file include the settings that are affected by Mode Preset, as well as the additional settings affected by Restore Mode Defaults;...
  • Page 767 9  ACP Measurement Recall • Executes a *CLS If the file specified is empty an error is generated. If the specified file does not exist, another error is generated. If there is a mismatch between the file and the proper file type, an error is generated. If there is a mismatch between file version or model number or instrument version or model number, a warning is displayed.
  • Page 768 9  ACP Measurement Recall Listed below are the functions of the various fields in the dialog, and the corresponding softkeys: Open Performs the recall of the specified file. While the recall is being performed, the floppy icon appears briefly in the Meas bar. File/Folder List Enables you to navigate to the center of the dialog that contains the list of files and folders.
  • Page 769 9  ACP Measurement Recall Accesses a menu that enables you to sort the files within the File Open dialog. Only one sorting type can be selected at a time and the sorting happens immediately. The sorting types are By Date, By Name, By extension, and By Size.
  • Page 770 9  ACP Measurement Recall modified. In addition, you can use the Edit Register Names key under Save, State to enter custom names for each register. In products that run multiple instances of the X-Series Application, recalling the same register name on each instance is a way to share setups between the instances.
  • Page 771 9  ACP Measurement Recall After the recall completes, the message "Register <register number> recalled" appears in the message bar.  If you are in the Spectrum Analyzer Mode, and you are recalling a register that was saved in the Spectrum Analyzer Mode, then after the recall, you will still be in the Recall Register menu. If the Recall causes you to switch modes, then after the Recall, you will be in the Frequency menu.
  • Page 772 9  ACP Measurement Recall Example :MMEM:LOAD:SEQ:SLIS "MySequence.txt" Dependencies Only available in XOBT Initial S/W Revision A.05.00 Open… When you press “Open”, the analyzer brings up a Windows dialog and a menu entitled “File Open.” This menu allows you to navigate to the various fields in the Windows dialog without using a keyboard or mouse.
  • Page 773 9  ACP Measurement Recall Capture Buffer Capture Buffer functionality is available only in the Code Domain and Modulation Accuracy measurements. The captured data is raw (unprocessed). Key Path Recall, Data Mode WCDMA Example MMEM:LOAD:CAPT "MyCaptureData.bin" This loads the file of capture data (on the default file directory path) into the instrument. Dependencies Capture Buffer data is only available for the Code Domain and Modulation Accuracy measurements.
  • Page 774 9  ACP Measurement Restart Restart The Restart function restarts the current sweep, or measurement, or set of averaged/held sweeps or measurements. If you are Paused, pressing Restart does a Resume. The Restart function is accessed in several ways: • Pressing the Restart key •...
  • Page 775 9  ACP Measurement Restart Even when set for Single operation, multiple sweeps may be taken when Restart is pressed (for example, when averaging/holding is on). Thus when we say that Restart "restarts a measurement," we may mean: • It restarts the current sweep •...
  • Page 776 9  ACP Measurement Save Save The Save menu lets you choose what you want to save and where you want to save it. Among the types of files you can save are States, Traces, and Screen Images. In addition, an Export (Data) option lets you save a number of data types as CSV files for easy import into Excel and other spreadsheet programs.
  • Page 777 9  ACP Measurement Save After saving to a register, that register’s menu key is updated with the date the time, unless a custom label has been entered for that key. After saving to a register, you remain in the Save State menu, so that you can see the Register key update.
  • Page 778 9  ACP Measurement Save the file will be overwritten. Using the C: drive is strongly discouraged, since it runs the risk of being overwritten during an instrument software upgrade. While the save is being performed, the floppy icon appears briefly in the Meas bar. File/Folder List Enables you to navigate to the center of the dialog that contains the list of files and folders.
  • Page 779 9  ACP Measurement Save This key corresponds to the Cancel selection in the dialog. It causes the current Save As request to be cancelled.  The ESC key does the same thing. Key Path Save, State Mode Notes Brings up Save As dialog for saving a State Save Type Initial S/W Revision Prior to A.02.00 Edit Register Names...
  • Page 780 9  ACP Measurement Save consequence of this is that the names will be persistent through a power cycle. Also, if a named state file is transferred to another analyzer, it will bring its custom name along with it.  If you try to edit the name of an empty register, the analyzer will first save the state to have a file to put the name in.
  • Page 781 9  ACP Measurement Save what date and time it was last modified. In addition, you can use the Edit Register Names key to enter custom names for each register. In products that run multiple instances of the X-Series Application, save with different register name if you do not want to overwrite the register of another running instance.
  • Page 782 9  ACP Measurement Save Mass Storage Change Directory (Remote Command Only) Key path SCPI Only Remote Command :MMEMory:CDIRectory [<directory_name>] :MMEMory:CDIRectory? Notes The string must be a valid logical path. Changes the default directory for a mass memory file system. The <directory_name> parameter is a string.
  • Page 783 9  ACP Measurement Save Mass Storage Delete   (Remote Command Only) Key path SCPI Only Remote Command :MMEMory:DELete <file_name>[,<directory_name>] Notes The string must be a valid logical path. Removes a file from the specified directory. The <file_name> parameter specifies the file name to be removed.
  • Page 784 9  ACP Measurement Save Two forms of parameters are allowed. The first form has two parameters. In this form, the first parameter specifies the source, and the second parameter specifies the destination. The second form has four parameters. In this form, the first and third parameters specify the source. The second and fourth parameters specify the directories.
  • Page 785 9  ACP Measurement Save Source Sequence The list of parameters, that configure steps, that makes up a sequence for the Source. The Source sequence is a sequence of flexible configurable steps that can be set anywhere in the instruments frequency range. Key Path Save, Sequences Example...
  • Page 786 9  ACP Measurement Save Notes The menu is built from whatever data types are available for the mode. So the key locations in the sub menu will vary. No SCPI command directly controls the Data Type that this key controls. The Data Type is included in the MMEM:STORe commands.
  • Page 787 9  ACP Measurement Save • Auto Sweep Time Rules • Automatic Trigger Time • Automatic Trigger Time State • Average Mode • Average Number • Average State • Bar Graph • Carrier Coupling • Carrier Pwr Present • Carrier Spacing •...
  • Page 788 9  ACP Measurement Save • Meas Method • Meas Type • Measurement Noise Bandwidth • Mechanical Atten • MechanicalAttenStepEnum • Method • Noise Correction • Offset Abs Limit • Offset Fail • Offset Filter Alpha • Offset Filter BW • Offset Filter Type •...
  • Page 789 9  ACP Measurement Save • PSD Unit • Ref Car Freq • Ref Car Freq State • Ref Carrier • Ref Carrier Mode • Ref Position • Ref Value • Res BW • Res BW Mode • RFBurst Trigger Delay •...
  • Page 790 9  ACP Measurement Save 526 ALV ATP B1X B1Y B25 B40 BBA CR3 CRP DCF DDA DP2 DRD EA3 EDP EMC EP1 ERC ESC ESP EXM FSA LFE LNP MAT MPB NFE NUL P26 PFR PNC RTL RTS S40 SB1 SEC SM1 TVT YAS YAV Auto Scaling...
  • Page 791 9  ACP Measurement Save Detector Average Selection Electrical Atten Electrical FALSE Atten State External Array 1.00E–06 1.00 Trigger Delay E–06 External Array FALSE FALSE Trigger Delay State External Array Trigger Level External Array Positive Positi Trigger Slope Filter Alpha 0.22 0.22 Filter BW Minus3dB...
  • Page 792 9  ACP Measurement Save Offset Abs Limit Offset Fail Relative Relati Rela Rela Rela Rela tive tive tive tive Offset Filter 0.22 Alpha Offset Filter Minus3dB Minus Offset Filter Gaussian Gauss Type ssia ssia ssia ssia Offset Freq 3000000 Offset Freq TRUE FALSE State...
  • Page 793 9  ACP Measurement Save Power Ref State Preselector Adjust PSD Ref –139.82 dBm/Hz PSD Unit DbmHz Ref Car Freq 13.25500 0000 GHz Ref Car Freq State Ref Carrier Ref Carrier Mode Ref Position Ref Value –30 Res BW 220000 Res BW Mode FALSE RFBurst 1.00E–06...
  • Page 794 9  ACP Measurement Save Trigger Source Free Video BW 22000 Video BW Auto TRUE MeasResult1 MeasResult Meas Result – 76.80585177 44559 0.084790019 – 76.80585 950006 17744559 0.028392912 –999 8313787 –999 –999 Capture Buffer Allows you to store captured data for reuse in demod measurements using ‘Save/Recall’ functionality for ‘Capture Buffer.’...
  • Page 795 9  ACP Measurement Save My Documents\<mode name>\data\traces For all of the Limit Data Files: My Documents\<mode name>\data\limits For all of the Measurement Results Data Files: My Documents\<mode name>\data\<measurement name>\results For all of the Capture Buffer Data Files: My Documents\<mode name>\data\captureBuffer Key Path Save, Data Mode...
  • Page 796 9  ACP Measurement Save When you continue on into the Save As menu and complete the Screen Image save, the image depicted in the thumbnail is the one that gets saved, showing the menus that were on the screen before going into the Save menus.
  • Page 797 9  ACP Measurement Save The Themes option is the same as the Themes option under the Display and Page Setup dialogs. It allows you to choose between themes to be used when saving the screen image. Key Path Save, Screen Image Remote Command :MMEMory:STORe:SCReen:THEMe TDColor | TDMonochrome | FCOLor | FMONochrome...
  • Page 798 9  ACP Measurement Save Example MMEM:STOR:SCR:THEM FCOL Readback Flat Color Initial S/W Revision Prior to A.02.00 Flat Monochrome Selects a format that is like Flat Color. But only black is used (no colors, not even gray), and no fill. Key Path Save, Screen Image, Themes Example MMEM:STOR:SCR:THEM FMON...
  • Page 799 9  ACP Measurement Single (Single Measurement/Sweep) Single (Single Measurement/Sweep) Sets the analyzer for Single measurement operation. The single/continuous state is Meas Global, so the setting will affect all the measurements. If you are Paused, pressing Single does a Resume. "More Information" on page 799 Key Path Front-panel key Example...
  • Page 800 9  ACP Measurement Source Source Opens a menu of keys that access various source configuration menus and settings. In the  test set, pressing this key also causes the central view area to change and display the Source Control Main view. Key Path Front-panel key RF Output...
  • Page 801 9  ACP Measurement Source RF Power Allows you to adjust the power level of the source using the numeric keypad, step keys, or RPG. Pressing any digit, 0 through 9, on the numeric keypad brings up the unit terminator. Please refer to the "RF Power Range "...
  • Page 802 9  ACP Measurement Source RF Power Range RF Output Port Frequency Range Min Output Power Max Output Power High Power RF Out 10 MHz ≤ f ≤ 6 GHz –150 dBm 20 dBm 10 MHz ≤ f ≤ 6 GHz RFIO 1 &...
  • Page 803 9  ACP Measurement Source Where: reference power equals the original RF Power entered under Source>Amplitude>RF Power and set as the reference power entered power equals a new value entered under Source>Amplitude>Amptd Offset For more information on Reference Frequency refer to  "Set Reference Power "...
  • Page 804 9  ACP Measurement Source Where: entered power equals the amplitude entered under Source>Amplitude>RF Power offset power equals the value previously entered and set under Source>Amplitude>Amptd Offset Key Path Source, Amplitude Remote Command :SOURce:POWer[:LEVel][:IMMediate]:OFFSet <rel_ampl> :SOURce:POWer[:LEVel][:IMMediate]:OFFSet? Example :SOUR:POW:OFFS 0.00 dB Dependencies This setting is unavailable, and is grayed out when the List Sequencer is turned ON.
  • Page 805 Option 504 = 3.8 GHz Option 506 = 6.00 GHz For E6640A, if license 5WC is present,the frequency range should be limited to: 1.1GHz–1.7GHz, 2.4GHz–2.5GHz, 4.8GHz–6.0GHz. If the user-defined frequency is outside of range, UI will report an error message called “Settings conflict; Frequency is outside available range”.
  • Page 806 9  ACP Measurement Source Key Path Source, Frequency Remote Command :SOURce:FREQuency:CHANnels:NUMBer <int> :SOURce:FREQuency:CHANnels:NUMBer? Example :SOUR:FREQ:CHAN:NUMB 1 Notes This key is grayed out when the "Radio Standard" on page 2736 is set to NONE. This key is grayed out on E6630A. Dependencies This key is grayed out when the "Radio Standard"...
  • Page 807 9  ACP Measurement Source Band Link (Device) Range Frequency (MHz) Downlink (BS) 306 ≤ n ≤ 340 489.000 + 0.20*(n–306) GSM 850 Uplink (MS) 824.200 + 0.20*(n–128) 128 ≤ n ≤ 251 Downlink (BS) 128 ≤ n ≤ 251 869.200 + 0.20*(n–128) GSM 700 Uplink (MS) 438 ≤...
  • Page 808 9  ACP Measurement Source Band Link (Device) Range Frequency (MHz) Band IX Downlink 9237 ≤ n ≤ 9387 n÷5 Uplink n÷5 8762 ≤ n ≤ 8912 Band X Downlink 3112 ≤ n ≤ 3388 n÷5 + 1490 n÷5 + 1430.1 3412 ≤...
  • Page 809 9  ACP Measurement Source Band Link (Device) Range Frequency (MHz) Japan Cellular Band Uplink (MS, 1 ≤ N ≤ 799 0.0125×(N+ 915.000 reverse link) 801 ≤ N ≤ 1039 0.0125×(N–800)+ 898.000 1041 ≤ N ≤ 1199 0.0125×(N–1040)+ 887.000 1201 ≤ N ≤ 1600 0.0125×(N–1200)+ 893.000 Downlink (BS, 1 ≤...
  • Page 810 9  ACP Measurement Source Band Link (Device) Range Frequency (MHz) Downlink (BS, 0 ≤ N ≤ 1299 1930.000 + 0.050×N forward link) Uplink (MS, 0 ≤ N ≤ 899 1710.000 + 0.050×N reverse link) Downlink (BS, 0 ≤ N ≤ 899 2100.000 + 0.050×N forward link) US 2.5 GHz...
  • Page 811 9  ACP Measurement Source The relation between EARFCN and the carrier frequency in MHz for the uplink is given by the following equation where FUL_low and NOffs-UL are given in table 5.4.4–1 and NUL is the uplink EARFCN. FUL = FUL_low + 0.1(NUL – NOffs-UL) Band Downlink Uplink...
  • Page 812 9  ACP Measurement Source LTE TDD Channel Number Ranges The carrier frequency in the uplink and downlink is designated by the E-UTRA Absolute Radio Frequency Channel Number (EARFCN) in the range 0 – 65535. The relation between EARFCN and the carrier frequency in MHz for the downlink is given by the following equation, where FDL_low and NOffs-DL are given in table 5.4.4–1 and NDL is the downlink EARFCN.
  • Page 813 9  ACP Measurement Source Nt = 5*F 0.0 MHz ≤ F≤ 3276.6 MHz where F is the carrier frequency in MHz Additional channels applicable to operation in the frequency band defined in sub-clause 5.2(d) are defined via the following UARFCN definition: Nt = 5 * (F –...
  • Page 814 9  ACP Measurement Source Radio Standard Allows access to the channel band sub-menus to select the desired radio standard. When you have selected the radio standard, you can then set an active channel band. The radio standard and the active channel band allow you to use ...
  • Page 815 9  ACP Measurement Source E-GSM Selects E-GSM as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example :SOUR:FREQ:CHAN:BAND EGSM Initial S/W Revision A.05.00 R-GSM Selects R-GSM as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example :SOUR:FREQ:CHAN:BAND RGSM Initial S/W Revision...
  • Page 816 9  ACP Measurement Source GSM 480 Selects GSM 480 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example :SOUR:FREQ:CHAN:BAND GSM480 Initial S/W Revision A.05.00 GSM 850 Selects GSM 850 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, GSM/EDGE Example...
  • Page 817 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDI Initial S/W Revision A.05.00 Band II Selects Band II as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDII Initial S/W Revision A.05.00...
  • Page 818 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDVI Initial S/W Revision A.05.00 Band VII Selects Band VII as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDVII Initial S/W Revision A.05.00...
  • Page 819 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDXI Initial S/W Revision A.05.00 Band XII Selects Band XII as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, WCDMA Example :SOUR:FREQ:CHAN:BAND BANDXII Initial S/W Revision A.05.00...
  • Page 820 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard Initial S/W Revision A.05.00 US CELL Selects US Cell as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND USCELL Initial S/W Revision A.05.00 US PCS...
  • Page 821 9  ACP Measurement Source Example :SOUR:FREQ:CHAN:BAND NMT Initial S/W Revision A.05.00 IMT 2000 Selects IMT 2000 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND IMT2K Initial S/W Revision A.05.00 Upper 700 Selects Upper 700 as the active channel band.
  • Page 822 9  ACP Measurement Source Example :SOUR:FREQ:CHAN:BAND PAMR800 Initial S/W Revision A.05.00 2.5GHz IMT EXT Selects 2.5 GHz IMT EXT as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND IMTEXT Initial S/W Revision A.05.00 US PCS 1.9GHz Selects US PCS 1.9 GHz as the active channel band.
  • Page 823 9  ACP Measurement Source Example :SOUR:FREQ:CHAN:BAND PUBLIC Initial S/W Revision A.05.00 C2K Lower 700 Selects C2K Lower 700 as the active channel band. Key Path Source, Frequency, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Example :SOUR:FREQ:CHAN:BAND LOWER Initial S/W Revision A.05.00 Sets LTE FDD as the radio standard for use and accesses the LTE FDD specific channel band sub-menus..
  • Page 824 9  ACP Measurement Source BAND 4 Selects BAND 4 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND4 Initial S/W Revision A.09.50 BAND 5 Selects BAND 5 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 825 9  ACP Measurement Source BAND 9 Selects BAND 9 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND9 Initial S/W Revision A.09.50 BAND 10 Selects BAND 10 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 826 9  ACP Measurement Source BAND 14 Selects BAND 14 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND14 Initial S/W Revision A.09.50 BAND 17 Selects BAND 17 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 827 9  ACP Measurement Source BAND 21 Selects BAND 21 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND21 Initial S/W Revision A.09.50 BAND 24 Selects BAND 24 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 828 9  ACP Measurement Source BAND 28 Selects BAND 28 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example :SOUR:FREQ:CHAN:BAND BAND28 Initial S/W Revision A.14.00 BAND 31 Selects BAND 31 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE Example...
  • Page 829 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND35 Initial S/W Revision A.11.50 BAND 36 Selects BAND 36 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND36 Initial S/W Revision...
  • Page 830 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND40 Initial S/W Revision A.11.50 BAND 41 Selects BAND 41 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND41 Initial S/W Revision...
  • Page 831 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard Initial S/W Revision A.11.50 BAND A Selects BAND A as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDA Initial S/W Revision A.11.50 BAND B...
  • Page 832 9  ACP Measurement Source Example :SOUR:FREQ:CHAN:BAND BANDE Initial S/W Revision A.11.50 BAND F Selects BAND F as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDF Initial S/W Revision A.11.50 Radio Band Link Allows you to specify the channel band type as either uplink or downlink link direction.
  • Page 833 9  ACP Measurement Source Where: reference frequency equals the original RF frequency entered under Source>Frequency>Frequency and set as the reference frequency entered frequency equals a new value entered under Source>Frequency>Frequency In addition, the displayed frequency value will be the same as the value entered under Source>Frequency>Frequency.
  • Page 834 9  ACP Measurement Source :SOUR:FREQ:REF:STATe ON Dependencies This setting is unavailable, and is grayed out when the List Sequencer is turned ON. Couplings The frequency reference state is coupled to the frequency reference set immediate action. When the reference set immediate action key is pressed, or the SCPI command issued, it turns the frequency reference state ON.
  • Page 835 9  ACP Measurement Source :SOURce:FREQuency:OFFSet? Example :SOUR:FREQ:OFFS 0 Hz Dependencies This setting is unavailable, and is grayed out when the List Sequencer is turned ON. Preset 0 Hz –100.00 GHz 100.00 GHz Initial S/W Revision A.05.00 Modulation Setup Allows access to the menus for setting up the available modulation types: "ARB"...
  • Page 836 9  ACP Measurement Source The ARB can only be turned on when there is a waveform file selected for playback. On the GUI If no waveform is selected, this key is grayed out. If you send the SCPI command to turn the ARB on with no waveform selected for playback, the ARB state remains OFF and an error is generated.
  • Page 837 9  ACP Measurement Source none of the waveform segments is loaded. If the ARB is ON, and you attampt to play a waveform sequence but not all the waveform segments within the sequence could be found to be loaded into ARB memory, an error is generated. The selected waveform keeps the previous value and ARB state remains On.
  • Page 838 9  ACP Measurement Source Remote Command :SOURce:RADio:ARB:LOAD <string> Example :SOUR:RAD:ARB:LOAD “D: VARB\testwaveform.bin” :SOUR:RAD:ARB:LOAD “NVWFM:testwaveform.bin” Notes Because loading the file involves a delay of unpredictable length, this command should be followed by the query *OPC?, which holds off subsequent commands until the loading operating is complete. <string>...
  • Page 839 9  ACP Measurement Source when the ARB memory is full, the copy ceases, and an error is generated. If you specify a directory over SCPI, but the directory does not exist, an error is generated.  If the ARB is ON, a user then loads or deletes file to ARB memory, the playing waveform segment may not keep phase continuity during the ARB memory operation.
  • Page 840 9  ACP Measurement Source Delete Segment From ARB Mem Allows you to remove a segment from ARB playback memory. Key Path Source, Modulation Setup, ARB, Select Waveform, Segments in ARB Memory Remote Command :SOURce:RADio:ARB:DELete <string> Example :SOUR:RAD:ARB:DEL “testwaveform.bin” Notes <string> - specifies the waveform to be deleted from the ARB playback memory. When in Sequence Analyzer mode and Include Source is Yes, an attempt to delete a file from ARB memory is rejected with an error.
  • Page 841 9  ACP Measurement Source Query ARB Memory File List (Remote Command Only) Queries the test set for the list of waveform segments in the ARB memory. This command returns a string for waveform segment names in ARB memory. If you want a string list of waveform segments in the ARB memory, use "Query ARB Memory Full File List (Remote Command Only)"...
  • Page 842 Example :SOUR:RAD:ARB:RSC 100.00 Notes This setting cannot be set in E6640A. Grey out on menu and the value is fixed at 70.00%. Dependencies When a new waveform is selected for playback the settings contained within the associated waveform header file are applied to the ARB. The run-time scaling is one of the values stored within the header file.
  • Page 843 9  ACP Measurement Source Key Path Source, Modulation Setup, ARB, ARB Setup Remote Command :SOURce:RADio:ARB:BASeband:FREQuency:OFFSet <freq> :SOURce:RADio:ARB:BASeband:FREQuency:OFFSet? Example :SOUR:RAD:ARB:BAS:FREQ:OFFS 0.00 Hz Dependencies When a new waveform is selected for playback the settings contained within the associated waveform header file are applied to the ARB. The baseband frequency offset is one of the values stored within the header file.
  • Page 844 9  ACP Measurement Source Range Free Run | Trigger + Run | Reset + Run Initial S/W Revision A.05.00 Free Run Selects Free Run as the trigger response for the continuous trigger type. Free Run sets the waveform generator to play a waveform sequence or segment continuously, without waiting for a trigger. In this mode, the waveform generator does not respond to triggers.
  • Page 845 9  ACP Measurement Source :SOURce:RADio:ARB:RETRigger? Example :SOUR:RAD:ARB:RETR OFF Notes ON: Buffered Trigger OFF: No Retrigger Immediate: Restart on Trigger This is defined as an enumerated SCPI command, with ON|OFF being considered as enumerated types rather than Boolean. This means the query will return OFF instead of 0, and ON instead of 1. Preset Range No Retrigger | Buffered Trigger | Restart on Trigger...
  • Page 846 9  ACP Measurement Source Segment Advance Sets the active trigger type to Segment Advance. If Segment Advance is already selected as the active trigger type, pressing this key allows access to the segment advance trigger type setup menu. Segment Advance triggering allows you to control the playback of waveform segments within a waveform sequence.
  • Page 847 Example :SOUR:RAD:ARB:TRIGger EXT2 Notes Note: When on E6640A, trigger 2 is a bi-directional trigger port. So when trigger 2 has been configured as OUTPUT type, choosing External 2 as the input trigger for the current step will generate error. Initial S/W Revision A.05.00...
  • Page 848 9  ACP Measurement Source Trigger Initiate Used to initiate an immediate trigger event if the trigger source is set to Trigger Key. Key Path Source, Modulation Setup, ARB Notes No remote command, SCPIfront panel only. Initial S/W Revision A.05.00 Waveform Sequences Allows access to the waveform sequence sub-menus.
  • Page 849 9  ACP Measurement Source Key Path Source, Modulation Setup, ARB, Waveform Sequences, Build New Sequence Notes No remote command, SCPIfront panel only. Waveform segment name string length upper limit is 128 chars. Please do NOT insert waveform which name string exceeds 128 chars. Initial S/W Revision A.05.00 Insert Waveform...
  • Page 850 9  ACP Measurement Source NOTE: When a waveform file is loaded to ARB memory, burst timing adjustments are made automatically, based on whether or not a Multiport Adapter is connected to the test set and powered on. If the connection/power status of the Multiport Adapter is changed after a waveform file has been loaded, it needs to be loaded again.
  • Page 851 9  ACP Measurement Source Example :SOUR:RAD:ARB:LOAD:ALL “D: varb” Notes <string> - specifies the directory on the HDD to load the files into ARB memory from. When in Sequence Analyzer mode, and Include Source is Yes, an attempt to load all files from a directory to ARB memory is rejected with an error.
  • Page 852 9  ACP Measurement Source Key Path Source, Modulation Setup, ARB, Select Waveform Initial S/W Revision A.05.00 Delete Segment From ARB Mem Allows you to remove a segment from ARB playback memory. Key Path Source, Modulation Setup, ARB, Select Waveform, Segments in ARB Memory Remote Command :SOURce:RADio:ARB:DELete <string>...
  • Page 853 9  ACP Measurement Source If the ARB is ON and you load a file to ARB memory or delete a file from ARB memory, the playing waveform segment may not keep phase continuity during the ARB memory operation. The waveform will be replayed after the ARB operation is finished.
  • Page 854 9  ACP Measurement Source Segments in ARB Memory This key functions the same as "Segments in ARB Memory" on page 2830. Key Path Source, Modulation Setup, ARB, Waveform Sequences, Build New Sequence, Insert New Waveform Initial S/W Revision Prior to A.09.00 Delete Segment From ARB Memory This key functions the same as "Delete Segment From ARB Mem"...
  • Page 855 9  ACP Measurement Source Key Path Source, Modulation Setup, ARB, Waveform Sequences, Build New Sequence, Edit Selected Waveform Notes No remote command, SCPIfront panel only. Preset 65535 Initial S/W Revision A.05.00 Marker 1 Allows you to enable or disable marker 1 for the currently selected waveform. For a waveform sequence, you can enable and disable markers on a per-segment basis, allowing you to output markers from some waveform segments within the sequence, but not for others.
  • Page 856 9  ACP Measurement Source Waveform Notes No remote command, front panel only. Preset Enabled Range Enabled|Disabled Initial S/W Revision A.05.00 Marker 4 Allows you to enable or disable marker 4 for the currently selected waveform. For a waveform sequence, you can enable and disable markers on a per-segment basis, allowing you to output markers from some waveform segments within the sequence, but not for others.
  • Page 857 9  ACP Measurement Source This command writes a waveform sequence file to the hard disk. You must specify the waveform sequence file path and filename which will be saved on the hard disk, and the waveform segment file path and name which will be nested into the waveform sequence file.
  • Page 858 9  ACP Measurement Source This variable specifies the number of times a segment or sequence plays before moving on to the next segment or sequence. <marker> - Enum Type NONE – This choice disables all four markers for the waveform. Disabling markers means that the waveform sequence ignores the segments or sequence marker settings.
  • Page 859 Allows you access to the Multi - Pack License sub-menus. Pressing this key also changes the central view area to display the Multi -Pack License Management view. On modular instrument like E6630A or E6640A, multi-pack license operations are only allowed on the default module, i.e. “Left” module for E6630A or “TRX1” module for E6640A.
  • Page 860 9  ACP Measurement Source Add Waveform Pressing this key accesses the Add Waveform sub-menu. It also changes the central display area to display the Multi-Pack License Waveform Add view. Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses Dependencies This key is only available if there is at least one slot available within at least one multi-pack license.
  • Page 861 9  ACP Measurement Source Key Path Source, Modulation Setup, ARB, Select Waveform Initial S/W Revision A.05.00 Load Segment To ARB Memory Allows you to load the selected file into ARB memory. On the front panel you select the file for loading to the ARB memory by highlighting the desired file in the list.
  • Page 862 9  ACP Measurement Source case, a GUI only warning message –800, “Operation complete; Loaded <filename> successfully, but no license <required licenses> installed”. User can install required licenses according to <required licenses> string to license it, or multi-pack license it. Initial S/W Revision A.05.00 Load All To ARB Memory Allows you to load all the segment files within the currently selected directory into ARB memory.
  • Page 863 9  ACP Measurement Source Default Directory... Allows you to change the default directory. It is used as a search location for waveform segments that are required to be loaded into ARB memory for playback of a waveform sequence, and as a search location for selecting waveforms using SCPI.
  • Page 864 9  ACP Measurement Source Default Directory … This key functions the same as "Default Directory..." on page 2830 Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses, Add Waveform, Segment on Hard Drive Initial S/W Revision Prior to A.09.00 Replace Waveform Pressing this key accesses the Replace Waveform submenu.
  • Page 865 9  ACP Measurement Source Segments on Hard Disk This key functions the  same as  "Segments on Hard Disk" on page 2828. Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses, Replace Waveform Initial S/W Revision Prior to A.09.00 Load Segment To ARB Memory This key functions the same as "Load Segment To ARB Memory"...
  • Page 866 9  ACP Measurement Source Key Path Source, Modulation Setup, ARB, Waveform Utilities, Multi-Pack Licenses Remote Command :SYSTem:LKEY:WAVeform:CLEar <int> :SYSTem:LICense[:FPACk]:WAVeform:CLEar <int> Example SYST:LKEY:WAV:CLE 1 :SYST:LIC:WAV:CLE 1 Notes The second SCPI :SYSTem:LICense[:FPACk]:WAVeform:CLEar is provided to be consistent with the style of Agilent  signal sources. You can use either one of them. Waveform slot number <int>...
  • Page 867 9  ACP Measurement Source Slot Status Query (Remote Command Only) Returns the status of the specified slot. Remote Command :SYSTem:LKEY:WAVeform:STATus? <int> :SYSTem:LICense[:FPACk]:WAVeform:STATus? <int> Example :SYST:LKEY:WAV:STAT? 1 <"Locked" :SYST:LIC:WAV:STAT? 1 <"Locked" Notes The second SCPI :SYSTem:LICense[:FPACk]:WAVeform:STATus is provided to be consistent with the style of Agilent ...
  • Page 868 9  ACP Measurement Source :SYST:LIC:WAV:USED? Notes The second SCPI :SYSTem:LICense[:FPACk]:WAVeform:USED is provided to be consistent with the style of Agilent  signal sources. You can use either one of them. Initial S/W Revision A.05.00 Slot Waveform Name Query (Remote Command Only) Returns the waveform name of the specified slot Remote Command :SYSTem:LKEY:WAVeform:NAME? <int>...
  • Page 869 9  ACP Measurement Source If  no waveform stored in the specified slot, then “0” is returned Initial S/W Revision A.12.00 Locked Waveform Name List Query (Remote Command Only) Returns the waveform name list of locked. Remote Command :SOURce:RADio:ARB:MPLicensed:NAME:LOCKed? Example SOUR:RAD:ARB:MPL:NAME:LOCKed? <"CDMA2K_27.wfm", "GSM_MCS1.WFM", "c2kWfm.wfm"...
  • Page 870 9  ACP Measurement Source Mkr 1 Polarity Allows you to set the polarity of marker 1. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Polarity Remote Command :SOURce:RADio:ARB:MPOLarity:MARKer1 POSitive|NEGative :SOURce:RADio:ARB:MPOLarity:MARKer1? Example :SOUR:RAD:ARB:MPOL:MARK1 NEG Dependencies When a new waveform is selected for playback the settings contained within the associated waveform header file are applied to the ARB.
  • Page 871 9  ACP Measurement Source waveform header file are applied to the ARB. The marker polarity is one of the values stored within the header file. If the newly selected waveform file has an associated header file, the marker polarity is updated with the value from the header file. The marker polarity will remain unchanged if the newly selected waveform does not have an associated header file.
  • Page 872 9  ACP Measurement Source Marker points should be set before using this function. Enabling this function without setting maker points may create a continuous low or high signal, dependant on the marker polarity. This causes either no RF output, or a continuous RF output. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing Remote Command...
  • Page 873 9  ACP Measurement Source Marker 3 Sets marker 3 to be used for the pulse/RF blanking function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, Pulse/RF Blank Example :SOUR:RAD:ARB:MDES:PULS M3 Initial S/W Revision A.05.00 Marker 4 Sets marker 4 to be used for the pulse/RF blanking function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, Pulse/RF Blank Example...
  • Page 874 9  ACP Measurement Source Marker 1 Sets marker 1 to be used for the ALC hold function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, ALC Hold Example :SOUR:RAD:ARB:MDES:PULS M1 Initial S/W Revision A.05.00 Marker 2 Sets marker 2 to be used for the ALC hold function. Key Path Source, Modulation Setup, ARB, Marker Utilities, Marker Routing, ALC Hold Example...
  • Page 875 9  ACP Measurement Source Clear Header Allows you to clear the header information from the file header associated with the currently selected waveform. Key Path Source, Modulation Setup, ARB, Header Utilities Remote Command :SOURce:RADio:ARB:HEADer:CLEar Example :SOUR:RAD:ARB:HEAD:CLE Notes Attempting to clear the header details via SCPI when no waveform was selected for playback will generate an error.
  • Page 876 9  ACP Measurement Source Bus Trigger Command (Remote Command Only) Used to initiate an immediate trigger event if the trigger source is set to Bus. Remote Command :SOURce:RADio:ARB:TRIGger:INITiate Example :SOUR:RAD:ARB:TRIG:INIT Initial S/W Revision A.05.00 Allows access to the menu for configuring the Amplitude Modulation. Key Path Source, Modulation Setup Initial S/W Revision...
  • Page 877 9  ACP Measurement Source AM Rate Allows you to set the internal amplitude modulation rate. Key Path Source, Modulation Setup, AM Remote Command :SOURce:AM:INTernal:FREQuency :SOURce:AM:INTernal:FREQuency? Example :SOUR:AM:INT:FREQ 40.0 Hz Preset 400.0 Hz 10 Hz 40 kHz Initial S/W Revision A.05.00 Allows access to the menu for configuring the frequency modulation.
  • Page 878 9  ACP Measurement Source Remote Command :SOURce:FM[:DEViation] :SOURce:FM[:DEViation]? Example :SOUR:FM 1.00 kHz Preset 1.00 Hz 1.00 Hz 100.00 kHz Initial S/W Revision A.05.00 FM Rate Allows you to set the internal frequency modulation rate. Key Path Source, Modulation Setup, FM Remote Command :SOURce:FM:INTernal:FREQuency :SOURce:FM:INTernal:FREQuency?
  • Page 879 9  ACP Measurement Source Preset Range On | Off Initial S/W Revision A.05.00 PM Deviation Allows you to set the phase modulation deviation. Key Path Source, Modulation Setup, PM Remote Command :SOURce:PM[:DEViation] :SOURce:PM[:DEViation]? Example :SOUR:PM 1.00 rad Preset 0.1 rad 0.1 rad 20.0 rad Initial S/W Revision...
  • Page 880 9  ACP Measurement Source tabular form. The details of the SCPI for configuring the list sequencer can be found in "Step Configuration (Remote Command Only)" on page 2835. Once the List Sequencer has been configured using the front panel, SCPI, or loading in a tab delimited file, the sequence must be initiated using the front panel Initiate Sequence key or the corresponding SCPI command.
  • Page 881 9  ACP Measurement Source and an error will be generated. There is a blocking SCPI query which can be used to query if source list sequence being initiated successfully or not. (see "Query List Sequence Initiation Armed Status (Remote Command Only)" on page 2846 Query Source List Sequence Armed Status) Dependencies...
  • Page 882 9  ACP Measurement Source Notes No remote command, front panel only. Preset Step Count Initial S/W Revision A.05.00 Insert Step Before Allows you to insert a new step, containing default values, before the currently selected step. Inserting a step will automatically increase the Step Count parameter by 1. If sequence already reaches upper limit of 1000 steps, then insert more step will be rejected and popup error –221, “Setting Conflict;...
  • Page 883 9  ACP Measurement Source Key Path Source, List Sequencer, List Sequencer Setup Remote Command :SOURce:LIST:STEP[1]|2|3…1000:SETup:INPut:TRIGger IMMediate | INTernal | EXTernal2 | KEY | BUS | EXTernal4 :SOURce:LIST:STEP[1]|2|3…1000:SETup:INPut:TRIGger? Example :SOUR:LIST:STEP2:SET:INP:TRIG BUS :SOUR:LIST:STEP2:SET:INP:TRIG? Notes SCPI is supported after A.09.40 Preset Free Run Range Free Run | Internal | Manual (Trigger Key) | Bus | External 2| EXTernal4 Initial S/W Revision...
  • Page 884 SCPI is supported after A.09.40 Notes Note: When on E6640A, trigger 2 is a bi-directional trigger port. So when trigger 2 has been configured as OUTPUT type, choosing External 2 as the input trigger for the current step will generate error.
  • Page 885 9  ACP Measurement Source If the Transition Time value is shorter than the time necessary for the hardware to settle and a List Sequence is initiated, a warning is generated. If the Transition Time value is longer than the Step Duration, an error is generated when initiating a source list sequence.
  • Page 886 9  ACP Measurement Source BAND39 | BAND40 | BAND41 | BAND42 | BAND43 | BAND44 | BANDA | BANDB | BANDC | BANDD | BANDE | BANDF :SOURce:LIST:STEP[1]|2|3…1000:SETup: RADio:BAND? Example :SOUR:LIST:STEP2:SET:RAD:BAND PGSM :SOUR:LIST:STEP2:SET:RAD:BAND? Notes SCPI is supported after A.09.40 Initial S/W Revision A.05.00 None Selects no radio standard for use on the current step.
  • Page 887 9  ACP Measurement Source R-GSM Selects R-GSM as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision A.05.00 DCS 1800 Selects DCS 1800 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision...
  • Page 888 9  ACP Measurement Source GSM 700 Selects GSM 700 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision A.05.00 T-GSM 810 Selects T-GSM 810 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, GSM/EDGE Initial S/W Revision...
  • Page 889 9  ACP Measurement Source Band IV Selects Band IV as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision A.05.00 Band V Selects Band V as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision...
  • Page 890 9  ACP Measurement Source Band X Selects Band X as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision A.05.00 Band XI Selects Band XI as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, WCDMA Initial S/W Revision...
  • Page 891 9  ACP Measurement Source CDMA 2000 / 1xEVDO Pressing this key once selects CDMA 2000/1xEVDO as the radio standard and the current CDMA 2000/1xEVDO band as the active channel band. Pressing this key again allows access to the sub-menus for selecting a different CDMA 2000/1xEVDO band. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard Initial S/W Revision...
  • Page 892 9  ACP Measurement Source Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision A.05.00 IMT 2000 Selects IMT 2000 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision A.05.00 Upper 700...
  • Page 893 9  ACP Measurement Source Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision A.05.00 US PCS 1.9GHz Selects US PCS 1.9 GHz as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, CDMA 2000 / 1xEVDO Initial S/W Revision A.05.00...
  • Page 894 9  ACP Measurement Source Pressing this key once selects LTE FDD as the radio standard and the current LTE FDD band as the active channel band. Pressing this key again allows access to the sub-menus for selecting a different LTE FDD band.
  • Page 895 9  ACP Measurement Source BAND 6 Selects BAND 6 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.09.50 BAND 7 Selects BAND 7 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 896 9  ACP Measurement Source BAND 12 Selects BAND 12 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.09.50 BAND 13 Selects BAND 13 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 897 9  ACP Measurement Source BAND 20 Selects BAND 20 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.09.50 BAND 21 Selects BAND 21 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 898 9  ACP Measurement Source BAND 28 Selects BAND 28 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision A.14.00 BAND 31 Selects BAND 31 as the band for the current step. Key Path Source, List Sequencer, List Sequencer Setup, Radio Setup, Radio Standard, LTE Initial S/W Revision...
  • Page 899 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND35 Initial S/W Revision A.11.50 BAND 36 Selects BAND 36 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND36 Initial S/W Revision...
  • Page 900 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND40 Initial S/W Revision A.11.50 BAND 41 Selects BAND 41 as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, LTE TDD Example :SOUR:FREQ:CHAN:BAND BAND41 Initial S/W Revision...
  • Page 901 9  ACP Measurement Source Key Path Source, Frequency, Radio Setup, Radio Standard Initial S/W Revision A.11.50 BAND A Selects BAND A as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDA Initial S/W Revision A.11.50 BAND B...
  • Page 902 9  ACP Measurement Source Example :SOUR:FREQ:CHAN:BAND BANDE Initial S/W Revision A.11.50 BAND F Selects BAND F as the band for the current step. Key Path Source, Frequency, Radio Setup, Radio Standard, TDSCDMA Example :SOUR:FREQ:CHAN:BAND BANDF Initial S/W Revision A.11.50 Radio Band Link Allows you to specify the radio band link direction for the steps within the list sequence.
  • Page 903 9  ACP Measurement Source This SCPI is used to setup channel number or frequency setting, according to current Radio Band setting. If Radio Band is “NONE”, then it’s frequency. If Radio Band is not “NONE”, then it’s channel number. Couplings The channel number is coupled to the step frequency value.
  • Page 904 9  ACP Measurement Source Key Path Source, List Sequencer, List Sequencer Setup Remote Command :SOURce:LIST:STEP[1]|2|3…1000:SETup:AMPLitude <double> :SOURce:LIST:STEP[1]|2|3…1000:SETup:AMPLitude? Example :SOUR:LIST:STEP2:SET:AMPL –50dBm :SOUR:LIST:STEP2:SET:AMPL? Notes SCPI is supported after A.09.40 Notes Amplitude corrections can be specified for use with the source. In the event of amplitude corrections being applied, the valid ranges for the RF power do not change dependant on the current amplitude correction setting.
  • Page 905 9  ACP Measurement Source Preset Range Waveform | Continue Previous | CW | Off Initial S/W Revision A.05.00 Sets the current step to output a CW tone. Key Path Source, List Sequencer, List Sequencer Setup, Waveform Example :SOUR:LIST:STEP2:SET:WAV “CW” Notes SCPI is supported after A.09.40 Initial S/W Revision A.05.00...
  • Page 906 9  ACP Measurement Source Key Path Source, List Sequencer, List Sequencer Setup, Waveform Example :SOUR:LIST:STEP2:SET:WAV “Off” Notes SCPI is supported after A.09.40 Initial S/W Revision A.05.00 Segments on Hard Disk Allows you access to the sub-menus for loading waveform segments from the hard disk into ARB memory. The default directory is: D: varb.
  • Page 907 9  ACP Measurement Source When in Sequence Analyzer mode, and Include Source is Yes, an attempt to load a file to ARB memory will be rejected with an error. When Include Source is Noand if there is insufficient free ARB memory to load the selected waveform, an error is generated.
  • Page 908 9  ACP Measurement Source Change Directory... Allows you to change the currently selected directory on the hard disk. Pressing this key opens a standard windows change directory dialog allowing you to select the new directory of interest. The current directory is used for manually loading waveform segments into ARB memory for playback, and as a search location for waveform segments that are required to be loaded into ARB memory for playback of a waveform sequence or a list sequence.
  • Page 909 9  ACP Measurement Source memory is rejected with an error. When Include Source is No and you specify a file that does not exist within ARB memory, an error is generated. It is possible to delete files from within the ARB memory when the ARB is ON. However, if you attempt to delete the file that is currently playing an error is generated.
  • Page 910 9  ACP Measurement Source Load Segment To ARB Memory This key functions the same as "Load Segment To ARB Memory" on page 2828. Key Path Source, List Sequencer, List Sequencer Setup, Waveform, Segment on Hard Drive Initial S/W Revision Prior to A.09.00 Load All To ARB Memory This key functions the same as ...
  • Page 911 9  ACP Measurement Source Delete All From ARB Memory This key functions the same as  "Delete All From ARB Memory" on page 2831. Key Path Source, List Sequencer, List Sequencer Setup, Waveform, Segments in ARB Memory, Segment in ARB Memory Initial S/W Revision Prior to A.09.00 Step Duration...
  • Page 912 9  ACP Measurement Source When Step Duration is Continuous Abort this parameter specifies the maximum duration that the waveform will continue to play after a step trigger is received before the transition to the next waveform will occur. Duration is limited to a maximum of 20 seconds. If the Transition Time value is longer than the Step Duration Time, an error is generated when initiating a source list sequence.
  • Page 913 9  ACP Measurement Source Key Path Source, Modulation Setup, ARB Dependencies This key is only available if there is currently a waveform selected for playback. If no waveform is selected, the key is grayed out. Initial S/W Revision A.05.00 Continuous Sets the current step to be played continuously until the next step starts.
  • Page 914 9  ACP Measurement Source BUS | EXTernal2, <time>, NONE | PGSM | EGSM | RGSM | DCS1800 | PCS1900 | TGSM810 | GSM450 | GSM480 | GSM700 | GSM850 | BANDI | BANDII | BANDIII | BANDIV | BANDV | BANDVI | BANDVII | BANDVIII | BANDIX | BANDX | BANDXI | BANDXII | BANDXIII | BANDXIV | BANDXIX | USCELL | USPCS | JAPAN | KOREAN | NMT | IMT2K | UPPER | SECOND | PAMR400 | PAMR800 | IMTEXT | PCS1DOT9G | AWS | US2DOT5G | PUBLIC | LOWER | NONE | BAND1 |...
  • Page 915 9  ACP Measurement Source Duration" on page 2833. 9. Time or Count <time/int> – specifies time duration in seconds or play count of the ARB file associated with the step. For further details of this setting, including the valid ranges for the time or play count setting, "Time"...
  • Page 916 9  ACP Measurement Source :SOUR:LIST:SET:TRAN:TIME? Notes The command is to setup below parameter array of whole list sequence. Transition Time <time> – specifies the transition time for the stepin seconds. For details of the valid ranges for the transition time see "Transition Time"...
  • Page 917 9  ACP Measurement Source 9|BAND20|BAND21|BAND24|BAND25|BAND26|BAND33|BAND34|BAND35|BAND36|BAND37|BAND38|BAND39|BAND40|BAN D41|BAND42|BAND43|BANDA|BANDB|BANDC|BANDD|BANDE|BANDF The range is 1 to 1000 which is determined by the number of steps you have configured. For details see "Number of Steps" on page 2803. A.09.40 W-CDMA & HSPA Measurement Applications Reference...
  • Page 918 9  ACP Measurement Source Step Configuration of Radio Band Link parameter list (Remote Command Only) This SCPI command is to configure “Radio Band Link” parameter array of the whole List Sequencer at one time. The number of array is same as step number defined in "Number of Steps"...
  • Page 919 9  ACP Measurement Source legal step number will be updated. Dependencies The range is 1 to 1000 which is determined by the number of steps you have configured. For details "Number of Steps" on page 2803. Initial S/W Revision A.09.40 Step Configuration of Power parameter list (Remote Command Only) This SCPI command is to configure “Power”parameter array of the whole List Sequencer at one time.
  • Page 920 9  ACP Measurement Source CONT – continues playback of the ARB file from the previous step CW – outputs a CW tone OFF – disable RF output If input parameter number exceeds the step number defined by "Number of Steps" on page 2803Number of Steps then generate error ", and only those parametes whose index number falls in number of steps will be updated.
  • Page 921 9  ACP Measurement Source Example :SOUR:LIST:SET:TOC 1s,2s,3s :SOUR:LIST:SET:TOC? :SOUR:LIST:SET:TOC 5,6,7 :SOUR:LIST:SET:TOC? Notes The command is to setup below parameter array of whole list sequence. Time or Count <time/int> – specifies time duration in seconds or play count of the ARB file associated with the step.
  • Page 922 9  ACP Measurement Source Remote Command :SOURce:LIST:SETup:CLEar Example :SOUR:LIST:SETup:CLE Initial S/W Revision A.05.00 Trigger Type Allows access to the sub-menu for selecting the output trigger type for the list sequencer globally. It cannot be changed between different sequence steps. Key Path Source, List Sequencer Remote Command :SOURce:LIST:TRIGgerout:TYPe BEGinningofstep|DATamarker...
  • Page 923 9  ACP Measurement Source Key Path Source, List Sequencer, Trigger Type, DataMarker Example :SOUR:LIST:TRIG:TYPE:MARK M1 Notes SCPI is supported after A.14.00 Initial S/W Revision A.14.00 Marker 2 Sets the output trigger maker routing to Marker 2 for DataMarker  in  the whole source sequence. Key Path Source, List Sequencer, Trigger Type, DataMarker Example...
  • Page 924 9  ACP Measurement Source Remote Software Trigger (Remote command Only) During execution of a list sequence, the sequence will halt and wait at any step that has Step Trigger set to “Bus”. Sending this command will trigger the step and continue the sequence. Remote Command :SOURce:LIST:TRIGger:INITiate[:IMMediate] Example...
  • Page 925 9  ACP Measurement SPAN X Scale SPAN X Scale Accesses a menu of functions that enable you set the horizontal scale parameters. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Span Changes the frequency range symmetrically about the center frequency. The default (and minimum) span is calculated using the number of carriers and the carrier width where;...
  • Page 926 9  ACP Measurement SPAN X Scale Option 508 = 8.5 GHz Option 513 = 13.8 GHz Option 526 = 27.0 GHz Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Full Span Changes the span to show the full frequency range of the spectrum analyzer. Key Path SPAN X Scale Mode...
  • Page 927 9  ACP Measurement Sweep/Control Sweep/Control Accesses a menu of functions that enable you to set up and control the acquisition time,  and source. See Key and Command Descriptions – Sweep/Control for more information. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Acq Time Sets the acquisition time;...
  • Page 928 9  ACP Measurement Sweep/Control State Saved Saved in instrument state. 100 ns 4000 s Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00, A.03.00 Sweep Setup Accesses the sweep setup menu. Key Path Sweep/Control Initial S/W Revision Prior to A.02.00 Auto Sweep Time Rules Switches the analyzer between normal and accuracy sweep states.
  • Page 929 9  ACP Measurement Sweep/Control See Pause/Resume for more details. Key Path Sweep/Control Initial S/W Revision Prior to A.02.00 Gate Accesses a menu that enables you to control the gating function.  The Gate functionality is used to view signals best viewed by qualifying them with other events. Gate setup parameters are the same for all measurements –...
  • Page 930 9  ACP Measurement Sweep/Control • Whenever Gate is on, Meas Method, RBW or FAST is unavailable and keys for those are grayed out. • When Gate is on, Offset Res BW and Offset Video BW are ignored (if you set these values) and the measurement works as if all Offset Res BW and all Offset Video BW are coupled with the Res BW and the Video BW under the BW menu.
  • Page 931 9  ACP Measurement Sweep/Control • When Gate View is turned on, the sweep time used is the gate view sweep time. This is set according to the rules in section "Gate View Setup " on page 1571 • When Gate View is turned off, Sweep Time is set to the normal Swept SA measurement sweep time.
  • Page 932 9  ACP Measurement Sweep/Control Turning Gate View off returns the analyzer to the Normal measurement view. In the Swept SA, the normal measurement view is the single-window Swept SA view. When returning to this view, the Swept SA measurement returns to the Span it was in before entering Gate View (even if that is Zero Span).
  • Page 933 9  ACP Measurement Sweep/Control Gate View Setup Accesses a menu that enables you to setup parameters relevant to the Gate View Key Path Sweep/Control, Gate Scope Meas Global Initial S/W Revision A.10.00 Gate View Acquisition Time Controls the acquisition time in the Gate View window. To provide an optimal view of the gate signal, the analyzer initializes Gate View Acq Time based on the current settings of Gate Delay and Gate Length.
  • Page 934 9  ACP Measurement Sweep/Control Preset 0 ms State Saved Saved in instrument state 500 ms Initial S/W Revision A.10.00 Gate Delay Controls the length of time from the time the gate condition goes True until the gate is turned on. Key Path Sweep/Control, Gate Remote Command...
  • Page 935 9  ACP Measurement Sweep/Control Notes Units of time are required or no units; otherwise an invalid suffix error message will be generated. Preset 461.6 us WiMAX OFDMA: 50 us GSM/EDGE: 200 us WLAN: 1.54 ms WLAN: 32 us State Saved Saved in instrument state 100 ns Backwards...
  • Page 936 9  ACP Measurement Sweep/Control Video (IF Envelope) Pressing this key, when it is not selected, selects the video signal as the trigger. The Video trigger condition is met when the video signal (the filtered and detected version of the input signal, including both RBW and VBW filtering) crosses the video trigger level.
  • Page 937 9  ACP Measurement Sweep/Control you have dropped the trigger line that far below the displayed signal level, rather than simply dropping it down to the displayed signal level.  Note that other corrections, specifically External Gain and Ref Level Offset, modify the actual trace data as it is taken and therefore ARE taken into account by Trig Level.
  • Page 938 9  ACP Measurement Sweep/Control :TRIGger[:SEQuence]:SLOPe? Example TRIG:SLOP NEG Preset POSitive State Saved Saved in instrument state Backwards Compatibility In ESA/PSA, the Trigger Slope was global to all triggers.  In the X-Series, the slope can be set Notes individually for each Trigger Source.  For backward compatibility, the global SLOPe command updates all instances of trigger slope (VID, LINE, EXT1, EXT2, TV, RFB).
  • Page 939 9  ACP Measurement Sweep/Control selection in the Gate Source menu. Preset 1.2 V State Saved Saved in instrument state –5 V Default Unit Backwards :TRIGger[:SEQuence]:EXTernal:LEVel Compatibility SCPI For backward compatibility, the parameter EXTernal is mapped to EXTernal1 Backwards :TRIGger[:SEQuence]:FRAMe:EXTernal1:LEVel Compatibility SCPI Initial S/W Revision Prior to A.02.00 Trig Slope...
  • Page 940 9  ACP Measurement Sweep/Control Key Path Trigger, External 1 Remote Command :TRIGger[:SEQuence]:EXTernal1:DELay:COMPensation OFF|ON|0|1 :TRIGger[:SEQuence]:EXTernal1:DELay:COMPensation? Example TRIG:EXT1:DEL:COMP ON Dependencies No effect except in zero-span, but not locked out in nonzero spans. Blanked in modes that do not support zero-span measurements.  If the SCPI command is sent when the key is blanked, an error is returned: ...
  • Page 941 9  ACP Measurement Sweep/Control Key Path Trigger, External 2 Remote Command :TRIGger[:SEQuence]:EXTernal2:LEVel :TRIGger[:SEQuence]:EXTernal2:LEVel? Example TRIG:EXT2:LEV 1.1 V Couplings This same level is used for the Ext2 trigger source in the Trigger menu, for the Ext2 selection in the Periodic Timer sync source (in the Trigger menu and in the Gate Source menu), and also for the Ext2 selection in the Gate Source menu.
  • Page 942 9  ACP Measurement Sweep/Control events line up exactly with the zero time point in zero span.  You can use the Zero Span Delay Comp On/Off feature to enable or disable zero span delay compensation. Key Path Trigger, External 2 Remote Command :TRIGger[:SEQuence]:EXTernal2:DELay:COMPensation OFF|ON|0|1 :TRIGger[:SEQuence]:EXTernal2:DELay:COMPensation? Example...
  • Page 943 9  ACP Measurement Sweep/Control Absolute Trigger Level Sets the absolute trigger level for the RF burst envelope. When using the External Mixing path, the Absolute Trigger Level is uncalibrated because the factory default was set to accommodate the expected IF levels for the RF path. Key Path Trigger, RF Burst Scope...
  • Page 944 9  ACP Measurement Sweep/Control Relative Trigger Level Sets the relative trigger level for the RF burst envelope. In some models, the relative burst trigger function is implemented in hardware.  In other models, without the advanced triggering hardware required, the relative burst trigger function is implemented in software in some measurements, and is unavailable in other measurements.
  • Page 945 9  ACP Measurement Sweep/Control had ONLY relative burst triggering Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.04.00 Trigger Slope It is set positive to trigger on a rising edge and negative to trigger on a falling edge. Key Path Trigger, RF Burst Remote Command...
  • Page 946 9  ACP Measurement Sweep/Control Periodic Timer Triggering: This feature selects the internal periodic timer signal as the trigger. Trigger occurrences are set by the Periodic Timer parameter, which is modified by the Sync Source and Offset. The figure below shows the action of the periodic timer trigger. Before reviewing the figure, we’ll explain some uses for the periodic trigger.
  • Page 947 9  ACP Measurement Sweep/Control Period Sets the period of the internal periodic timer clock. For digital communications signals, this is usually set to the frame period of your current input signal. In the case that sync source is not set to OFF, and the external sync source rate is changed for some reason, the periodic timer is synchronized at the every external synchronization pulse by resetting the internal state of the timer circuit.
  • Page 948 9  ACP Measurement Sweep/Control that internal offset is unknown, we will just call that the accumulated offset. Whenever the Offset parameter is changed, you are changing that accumulated offset. You can reset the displayed offset using Reset Offset Display. Changing the display does not change the value of the accumulated offset, and you can still make additional changes to accumulated offset.
  • Page 949 9  ACP Measurement Sweep/Control Remote Command :TRIGger[:SEQuence]:FRAMe:ADJust <time> Example TRIG:FRAM:ADJ 1.2 ms Notes Note also that Offset is used only when the sync source is set to OFF, otherwise delay is used, see section "Trig Delay" on page 357 An increase in the "offset" parameter, either from the knob or the SCPI adjust command, serves to delay the timing of the trigger event.
  • Page 950 9  ACP Measurement Sweep/Control For convenience you may adjust the level and slope of the selected sync source in a conditional branch setup menu accessed from the Sync Source menu. Note that these settings match those in the Trigger and Gate Source menus;...
  • Page 951 9  ACP Measurement Sweep/Control TRIG:<meas>:SOUR EXT1   Measurements other than Swept  SA Dependencies Grayed out if in use by Point Trigger in the Source Setup menu.  Forced to Free Run if already selected and Point Trigger is set to External 1. State Saved Saved in instrument state Status Bits/OPC...
  • Page 952 9  ACP Measurement Sweep/Control :TRIGger[:SEQuence]:EXTernal1:SLOPe? Example TRIG:EXT1:SLOP NEG Couplings This same slope is used in the Ext1 selection for the trigger source in the Trigger menu and for the period timer sync source (in the Trigger menu and in the Gate Source menu). Preset POSitive State Saved...
  • Page 953 9  ACP Measurement Sweep/Control Key Path Trigger, External 2 Remote Command :TRIGger[:SEQuence]:EXTernal2:LEVel :TRIGger[:SEQuence]:EXTernal2:LEVel? Example TRIG:EXT2:LEV 1.1 V Couplings This same level is used for the Ext2 trigger source in the Trigger menu, for the Ext2 selection in the Periodic Timer sync source (in the Trigger menu and in the Gate Source menu), and also for the Ext2 selection in the Gate Source menu.
  • Page 954 9  ACP Measurement Sweep/Control In some models, a variety of burst trigger circuitry is available, resulting in various available burst trigger bandwidths.  The analyzer automatically chooses the appropriate trigger path based on the hardware configuration and other settings of the analyzer. Key Path Trigger Example...
  • Page 955 9  ACP Measurement Sweep/Control RF Burst selection in the Gate Source menu Preset –20 dBm State Saved Saved in instrument state –200 dBm 100 dBm Default Unit depends on the current selected Y-Axis unit Backwards :TRIGger[:SEQuence]:FRAMe:RFBurst:LEVel:ABSolute Compatibility SCPI Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.04.00...
  • Page 956 9  ACP Measurement Sweep/Control Sync Holdoff Sync Holdoff specifies the duration that the sync source signal must be kept false before the transition to true to be recognized as the sync timing. The periodic timer phase is aligned when the sync source signal becomes true, after the Holdoff time is satisfied.
  • Page 957 9  ACP Measurement Sweep/Control Key Path Trigger, Auto/Holdoff Remote Command :TRIGger[:SEQuence]:ATRigger <time> :TRIGger[:SEQuence]:ATRigger? :TRIGger[:SEQuence]:ATRigger:STATe OFF|ON|0|1 :TRIGger[:SEQuence]:ATRigger:STATe? Example TRIG:ATR:STAT ON TRIG:ATR 100 ms Notes The "time that the analyzer will wait" starts when the analyzer is ready for a trigger, which may be hundreds of ms after the data acquisition for a sweep is done.
  • Page 958 9  ACP Measurement Sweep/Control Gate Preset (Remote Command Only) Presets the time-gated spectrum analysis capability. This command sets gate parameter values to the ESA preset values, as follows: Gate trigger type = edge Gate polarity = positive Gate delay = 1 us Gate length = 1 us Remote Command [:SENSe]:SWEep:TIME:GATE:PRESet ...
  • Page 959 9  ACP Measurement Sweep/Control Remote Command [:SENSe]:SWEep:TIME:GATE:LEVel HIGH|LOW [:SENSe]:SWEep:TIME:GATE:LEVel? ESA compatibility Preset HIGH Initial S/W Revision Prior to A.02.00 Points Sets the number of points per sweep, from 1 to 20001. The acquisition time resolution setting will depend on the number of points selected. Key Path Sweep/Control Mode...
  • Page 960 9  ACP Measurement System System "System" on page 264 W-CDMA & HSPA Measurement Applications Reference...
  • Page 961 9  ACP Measurement Trace/Detector Trace/Detector Accesses a menu of functions that enable you to control the detectors for the current measurement. Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Select Trace (Front-panel Only) This key selects which trace the other parameters under the Trace/Detector menu will apply to. Key Path Trace/Detector Notes...
  • Page 962 9  ACP Measurement Trace/Detector When Meas Method is RBW or FAST, Trace Type is disabled. Preset AVERage State Saved Saved in instrument state. Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.02.00,  A.03.00 View/Blank Enables you to select how to view the displayed trace. Key Path Trace/Detector Mode...
  • Page 963 9  ACP Measurement Trace/Detector State Saved Saved in instrument state. Range Initial S/W Revision Prior to A.02.00 Modified at S/W Revision A.03.00 Key Path Trace/Detector Mode WCDMA, C2K, WIMAX OFDMA, TD-SCDMA, 1xEVDO, DVB-T/H, DTMB (CTTB), ISDB-T, CMMB, LTE, LTETDD Remote Command :TRACe[1]|2|3:ACPower:DISPlay[:STATe] ON|OFF|0|1 :TRACe[1]|2|3:ACPower:DISPlay[:STATe]? Example...
  • Page 964 9  ACP Measurement Trace/Detector determines the relationship between the spectrum computed by the FFT and the single data point displayed for the sweep points. Key Path Trace/Detector Initial S/W Revision Prior to A.02.00 Auto Sets the detector for the currently selected trace to auto. Key Path Trace/Detector Mode...
  • Page 965 9  ACP Measurement Trace/Detector other analyzer settings. The detector choices are: • The Normal detector determines the peak of CW-like signals, and it yields alternating maximums and minimums of noise-like signals. This is also referred to as Rosenfell detection. • The Average detector determines the average of the signal within the data range. The averaging method is Power (RMS).
  • Page 966 9  ACP Measurement Trigger Trigger "Trigger" on page 326 Free Run "Free Run " on page 333 Video "Video (IF Envelope) " on page 1574 Trigger Level "Trigger Level " on page 1574 Trig Slope "Trig Slope " on page 1575 Trig Delay "Trig Delay "...
  • Page 967 9  ACP Measurement Trigger Trig Delay "Trig Delay " on page 342 Zero Span Delay Comp "Zero Span Delay Comp On/Off" on page 1579 RF Burst "RF Burst " on page 1591 Absolute Trigger "Absolute Trigger Level" on page 1592 Relative Trigger "Relative Trigger Level"...
  • Page 968 9  ACP Measurement Trigger Trigger Level "Trigger Level " on page 1589 Trig Slope "Trig Slope " on page 1589 External 2 "External 2 " on page 1590 Trigger Level "Trigger Level " on page 1590 Trig Slope "Trig Slope " on page 1591 RF Burst "RF Burst "...
  • Page 969 9  ACP Measurement User Preset User Preset Accesses a menu that gives you the following three choices: • User Preset – recalls a state previously saved using the Save User Preset function. • User Preset All Modes – presets all of the modes in the analyzer •...
  • Page 970 9  ACP Measurement User Preset • Clears the input and output buffers. • Sets the Status Byte to 0. Key Path User Preset Remote Command :SYSTem:PRESet:USER Example :SYST:PRES:USER:SAVE:SYST:PRES:USER Notes :SYST:PRES:USER:SAVE is used to save the current state as the user preset state. Clears all pending OPC bits.
  • Page 971 9  ACP Measurement User Preset Recalling a User Preset file has the same issues that recalling a Save State file has. Some settings may need to be limited and therefore re-coupled, since the capabilities of the mode may have changes when the User Preset file was last saved. Initial S/W Revision Prior to A.02.00 Save User Preset...
  • Page 972 9  ACP Measurement View/Display View/Display Accesses a menu of functions that enable you to control the instrument display as well as turn the bar graph On and Off. If current mode is NOT MSR mode, the front panel views only contain one view: Spectrum View. The results of the measurement can be displayed as a single spectrum trace view or displayed with a Bar Graph trace on the spectrum trace.
  • Page 973 9  ACP Measurement View/Display DTMB and CMMB Exciter: W-CDMA & HSPA Measurement Applications Reference...
  • Page 974 9  ACP Measurement View/Display Spectrum Window When the Bar Graph is On and Limit Test is On, the color of each bar graph reflects the limit test result. When the limit test fails, the bar color is red, and when limit test passes, the bar color is blue. When RBW is selected as the measurement method, the spectrum trace is not displayed, only the bar graph is displayed.
  • Page 975 9  ACP Measurement View/Display This is the power in the reference carrier. The power is calculated by integrating across the bandwidth declared by the Carrier Integ Bw parameter for that carrier. The integration bandwidth is shown as part of the result. This is the value of the Carrier Integ Bw for that carrier unless the RRC Filter is on, then the integration bandwidth used is the displayed value, which is (1 + alpha)/T where T = 1/(Carrier Integ Bw).
  • Page 976 9  ACP Measurement View/Display Outside Relative Power = Outside Absolute Power – Carrier Power; Key Path Front-panel key Initial S/W Revision Prior to A.02.00 Display The Display menu is common to most measurements, and is used for configuring items on the display. Some Display menu settings apply to all the measurements in a mode, and some only to the current measurement. ...
  • Page 977 9  ACP Measurement View/Display Key Path View/Display, Display Initial S/W Revision Prior to A.02.00 Meas Bar On/Off This function turns the Measurement Bar on and off, including the settings panel. When off, the graticule area expands to fill the area formerly occupied by the Measurement Bar. Key Path View/Display, Display, Annotation Remote Command...
  • Page 978 9  ACP Measurement View/Display Screen This controls the display of the annunciation and annotation around the graticule, including any annotation on lines (such as the display line, the threshold line, etc.) and the y-axis annotation. This does NOT include marker annotation (or the N dB result). When off, the graticule expands to fill the entire graticule area, leaving only the 1.5% gap above the graticule as described in the Trace/Detector chapter.
  • Page 979 9  ACP Measurement View/Display Key Path View/Display, Display, Annotation Remote Command :DISPlay:ACTivefunc[:STATe] ON|OFF|1|0 :DISPlay:ACTivefunc[:STATe]? Example DISP:ACT OFF Dependencies Grayed out and forced to OFF when System Display Settings, Annotation is set to Off. Preset This should remain Off through a Preset when System DisplaySettings, Annotation is set to Off State Saved Saved in instrument state.
  • Page 980 9  ACP Measurement View/Display Press Change Title to enter a new title through the alpha editor. Press Enter or Return to complete the entry. Press ESC to cancel the entry and preserve your existing title. The display title will replace the measurement name. It remains for this measurement until you press Change Title again, or you recall a state, or a Preset is performed.
  • Page 981 9  ACP Measurement View/Display Graticule Pressing Graticule turns the display graticule On or Off. It also turns the graticule y-axis annotation on and off. Key Path View/Display, Display Remote Command :DISPlay:WINDow[1]:TRACe:GRATicule:GRID[:STATe] OFF|ON|0|1 :DISPlay:WINDow[1]:TRACe:GRATicule:GRID[:STATe]? Example DISP:WIND:TRAC:GRAT:GRID OFF Notes The graticule is the set of horizontal and vertical lines that make up the grid/divisions for the x-axis and y-axis.
  • Page 982 9  ACP Measurement View/Display Themes Accesses a menu of functions that enable you to choose the theme to be used when saving the screen image. The Themes option is the same as the Themes option under the Display and Page Setup dialogs. It allows you to choose between themes to be used when saving the screen image.
  • Page 983 9  ACP Measurement View/Display Flat Color Selects a format that is best when the screen is to be printed on an ink printer. Key Path Save, Screen Image, Themes Example MMEM:STOR:SCR:THEM FCOL Readback Flat Color Initial S/W Revision Prior to A.02.00 Flat Monochrome Selects a format that is like Flat Color.
  • Page 984 9  ACP Measurement View/Display W-CDMA & HSPA Measurement Applications Reference...
  • Page 985 (Undefined variable: Primary.ProductName) W-CDMA & HSPA Measurement Applications Reference 10 Spectrum Emission Mask Measurement The spectrum emission mask measures spurious signal levels in up to six pairs of offset frequencies and relates them to the carrier power. For measurement results and views, see "View/Display"...
  • Page 986 10  Spectrum Emission Mask Measurement Measurement Commands for Spectrum Emission Mask Offsets that are turned off (inactive) return –999.0 when their results are queried via SCPI. :CONFigure:SEMask :CONFigure:SEMask:NDEFault :INITiate:SEMask :FETCh:SEMask[n]? :MEASure:SEMask[n]? :READ:SEMask[n]? For more measurement related commands, see the SENSe subsystem, and the section "Remote Measurement Functions"...
  • Page 987 10  Spectrum Emission Mask Measurement Remote Command Results for Spectrum Emission Mask Measurement The following table describes the results returned by the FETCh, MEASure, and READ queries listed above, according to the index value n: Modes Return Value All except MSR, WLAN, LTEAFDD, Meas Type: Total Power Reference LTEATDD...
  • Page 988 10  Spectrum Emission Mask Measurement Modes Return Value 77. Minimum margin from limit line on the negative offset D (dB) 78. Minimum margin from limit line on the positive offset D (dB) 79. Minimum margin from limit line on the negative offset E (dB) 80.
  • Page 989 10  Spectrum Emission Mask Measurement Modes Return Value 75. Minimum margin from limit line on the negative offset C (dB) 76. Minimum margin from limit line on the positive offset C (dB) 77. Minimum margin from limit line on the negative offset D (dB) 78.
  • Page 990 10  Spectrum Emission Mask Measurement Modes Return Value 73. Minimum margin from limit line on the negative offset B (dB) 74. Minimum margin from limit line on the positive offset B (dB) 75. Minimum margin from limit line on the negative offset C (dB) 76.
  • Page 991 10  Spectrum Emission Mask Measurement Modes Return Value 69. Absolute peak power on the positive offset F (dBm) 70. Peak power offset frequency from the center or carrier edge frequency in the positive offset F, depending on Offset Frequency Define settings (Hz) 71.
  • Page 992 10  Spectrum Emission Mask Measurement Modes Return Value 21. Relative integrated power on the negative offset B (dB) 69. Absolute peak power on the positive offset F (dBm/Hz) 70. Peak power offset frequency from the center or carrier edge frequency in the positive offset F, depending on Offset Frequency Define settings (Hz) 71.
  • Page 993 10  Spectrum Emission Mask Measurement Modes Return Value right sub-block if Power Ref type is “Max Power Carrier in Sub-block.” Otherwise –999.0 is returned. (dBm) 3. Absolute integrated power at negative offset frequency (A) 4. Absolute integrated power at positive offset frequency (A) 25.
  • Page 994 10  Spectrum Emission Mask Measurement Modes Return Value 25. Absolute integrated power at negative offset frequency (L) 26. Absolute integrated power at positive offset frequency (L) In WLAN mode. Returns 26 comma-separated scalar values (in dBm/Hz) of the absolute integrated power of the segment frequencies: 1.
  • Page 995 10  Spectrum Emission Mask Measurement Modes Return Value If the result is not available, –999.0 is returned. The number of values returned is subject to change in future releases. Meas Type: Total Power Reference Returns comma-separated scalar values (in dBc) of the integrated power relative to the carrier at the segment frequencies. ...
  • Page 996 10  Spectrum Emission Mask Measurement Modes Return Value When in the MSR and LTE-Advanced FDD/TDD mode, returns outer offset results when Non- Contiguous Meas Region is set to Outer, and returns inner offset results when it is set to Inner, in the following order.
  • Page 997 10  Spectrum Emission Mask Measurement Modes Return Value 25. At negative offset frequency (L) 26. At positive offset frequency (L) The number of values returned is subject to change in future releases. Offset Peak Power Freq. Returns comma-separated scalar values of frequency (in Hz) that have peak power from center or carrier edge frequency in each offset, depending on Offset Frequency Define settings.
  • Page 998 10  Spectrum Emission Mask Measurement Modes Return Value 1. Reserved for the future use, returns –999.0 2. Reserved for the future use, returns –999.0 3. At negative offset frequency (A) 4. At positive offset frequency (A) 25. At negative offset frequency (L) 26.
  • Page 999 10  Spectrum Emission Mask Measurement Modes Return Value If the result is not available, NaN (9.91E+37) is returned. The length of the result depends on the number of available offset (See "Number of Offsets" on page 1002).  The number of values returned is subject to change in future releases. Meas Type: Power Spectral Density Reference Returns comma-separated scalar results, in the following order: When in the MSR and LTE-Advanced FDD/TDD mode, returns outer offset results when Non-...
  • Page 1000 10  Spectrum Emission Mask Measurement Modes Return Value 5. Peak power offset frequency from the center or carrier edge frequency in the negative offset A, depending on Offset Frequency Define settings (Hz) 6. Reserved for the future use, returns NaN (9.91E+37) 7.
