Removing Monitors From Keyboards; Associating Keyboards To Satellites; Adding Keyboard Definitions - American Dynamics MegaPower 3200 Administrator's Manual

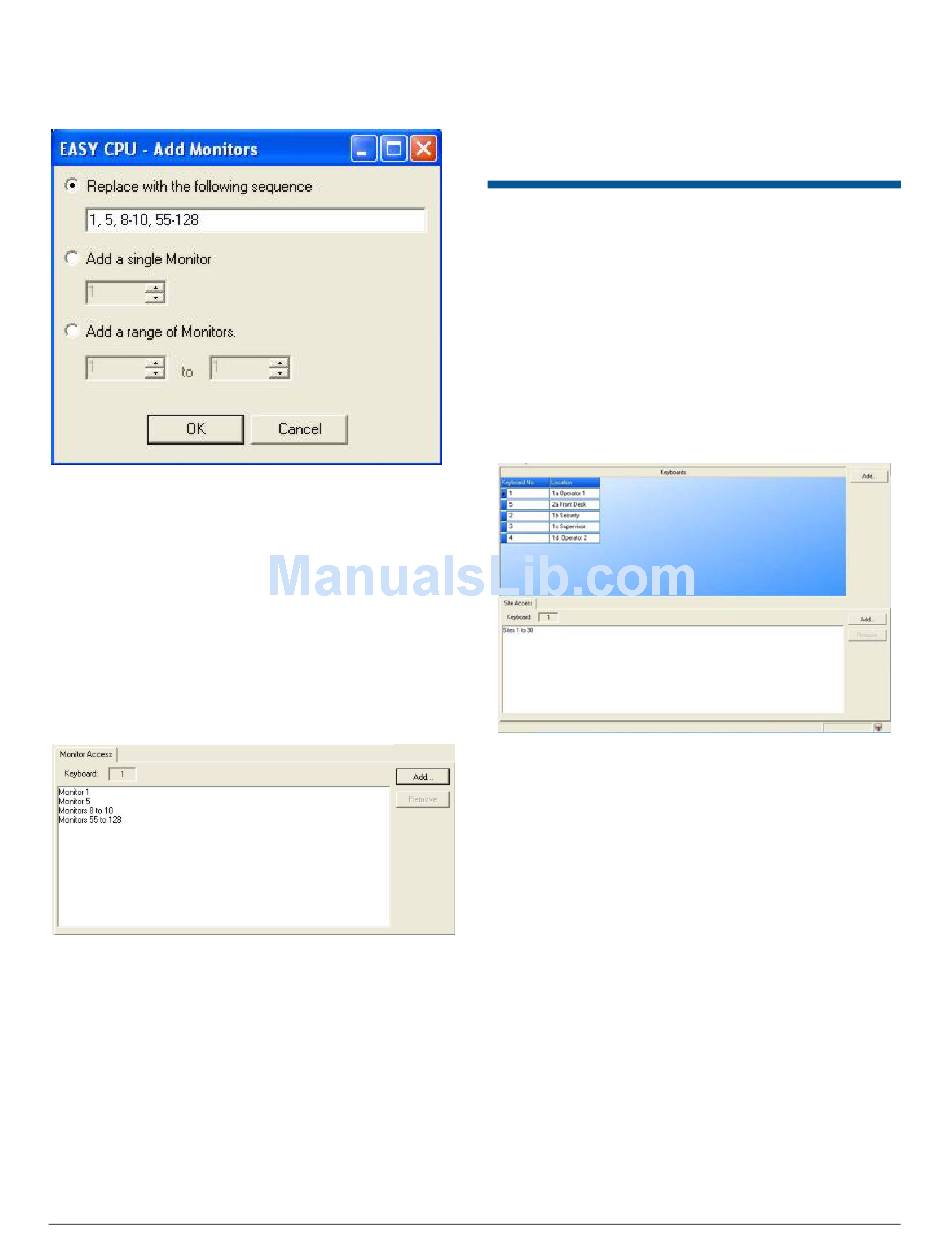

Figure 112. Add Monitors to Monitor Access
dialog
3. Enter the numbers of the monitors or range of
monitors you want to associate with a specific
keyboard.
For example, Figure 113 displays a range of
monitors for Keyboard 1. The range of monitors
are 1, 5, 8 through10, and 55 through 128. When
entering the monitors, each monitor number or
range of monitor numbers is separated by a
comma. They appear as separate rows in the
lower screen.
Figure 113. Adding a range of monitors
Removing Monitors from
Keyboards
To remove monitors from a keyboard:
1. Left click on a keyboard (any cell in the keyboard
row) in the upper screen.
2. Left click on the monitors to be deleted in the
monitor access screen (lower screen).
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
3. Left click the Remove button on the right side of
the Monitor Access screen. This removes all the
monitors associated with that keyboard.
Associating Keyboards to
Satellites
The Partitions – Keyboards to Satellites screen
allows you restrict keyboard operators from
accessing satellite sites.
Click on the Partitions – Keyboards to Satellites link
in the Explore menu to begin. The following screen
appears.
Figure 114. Partitions – keyboards to satellites
screen
The Partitions – Keyboards to Satellites screen is
split into two sections:
• The upper screen shows existing keyboard
definitions and allows you to create new
definitions.
• The lower screen titled Site Access allows you to
set up satellite site access for each keyboard.
You can create, edit, and delete keyboard definitions.

Adding Keyboard Definitions

1. To add new keyboard definitions, left click Add on
the right side of the Partitions – Keyboards to
Satellites upper screen. The Add Keyboard dialog
box appears (Figure 115 on page 49).
48 of 72
8200-0421-03, REV. D
