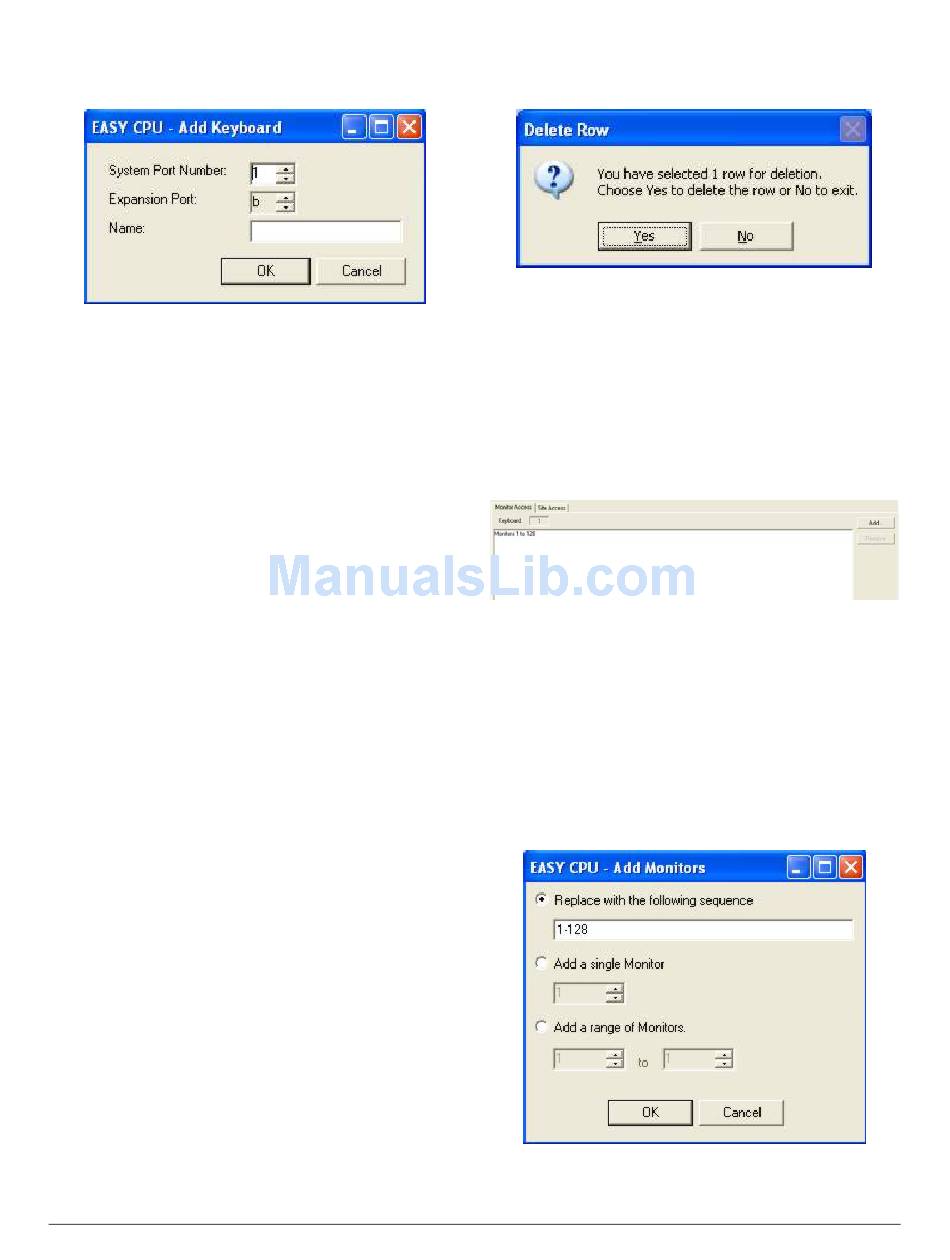

Figure 83. Add Keyboard dialog
2. To add keyboards, complete the following fields:
− System Port Number – Enter the port number
of the keyboard's connection to the MegaPower
CPU. The MegaPower CPU can support up to
128 keyboards using port expansion modules.
Port expansion modules convert a single port
into four ports. When a port expansion module
is connected to a port, port numbering adds an
alpha character (a, b, c, d) to each port
number; for example, port one becomes ports
1a, 1b, 1c, 1d; port two becomes ports 2a, 2b,
2c, 2d, and so on.
− Expansion Port – Choose the port on the
expansion port module (if the MegaPower CPU
is so equipped) that the keyboard will connect
to. The choices are a, b, c, or d.
− Name – Enter a name for the keyboard using
alpha or numeric characters.
3. Click OK to display the new definition or Cancel
to close the dialog box without displaying the
definition.
Note: Remember to save or transfer your
changes before closing EASY CPU.
Editing and Deleting Keyboard Definitions
Once a keyboard is defined, you can edit the
definition by highlighting the information in the
desired field and typing in new information.
To delete a keyboard definition:
1. Left mouse click on the leftmost blue portion of
the row in the upper screen containing the
keyboard definition. The entire row turns blue.
2. Press Delete on the PC keyboard. The Delete
Row dialog box appears.
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE
Figure 84. Delete Row dialog
3. Click Yes to delete the keyboard definition or No
to retain the keyboard definition.
Adding Monitor Access to Keyboards
The Monitor Access tab on the Definitions –
Keyboards screen allows you to enable selected
keyboards to access monitors.
Figure 85. Definitions – keyboards monitor
access screen
To begin associating monitors with keyboards from
the Definitions – Keyboards screen:
1. Click on a keyboard.
2. Click the Monitor Access tab. The selected
keyboard number appears just below the tab in
the keyboard field.
3. Click Add on the right side of the screen. The Add
(Replace) Monitors dialog box appears.
Figure 86. Add (Replace) Monitors dialog
The Add (Replace) Monitors dialog provides three
options.
