MegaPower
Administrator's Guide

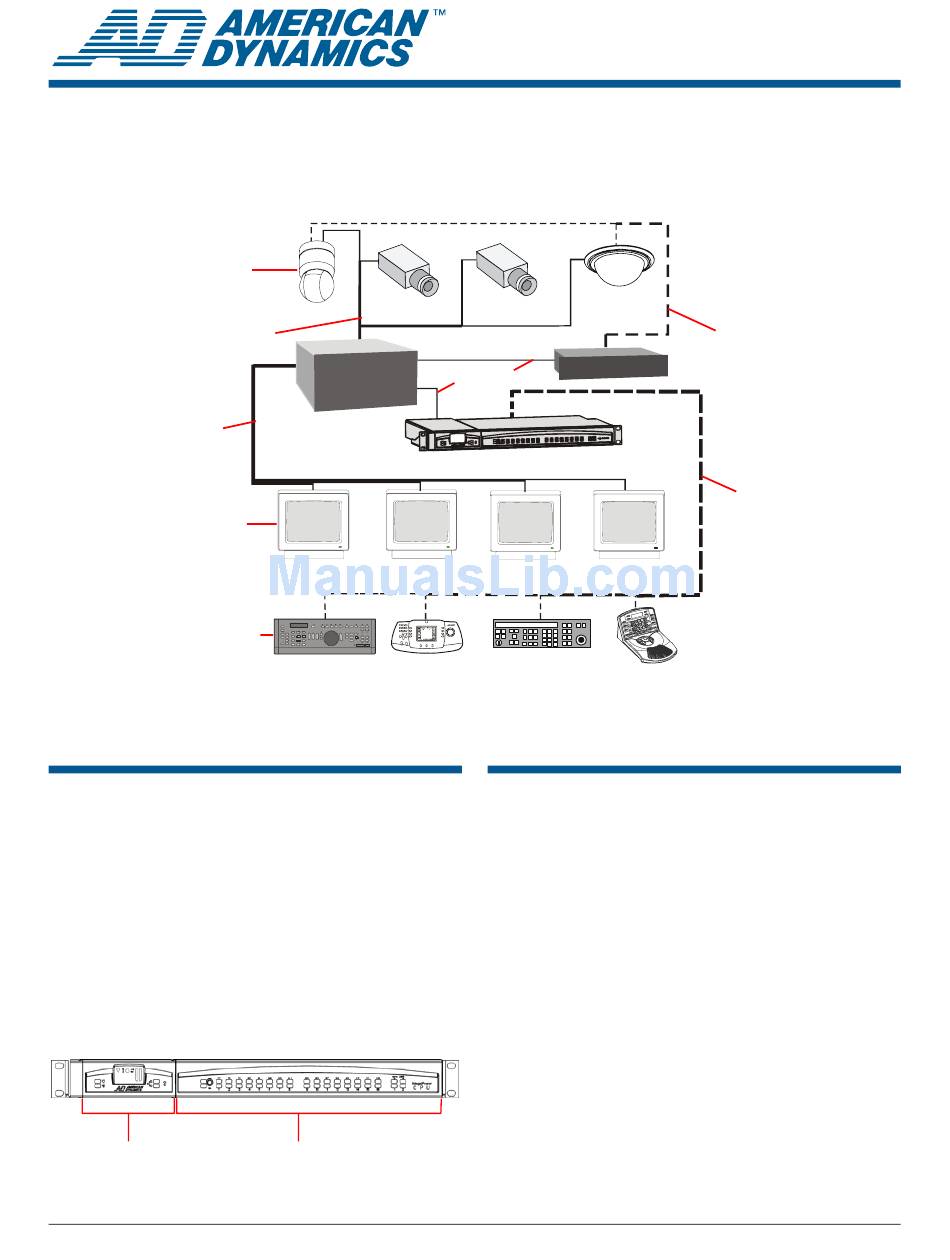

Figure 1. MegaPower 3200 Video-Matrix Closed-Circuit Television (CCTV) System
Cameras Cameras
Video
Video
Monitors
Keyboards

About the Product

The MegaPower CPU (Central Processing Unit) is
the control unit for the MegaPower 3200 video-matrix
closed-circuit television (CCTV) system. It enables
the setup and control of cameras, monitors, users,
alarms, video recording, and data communications.
The MegaPower CPU (Figure 2) consists of the
following major components:
• MPU (Multiple Purpose Unit)
• Port Module
Figure 2. MegaPower CPU
MPU
© 2007 Sensormatic Electronics Corp.
MEGAPOWER CPU
ADMINISTRATOR'S GUIDE

CPU

®
Matrix
Switcher Bay
Port Module
ADDL*
MegaPower CPU

About this Guide

This Administrator's Guide provides information
about setting up and programming the
MegaPower 3200 video-matrix CCTV system. Other
related documents are:
• Installation Guide, 8200-0421-01
• Operator's Guide, 8200-0421-02
• CPU Activity Log Client Installation and Operation
Guide, 8200-0421-09
3
• AD1024 S
System Setup Software Installation &
Operating Manual, 8000-1821-01
If you need assistance...
Contact Technical Support.
1 of 72
Data
Protocol
Devices
Data
*ADDL = AD Data Line
8200-0421-03, REV. D
