Quad gate 2 trigger

Advertisement

ADDAC217 Assembly Guide
STEP 2:

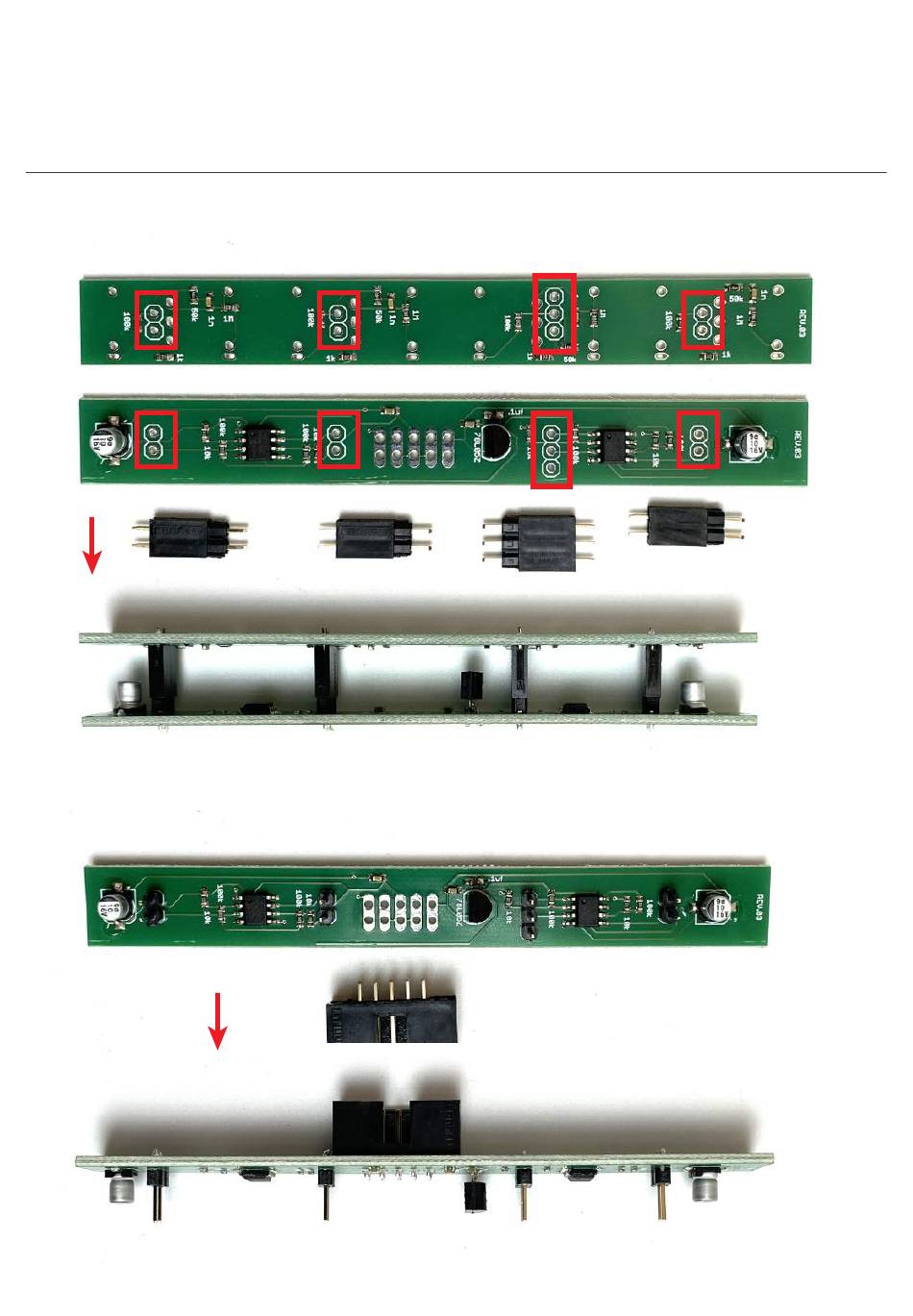

Next carefully break the 2 pcbs apart and proceed to locate the male and female pinheaders and solder
them like shown below.
STEP 3:
Next locate and solder the IDC Connector, notice the orientation printed on the pcb..
