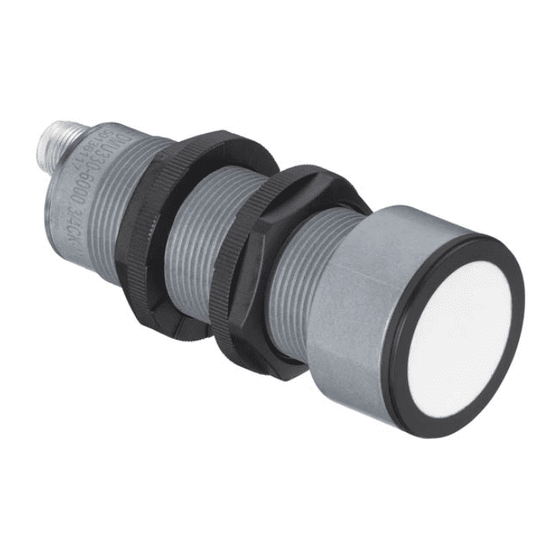

HTU330
250 ... 3500mm
350 ... 6000mm
Function largely independent of surface
properties, ideal for detection of liquids, bulk
materials, transparent media, ...
Small dead zone at long scanning range
Adjustment of the switching point can be
taught
NO/NC function reversible
2 independent switching outputs
(PNP or NPN)
NEW
– Both outputs can easily be taught
using a button
NEW
– Stable plastic design
NEW
– Temperature-compensated
scanning range
Accessories:
(available separately)
Mounting systems
Cables with M12 connector
(KD ...)
Leuze electronic GmbH + Co. KG
info@leuze.de • www.leuze.com
Ultrasonic sensors with 2 switching outputs
Dimensioned drawing
DMU330-3500...
A
Active sensor surface
B
Teach-in button
C
Indicator diodes
Electrical connection
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
DMU330-6000...
HTU330-3500...-M12 - 01
HTU330-6000...-M12 - 01
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Leuze HTU330 Series
Summary of Contents for Leuze HTU330 Series

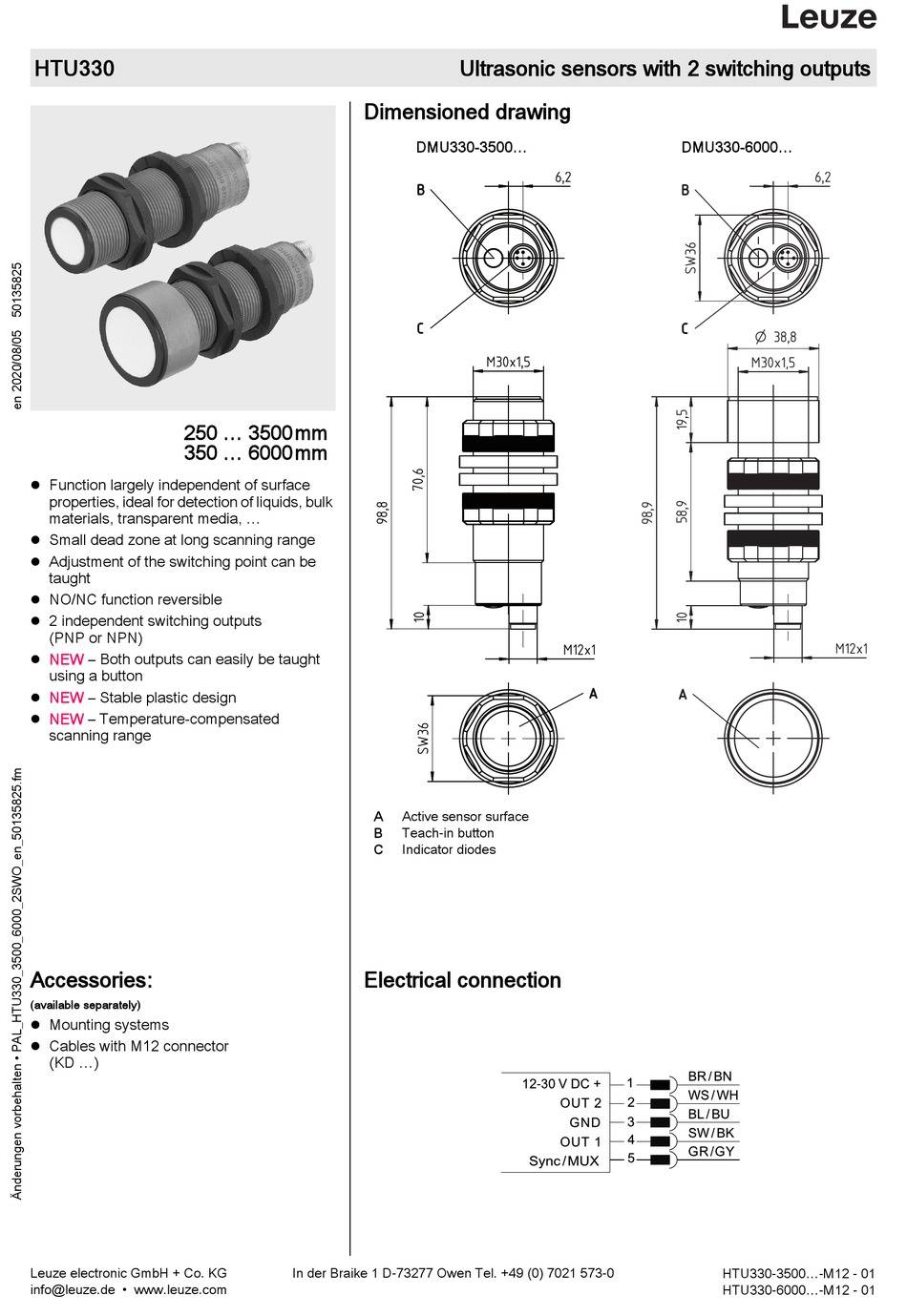

- Page 1 Electrical connection (available separately) Mounting systems Cables with M12 connector (KD …) Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU330-3500…-M12 - 01 info@leuze.de • www.leuze.com HTU330-6000…-M12 - 01...
-
Page 2: Technical Data
HTU330 Technical data Diagrams Ultrasonic specifications HTU330-3500.3/…-M12 HTU330-6000.3/…-M12 HTU330-3500.3/…-M12 Scanning range 250 … 3500mm 350 … 6000mm Typ. response behavior Adjustment range 250 … 3500mm 350 … 6000mm (plate 200x200mm) Ultrasonic frequency 112kHz 75kHz Typ. opening angle ± 7° ± 9° Resolution Direction of beam Axial... -
Page 3: Order Guide
Synchronization/multiplex input Connection technology M12 connector, 5-pin Order guide The sensors listed here are preferred types; current information at www.leuze.com. Designation Part no. Scanning range / switching output / teach-in 250 … 3500mm / 2 x PNP / teach button HTU330-3500.3/4PK-M12... - Page 4 HTU330 Device functions and indicators All settings on the sensor are taught-in via the teach button. Device status and switching states are indicated as follows by means of 3 LEDs: Switching behavior 1-point teach (1 switching point per output) Switching behavior NO contact Switching behavior NC contact Switching point Switching point...
- Page 5 (blue) LEDs flash at 8Hz until an error-free teach event is performed. 1) See table "Switching behavior with 2-point window-teach as a function of the switching function" Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU330-3500…-M12 - 01 info@leuze.de •...
- Page 6 HTU330 Adjusting the switching function (NC/NO) via the teach button The switching function of the sensor is preset as follows on delivery: OUT 1: NO contact OUT 2: NC contact The output function for each output can be individually switched from NO contact (NO - normally open) to NC contact (NC - nor- mally closed) and vice versa.
-
Page 7: Synchronous Operation
250 … 3500mm 0.5 … 5ms 35ms 350 … 6000mm 0.5 … 1ms 60ms Leuze electronic GmbH + Co. KG In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0 HTU330-3500…-M12 - 01 info@leuze.de • www.leuze.com HTU330-6000…-M12 - 01... -
Page 8: Resetting To Factory Settings
HTU330 Multiplex operation In this operating mode the mutual interference of adjacent sensors can be reliably avoided. For this purpose, each sensor is wired with a separate output of the control. The devices operate in multiplex operation with a cyclically time-delayed transmission pulse and are switched to a passive state outside of the active phase.
