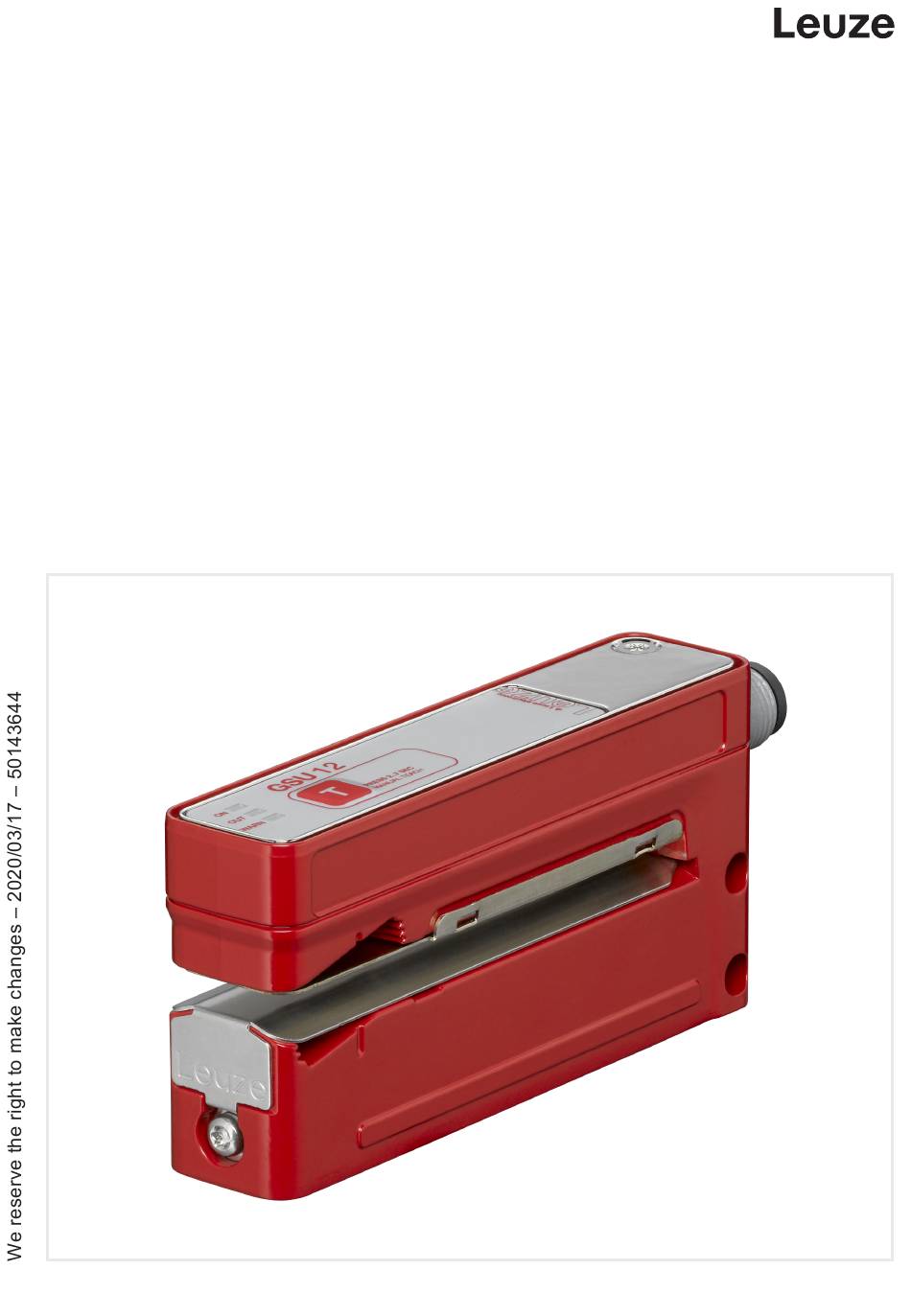

- Page 1 Ultrasonic label fork GSU 12 Leuze electronic GmbH + Co. KG In der Braike 1 73277 Owen Tel.: +49 7021 573-0 info@leuze.com • www.leuze.com...
- Page 2 1Bildteil 2-7 s > 12 s...
- Page 3 2-7 s > 12 s...

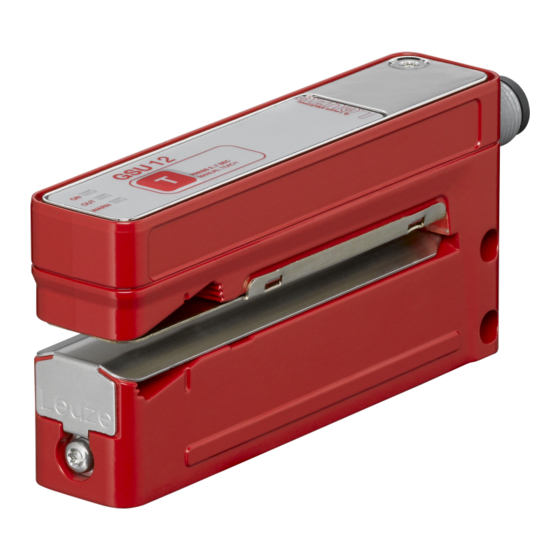

- Page 4 Intended use The ultrasonic label forks are ultrasonic sensors for contactless detection of the gap between two consecutive labels on a carrier tape. NOTICE Observe intended use! This product is not a safety sensor and is not intended as personnel protection.
- Page 5 ON LED Constantly ON when operating voltage is applied. green OUT LED Indicates the switching signal. yellow LED is ON if the sensor detects label gaps. The display is independent of the output setting. WARN LED OFF: error-free operation. continuous red ON: teaching error caused by unfavorable label material. light Manual teach while the label tape is passing through (dynamic) Sensor setting via teach button...
- Page 6 Adjusting the switching behavior of the switching output (light/dark switching) Ä Press the teach button until only the green ON LED flashes. Ä Release the teach button. The green ON LED flashes for another 2 seconds and the yellow OUT LED indi- cates the changed switching behavior for 2 seconds: –...
