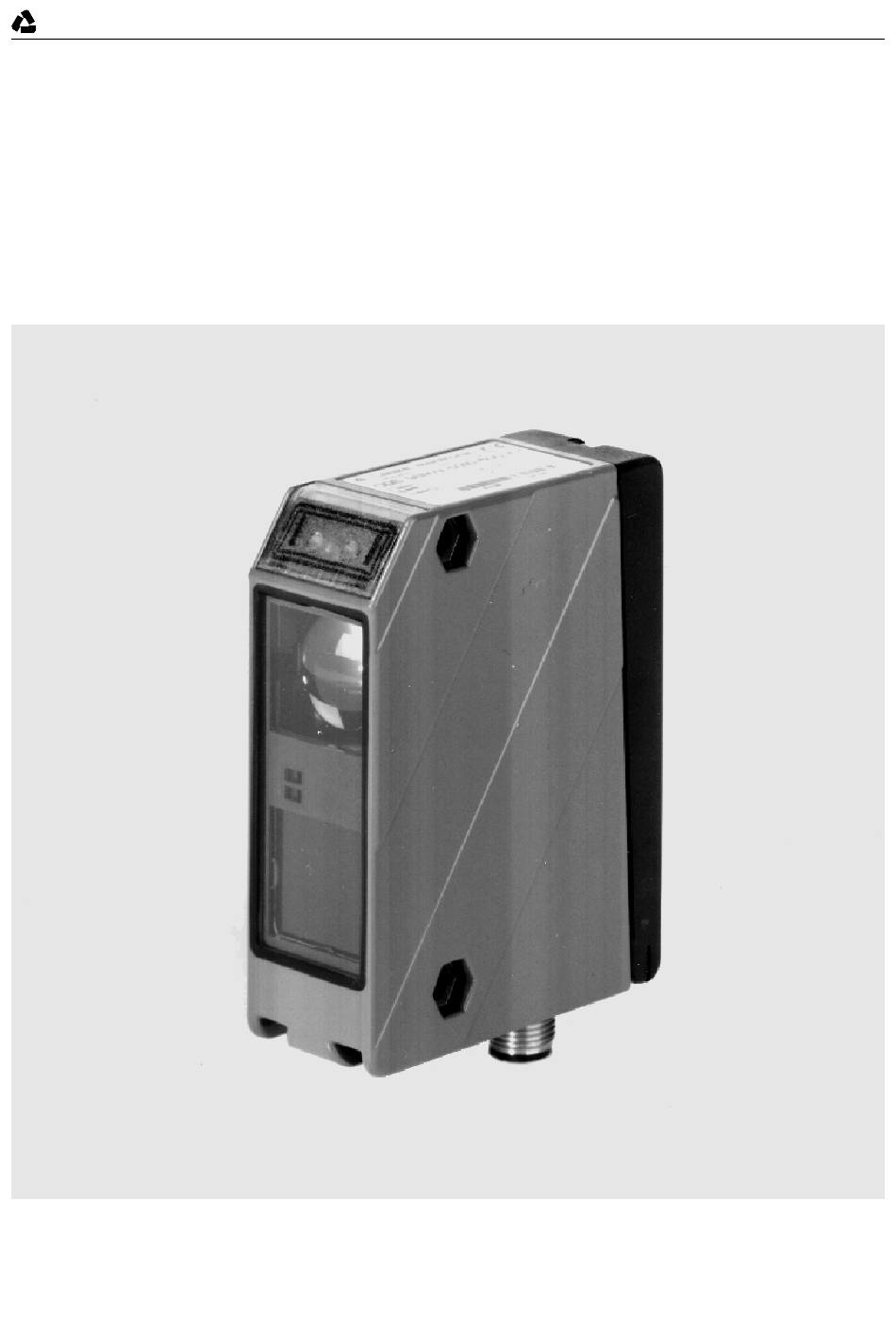

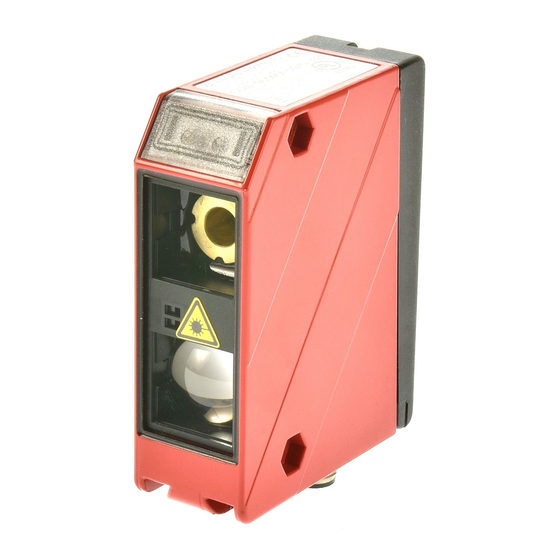

  • Page 1 Leuze electronic Optical Distance Sensors ODS 96 Technical Description Software Description...
  • Page 2 © All rights reserved, in particular the rights of reproduction and translation. Duplication or reproduction in any form (print, photocopies, microfilm or data) may only be carried out with the expressed written consent of Leuze elec- tronic GmbH & Co.

  • Page 3: Table Of Contents

    3.2.3 Filling Level Control for Bulk Goods ..........9 ODS 96 Models ................. 10 3.3.1 ODS 96 M/V with Analog Output ..........10 3.3.2 ODS 96 M/D with Serial Output ........... 11 3.3.3 ODS 96 M/S with Two Switching Outputs ........13 Technical Data .................
  • Page 4 Figure 3.1: Application example "Positioning Tasks" ..........9 Figure 3.2: Application example "Filling Level Control" ........10 Figure 3.3: Behavior of the analog output, ODS 96 M/V (LED) ......10 Figure 3.4: Behavior of the analog output, ODS 96 M/V (laser) ......11 Figure 3.5: Serial output, ODS 96 M/D ...............

  • Page 5: General Information

    The time period required by the ODS to obtain stable measurements after change of the reflectivity behavior. Delay before The delay before start-up indicates the point in time when the first valid mea- start-up surement can be obtained after switching on. Leuze electronic ODS 96...

  • Page 6: Declaration Of Conformity

    European standards and guidelines. Notice The corresponding declaration of conformity can be requested from the manufacturer. The manufacturer of the product, Leuze electronic GmbH & Co. in D-73277 Owen/Teck, possesses a certified quality assurance system in accordance with ISO 9001. Safety Notices...

  • Page 7: Working Safely

    Mounting, commissioning and maintenance of the device may only be carried out by qualified personnel. Electrical work must be carried out by a certified electrician. Repair Repairs must only be carried out by the manufacturer or an authorized rep- resentative. Leuze electronic ODS 96...

  • Page 8: Description

    With regard to their dimensions, the ODS 96 distance sensors are identical with the sensors of the series 96 of Leuze electronic. Particularly, the mount- ing accessories of the series 96 can be used for the ODS 96. Details can be found in section 4 "Technical Data".

  • Page 9: Positioning Tasks

    The upper limit is set to the maximum range of the ODS (600 mm or 2000 mm, depending on the ODS type). The distance between minimum and maximum filling level is entered as hysteresis. Leuze electronic ODS 96...

  • Page 10: Ods 96 Models

    ODS 96 M/V with Analog Output Analog output of the LED device Measurement range I (mA) U (V) app.21 app.10,5 Meas. distance (mm) 600 app.625 app.800 - 1500 Figure 3.3: Behavior of the analog output, ODS 96 M/V (LED) ODS 96 Leuze electronic...

  • Page 11: Ods 96 M/D With Serial Output

    Figure 3.4: Behavior of the analog output, ODS 96 M/V (laser) Behavior of the output, The ODS 96 M/V has an analog output with linear behavior inside the respec- ODS 96 M/V tive measurement range. The user can choose between current output (4 - 20 mA) and voltage output (1 - 10 V).
  • Page 12 // End of program of measurement value generation-------------------------------------- The behavior of the switching output of the ODS M/D can be set as described with the ODS 96 M/V. However, the ODS 96 M/D type with RS 485 interface does not offer a teach input.

  • Page 13: Ods 96 M/S With Two Switching Outputs

    A teach line is available for both switching outputs, meaning the switching outputs are tought alternatingly. The presently tought output is displayed through the simultaneous or alternating flashing of the LEDs. The outputs can be adjusted independently of each other by using the option- al programming software. Leuze electronic ODS 96...

  • Page 14: Technical Data

    1.Reflectance factor 6%...90%, over the whole temperature range, measured object 50x50 mm ˜ 2.Same object, measured object 50x50 mm LED Indicators ODS 96 M/V, M/V Laser; ODS M/S, M/S Laser ODS 96 M/D, M/D Laser teach-in on GND teach-in on +U teach-in on GND teach-in on +U permanent...

  • Page 15: Electrical Data, Installation Data

    Severity level 3 (IEC 60947-5-2) Table 3: Electrical, Mechanical, and Environmental data 1. Inversion possible through programming software 2. 1=transient protection, 2= polarity reversal protection, 3= short circuit protection for all outputs 3. Rating voltage 250 V AC Leuze electronic ODS 96...

  • Page 16: Dimensioned And Connection Drawings

    Cable Screwing PG 11 for dia. 5-10 mm Countersinking for SK nut M5, 4.2 deep Parameter Plug Cable lead-in Connection Terminals Figure 4.1: Dimensioned drawing ODS 96 devices ODS96 M/V Figure 4.2: Electrical connection, ODS 96 M/V ODS 96 Leuze electronic...

  • Page 17: Accessories

    Parameterizing cable 6 m ODS96-PS 50082006 Programming software KB-095-5000-5 50020500 Connection lead (M12, angled, 5 m) KB-095-5000-5A 50020499 Connection lead (M12, axial, 5 m) BT 96 50025570 Mounting part UMS 96 50026204 Universal mounting system Table 4: Accessories Leuze electronic ODS 96...

  • Page 18: Installation

    Mounting Mounting systems are available which have to be ordered separately at Leuze electronic. For order numbers please refer to section 4.5 "Accesso- ries". Apart from this, the through-borings can be used for individual mounting of the ODS 96, depending on the area of application.

  • Page 19: Teach-In

    © Position the measured object at the desired distance. Connect the teach Teach-In procedure input for ˜ 2 sec. to +U ODS 96 M/V, ODS 96 . After that, connect the teach input to GND. The switching output is tought.

  • Page 20: Software

    Installation of the Programming Software Requirements for the installation of the programming software: • Windows 3.1 or Windows 95/98/NT, • 486 processor or faster, • 4 MByte RAM, • 2 MByte free disk space • and a CD-Rom drive. ODS 96 Leuze electronic...

  • Page 21: Starting The Program

    © Choose the ODS 96 programming software icon from the program group. Without connected ODS, the following window appears after the program start, letting you choose a device: Additional window without connected ODS Figure 6.2: Device selection Leuze electronic ODS 96...

  • Page 22: Description Of The Menu Commands

    • Change password: first enter your old, then your new password and confirm with OK. Choose About..., for information on programming software ( product, pro- gram, device version, as well as for the address of Leuze electronic). 6.3.2 Programming and Adjustment Possibilities At this point, the various programming possibilities will be explained.

  • Page 23: Figure 6.4: Parameterization Mode, Ods 96 With Analog Output

    (lower range limit) and which distance corresponds to a voltage of 10 V, 20 mA (upper range limit). The shortest adjustable range is 44 mm for the LED version and 400 mm for the Laser version. Leuze electronic ODS 96...

  • Page 24: Figure 6.5: Programming Window Ods 96 With Two Switching Outputs

    It is possible to adjust values which exceed the limits of the measure- ment ranges. A regulation happens at the following values: LED device Laser device Lower range 75 mm 170 mm Upper range 800 mm 2200 mm Table 5: Regulation values of the sensors ODS 96 Leuze electronic...
  • Page 25 Notice The higher the number of measurements for averaging is chosen, the lower is the number of measurements per time unit (refreshing of measurement re- sults). Leuze electronic ODS 96...
  • Page 26 © After you have performed measurements, klick on Save parameters. Save your results in the desired directory. Notice If necessary, Leuze electronic can only deliver replacement sensors with de- fault settings. You as customer are responsible for correct storage of your changed data sets.

  • Page 27: Appendix

    How to update the parameter files of the ODS 96 software © Copy file ODS96PAR.DAT from A: to C:\ods96par. Update from diskette © Copy all files from A:\DATA to C:\ods96par\DATA. © Select the Leuze WWW-server (http://www.leuze.de) Update from the Internet © Change to the download directory (Download ->...
  • Page 28 Leuze electronic Appendix ODS 96 Leuze electronic...
  • Page 29 Leuze electronic Leuze electronic GmbH + Co. Postfach 11 11, D-73277 Owen/Teck Tel. (07021) 5730, Fax (07021) 573199 E-mail: info@leuze.de http://www.leuze.de Sales and Service Ing. Franz Schmachtl KG Leuze electronic GmbH + Co. LA2P, Lda. Kvalix Automatika Kft. Postfach 362 Geschäftsstelle Dresden...
