(I)GS 63B

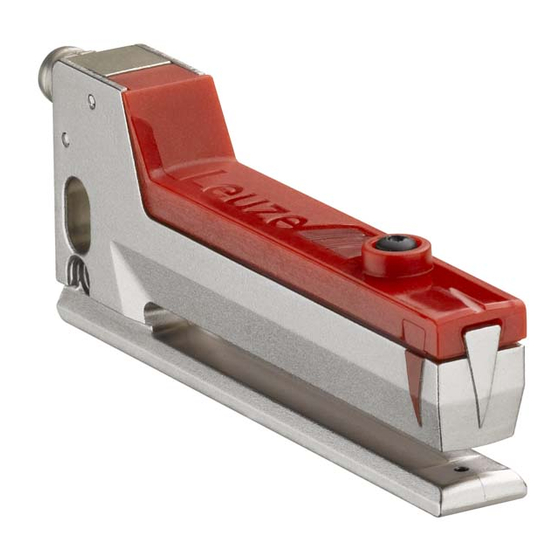

Optical fork photoelectric sensor with 3mm

fork width and 60mm fork depth for exact
detection of labels on base material
High switching frequency and short

response time guarantee very good
repeatability
Slimline-design (reduced fork height) for

installation in a groove directly at the
dispensing edge
ALC function (Auto Level Control):

highest function reserve through
autonomous online optimization of the
switching threshold ((I)GS63B/....3...)
Storage of up to 30 teach values in the

sensor
Warning output for indicating teach or

function errors (IGS63B...)
Easy adjustment via lockable teach button

or teach input
Accessories:
(available separately)
Clamp BT-GS6X.DT

(Part no. 50128583)
Mounting device BT-GS6X.L

(Part No. 50112215)
Mounting device BT-GS6X.H

(Part no. 50123869)
Leuze electronic GmbH + Co. KG
info@leuze.com • www.leuze.com

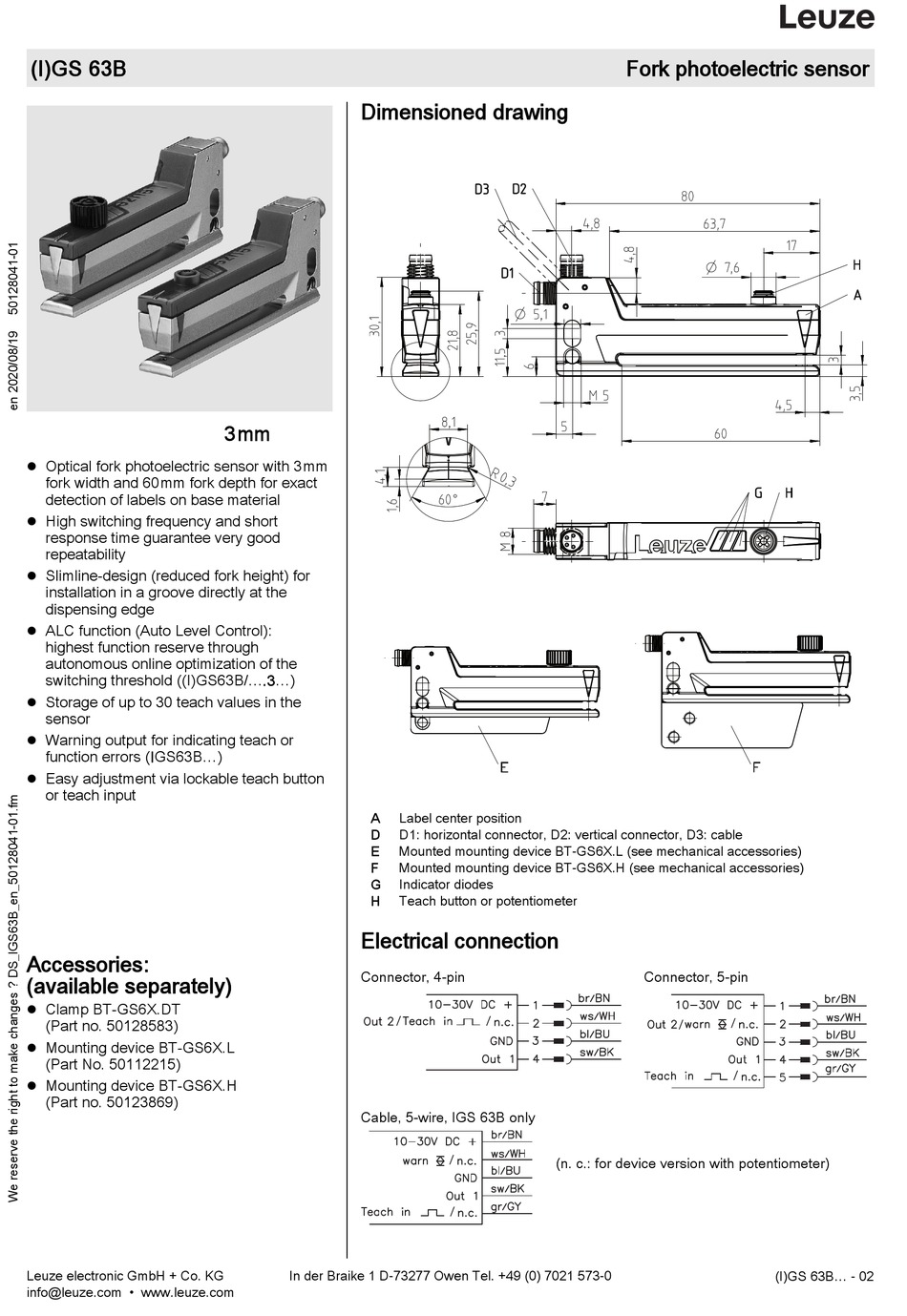

Dimensioned drawing

3mm
A
D
E
F
G
H
Electrical connection
Connector, 4-pin
/
Cable, 5-wire, IGS 63B only
In der Braike 1 D-73277 Owen Tel. +49 (0) 7021 573-0
Label center position
D1: horizontal connector, D2: vertical connector, D3: cable
Mounted mounting device BT-GS6X.L (see mechanical accessories)
Mounted mounting device BT-GS6X.H (see mechanical accessories)
Indicator diodes
Teach button or potentiometer
/
/
(n. c.: for device version with potentiometer)
/
Fork photoelectric sensor
Connector, 5-pin
/
/
/
(I)GS 63B... - 02
