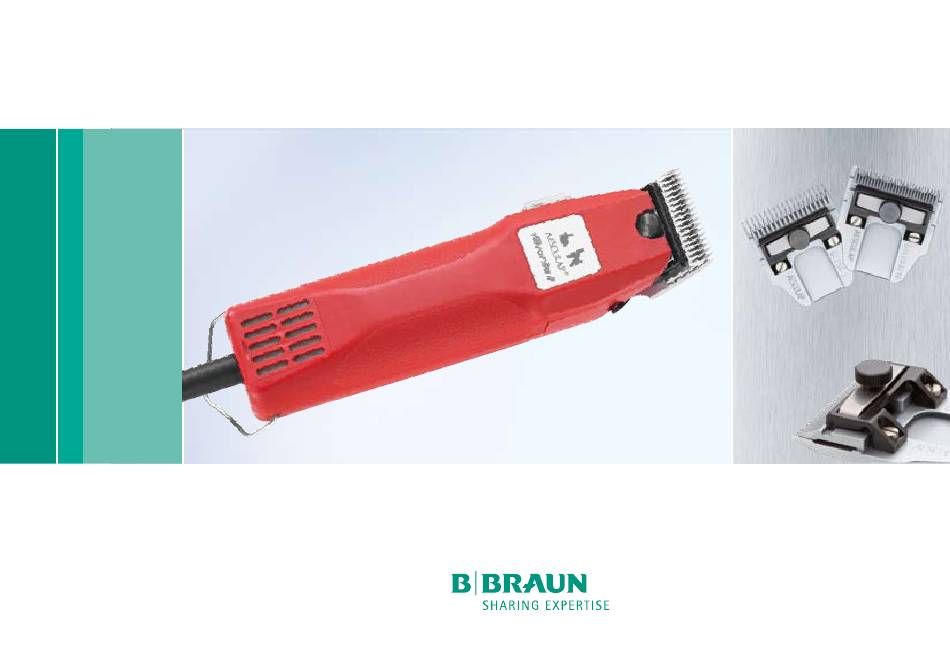

- Page 1 Aesculap Favorita II ® Maintenance and care of clippers and blades Enjoy your work with the Favorita II – the clipper that works as hard as you do!
- Page 2 If the cutting quality is decreasing you can improve the efficiency temporarily by increasing the tension, so you can use the Favorita II blades longer. Please take the time to learn about the proper adjustment of the blades as described in the next 3 pages! Aesculap – a B. Braun company...
- Page 3 ® Adjustment of Blades - Components It is important that all components of the cutterhead are in good working order to ensure efficient cutting! bottom plate pressure plate knurled screw plate spring top blade Aesculap – a B. Braun company...
- Page 4 If the cutting quality is decreasing you can temporarily improve efficiency temporarily by increasing the tension. However this means that the blade should be sharpened as soon as possible. Aesculap – a B. Braun company...
- Page 5 4. To keep your machine and cutterheads working at maximum efficiency, it is most important that you oil your cutterheads regularly when they are in use and you clean, dry and oil them before putting them away at the end of the day. Aesculap – a B. Braun company...
- Page 6 Cutterheads should be checked to make sure that there are no cracks or wear on the plastic pressure plate, as this will lead to poor cutting. The plate spring allows equal pressure between the top and bottom blades to give a constant cutting quality. Aesculap – a B. Braun company...
- Page 7 Blades should be oiled regularly when in use or overheating will occur and cleaning should be done at the end of every day. It is most important that the correct tension is applied when the cutterhead is re-assembled. Aesculap – a B. Braun company...
- Page 8 Favorita II – Maintenance and care of clippers and blades ® Top and Bottom Plates The top and bottom blades match to the respective blade. They should not be interchanged even if they are of the same type. Aesculap – a B. Braun company...
- Page 9 Aesculap Favorita II – Maintenance and care of clippers and blades ® Construction Favorita II ball bearing motor gear lever motor carbons sealing pad worm gear control electronics commutator with cam and bearing Aesculap – a B. Braun company...
- Page 10 Carbons wear down when in use and should be replaced when they have worn down to approx. 0.2 inches/0.5 cm. Do not run the clipper out of carbons as this will damage the motor unit! carbons commutator Aesculap – a B. Braun company...
- Page 11 The components displayed on this page have to be rarely replaced. The armature is coiled and produced in a special Aesculap production department to ensure longevity. armature with fan field magnet with ON/OFF switch Aesculap – a B. Braun company...
- Page 12 Greasing of the worm gear – do not overfill the gearbox as this will cause grease to enter motor section (only use special Aesculap grease) Aesculap – a B. Braun company...
-
Page 13: Gear Lever
A worn gear lever cannot work correctly as it will cause a loss of power and movement to the top blade on the cutterhead. The result would be poor cutting and sharp blades either not lasting very long or not working. top plate Aesculap – a B. Braun company... - Page 14 Swallow Tail Plate and Pressure Spring The blade is held firmly to the clipper by the interaction of the swallow tail, the pressure spring and the swallow tail lever. pressure spring swallow tail swallow tail lever swallow tail plate Aesculap – a B. Braun company...
- Page 15 Aesculap Suhl GmbH | Fröhliche-Mann-Straße 15 | 98528 Suhl | Germany purpose of obtaining information about our products. Reproduction in any form partial or clippers@aesculap.de | www.bbraun-vetcare.com otherwise is not permitted. Aesculap – a B. Braun company Brochure No. V07202 0411/0.5/4...
