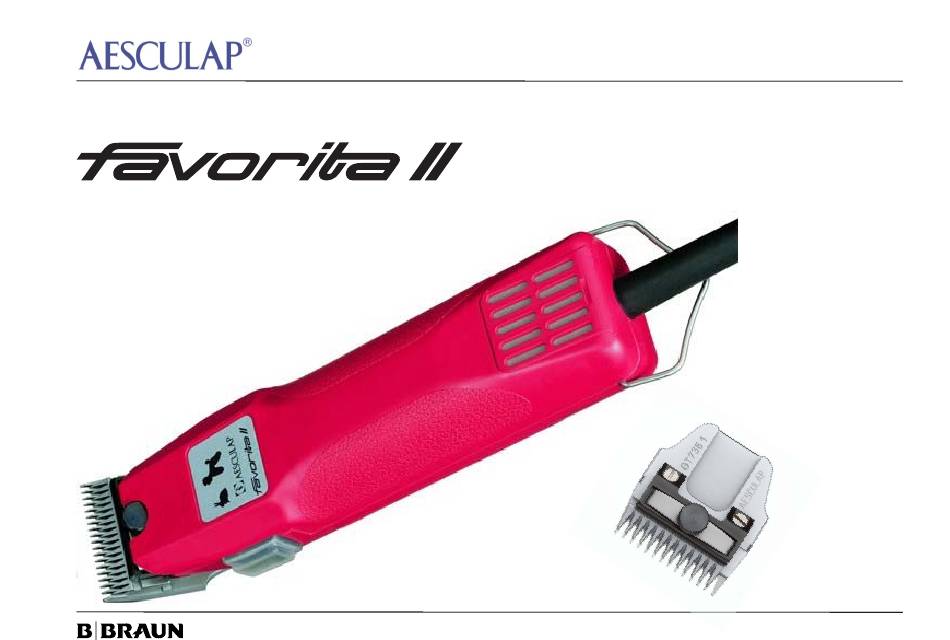

- Page 1 Maintenance and care of the Favorita II and its blades B. Braun Vet Care GmbH, July 2008...
-
Page 2: Blade System
Favorita II blades longer. PLEASE TAKE THE TIME TO LEARN ABOUT THE PROPER ADJUSTEMENT OF THE BLADES AS DESCRIBED IN THE NEXT 3 PAGES! B. Braun Vet Care GmbH, July 2008... - Page 3 Maintenance and care of the Favorita II and its blades bottom blade pressure plate top blade plate spring knurled screw It is important that all components of the cutterhead are in good working order to ensure efficient cutting! B. Braun Vet Care GmbH, July 2008...
- Page 4 If the cutting quality is decreasing you can temporarily improve efficiency by increasing the pressure. However this means that the blade has to be sharpened as soon as possible. B. Braun Vet Care GmbH, July 2008...
- Page 5 4) To keep your machine and cutterheads working at maximum efficiency, it is most important that you oil your cutterheads regularly when they are in use and you clean, dry and oil them before putting them away at the end of the day. B. Braun Vet Care GmbH, July 2008...
- Page 6 The plate spring guarantees equal pressure between the top and bottom blades to give a constant cutting quality. B. Braun Vet Care GmbH, July 2008...
- Page 7 Blades should be oiled regularly when in use or overheating will occur and cleaning should be done at the end of every day. It is most important that the correct tension is applied when the cutterhead is re-assembled. B. Braun Vet Care GmbH, July 2008...
- Page 8 Maintenance and care of the Favorita II and its blades The top and bottom blades match to the respective blade. They should not be interchanged even if they are of the same type. B. Braun Vet Care GmbH, July 2008...
- Page 9 Maintenance and care of the Favorita II and its blades ball bearing motor gear lever motor on/off sealing carbons worm gear with cam and control electronics commutator bearing B. Braun Vet Care GmbH, July 2008...
- Page 10 Carbons wear when in use and should be replaced when the old ones wear down to approx. 0.2 inches/0.5 cm. Do not run the clipper out of carbons as this will damage the motor unit! B. Braun Vet Care GmbH, July 2008...
- Page 11 Carbon‘s wear when in use and should be replaced when the old ones wear down to approx. 0.2 inches/0.5 cm. Do not run the clipper out of carbons as this will damage the motor unit! B. Braun Vet Care GmbH, July 2008...
- Page 12 Maintenance and care of the Favorita II and its blades field magnet with ON/OFF switch armature with fan The components displayed on this page have to be rarely replaced. The armature is coiled and produced in a special Aesculap production department. B. Braun Vet Care GmbH, July 2008...
- Page 13 Greasing of the worm gear – do not overfil gearbox as this will cause grease to enter motor section (only use special Aesculap grease) B. Braun Vet Care GmbH, July 2008...
- Page 14 A worn gear lever cannot work correctly as it will cause a loss of power and movement to the top blade on the cutterhead. The result would be poor cutting and sharp blades either not lasting very long or not working. B. Braun Vet Care GmbH, July 2008...
- Page 15 The blade is held firmly to the clipper by swallow tail plate the interaction of the swallow tail, the pressure spring and the swallow tail lever. B. Braun Vet Care GmbH, July 2008...
- Page 16 Enjoy your work with the Favorita II – The clipper that works as hard as you do! B. Braun Vet Care GmbH Am Aesculap-Platz 78532 Tuttlingen Germany Phone +49 7461 95-0 +49 7461 71512 www.bbraun.com V07202 B. Braun Vet Care GmbH, July 2008...
