Operator panel and display

PC
None
DIN- SP-4
Stop
0.00 0.0
τ
Pa 1/s
T
20.0 ρ
1.000
ºC g/cm 3
0
mpa.s
n
00:00:00 0.0
M 0.00
% rpm

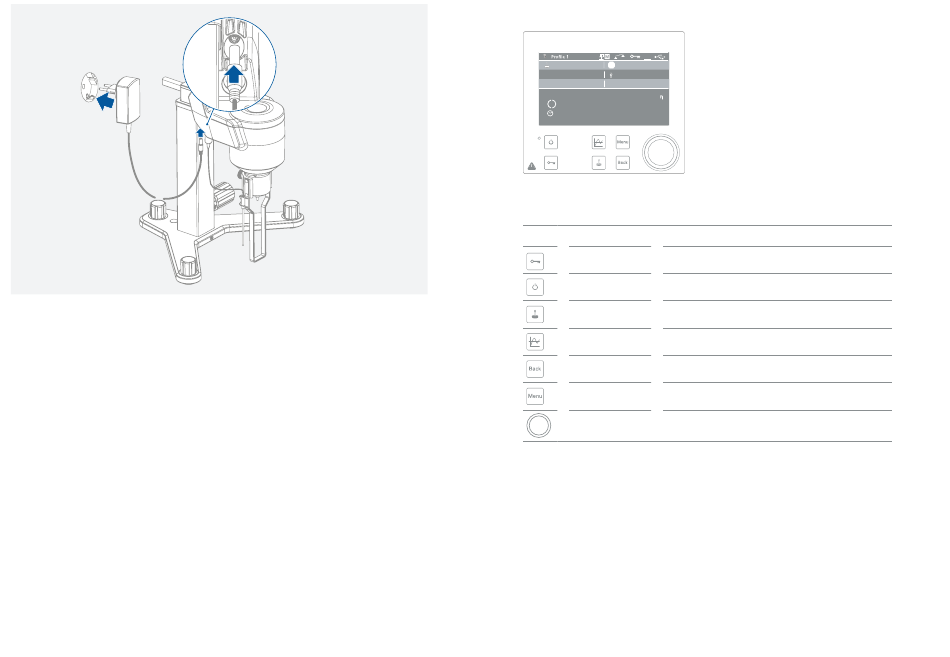

/// Explanation of the control elements:

Button Designation Function
Lock button Lock / Unlock buttons and control knob
On / Off button Switch on / off device�
Spindle button Enter spindle search screen menu directly
Graph button Enter profile graph menu directly
Back button Return to previous screen
Touch it once: Enter main menu screen
Menu button
Touch it a second time: Back to working screen�
Start / Stop the motor for measuring pressing the knob in working screen�
Control knob
Change the speed by rotating the knob in working screen�
(Rotating /Pressing)
Change the menu setting / value in menu screen�
