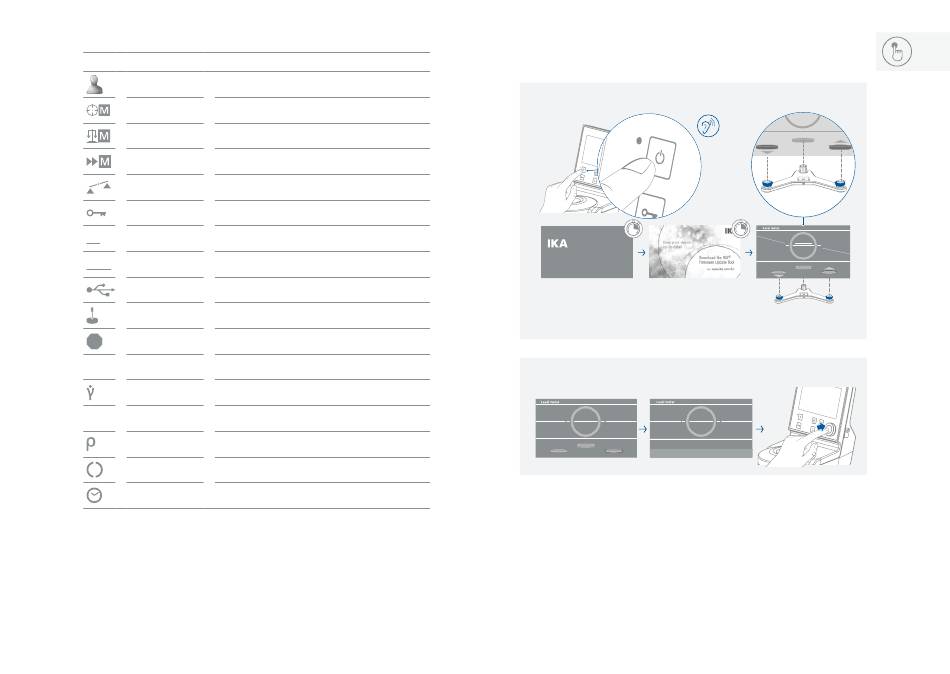

/// Explanation of symbols on the working screen:

Symbol Designation
Profile symbol
Accurate mode symbol
Balanced mode symbol
Fast mode smbol
Level broken symbol
Lock symbol
PC
PC control symbol
RMP
Ramp control symbol
USB connection symbol
Spindle symbol
Stop Stop condition symbol
τ
Shear stress symbol
Shear rate symbol
T
Temperature symbol
Density symbol
Running symbol
Timer symbol
16
Function
Indicate the selected profile�
Indicate the accurate mode is selected�
Indicate the balanced mode is selected�
Indicate the fast mode is selected�
Indicate the device is no longer level�
Indicate the buttons and control knob is locked�
Indicate the device is controlled by a PC�
Indicate the device is in ramp control mode�
Indicate the device is communicating via USB
Indicate the selected spindle
Indicate the stop condition
Indicate the measured shear stress of the media�
Indicate the measured shear rate of the media�
Indicate the measured temperature of the media�
Indicate the density of the media�
Indicate the device is in running status�
Indicate the timer function is activated�

Operation

/// Switching on and levelling:
1
ON O O O N O O O N N N N
O N O O O O O ON N N N N
Rotavisc
xx-vi
Version x.x.xxx/x.xx
2
OK
Note: The short horizontal white line inside the circle is moving vertically and it represents the
rotation around the Y-axis� When it matches the white line, the device will be in balance with
the Y-axis, then the line color will turn from white to green�
The three buttons represent the three stand levelers� The arrows show in which direction they
have to be adjusted (green = up; red = down)�
The other two moving lines:
The red angular line pivoting around the center of the circle represents the rotation of the
device around the X-axis� When the line is horizontal (matching the white line), the device will
be in balance with the X-axis, and then the line color will turn from red to green�
1x
