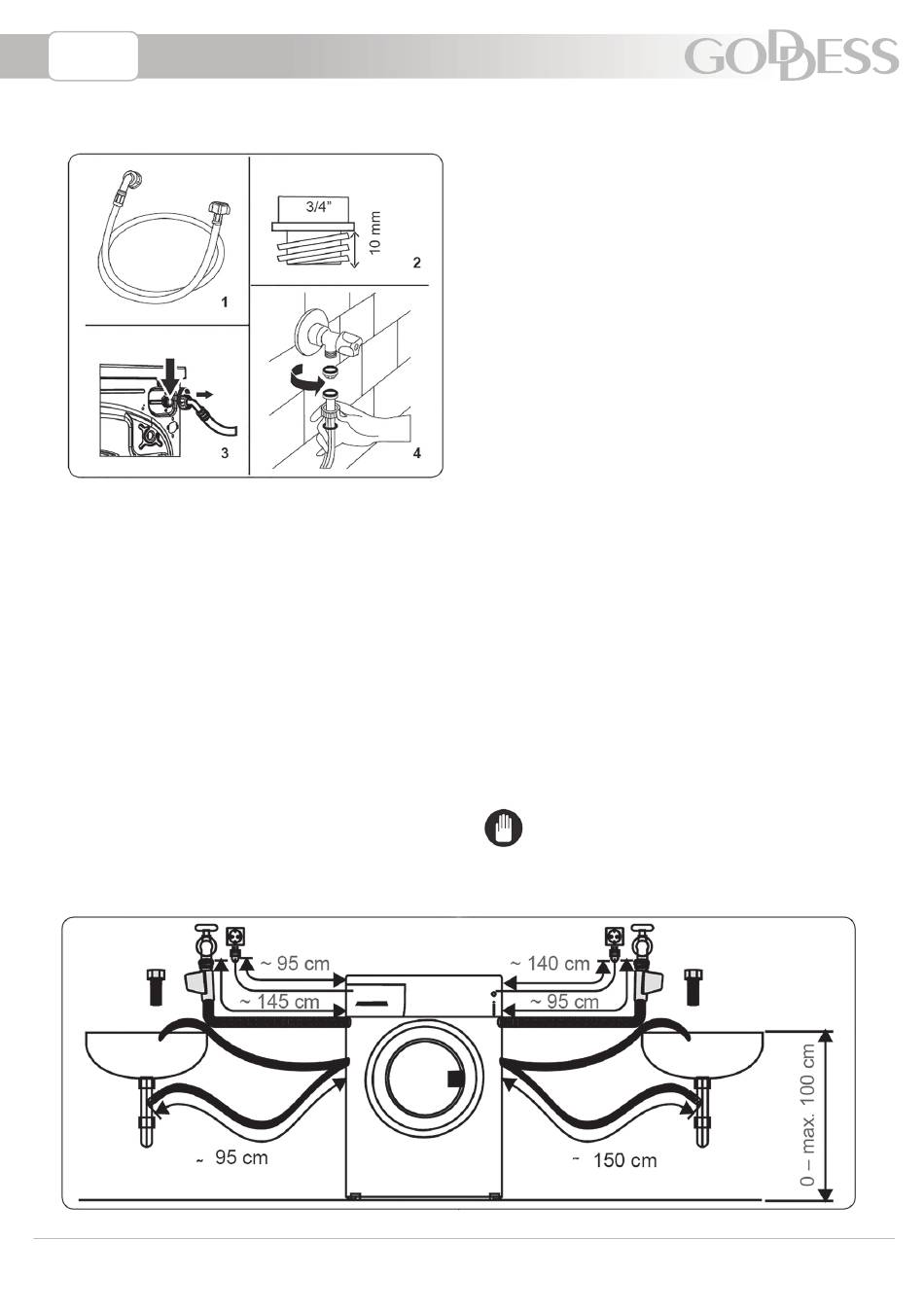

3.4 Water Inlet Hose Connection
1. Your machine may have either
a single water inlet connection (cold)
or double water inlet connection (hot
and cold) depending on the machine
specifications. The white capped hose
should be connected to cold water inlet
and red capped hose to the hot water
inlet (if applicable).
• To prevent water leaks at the joints,
either 1 or 2 nuts (depending on
your machine's specifications) are
supplied in the packaging with the
hose. Fit these nuts to the end(s) of
the water inlet hose that connect to
the water supply.
2. Connect new water inlet hoses
to a ¾ ˝, threaded tap.
• Connect the white capped end of the
water inlet hose to the white water
inlet valve on the rear side of the
machine and the red capped end of
the hose to the red water inlet valve
(if applicable).
• Hand tighten the connections. If
in any doubt, consult a qualified
plumber.
• Water flow with pressure of 0.
1-1 Mpa will allow your machine
to operate at optimum efficiency
(pressure of 0. 1 Mpa means that
more than 8 litres of water per minute
will flow through a fully opened tap).
3. Once you have made all of the
connections, carefully turn the water
supply on and check for leaks.
4. Ensure that the new water inlet hoses
are not trapped, kinked, twisted, folded
or crushed.
• If your machine has a hot water inlet
connection, the temperature of the
hot water supply should not be higher
than 70°C.
NOTE: Your Washing Machine must
only be connected to your water
supply using the supplied new fill
hose. Old hoses must not be reused.
