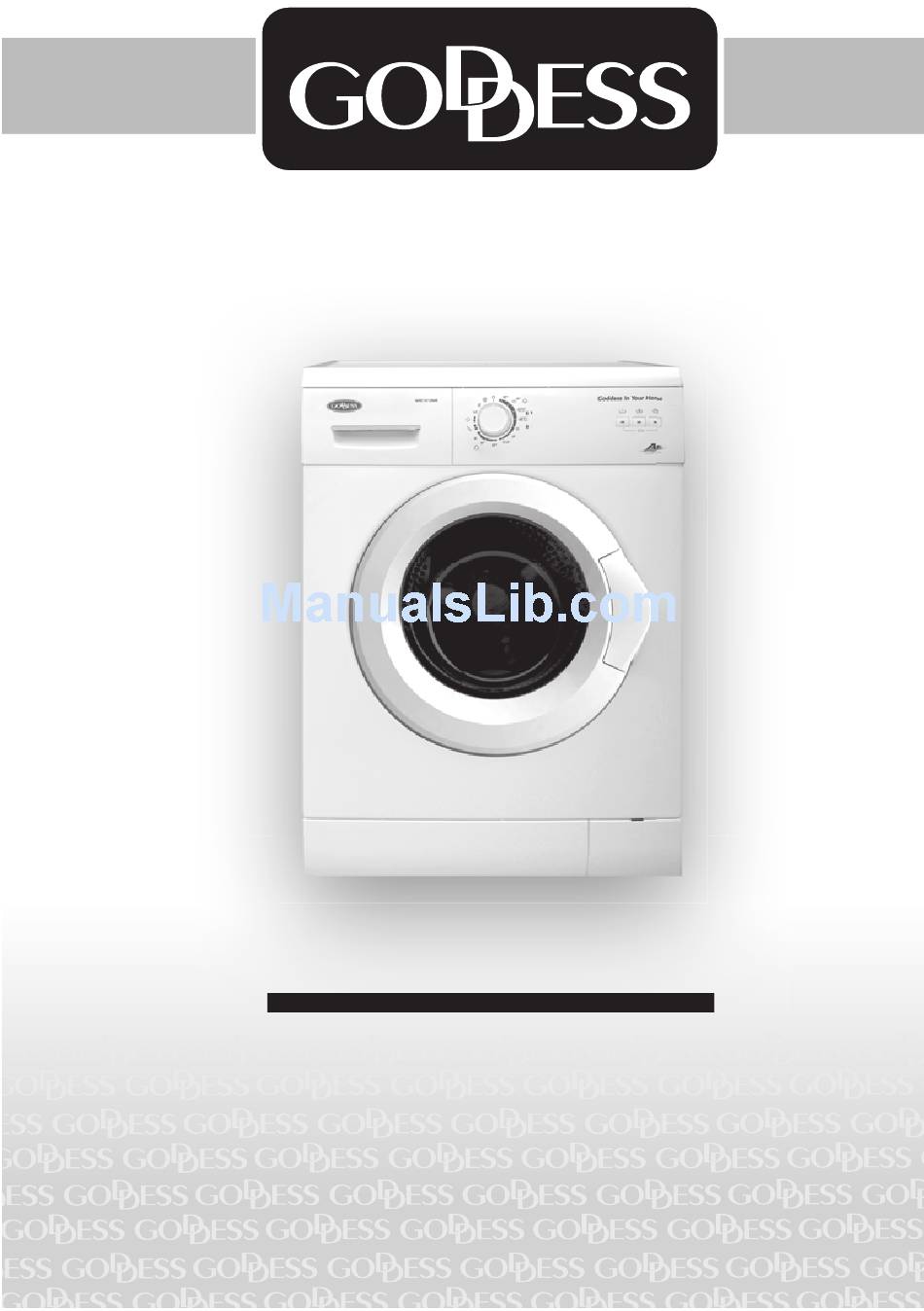

ELECTRONIC WASHING MACHINE
GODDESS WFE1015M8S
UCTION MANUAL

INSTRUCTION MANUAL

BEFORE USING THE WASHING MACHINE, YOU SHOULD
CERTAINLY READ THE INFORMATION IN USER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WFE1015M8S and is the answer not in the manual?

Questions and answers

Related Manuals for Goddess WFE1015M8S

Summary of Contents for Goddess WFE1015M8S

  • Page 1: Instruction Manual

    ELECTRONIC WASHING MACHINE GODDESS WFE1015M8S UCTION MANUAL INSTRUCTION MANUAL BEFORE USING THE WASHING MACHINE, YOU SHOULD CERTAINLY READ THE INFORMATION IN USER’S MANUAL...

  • Page 4: Table Of Contents

    CONTENTS CHAPTER-1: BEFORE USING THE APPLIANCE • Correct Usage • General warnings 8-9-10-11 • Safety warnings 12-13-14-15-16-17 • Packaging and Environment • Savings Information CHAPTER-2: OVERVIEW OF YOUR DEVICE • General Appearance 20-21 • Techincal Specifications CHAPTER-3: INSTALLATION • Removing transportation safety screws 23-24 • Adjusting Adjustable Stays 25-26-27 • Electrical connection • Water inlet hose connection 29-30 •...
  • Page 5 CONTENTS CHAPTER-5: PRELIMINARY PREPARATION FOR LAUNDERING • Separating laundries 36-37 • Putting laundries in the machine • Adding detergent into machine • Operating your machine 40-41-42 • Auxiliary functions 43-44 • Child lock • Cancelling programme • Finishing programme CHAPTER-6: PROGRAM TABLE 48-48-49-50-51-52-53-54-55-56-57-58-59 CHAPTER-7: MAINTENANCE AND CLEANING OF YOUR MACHINE • Warning • Water inlet filters •...

  • Page 6: Before Using The Appliance

    CHAPTER -1: BEFORE USING THE APPLIANCE (CORRECT USAGE) • Definitely read the user’s manual. • Your machine is designed to be used domestically. Commercial use will cause your warranty to be cancelled. • Keep your pets away from your machine • Please check the packaging of your machine before installation, and the outer surface af- ter the package is opened. Do not operate damaged machines or machines with opened package. • Have your machine installed only by author- ized service. Any interference to your machine by anyone other than authorized services shall cause your warranty to be void.

  • Page 7: Correct Usage

    CHAPTER -1: BEFORE USING THE APPLIANCE (CORRECT USAGE) • Use your machine only for laundries that have been specified as suitable for washing by the manufacturer. • Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the ma- chine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guaran- tee).

  • Page 8: General Warnings

    CHAPTER -1: BEFORE USING THE APPLIANCE (GENERAL WARNINGS) • The necessary ambient temperature for your machine’s ideal operation is 15-25°. • Frozen hoses can tear and explode. In regions where temperature is below zero, ambient tem- perature might endanger the safe operation of electronic card. • Please ensure that the clothes you will place in your machine do not contain any foreign sub- stances (nail, needle, coins, lighter, matches, clip etc.) in their pockets. These foreign substances can damage your machine. • Before starting to use your machine, you may call the nearest authorized service and request free-of-charge help for installation, operation and use of your machine. • It is recommended to perform the first washing operation in 90˚ Cotton programme and without laundry by inserting ½ scale of detergent in 2nd compartment of the detergent drawer.
  • Page 9 CHAPTER -1: BEFORE USING THE APPLIANCE (GENERAL WARNINGS) • As detergent or softener exposed to air for a long time may cause residues, put your deter- gent or softener in the detergent drawer at the beginning of every washing. • It is advised that you unplug your machine and close the water inlet tap if you will not use your machine for a long time. Also, leaving the door of your machine will prevent the formation of bad odors due to hu- midity. • Some water might be left in your machine after the trials and tests conducted due to Quality Control procedures. This will not damage your machine. • Remember that packaging materials of your machine may be dangerous for children. Keep the packaging materials in a place where chil- dren cannot reach or dispose of them appro- priately. • Keep the small parts found in the document part away from the reach of children and ba- bies. • Use pre-wash programs only for very dirty laundry.
  • Page 10 CHAPTER -1: BEFORE USING THE APPLIANCE (GENERAL WARNINGS) • Never open the detergent com- partment when the appliance is running. • In case of any breakdown, unplug the appliance first and then turn the tap off. Do not attempt to repair by yourself, always contact for au- thorized service advice. • The amount of laundry you put in your washing machine should not exceed the maximum amount indi- cated. • Never force the door to open when the machine is running. • Washing floury clothes in your machine damages the machine. Do not wash floury clothes in your machine.
  • Page 11 CHAPTER -1: BEFORE USING THE APPLIANCE (GENERAL WARNINGS) • Please adhere to detergent/fabric condition- er manufacturers’ advice regarding the use of fabric conditioner or similar products in your machine. • Set up your machine in a place where its door can be completely opened. (Do not set up your machine in places where its door can- not be fully opened.) • Set up your machine at locations that can be fully ventilated and could have constant air circulation.

  • Page 12: Safety Warnings

    CHAPTER -1: BEFORE USING THE APPLIANCE (SAFETY WARNINGS) You must read these warnings. You can thus protect yourself and your beloved ones against fatal injuries and risks. DANGER OF GETTING BURNT! Do not touch discharging hose and water during discharging as the appliance may reach high temperatures when running.
  • Page 13 CHAPTER -1: BEFORE USING THE APPLIANCE (SAFETY WARNINGS) DEATH RISK DUE TO ELECTRICAL CURRENT! • Do not use multiple receptacles or extension cord. • Do not plug in damaged or torn plugs. • Never pull the cable when un- plugging – always grip the plug itself. • Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution! • Never touch the machine with wet hands or feet. • Call the nearest authorized ser- vice for a replacement if the power cord malfunctions.

  • Page 14: Flooding Risk

    CHAPTER -1: BEFORE USING THE APPLIANCE (SAFETY WARNINGS) Flooding risk! • Check whether the water runs fast or not be- fore placing the discharge hose on the sink. • Take necessary measures to prevent the slipping of your hose. • The backfiring force of a hose that is not placed appropriately can displace the hose. Prevent the stopper inside your sink from blocking the sink hole.
  • Page 15 CHAPTER -1: BEFORE USING THE APPLIANCE (SAFETY WARNINGS) Danger of Fire! • Do not keep inflammable liquids near your machine. • The sulphure content of paint removers might cause corrosion. For this reason, never use paint-removing materials in your machine. • Never use products that contain solvent material (like washing gas) in your ma- chine. • Remove all the objects in the pockets of your laundries (needle, paperclip, lighter, matches etc.) when placing them your ma- chine. Fire and Explosion risk may occur.
  • Page 16 CHAPTER -1: BEFORE USING THE APPLIANCE (SAFETY WARNINGS) Fall and injury hazard! • Do not climb on your machine. The upper ta- ble of your machine may break and you might get injured. • Tidy the hose, cable and packaging of your machine during installation. You might trip over and fall. • Do not turn your machine upside down, or on its side. • Do not lift your machine by holding it from extruding parts (detergent drawer, door). These parts might break and cause you to get injured. • There’s the risk of tripping and injury if the materials like hose and cables are not prop- erly stored after your machine is installed. Machine must be carried by 2 people or more.

  • Page 17: Child Safety

    CHAPTER -1: BEFORE USING THE APPLIANCE (SAFETY WARNINGS) Child safety! • Do not leave children unattended near the machine. Children might lock themselves up into the machine and death risk might occur. • Door glass and surface might be extremely hot while your machine operates. Thus, especially touching the machine might give damage to the skins of children. • Keep packaging material away from children. • Poisoning might occur if the detergent and maintenance materials are consumed, and eyes or the skin might be irritated if they come into contact with the skin. Keep the cleaning materials away from the reach of children.

  • Page 18: Packaging And Environment

    CHAPTER -1: BEFORE USING THE APPLIANCE PACKAGING AND ENVIRONMENT Removal of packaging materials Packaging materials protect your machine from any damage that might occur during transportation. Packaging materials are en- vironment friendly as they are recyclable. Recycling material provides both raw mate- rial savings and decreases waste produc- tion. Disposal of old machine Electrical or electronical old devices might still contain salvagable parts. So, never throw away your old devices that you do not use into the waste. Ensure that the parts of your old electronic or electrical devices are reused by giving them to the gathering centres foreseen by related authorities. Please ensure your old appliances are kept in an appropriate place for the safe- ty of children until they are taken outside the house.

  • Page 19: Savings Information

    CHAPTER -1: BEFORE USING THE APPLIANCE SAVINGS INFORMATION Some important information to get more effi- ciency out of your machine: • The amount of laundry you put in your wash- ing machine should not exceed the maximum amount indicated. By this way, your machine shall run in saving mode. • Not using the pre-wash feature for little and normal-dirty laundry shall save electricity and water.

  • Page 20: Overview Of Your Device

    CHAPTER -2: OVERVIEW OF YOUR DEVICE GENERAL APPEARANCE Control Panel Upper Tray Detergent Drawer Door Pump Filter Cover...

  • Page 21: General Appearance

    CHAPTER -2: OVERVIEW OF YOUR DEVICE GENERAL APPEARANCE Transportation Safety Screw Water Inlet Valve Discharging Hose Power Cable Transportation Safety Screw Transportation Safety Screw Transportation Safety Screw...

  • Page 22: Technical Specifications

    CHAPTER -2: OVERVIEW OF YOUR DEVICE TECHNICAL SPECIFICATIONS Operating voltage / (220-240) V~/50Hz frequency (V/Hz) Total current (A) Maximum: 1 Mpa Water pressure Minimum : 0.1 Mpa Total power (W) 2100 Maximum dry laundry capacity (kg) Spinning revolution (rev / min) 1000 Programme number Dimensions 845 x 597 x 497 (Height x Width x Depth) (mm)

  • Page 23: Removing Transportation Safety Screws

    CHAPTER -3: INSTALLATION REMOVING TRANSPORTATION SAFETY SCREWS Before operating the wash- ing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunc- tion, (voiding the guarantee). For this reason, transporta- tion safety screws shall be loosened by being rotated in counter-clockwise using an appropriate wrench.
  • Page 24 CHAPTER -3: INSTALLATION (REMOVING TRANSPORTATION SAFETY SCREWS) Transportation screws shall be removed by pull- ing out. Fit the plastic transporta- tion screw taps delivered in accessories bag to the palces where transporta- tion screws have been removed. The transportation safety screws should be stored to be used in case of transportation. NOTE: You should absolutely remove the transportation screws of your machine before the first usage. Faults occurring in the machines operated with transportation screw fitted shall...

  • Page 25: Adjusting Adjustable Stays

    CHAPTER -3: INSTALLATION (ADJUSTING ADJUSTABLE STAYS) Adjusting Adjustable Stays • Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base. • To ensure silent and vibration-free operation of your ma- chine, it should be deployed on a non-sliding and firm ground. • You can adjust the balance of your machine through the stays. • Loosen the plastic adjustment nut.

  • Page 26: Installation

    CHAPTER -3: INSTALLATION (ADJUSTING ADJUSTABLE STAYS) • Adjust the stays upward and downward by rotating them. • After maintaining the balance, compress the plastic adjust- ment nut upward again.

  • Page 27: Installation

    CHAPTER -3: INSTALLATION (ADJUSTING ADJUSTABLE STAYS) • Never put cardboard, wood or suchlike materials under your machine if you are intending to stabilize the distor- tions on the ground. • When cleaning the ground, on which your machine rests, be careful not to disorder stays stabilization.

  • Page 28: Electrical Connection

    CHAPTER -3: INSTALLATION (ELECTRICAL CONNECTION) • Your washing machine is set to 220-240V and 50Hz. • The mains cord of your washing machine is equipped with a specific earthed plug. This plug should always be inserted to a earthed socket of 10 amps. The current value of the fuse should be 10 amps. Fuse current value of the power line connected to this plug should also be 10 amperes. If you don’t have such a recep- tacle and fuse confirming with this, please have it done by a qualified electrician. • We do not take the responsibility of the damages that oc- cur due to ungrounded usage. NOTE: Operating your machine under low voltage will cause the life cycle of your machine to be reduced and its perfor- mance to be restricted.

  • Page 29: Water Inlet Hose Connection

    CHAPTER -3: INSTALLATION (WATER INLET HOSE CONNECTION) • Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specifications. White-capped hose should be connected to cold water inlet and red-capped hose to hot water inlet (applicable for machines with double water inlets). • To eliminate water leakages in points of contact, 1 or 2 nuts are provided in the hose package (ap- plicable for machines with double water inlets). 3/4” Fit these nuts to the ends of new water inlet hoses on the side of faucet. • Mount new water inlet hoses to a ¾ ˝, threaded faucet. • Connect the white-elbow end of the water inlet hoses to the white-filtered water inlet valve on the rear side of the machine and the red-elbow end to red-filtered one (applicable for machines with dou- ble water inlets). Tighten plastic parts of the junctions using your hand. In uncertain conditions, have the connection works be done by a qualified plumber. • Flow of water with pressure of 0,1-1 Mpa will allow your machine to operate more efficiently.) (0,1 Mpa pressure means that more than 8 litres of water will flow through a fully-tapped faucet per one minute.) • Ensure that points of contact do not leak by tap- ping the faucet completely after carrying making the connections.
  • Page 30 CHAPTER -3: INSTALLATION (WATER INLET HOSE CONNECTION) • Ensure that the new water inlet hoses are not bent, bro- ken, crushed and resized. • If your machine has double hot water inlets, the tempera- ture of hot water inlet should be maximum 70°C. Note: Use only the new water inlet hose coming with your machine while making Water inlet hose connections of your ma- chine. Never use old, used or damaged water inlet hoses.

  • Page 31: Water Discharge Connection

    CHAPTER -3: INSTALLATION (WATER DISCHARGE CONNECTION) • The end of water discharge hose can be fitted to a specific apparatus directly at- tached to dirty water discharge hole or outlet joint of the basin elbow. • Never attempt to extend the water dis- charge hose by jointing. • Do not put discharging hose of your ma- chine in a vessel, bucket or sink. • Make sure that the water discharge hose does not bend, buckle, be crushed or ex- tended. Please note: • The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground. ~ 95 cm ~ 140 cm ~ 145 cm ~ 95 cm 150 cm 95 cm ˜ ˜...
  • Page 32 CHAPTER -4: INTRODUCTION OF CONTROL PANEL Function Indicator Lights Start / Program End Program Pause Light Knob Light Function Buttons Program Start / Pause Detergent Drawer Ready Button Light...
  • Page 33 CHAPTER -4: INTRODUCTION OF CONTROL PANEL CHAPTER -4: INTRODUCTION OF CONTROL PANEL (DETERGENT DRAWER) (DETERGENT DRAWER) Detergents may form a (DIAGRAM-1) (DIAGRAM-2) sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time.To pull out the detergentdrawer: • Pull the detergent drawer to the end.(DIAGRAM-1) • Lift the front of the drawer, continue to pull until the drawer is pull out.(DIAGRAM-2) • Wash will an old toothbrush and excessiveamount of water. • Take off the leftover detergent avoid to drop into your machine. • After drying the detergentdrawer put into the housing in the same manner you pull out.
  • Page 34 CHAPTER -4: INTRODUCTION OF CONTROL PANEL (DETERGENT DRAWER) SECTIONS Main wash detergent compartment: In this compartment, only materials like detergent (liquid or powder), lime preventer and such can be used. You can find the liquid detergent aparatus inside your machine at first installation. (*) Fabric conditioner, starch, detergent compartment: You can use softener for your laundry (recommended amount and type by the producer is recommended). Sometimes the fabric conditioners you use for your laundry mar remain in this compartment. The reason for this is that the conditioner is not viscous. To prevent this situation, more viscous liquid softeners are recommended to be used or the softener could be thinned and then used. Pre-wash detergent compartment: This compartment must only be used when the pre-wash feature is selected. Pre-wash feature is recommended for very dirty laundry. (*) Machinery specifications may vary depending on the product purchased.

  • Page 35: Introduction Of Control Panel

    CHAPTER -4: INTRODUCTION OF CONTROL PANEL (PROGRAM KNOB) With the program knob, you can select the program with which you desire to wash your clothes. You can adjust the program selection process by turning the program knob in both directions. You must be careful that the adjustment sign of the program knob is exactly on the program you want to select. When you bring the program knob to (o) position, while your machine is running, your program will remain incomplete.
  • Page 36 CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (SEPARATING LAUNDRIES) • Your laundry has product labels on them that specifiy their specifications. Wash or dry your laundry according to the specifciations on the product label. • Separate your laundries according to their types (cotton, synthetic, sensitive, wool etc.), their temperatures (cold, 30°, 40°, 60°, 90°) and degree of contamination (slightly stained, stained, highly stained). • Never wash your coloured and white laundry together. • Wash your coloured laundries separately in the first washing as they may bleed. • Ensure that there are no metallic materials on your laundries or in the pockets; if so, take them up. CAUTION: WARNING: Faults that will emerge in case of penetration of foreign substances into your machine are not included within the scope of warranty. • Zip up and button up your laundries.

  • Page 37: Preliminary Preparation For Laundering

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (SEPARATING LAUNDRIES) Whitening Normal available whitening washing Ironing temperature Ironing temperature No ironing is maximum 150°C is maximum 200°C Dry cleaning No dry cleaning Leave on a flat available place Drying by Hang when wet Dry by hanging twirling is not allowed Dry cleaning in Perchloroethylene Perchlorinetyhlene gas oil, pure R11, R13, R11, R113, Gas oil alcohol and Petroleum R113 is allowed...

  • Page 38: Putting Laundries In The Machine

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (PUTTING LAUNDRIES IN THE MACHINE) • Open the door of your machine. • Spread your laundries in your machine. NOTE: Note: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes.

  • Page 39: Adding Detergent Into Machine

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (ADDING DETERGENT INTO MACHINE) The amount of detergent you will put in your machine will depend on the following criteria: • Your detergent utilization will be based on the degree of contamination of your laundries. Do not prewash your less stained laundries and put your slight amount of detergent in the 2nd compartment of the detergent drawer. • For your much stained laundries, select a programme in- cluding prewashing, and put ¼ of the detergent you will put in the detergent drawer in the 1st compartment of the detergent drawer while putting the remaining ¾ of it into 2nd compart- ment. • Use detergents produced for automatic washing machine in your machine. The amount of detergent you will use for your laundries is printed on the detergent package. • The higher the degree of hardness of the water the more detergent you will use. • The amount of the detergent you will use will increase as the amount of your laundries increase. • Put the softener in the softener compartment in the deter- gent drawer. Do not exceed the MAX level. Otherwise, sof- tener will flow into washing water through flushing. • Softeners with high density are required to be thinned to a degree before being put in the drawer. Because high-density softener will clog the flush and avoid the flow of the softener. • You can use your liquid detergents in all programs without prewashing. For this, fit liquid detergent level plate in the ac- cessories bag or the liquid detergent apparatus (*) into 2nd compartment of the detergent drawer and set the amount of liquid detergent according to the levels on this plate. Remember to detach the liquid detergent plate. (*)Machinery specifications may vary depending on the prod- uct purchased.

  • Page 40: Selecting Programme

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (OPERATING YOUR MACHINE) • Plug your machine in. • Open the water faucet. • Open the machine door. • Spread your laundries in your machine. • Push the door of your machine until hearing the locking sound to close it. Selecting programme Select the convenient programme for your laundries on the programme table.

  • Page 41: Operating Your Machine

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (OPERATING YOUR MACHINE) AUXILIARY FUNCTIONS Before starting the programme, you can optionally select an auxiliary function. Auxiliary Spin Speed Function • Press on the button of auxiliary function you would like to select. • If auxiliary function symbol on electronic display flashes continuously, the auxiliary function you have selected will be activated. • If auxiliary function symbol on electronic display blinks, the auxiliary function you have selected will not be activated. Reason for non-activation: The auxiliary function you want to use in • the washing programme you have selected is not applicable.
  • Page 42 CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (OPERATING YOUR MACHINE) HALF-LOAD DETECTION SYSTEM Your machine features a half-load detection system. In case yuo put approximately half or less amount of laun- deries of maximum laundry capacity in your machine, your machine will run so as to save washing time, water con- sumption and energy in some programmes.When the half- load function is active, the machine can complete the pro- gramme you have set in a shorter time.
  • Page 43 CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING AUXILIARY FUNCTIONS 1- No Spin This program is recommended to be used for your sensitive clothes on which no spinning should be done. By pressing this function button, you can cancel the spinning process which is included in the program. 1- Easy ironing By using this function, you can ensure your clothes to come out less wrinkled after the washing.
  • Page 44 CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING AUXILIARY FUNCTIONS Start /Pause Button Used to start a selected program or pause during running. WARNING! It is required for the program knob to be brought to off position before selecting the program or changing a continuing program.

  • Page 45: Child Lock

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (CHILD LOCK) Child Lock Child lock is used in order to protect the washing cycle from the effects of unwanted button activations during the cycle. Child lock is activated by pressing the first and third but- ton on the control panel at the same for more than 3 sec. When child lock is activated,LEDs on the function buttons blink to indicate that child lock is active.In order to deactive child lock, the same buttons (1st and 3rd) should be pressed again for more than 3 seconds.Deactivation of child lock is shown by blinking of LED on Start/Pause button.

  • Page 46: Cancelling Programme

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (CANCELLING PROGRAMME) If you want to cancel any programme running: 1- Switch the programme knob to “CANCEL” position. 2- Your machine will stop the washing operation and the pro- gramme will be cancelled. 3- To get rid of the water accumulated in the machine switch the programme knob to any programme. 4- Your machine will perform the necessary discharge operation and cancel the programme. 5- You can run your machine by selecting a new programme.

  • Page 47: Finishing Programme

    CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING FINISHING PROGRAMME • Your machine will automatically stop when the program you have selected ends. • The program end light will be on. • Turn the program knob to O(off) position. • The door will be unlocked in approximately two minutes after the program ends.You can open the door by pulling the handle of the door towards yourself and take out your clothes. • After you unload your clothes leave the door open to dry the interior of your machine. • Unplug your machine. • Close the water tap. Program End Light WARNING! If the power is off end on again after a while on any stage of the washing program, your machine will continue the program from the point where it was interrupted.

  • Page 48: Program Table

    CHAPTER -6: PROGRAM TABLE COTTON 90° Washing temperature (°C) 90° Maximum dry laundry amount (kg) Detergent compartment Programme duration (Min.) Dirty, boil, cotton and linen textile. Laundry type / Descriptions Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,5 kg) PRE-WASH COTTON Washing temperature (°C) 60° Maximum dry laundry amount (kg) Detergent compartment 1&2 Programme duration Laundry type / Very dirty, cotton, coloured and linen Descriptions textile. Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,5 kg) NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 49 CHAPTER -6: PROGRAM TABLE 60 C° COTTON Washing temperature (°C) 60° Maximum dry laundry amount (kg) Detergent compartment Programme duration (Min.) Very dirty, cotton, coloured and linen textile. Laundry type / Descriptions Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,5 kg) 40 C° COTTON 40° Washing temperature (°C) Maximum dry laundry amount (kg) Detergent compartment Programme duration (Min.) Dirty, cotton, coloured and linen textile. Laundry type / Descriptions Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,5 kg) NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 50 CHAPTER -6: PROGRAM TABLE ECO WASH Washing temperature (°C) 40° Maximum dry laundry amount (kg) Detergent compartment Programme duration (Min.) Laundry type / Dirty, cotton, coloured and linen textile. Descriptions Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,5 kg) COTTON 30˚ Washing temperature (°C) 30° Maximum dry laundry amount (kg) Detergent compartment Programme duration (Min.) Slightly dirty, cotton, coloured and linen textile. Laundry type / Descriptions Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,5 kg) NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 51 CHAPTER -6: PROGRAM TABLE QUICK WASH Washing temperature (°C) 30° Maximum dry laundry amount (kg) Detergent compartment Programme duration Slightly dirty, cotton, coloured and linen Laundry type / Descriptions textile. Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,0 kg) ECO 20°C Washing temperature (°C) 20° Maximum dry laundry amount (kg) Detergent compartment Programme duration Lightly soiled, sweaty cotton and linen Laundry type / Descriptions clothes. Wash at 20°C NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 52 CHAPTER -6: PROGRAM TABLE MIX WASH Washing temperature (°C) 40° Maximum dry laundry amount (kg) Detergent compartment Programme duration Dirty or very dirty, stain , cotton, coloured and linen textile. Laundry type / Descriptions Underwears, sheet, table cloth, t-shirt, shirt, (towel, max. 2,0 kg) SYNTHETIC 60˚ Washing temperature (°C) 60° Maximum dry laundry amount (kg) Detergent compartment Programme duration Laundry type / Descriptions Dirty, synthetic or synthetic mixture textile. Nylon socks, blouse NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 53 CHAPTER -6: PROGRAM TABLE BABY WASH Washing temperature (°C) 50° Maximum dry laundry amount (kg) Detergent compartment Programme duration Baby laundry Laundry type / Descriptions All baby laundry SYNTHETIC 40˚ Washing temperature (°C) 40° Maximum dry laundry amount (kg) Detergent compartment Programme duration Laundry type / Descriptions Slightly dirty, synthetic or synthetic mixture textile. Nylon socks, blouse NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 54 CHAPTER -6: PROGRAM TABLE SPORTWEAR Washing temperature (°C) 40° Maximum dry laundry amount (kg) Detergent compartment Programme duration Sport clothes. Laundry type / Descriptions All spore clothes and jeans SYNTHETIC COLD Washing temperature (°C) Maximum dry laundry amount (kg) Detergent compartment Programme duration Slightly dirty, synthetic or synthetic Laundry type / Descriptions mixture sensitive laundry.Washed without heating the tap water. Nylon socks, blouse NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 55 CHAPTER -6: PROGRAM TABLE CURTAIN WASH Washing temperature (°C) Maximum dry laundry amount (kg) Detergent compartment 1&2 Programme duration Tulle and curtain as sensitive Laundry type / Descriptions laundry. Tulle, curtain, diolen, dralon NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 56 CHAPTER -6: PROGRAM TABLE DELICATE 30˚ Washing temperature (°C) 30° Maximum dry laundry amount (kg) Detergent compartment Programme duration Slightly dirty, cotton, coloured, Laundry type / Descriptions synthetic or synthetic mixture sensitive laundry. Silk mixture, shirt, blouse, polyester, poliamid, mixture textile DELICATE COLD Washing temperature (°C) Maximum dry laundry amount (kg) Detergent compartment Programme duration Very slightly dirty, cold water with to wash cotton, coloured, synthetic or Laundry type / Descriptions synthetic mixture sensitive laundry. Silk mixture, shirt, blouse, polyester, poliamid, mixture textile NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 57 CHAPTER -6: PROGRAM TABLE HAND WASH Washing temperature (°C) 35° Maximum dry laundry amount (kg) Detergent compartment Programme duration Slightly dirty, wash in hand cotton, Laundry type / Descriptions coloured, synthetic or synthetic mixture laundry. Hand wash to all laundry NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 58 CHAPTER -6: PROGRAM TABLE FAST 60° 60 MIN. WOOL 30˚ Washing temperature (°C) 30° Maximum dry laundry amount (kg) Detergent compartment Programme duration Dirty, hand and machine to wash wool laundry Laundry type / Descriptions All wool laundry FAST 60° 60 MIN. WOOL COLD Washing temperature (°C) Maximum dry laundry amount (kg) Detergent compartment Programme duration Very slightly dirty, cold water, hand and machine to wash wool laundry. Laundry type / Descriptions All wool laundry NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.
  • Page 59 CHAPTER -6: PROGRAM TABLE RINSING When you need an additional Laundry type / Descriptions rinsing to be done to your clothes after the washing process, you can use this program for all kinds of clothes. SPINNING When you need an additional Laundry type / Descriptions spinning to be done to your clothes after the washing process, you can use this program for all kinds of clothes. DRAINING This program is used to drain the dirty water inside after the washing Laundry type / Descriptions process of your machine. If you want the water inside your machine to be drained before the program ends, you can use this program. You can use softeners in all programs (except spinning and draining programs) optionally. When you arrange the quantity of the softener, comply with the warning of the softener producer.

  • Page 60: Maintenance And Cleaning Of Your Machine

    CHAPTER -7: MAINTENANCE AND CLEANING OF YOUR MACHINE (WARNING) Unplug your machine before starting the maintenance and cleaning of your machine. Turn the tap water off before starting the maintenance cand cleaning of your machine. CAUTION: Your machine’s parts might be damaged if cleaners with solvent agents are used. Do not use cleaning materials with solvent agents.

  • Page 61: Water Inlet Filters

    CHAPTER -7: MAINTENANCE AND CLEANING OF YOUR MACHINE (WATER INLET FILTERS) On the tap part of your machine’s water inlet hose and at the ends of water inlet valves, there are filters to prevent entrance of the dirt and foreign materials in the water to the machine. If the machine is unable to receive sufficient water although your water tap is opened, these filters should be cleaned. • Remove the water inlet hose. • Remove the filters found on the water inlet valves by using a pincer and wash thoroughly with a brush. • Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal. • After you clean the filters, you can fit them the same way as you have removed. CAUTION: Filters of water inlet valves may be clogged due to contaminated water faucet or lack of necessary maintenance or valves may be broken down, causing water leaking into your machine continuously.

  • Page 62: Pump Filter

    CHAPTER -7: MAINTENANCE AND CLEANING OF YOUR MACHINE (PUMP FILTER) The pump filter system elongates the life of your pump, which is used to drain the dirty water. It prevents lint to enter the pump. Cleaning of your pump filter in every 2-3 months is recommended. To clean your pump filter: • Open the kickplate’s cover, by pulling the handle. • Before opening the filter cover,place a cup in front of the filter cover to prevent flow of the remaining water in the machine. • Loosen the filter cover by rotating it counter clockwise and drain the water. • Remove the foreign materials from the filter. (*) Machinery specifications may vary depending on the product purchased.
  • Page 63 CHAPTER -7: MAINTENANCE AND CLEANING OF YOUR MACHINE (PUMP FILTER) • Check for the rotation of the pump manually. • After you have cleaned the pump, fit the filter cover by rotating clockwise. • Put the kickplate cover into the place. • Do not forget that if you do not fit in the filter cover properly, it will leak water. WARNING! As water in the pump may be hot, wait until it cools down. (*) Machinery specifications may vary depending on the product purchased.

  • Page 64: Detergent Drawer

    CHAPTER -7: MAINTENANCE AND CLEANING OF YOUR MACHINE (DETERGENT DRAWER) Your detergents may deposit residue in detergent drawer and housing of detergent drawer over time. To clean the residue formed, disassemble the detergent drawer in particular periods. It is recommended that you clean your pump filter every 2 months. To eject the detergent drawer: • Pull the detergent drawer up to the end • Keep on pulling by depressing on the section shown below in the detergent drawer and keep pulling and then unsettle the detergent drawer. • Flsuh it using a brush. • Collect residues in the housing of the detergent drawer without dropping them inside the machine. • Assemble the detergent drawer after drying it using a towel or dry cloth. • Do not wash your detergent drawer in dishwasher.

  • Page 65: Flush Stopper / Body / Drum

    CHAPTER -8: FLUSH STOPPER / BODY / DRUM Flush stopper Disassemble the detergent drawer. Disassem- ble the flush stopper and clean the softener residues completely. Refit the flush stopper after cleaning it. Check whether it has settled properly. Body Clean the outer body of your machine with warm water and a non-inflammable cleaning agent that will not abrade the body of your machine. After rinsing with some water, dry it using a soft and dry cloth. Drum Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. This objects lead to formation of rust stains in the drum. To clean such rust stains, use a non- chlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.
  • Page 66 CHAPTER -9: TROUBLESHOOTING All repairing operations required for your machine should be carried out by our authorised service. If your machine re- quires a repair or if you cannot remove the fault by the help of the information provided as follows: • Unplug your machine. • Turn the water faucet off. POSSIBLE TROUBLE- FAULT CAUSE SHOOTING It is not plugged. Plug it. Fuse blown. Replace the fuses. Electricity cut-off. Check mains power. Start/pause button Press on Start/ not pressed. Pause button Your machine does Programme dial Switch the programme not start. ‘stop’ position. button to the desired position. The machine door is Close the machine not completely closed. door. Water tap is turned off. Turn your faucet on. Check water inlet Water inlet hose hose and untwist.

  • Page 67: Troubleshooting

    CHAPTER -9: TROUBLESHOOTING POSSIBLE TROUBLE- FAULT CAUSE SHOOTING Discharging Check the discharg- hose clogged or ing hose, then either twisted. clean or untwist. Your machine Pump filter Clean the does not dis- clogged. pump filter. (*) charge water. Laundry settled Spread your laun- in the machine dry in the machine unevenly. evenly. The feet of your ma- Adjust the feet on chine have not been your machine. (**) adjusted. Safety stays fitted Disassemble the for transportation safety stays of your not disassembled. machine. (**) Less amount of This will not block laundry in the ap- operation of your pliance.
  • Page 68 CHAPTER -9: TROUBLESHOOTING POSSIBLE TROUBLE- FAULT CAUSE SHOOTING Press on Start/Pause button To eliminate foam formation, mix a spoon of softener with half litres of water, and pour the mixture in the deter- gent drawer. After 5-10 Excessive amount minutes, press on Start/ of detergent used. Pause button again. In Excessive foam is your next washing opera- formed in the detergent tion, Adjust the detergent drawer. dose accordingly. Use detergents produced only for Wrong deter- automatic washing gent used. machines in your machine. The contamination de- Select the programme gree of your laundries appropriate for the does not match the contamination degree programme you have of your laundries. (See chosen.
  • Page 69 CHAPTER -9: TROUBLESHOOTING POSSIBLE TROUBLE- FAULT CAUSE SHOOTING Water being hard. Adjust the amount of ( Contaminated, lime detergent based on the water etc.) instruction of detergent manufacturer. Unsatisfactory washing result. Laundries distributed Spread your laun- in your machine non- dries in the ma- homogenously. chine properly and homogeneously. As soon as the ma- The end of water Set the water dis- chine is loaded with discharging hose charging hose on ap- water, water dis- is too low for the propriate height. (**) charges. machine. No water appears No fault. Water is in the drum during in the unseen part washing. of the drum.
  • Page 70 CHAPTER -9: TROUBLESHOOTING POSSIBLE TROUBLE- FAULT CAUSE SHOOTING Unbalanced load control system will try to spread your laundries homoge- neously. Spinning operation is No fault. Unbalanced Wringling operation will not performed or runs load control system begin after your laundry late. has been activated. is spread. Place the laundry in the machine in a balanced fashion the next time.

  • Page 71: Chapter -10: Automatic Fault Warnings And What To Be Done

    CHAPTER -10: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE Your machine is equipped with the systems which are capa- ble of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-check- ing during washing operations. FAILURE FAILURE PROBABLE THE PROCESS CODE INDICATOR FAILURE TO BE DONE Shut the door prop- erly so that you hear the click. If the prob- The start/pause The door is not lem persists, turn off Err 01 light blinks. shut properly. the machine unplug and apply to the nearest authorized service immediately. Turn on the tap to the end.Water may be cut, check it.If The water level the problem is still...

  • Page 72: Chapter-10: Automatic Fault Warnings And What To Be Done

    CHAPTER -10: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE FAILURE FAILURE PROBABLE THE PROCESS CODE INDICATOR FAILURE TO BE DONE Shut down your The heater of The start/pause machine and unplug. your machine or Err 05 light and program Turn off your tap and the heat sensor end light blink. apply to the nearest has failed. authorized service. Shut down your The program machine and unplug. ready light and The motor has Err 06 Turn off the tap and program end light failed.
  • Page 73 CHAPTER -11: PRACTICAL INFORMATION Alcoholic drinks: Spotted area should ini- tially be washed using cold water, and then be wiped with glycerine and water and rinsed with vinegar-mixed water. Shoe shine: Spot should be rubbed out gently without damaging the cloth and be scrubbed and rinsed with detergent. If not removed, it should be scrubbed using the mixture obtained by adding 1 scale of alco- hol (96˚) into 2 scales of water, and then be washed with warm water. Tea and coffee: Stretch the spotted area of your laundry throughout the openning of a vessel, and pour hot water as much as the type of your laundry can resist. In case the type of your laundry permits, wash with bleacher. Chocolate and cocoa: After submerging your laundries in cold water and rubbing it using soap or detergent, wash it in tempera- ture that fabric type of your laundry can re- sist. In case the oil stain is still visible, wipe with oxygen water (3%).
  • Page 74 CHAPTER -11: PRACTICAL INFORMATION Tomato paste: After rubbing out the dried substances without damaging your laundry, submerge it in water for 30 minutes, and then scrub and wash it with detergent. Bouillon-Egg: Remove dried spot residues on your laundry, and then wipe it with a sponge or soft cloth submerged in cold water previously. Scrub with detergent, wash with diluted bleacher. Grease and oil stains: Firstly, wie the residues. Scrub the spot with detergent and wash it with warm soapy water. Mustard: Apply glycerine on spotted area. Scrub with detergent and wash. If the spot cannot be removed, wipe with alcohol. (For synthetic and colour fabrics, a mixture of 1 scale of alcohol and 2 scales of water should be used)

  • Page 75: Practical Information

    CHAPTER -11: PRACTICAL INFORMATION Fruit: Stretch the spotted area of your laun- dry throughout the opening of a vessel, and pour cold water on it. Do not pour hot water on the spot. Wipe with cold water and apply glycerine. Allow 1-2 hours, wipe with a few drops of white vinegar, and rinse it. Grass stain: Wipe the stained part with detergent. If the type of your cloth permits bleacher using, wash with bleacher. Wipe your woollen laundries with alcohol. (For colour fabrics, a mixture of 1 scale of pure alcohol and 2 scales of water) Oil paint: Spot should be removed by apply- ing thinner before drying. Then it should be wiped with detergent and washed. Burn stain: If your laundry is suitable for applying bleacher, you can add bleacher into washing water. For wool fabric, a cloth pre- viously submerged in oxygen water should be covered over the stain and it should be ironed after putting a dry cloth on this cloth. It should be washed after being rinsed prop- erly.
  • Page 76 CHAPTER -11: PRACTICAL INFORMATION Blood stain: Submerge your laundries in cold water for 30 minutes. If the stain is not removed, then submerge in a mixture of wa- ter and ammoniac (3 spoons of ammoniac in 4 litres of water) for 30 minutes. Crema, ice cream and milk: Submerge your laundries in cold water and scrub the spotted area with detergent. If the spot is not re- moved, apply bleacher to the extent suitable for your laundries. (Do not use bleacher for colour laundries.) Muff: Muff stains should be cleaned as soon as possible. Stain should be washed with detergent water, nevertheless if it cannot be removed, it should be wiped with oxygen water (3%). Ink: Subject the spotted area to running water and wait until the flow of inked water ends. Then wipe it with lemon-added water and detergent, and wash it after allowing 5 minutes.

  • Page 77: How To Read The Energy Label And Saving Energy

    DESCRIBING ENERGY LABEL AND SAVING ENERGY Model Brand Energy Class Energy Consumption Noise Value While Washing Noise Value While Spinning Spinning Performance Class Dry Laundry Capacity Annual Water Consumption...
  • Page 78 DESCRIBING ENERGY LABEL AND SAVING ENERGY Energy and water consumption may vary based on water pressure, water hardness, water temperature, ambient tem- perature, laundry amount, additional function selection, volt- age fluctuations. It will reduce energy and water consump- tion to use your machine with the laundry capacity proposed for the selected programme, wash your laundries less dirty or daily laundries in short programmes, carry out cleaning and maintenance periodically, use your machine in conveni- ent time intervals specified by electricity vendor.

  • Page 79: Disposal Of Your Old Machine

    DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste col- lection places recycling electrical and electronic equip- ment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by...
  • Page 81 52159427...
