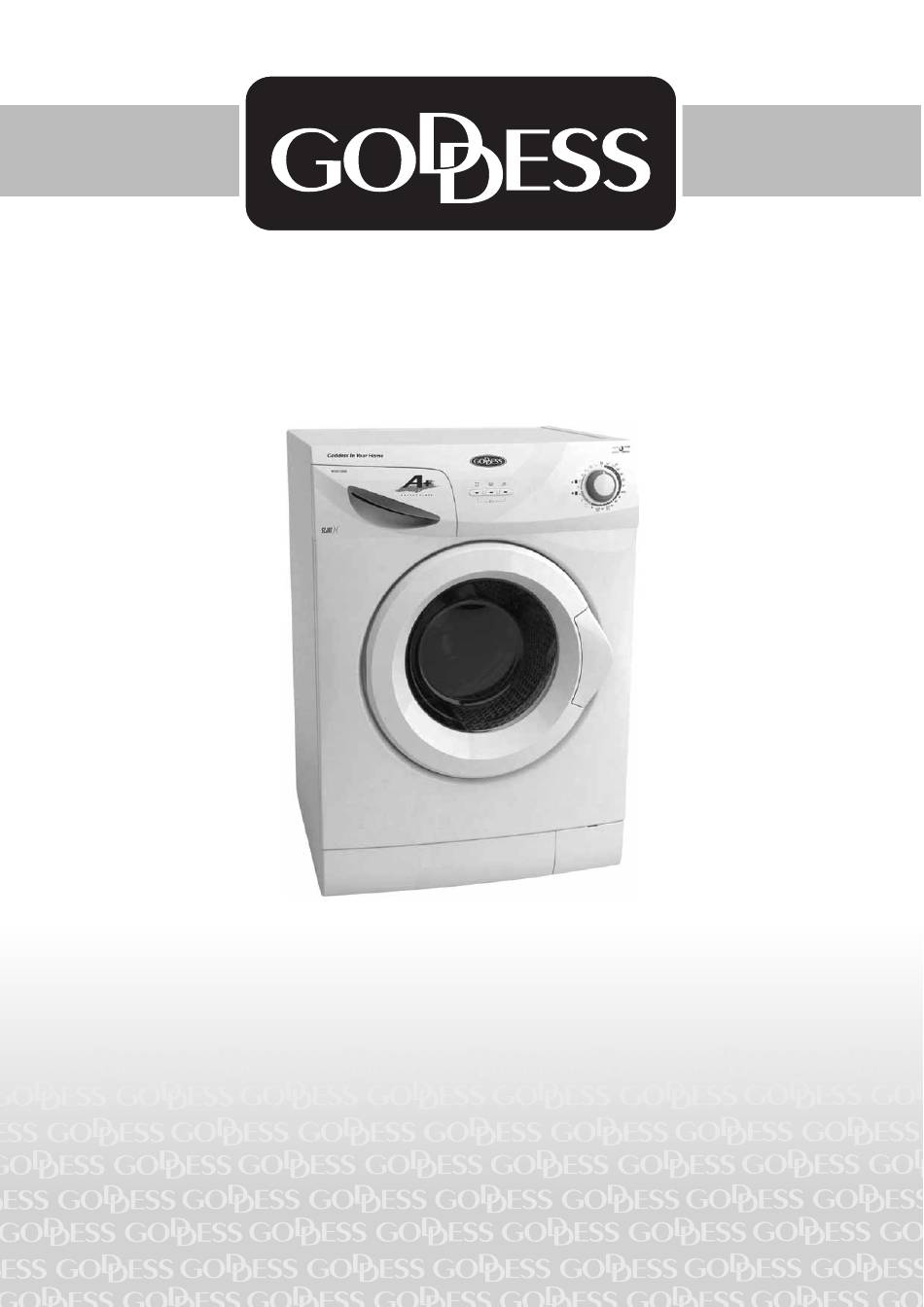

- Page 1 ELECTRONIC WASHING MACHINE GODDESS WFD 815 M8S INSTRUCTION MANUAL BEFORE USING THE WASHING MACHINE, YOU SHOULD CERTAINLY READ THE INFORMATION IN USER’S MANUAL...
-
Page 2: Table Of Contents
THE CONTENTS SECTION 1: BEFORE USING ................3 Safety warnings ....................3 Recommendations ....................3 SECTION 2: INSTALLATION ................4 Removal of transportation screws ................ 4 Adjustment of feet ....................4 Electrical connection ..................... 5 Water supply connection ..................5 Water drain connection .................. -
Page 3: Section 1: Before Using
SECTION 1: BEFORE USING SAFETY WARNINGS • Do not use a multiple socket or extension cord. • Do not insert a plug with damaged or broken cord into the socket. • If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard. -
Page 4: Section 2: Installation
SECTION 2: INSTALLATION You must pay attention to the following issues before using your washing machine. REMOVAL OF TRANSPORTATION SCREWS • Transportation screws, which are located at the back side of the machine, must be removed before running the machine. •... -
Page 5: Electrical Connection
ELECTRICAL CONNECTION • Your washing machine works with 220-240V and 50Hz. • A special grounded plug has been attached to the network cable of your washing machine. This plug must definitely be inserted to a grounded socket with 10 ampere. The fuse flow value of the electricity line attached to this should also be 10 ampere. -
Page 6: Water Drain Connection
• The end of the water drain hose may directly be fitted to the dirty water outlet hole or a special apparatus mounted on the outlet bracket of the wash-stand. • Never attempt to extend the water drain hose by adding extra parts. SECTION 3: TECHNICAL SPECIFICATIONS Brand Goddess Model WFD815M8S Energy class Voltage/Frekvency (V/Hz) -
Page 7: Section 4: Control Panel
SECTION 4: CONTROL PANEL WFD815M8S (3 buttons, program knob) 1) Detergent drawer 5) Program knob 2) Start/pause light 6) Start/pause button 3) Function indicator lights 7) Function buttons 4) Program ready light 8) Program end light START/PAUSE BUTTON Used to start a selected program or pause during running. WARNING! It is required for the program knob to be brought to O (off) position before selecting the program or changing a continuing program. -
Page 8: Function Buttons
FUNCTION BUTTONS (depends on selected model – see the control panel of your washing machine) Rinse hold This function is recommended to be used when the clothes cannot be taken immediately after the end of the program.This will prevent occurrence of wrinkles. When this button is pressed, the last rinsing water is not drained. -
Page 9: Before Washing
BEFORE WASHING Discrimination of your laundry • Discriminate your clothes according to their types (cotton, synthetic, sensitive, woolen, etc.), washing temperatures and level of dirtiness. • Never wash your white and coloured clothes together. • Since your new coloured clothes may shed dye on the first wash, wash them separately. •... -
Page 10: Running The Machine
Filling detergent in the machine The quantity of the detergent that you will fill in your machine depends on the following criteria: • Your detergent consumption will change according to the dirtiness level of your clothes. For your slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment no.2 of the detergent drawer. - Page 11 Cancellation of the Program If you desire to end a running program early: Press the start/pause button. Turn the program knob to O (off) status. Turn the program knob to “Draining” or “Spinning” programs. The program ready light will be on. Run the program you have selected by pressing the start/pause button.
-
Page 12: Section 6: Maintenance And Cleaning
SECTION 6: MAINTENANCE AND CLEANING • Unplug your machine. • Close the water tap. WATER INLET FILTERS On the tap part of your machine’s water inlet hose and at the ends of water inlet valves, there are filters to prevent entrance of the dirt and foreign materials in the water to the machine. If the machine is unable to receive sufficient water although your water tap is opened, these filters should be cleaned. - Page 13 MAX DRY LOAD Max. Program DETERGENT CAPACITY (kg) PROGRAM Temp. duration TYPE OF LAUNDRY EXPLANATIONS COMPART (°C) ** (min) WFD815M8S All spore clothes SPORTS WEAR Sport clothes and jeans Slightly dirty, synthetic or synthetic mixture SYNTHETIC "V" sensitive laundry. Nylon socks, blouse COLD Washed without heating the tap water.
-
Page 14: Pump Filter
• Remove the water inlet hose. • Remove the filters found on the water inlet valves by using a pincer and wash thoroughly with a brush. • Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal. -
Page 15: Detergent Drawer
DETERGENT DRAWER Detergents may form a sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time. To pull out the detergentdrawer: • Pull the detergent drawer to the end. (DIAGRAM-1) •... -
Page 16: The Drum
THE DRUM Do not leave metal parts like needles, staples or coins inside your machine. These pieces cause formation of rust stains in the drum. To eliminate these stains of rust, use a cleaning substance without chlorium and follow the warnings of the cleaning substance producer. - Page 17 Blood stain: Lay your clothes in cold water for 30 minutes. If the stain still does not disappear, lay in mixture of water and ammonia (3 table-spoons of ammonia in 4 liters of water)for 30 minutes. Cream, ice-cream and milk: Lay your clothes in cold water and rub the stained area with detergent.
-
Page 18: Section 8: Avoiding Minor Faults
SECTION 8: AVOIDING MINOR FAULTS All repairing which must be done on the machine should be done by authorized service. When a repairing is required for your machine or you are unable to eliminate the failure with the help of the information given below: •... -
Page 19: Section 9: Automatic Failure Detection System
FAULT POSSIBLE CAUSE REMOVING METHODS The end of the water drain hose The water is drained from the machine as Place the water drain hose in an appropriate is in a position too low according soon as it is filled. height. -
Page 20: Section 10: International Washing Signs
SECTION 10: INTERNATIONAL WASHING SIGNS ENG - 20... - Page 21 We reserve the right to change technical specifications. For any further information, please write to: info@goddess.cz WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don’t use it or before a revisi- on.
