Make sure the outer surface of the pipes are
clean and free of any debris or damage. Clean
the surface if necessary.
Mark the positions of the wall bracket holes and
drill the wall/tiles to suit.
Slide the wall bracket over the pipework and
securly fix to the wall.
Slide the olive over the pipework and push down
until it meets the wall bracket. Ensure the olive
is clear of the end of the pipework. Ensure pipe
does not enter too far into the connector outlet
and prevent the plastic seal (fig.12) fitting
correctly.
Screw the nut onto the wall bracket and tighten
until the olive is compressed onto the pipework.
(fig.13).
Using a suitable sealant, seal the join between
the mounting plate and the wall or tiles to
prevent water entering the wall (fig.14). Wipe
away any excess sealant which may obstruct the
fitting of the cover trim.
Press the plastic seal into the nut and screw
the trim onto the nut until it touches the wall
(fig.15).
Fit and secure the bar mixer to the connectors.
Bar mixer shower
Finished
wall
Maximum
25 mm
Minimum
21 mm
T00358
T00359
12
Plastic
seal

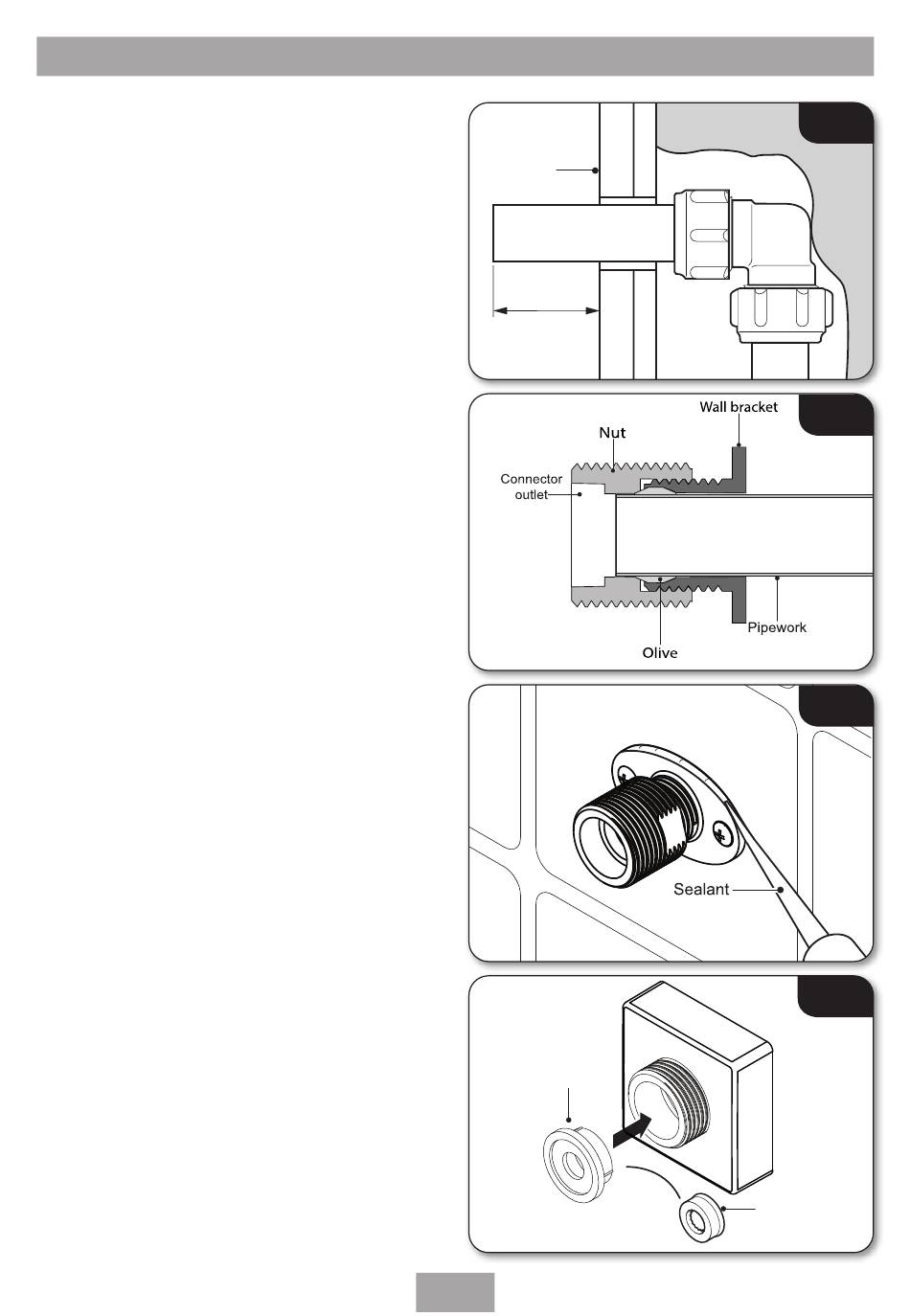

Fig.12
Fig.13
Fig.14
Fig.15
Flow regulator
(if supplied)
