MRC 0001959 Quick Start Manual

PROGRAMMING
This decoder supports all programming modes and supports read back of all CV's
with most dcc systems.
CV Description
CV1 Short address
CV2 Start voltage
Acceleration
CV3
Deceleration
CV4
Top voltage
CV5
Basic configuration
CV29
CV7 Manufacturer version number
CV8 Manufacturer ID
CV17 Long address upper byte
CV18 Long address low er byte
Advanced consist address
CV19
CV21=0, all accessory function w ill follow its ow n address.
CV21
CV21=1, all functions w ill follow the consist address
CV49 Master volume control
CV50 Horn type
CV51 Horn volume
Bell type
CV52
Bell volume
CV53
Bell ring rate
CV54
Diesel rumble volume
CV55
CV56 Brake squeal volume
CV57 Dynamic brake volume
CV58 Air release volume
CV59 Air pump volume
Safety pop valve volume
CV60
Engine cooling fan volume
CV61
Coupling volume
CV62
Rail w heel clack volume
CV64
Kick start voltage
CV65
CV67-94 28 speed steps table w hile CV29.4=1
CV105 User identification number
CV106 User identification number
Sand dropping volume
CV112
Back EMF Load control proportional gain Kp
CV113
Back EMF Load control integral gain Ki
CV114
Auto brake squeal enable/disable
CV115
CV116 Flange squeal volume
CV117 Light brightness
CV122 Diesel notch mode, 0=auto-notch, 3=manual notch
CV123 Prime mover type, 6 types
Back EMF Load control intensity (0=off)
CV124
Set it to1 to restore some factory default CV settnings
CV125
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29's bit 4 is set to "1" it will use the speed table formed by CV67-CV94
to control speed (motor voltage). It allows you to setup each speed for all 28
speed steps. First, program CV29 to 18 for short addresses (1-127) or program
Range Default
CV29 to 50 for long addresses (128-9999) to enable speed table control. Then
1-127 3
select throttle to 28 speed steps and run your loco at speed step 1. Use program
0-32 0
CV on the main to change CV67's value (1-255) to adjust step 1's speed. The
kick voltage, CV65 is only applied when the speed step changes from 0 to 1. You
0-32 0
should switch between 0 to 1 many times to check step 1's speed. When done
0-32 0
with CV67, select speed step 2 and program CV68. CV68's value must be
0-32 32
greater then CV67's. When done with CV67-CV94, use read back CV to make
sure their values are in increasing order.
--- 2
Note: When using MRC Prodigy DCC to program addresses it will automatically
--- 32
disable the speed table (set CV29's bit 4 to "0"). Programming CV125 to 1 will
--- 143
also disable the speed table and re-program CV67-CV94 to a default linear
speed setting.
192-231 192
0-255 3
TROUBLE SHOOTING
0-127 0
This decoder should perform well with all DCC systems. The maximum DCC
output should be less than 15 V. If the locomotive does not respond to com-
0-1 0
mands, it may have lost its address. Please re-program the address and program
1-16 16
CV19 to 0 (disable consist). If it responds slowly, you should clear its momentum
by reprogramming CV3 and CV4 to zero. If step 1's speed is too high, you should
0-22 13
program start voltage, CV2 to zero. If its top speed is too slow, program top
0-15 12
voltage CV5 to 31. You should also clean the track to improve electrical pickup.
0-6 3
Read your DCC system manual to learn how to program and operate the decoder.
For more information about registers/CVs and their functions, please refer to the
0-15 12
NMRA DCC Standard & Recommended Practices, RP-9.2.2. This is available
0-50 3
directly from the NMRA or their website at www.nmra.org. Whenever the
0-15 12
decoder doesn't work please use the program track to program CV# 125 with
0-15 7 value 1 to restore the decoder to factory settings. This should bring the decoder
to life with address #3.
0-15 12
0-15 12 FCC COMPLIANCE
0-15 12 This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions. (1) This device may not cause harmful interference,
0-15 12
and (2) This device must accept any interference received, including interfer-
0-15 12
ence that may cause undesired operation.
0-15 12
RETURN PROCEDURE
0-15 12
0-63 63 This decoder carries a 6 month warranty against factory defects. This warranty does
not include abuse, misuse, neglect, improper installation, or any modifications made
1-255 linear
to this decoder, including but not limited to the removal of the NMRA plug if applicable.
0-255 0
If it should become necessary to return the decoder for warranty repair/replacement,
0-255 0 please include a copy of the original sales receipt. Please include a letter (printed
clearly) with your name, address, daytime phone number, and a detailed description of
0-15 12
the problem you are experiencing. Please also include a check or a money order for
0-31 20
$10.00 to cover return shipping and handling. If the decoder is no longer considered
0-31 10 under warranty, then please include a check or a money order for $50.00 to cover the
cost of repair or replacement and return shipping and handling. Be certain to return
0-1 1(enable)
the decoder only.
0-15 12
Any questions regarding Warranty Policy can be directed to our Customer
0-255 200
Service Department by calling 732-225-6360 between the hours of 8:30am
0-3 3 and 6:00pm EST, or by emailing: rrtech@modelrectifier.com
Send the decoder to:
0-5 0
0-255 160
0-1 0
Model Rectifier Corporation
Attn: Parts & Service
80 Newfield Avenue
Edison, NJ 08837-3817 U.S.A Printed in USA

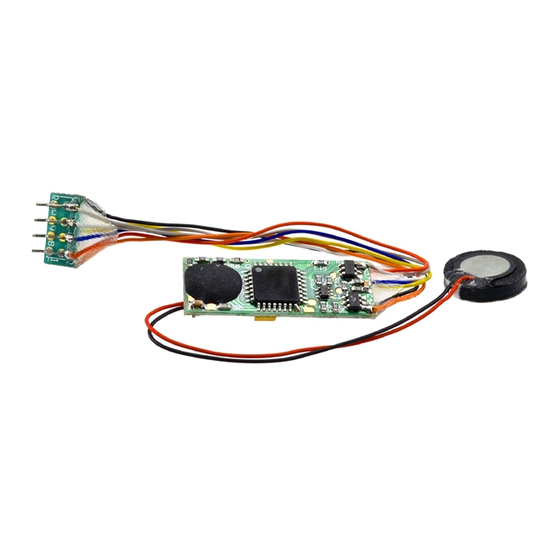

N Gauge / Small HO Diesel
Sound Decoder
Item #0001959
Thank you for purchasing our highly advanced DCC 16 bit
locomotive sound decoder. Combined with any DCC System,
our new decoder with authentic diesel sounds will bring your
locomotives to life.
Six synchronized diesel prime movers with random
•
associated locomotive sounds
• Adjustable back EMF load control with ultra slow speed
control
• 1.0 amp capacity . Can be used in small HO loco.
Comes with NMRA 8 pin plug
• Programmable for either 2-digit (1-127) or 4-digit (1-
9999) addresses
• Programmable start voltage and top voltage
• Programmable acceleration and deceleration rate
• Programmable 14, 28/ 128 speed steps
• Programmable user selectable 22 horns and 8
bells
• Programmable individual sound volumes (16-
levels)
• Programmable master sound volumes (16-levels)
• 28 accessory functions (F1-F28)
• Supports full read back of CV's
• Supports advanced consisting (CV19)
• Supports programming on the main (OPS mode)
• Compatible with NMRA DCC standards
• Complies with part 15 of FCC regulations
• 13mm speaker included
