MRC 0001957 Quick Start Manual

PROGRAMMING
This decoder supports all programming modes and supports read back of all CV's
with most dcc systems.
Description
CV
Short address
CV1
CV2 Start voltage
CV3 Acceleration
Deceleration
CV4
Top voltage
CV5
CV29 Basic configuration
CV7 Manufacturer version number
Manufacturer ID
CV8
Long address upper byte
CV17
CV18 Long address low er byte
Advanced consist address
CV19
CV21=0, all accessory function w ill follow its ow n address.
CV21
CV21=1, all functions w ill follow the consist address
Master volume control
CV49
Horn type
CV50
CV51 Horn volume
CV52 Bell type
Bell volume
CV53
Bell ring rate
CV54
CV55 Diesel rumble volume
Brake squeal volume
CV56
Dynamic brake volume
CV57
CV58 Air release volume
CV59 Air pump volume
Safety pop valve volume
CV60
Engine cooling fan volume
CV61
CV62 Coupling volume
Rail w heel clack volume
CV64
Kick start voltage
CV65
CV67-94 28 speed steps table w hile CV29.4=1
CV105 User identification number
User identification number
CV106
Sand dropping volume
CV112
CV113 Back EMF Load control proportional gain Kp
CV114 Back EMF Load control integral gain Ki
Auto brake squeal enable/disable
CV115
CV116 Flange squeal volume
CV117 Light brightness
Diesel notch mode, 0=auto-notch, 3=manual notch
CV122
Prime mover type, 6 types
CV123
CV124 Back EMF Load control intensity (0=off)
CV125 Set it to1 to restore some factory default CV settnings
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29's bit 4 is set to "1" it will use the speed table formed by CV67-CV94
to control speed (motor voltage). It allows you to setup each speed for all 28
speed steps. First, program CV29 to 18 for short addresses (1-127) or program
Range Default
CV29 to 50 for long addresses (128-9999) to enable speed table control. Then
1-127 3
select throttle to 28 speed steps and run your loco at speed step 1. Use program
0-32 0
CV on the main to change CV67's value (1-255) to adjust step 1's speed. The
kick voltage, CV65 is only applied when the speed step changes from 0 to 1. You
0-32 0
should switch between 0 to 1 many times to check step 1's speed. When done
0-32 0
with CV67, select speed step 2 and program CV68. CV68's value must be
0-32 32
greater then CV67's. When done with CV67-CV94, use read back CV to make
sure their values are in increasing order.
--- 2
Note: When using MRC Prodigy DCC to program addresses it will automatically
--- 32
disable the speed table (set CV29's bit 4 to "0"). Programming CV125 to 1 will
--- 143
also disable the speed table and re-program CV67-CV94 to a default linear
speed setting.
192-231 192
0-255 3
TROUBLE SHOOTING
0-127 0
This decoder should perform well with all DCC systems. The maximum DCC
output should be less than 15 V. If the locomotive does not respond to com-
0-1 0
mands, it may have lost its address. Please re-program the address and program
1-16 16 CV19 to 0 (disable consist). If it responds slowly, you should clear its momentum
by reprogramming CV3 and CV4 to zero. If step 1's speed is too high, you should
0-22 13
program start voltage, CV2 to zero. If its top speed is too slow, program top
0-15 12
voltage CV5 to 31. You should also clean the track to improve electrical pickup.
0-6 3
Read your DCC system manual to learn how to program and operate the decoder.
For more information about registers/CVs and their functions, please refer to the
0-15 12
NMRA DCC Standard & Recommended Practices, RP-9.2.2. This is available
0-50 3
directly from the NMRA or their website at www.nmra.org. Whenever the
0-15 12
decoder doesn't work please use the program track to program CV# 125 with
value 1 to restore the decoder to factory settings. This should bring the decoder
0-15 7
to life with address #3.
0-15 12
FCC COMPLIANCE
0-15 12
This device complies with Part 15 of the FCC Rules. Operation is subject to the
0-15 12
following two conditions. (1) This device may not cause harmful interference,
0-15 12
and (2) This device must accept any interference received, including interfer-
0-15 12 ence that may cause undesired operation.
0-15 12
RETURN PROCEDURE
0-15 12
This decoder carries a 6 month warranty against factory defects. This warranty does
0-63 63
not include abuse, misuse, neglect, improper installation, or any modifications made
1-255 linear
to this decoder, including but not limited to the removal of the NMRA plug if applicable.
0-255 0 If it should become necessary to return the decoder for warranty repair/replacement,
please include a copy of the original sales receipt. Please include a letter (printed
0-255 0
clearly) with your name, address, daytime phone number, and a detailed description of
0-15 12
the problem you are experiencing. Please also include a check or a money order for
0-31 20 $10.00 to cover return shipping and handling. If the decoder is no longer considered
under warranty, then please include a check or a money order for $50.00 to cover the
0-31 10
cost of repair or replacement and return shipping and handling. Be certain to return
0-1 1(enable)
the decoder only.
0-15 12 Any questions regarding Warranty Policy can be directed to our Customer
Service Department by calling 732-225-6360 between the hours of 8:30am
0-255 200
and 6:00pm EST, or by emailing: rrtech@modelrectifier.com
0-3 3
Send the decoder to:
0-5 0
0-255 160
0-1 0
Model Rectifier Corporation
Attn: Parts & Service
80 Newfield Avenue
Edison, NJ 08837-3817 U.S.A Printed in USA

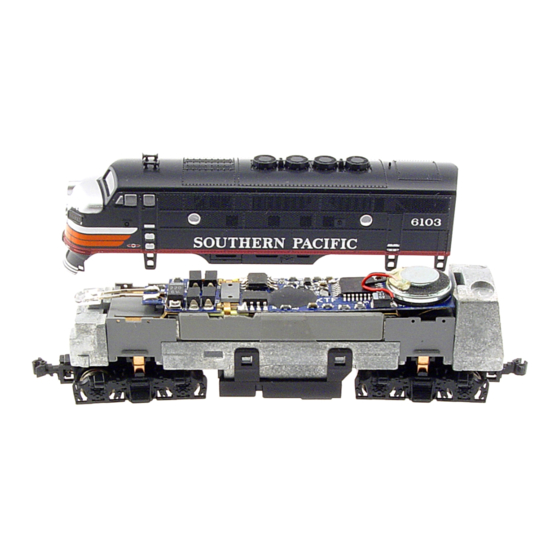

N Gauge Drop-in Diesel Sound Decoder
for Kato F Series Locomotives
Item #0001957
Thank you for purchasing our highly advanced DCC/DC 16 bit
locomotive sound decoder. Combined with any DCC System or
the MRC Tech 6, our new decoder with authentic diesel sounds
will bring your locomotives to life.
•
Synchronized diesel prime mover with random
associated locomotive sounds
•
Adjustable back EMF load control with ultra slow
speed control
•
1.0 amp capacity
•
Programmable for either 2-digit (1-127) or 4-digit
(1-9999) addresses
•
Programmable start voltage and top voltage
•
Programmable acceleration and deceleration
rate
•
Programmable 14, 28/ 128 speed steps
•
Directional lighting, (FO). Sunny White LED
included
•
Programmable user selectable different horns
and bells
•
28 accessory functions (F1-F28)
• Supports full read back of CV's
•
Supports advanced consisting (CV19)
•
Supports programming on the main (OPS
mode)
•
Compatible with NMRA DCC standards
•
Complies with part 15 of FCC regulations
•
Programmable individual sound volumes
•
13mm speaker included
