MRC 0001911 Quick Start Manual

PROGRAMMING
This decoder supports all program modes and read back features.
CV Description
Short address
CV1
CV2 Start voltage
Acceleration
CV3
CV4 Deceleration
Top voltage
CV5
CV29 Basic configuration
Manufacturer version number
CV7
CV8 Manufacturer ID
Long address upper byte
CV17
CV18 Long address lower byte
Advanced consist address
CV19
CV21=0, all accessory function will follow its own address.
CV21
CV21=1, all functions will follow the consist address
CV49 Master sound volume
Whistle type
CV50
CV51 Whistle volume
Bell type
CV52
CV53 Bell volume
Bell ring rate
CV54
CV55 Chuff type (10 types)
Chuff volume
CV56
CV57 Brake squeal volume
Air release volume
CV58
CV59 Blower hiss volume
Fire box door volume
CV60
CV61 Water injector volume
Coupling volume
CV62
CV63 Water filling volume
Rail clack volume
CV64
CV65 Kick start voltage
28 speed steps table while CV29.4=1
CV67-94
CV112 Metal crank volume
Back EMF Load control proportional gain Kp
CV113
CV114 Back EMF Load control integral gain Ki
Auto brake squeal enable/disable
CV115
CV116 Sand drop volume
Coal volume
CV117
CV118 Shoveling volume
Chuff rate
CV120
CV121 Chuff start point
Double chuff enable
CV122
SPEED TABLE CV67-CV94 FOR 28 SPEED STEPS
When CV29's bit 4 is set to "1" it will use the speed table formed by CV67-CV94
to control speed (motor voltage). It allows you to setup each speed for all 28
Range Default
speed steps. First, program CV29 to 18 for short addresses (1-127) or program
1-127 3 CV29 to 50 for long addresses (128-9999) to enable speed table control. Then
select throttle to 28 speed steps and run your loco at speed step 1. Use program
0-32 10
CV on the main to change CV67's value (1-255) to adjust step 1's speed. The
0-32 0
kick voltage, CV65 is only applied when the speed step changes from 0 to 1. You
0-32 0 should switch between 0 to 1 many times to check step 1's speed. When done
with CV67, select speed step 2 and program CV68. CV68's value must be
0-32 32
greater then CV67's. When done with CV67-CV94, use read back CV to make
--- 2
sure their values are in increasing order.
Note: When using MRC Prodigy DCC to program addresses it will automatically
--- 19
disable the speed table (set CV29's bit 4 to "0"). Programming CV125 to 1 will
--- 143
also disable the speed table and re-program CV67-CV94 to a default linear
192-231 192
speed setting.
0-255 3
TROUBLE SHOOTING
0-127 0
Loco running without chuff sound click F12. Whenever the decoder doesn't
work please use the program track to program CV #125 with value 1 to restore
0-1 0
the decoder to factory settings. This should bring the decoder to life with
0-63 63 address #3. This decoder should perform well with all DCC systems. The maximum
DCC output should be less than 18 V. If the locomotive does not respond to
0-17 4
commands, it may have lost its address. Please re-program the address and
0-63 60
program CV19 to 0 (disable consist). If it responds slowly, you should clear its
momentum by reprogramming CV3 and CV4 to zero. If step 1's speed is too high,
0-7 60
you should program start voltage, CV2 to zero. If its top speed is too slow, program
0-63 3
top voltage CV5 to 31. You should also clean the track to improve electrical pickup.
0-50 10
Read your DCC system manual to learn how to program and operate the decoder.
For more information about registers/CVs and their functions, please refer to the
0-9 0
NMRA DCC Standard & Recommended Practices, RP-9.2.2. This is available
0-63 60
directly from the NMRA or their website at www.nmra.org.
0-63 40
FCC COMPLIANCE
0-63 60
This device complies with part 15 of the FCC Rules. Operation is subject to the
0-63 60
following two conditions. (1) This device may not cause harmful interference, and (2)
This device must accept any interference received, including interference that may
0-63 60
cause undesired operation.
0-63 60
0-63 60
RETURN PROCEDURE
0-63 60
This decoder carries a 6 month warranty against factory defects. This warranty does
not include abuse, misuse, neglect, improper installation, or any modifications made
0-63 60
to this decoder, including but not limited to the removal of the NMRA plug if applicable.
0-63 63
If it should become necessary to return the decoder for warranty repair/replacement,
1-255 linear
please include a copy of the original sales receipt. Please include a letter (printed
clearly) with your name, address, daytime phone number, and a detailed description of
0-3 3
the problem you are experiencing. Please also include a check or a money order for
0-31 20
$11.00 to cover return shipping and handling. If the decoder is no longer considered
0-31 10
under warranty, then please include a check or a money order for $50.00 to cover the
cost of repair or replacement and return shipping and handling. Be certain to return
0-1 1(enable)
the decoder only.
0-63 60
Any questions regarding Warranty Policy can be directed to our Customer
0-63 60 Service Department by calling 732-225-6360 between the hours of 8:30am
and 6:00pm EST, or by emailing: rrtech@modelrectifier.com
0-63 60
Send the decoder to:
0-60 30
0-10 3
0-1 1(enable)
Model Rectifier Corporation
Attn: Parts & Service
80 Newfield Avenue
Edison, NJ 08837-3817 U.S.A Printed in USA

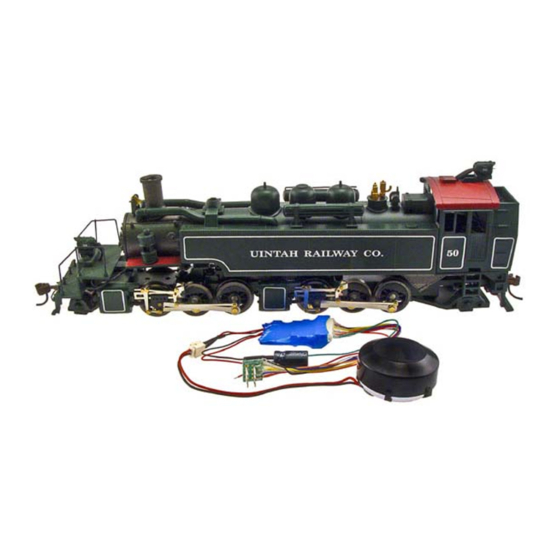

HO DCC Steam Sound Decoder
with 20 different chuff sounds
with NMRA 8 pin and 9 pin JST connector
Item #0001911
Thank you for purchasing our most advanced DCC locomo-
tive sound decoder. Combined with any DCC System or Tech
6 Sound Controller, our true live capture digital sound de-
coder will make your model railroad come to life.
• Comes with NMRA 8 pin and 9 pin JST connector for easy
installation
• Adjustable back EMF load control
• 20 types of synchronized chuff sounds
• Double chuff enabling
• 1.0 amp capacity
• 17 different types of whistles
• Programmable individual sound volumes (64-levels)
• Programmable master sound volumes (64-levels)
• Programmable either 2-digit or 4-digit addresses
• Programmable start voltage and top voltage
• Programmable acceleration and decelaration rates
• Programmable 14, 28, 128 speed steps
• Supports full read back of address and CV values
• Advanced speed table control CV67-CV94
• Directional head lights
• Mars light and firebox flicker
• 28 accessory functions (F1-F28)
• Supports advanced consisting (CV19)
• Supports programming on the main (OPS mode)
• Compatible with NMRA DCC standards
• Complies with Part 15 of FCC Rules
• 28 mm speaker included
• Dimensions: 29.50mm x 10.60mm x 5.0mm
