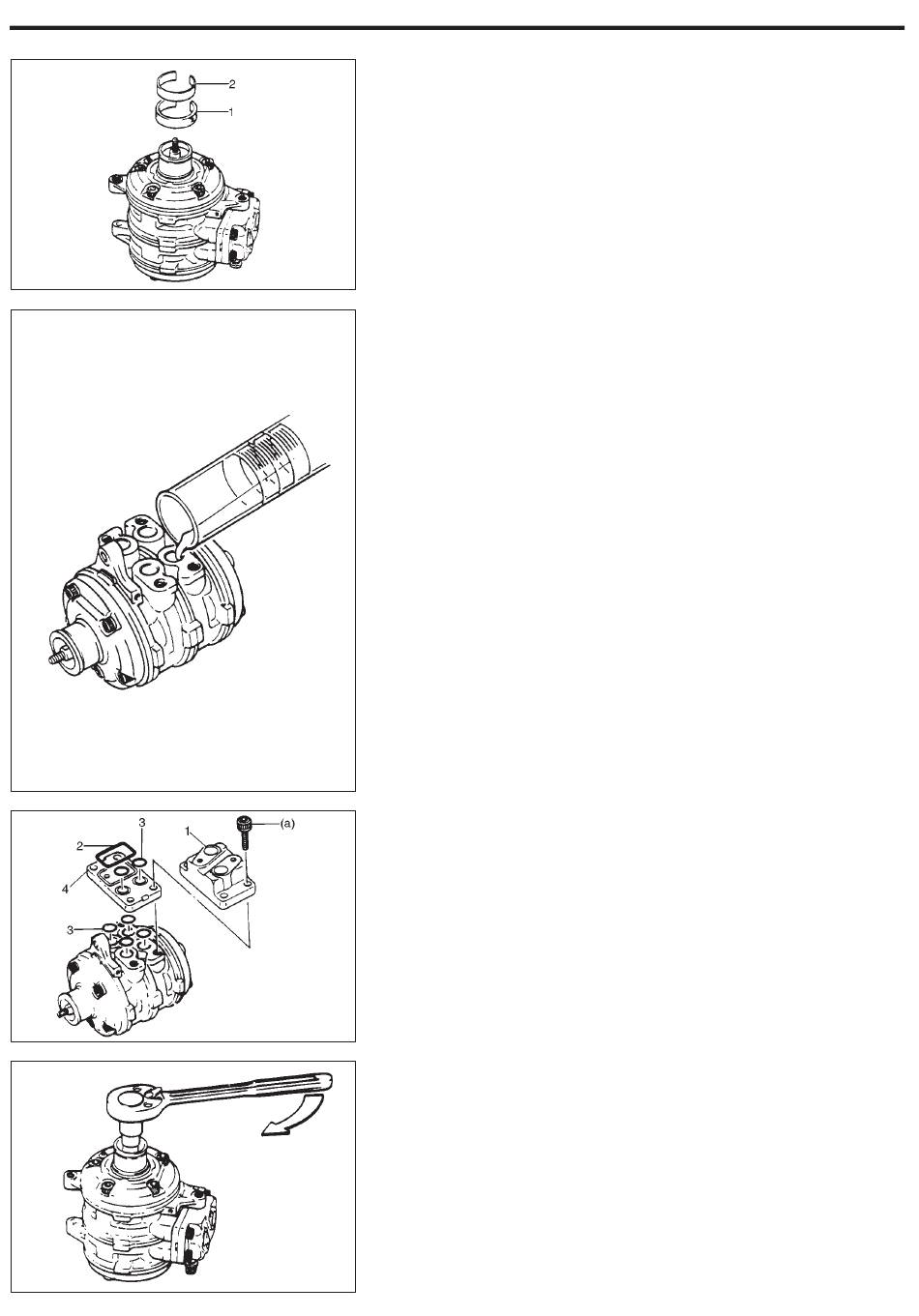

8) Install new oil felt (1) to inside the bore, and then install ring (2)
to inside the bore.
2. Ring
9) Pour compressor oil into compressor.
NOTE:
Compressor assembly supplied from factory is filled up
with 60 – 100 cc oil. Therefore, when replacing compres-
sor assembly with new one, drain 40 cc oil from it.
The rest 40 cc oil remain in parts except compressor.
Additional oil after
compressor overhauling: 40 cc (2.4 cu. in.)
Oil capacity in
air conditioner system: 60 – 100 cc (3.7 – 6.1 in
10) Install service connector.
a. Lubricate new O-rings (3) with compressor oil and install them
in service connector (1).
b. Install service connector (1) to compressor.
NOTE:
Suction port has larger internal opening than discharge
port.
2. Diffuser seal
Tightening Torque
4. Diffuser
(a): 26 N·m (2.6 kg-m, 19 lb-ft)
11) Check shaft rotating torque.
Rotating Torque
Less than 3.0 N·m (0.3 kg-m, 2.2 lb-ft)
