1B-36 AIR CONDITIONING (OPTIONAL)

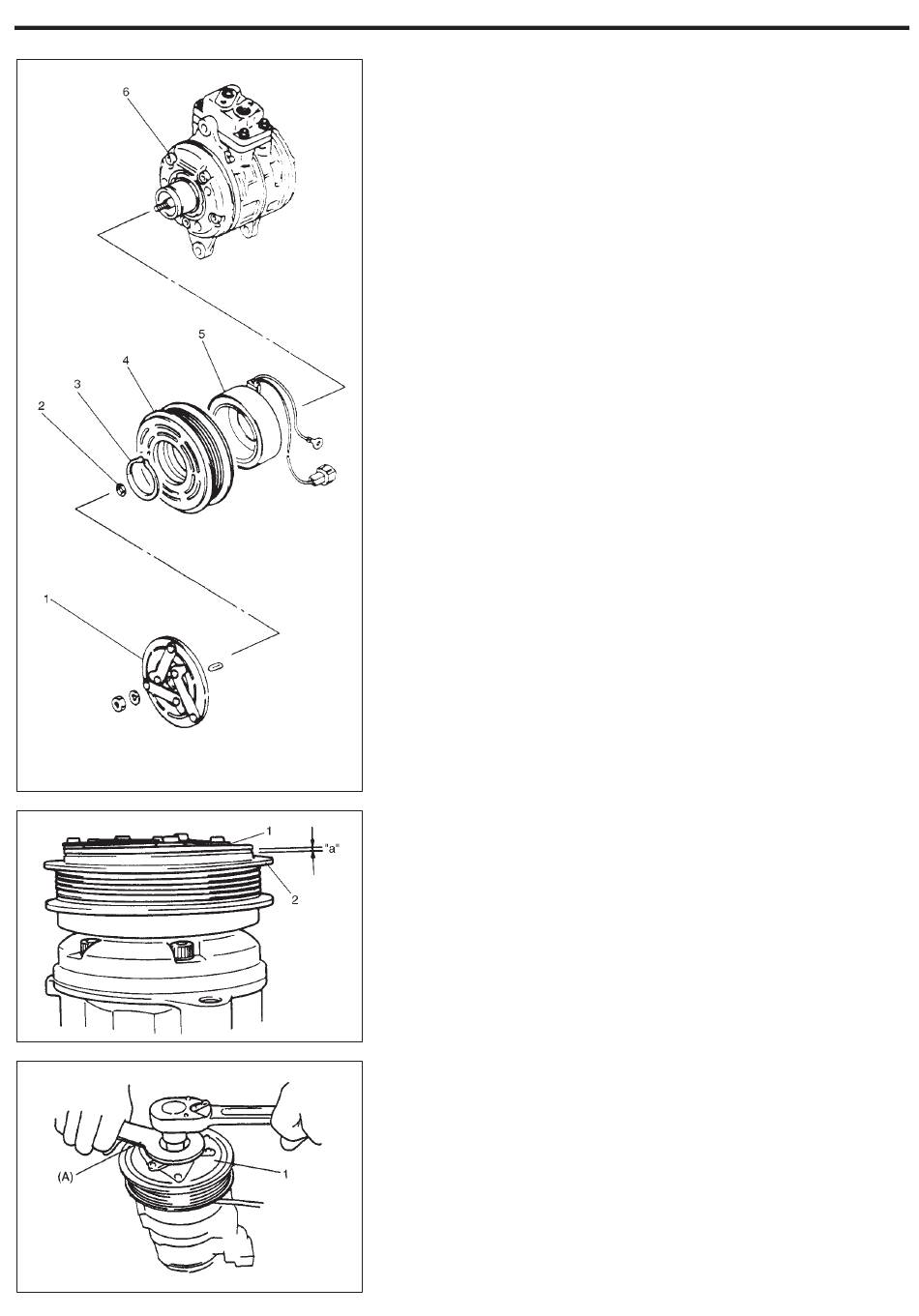

ASSEMBLY OF MAGNETIC CLUTCH

1) Install magnetic clutch coil (5).
2) Install drive clutch (4).
a. Install drive clutch (4) to compressor (6) shaft.
b. Using snap ring pliers, install snap ring (3).
1. Pressure plate
2. Shim
3) Install pressure plate.
a. Adjust clearance between pressure plate (1) and drive clutch
(2) by putting shims on compressor shaft.
Standard clearance "a": 0.4 – 0.7 mm (0.016 – 0.028 in.)
b. Fix pressure plate (1) with special tool (A) then tighten pressure
plate fixing nut as specified below.
Special Tool
(A): 09991-06020
Tightening Torque:
16.5 N·m (16.5 kg-m, 12.0 lb-ft)
