INSTALLATION
Reverse removal sequence to install condenser, noting the follow-
ing point.
If condenser is replaced, pour 15 cc of refrigerating oil to com-
pressor suction-side.
Evacuate and charge system according to previously described
procedure.
INSPECTION
Check the following.
Condenser fins for leakage, blockage and damage
Condenser fittings for leakage
Clogged condenser fins should be washed with water, and should
be dried with compressed air.
NOTE:
Be careful not to damage condenser fins. If condenser fin is
bent, straighten it by using a screwdriver or pair of pliers. If
any leakage is found from fitting or tube, repair or replace con-
denser.

RECEIVER/DRYER

REMOVAL

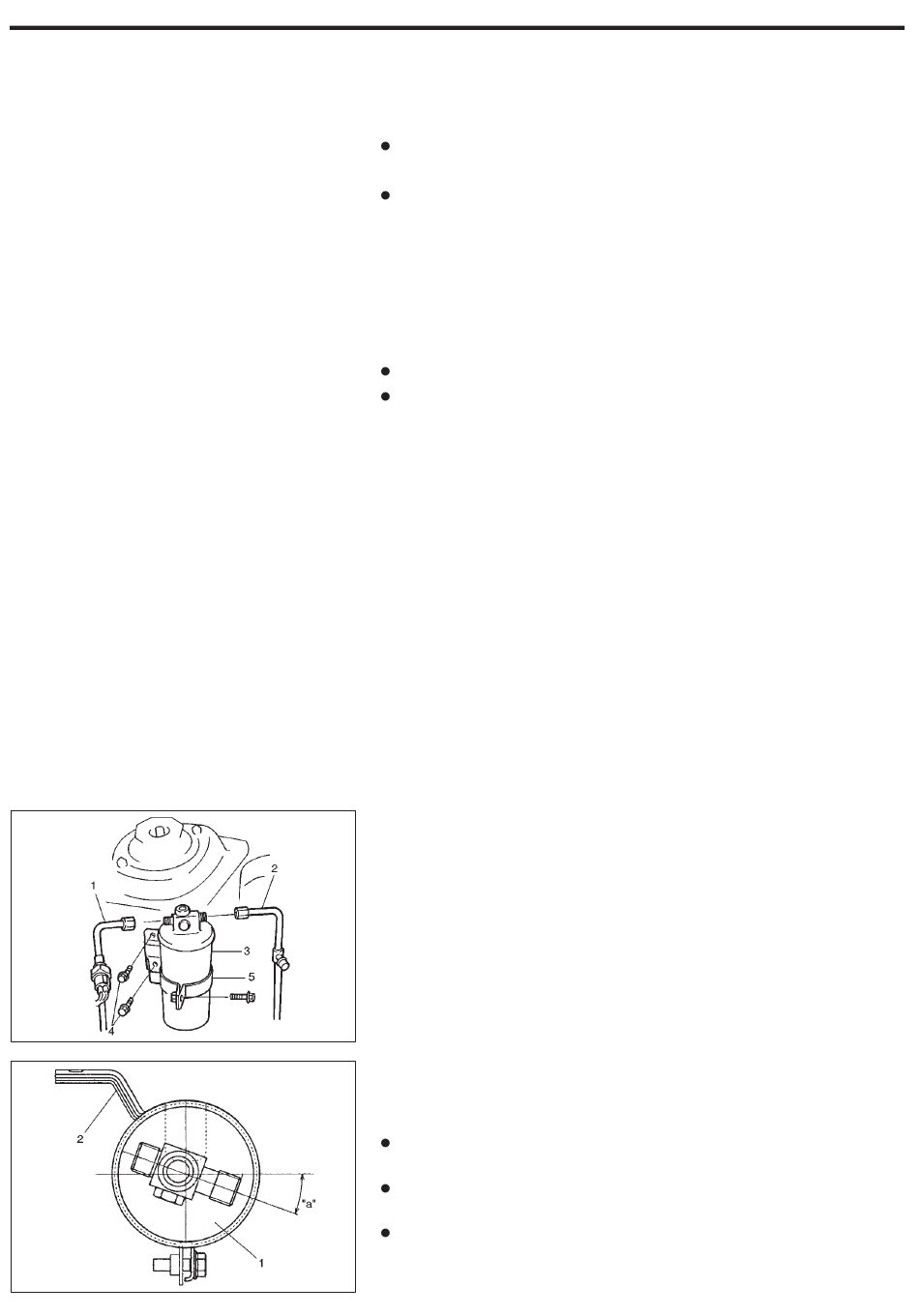

1) Recover refrigerant from refrigeration system by using recovery
and recycling equipment.
2) Disconnect receiver/dryer outlet pipe (1) and condenser outlet
pipe (2) from receiver/dryer (3).
3) Loosen receiver/dryer bracket bolts (4).
4) Remove receiver/dryer with its bracket (5).
INSTALLATION
Reverse removal sequence to install receiver/dryer noting the fol-
lowing points.
If receiver/dryer (1) is replaced, pour 20 cc of refrigerating oil to
compressor suction-side.
Evacuate and charge system according to previously described
procedure.
Install receiver/dryer (1) to its bracket (2) as shown in figure.
"a" 205
AIR CONDITIONING (OPTIONAL) 1B-17
