1. Checking the Parts in the Kit

Confirm that all parts listed below are included in the kit. If any part is shorted or any abnormality is found in
the appearance of the parts, contact our sales representative where you bought the instrument.
List of parts included in the kit.
right side bracket (1pc), left side bracket (1pc), screws (M5, 8 mm long) (4pcs)

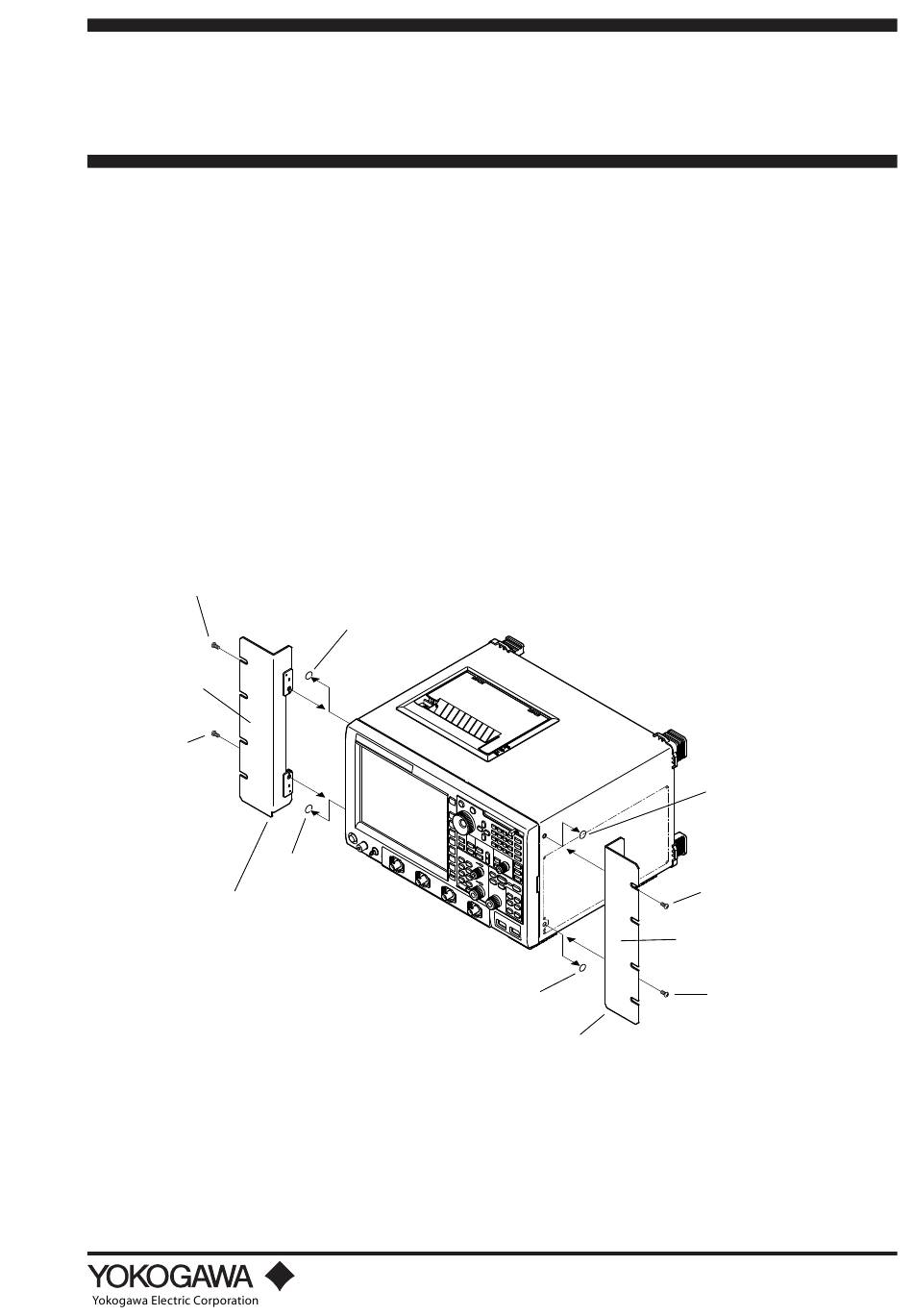

2. Joining the Instruments with Mounting Hardware

1. Distinguish between the left and right side brackets. If the projection of the bracket end is turned
downward, distinction on either side can be performed easily.
2. Remove sealing label (b) from the left and right sides of the instrument (4 labels).
3. If the four feet on the botton of the instrument are covered with rubber stoppers, remove all of them.
4. Attach the left side bracket (a) to the left side of the instrument with two frame attachment screws (d).
Reference torque value: 2.8 to 2.9 N∙m
5. Attach the right side bracket (b) to the right side of the instrument with two frame attachment screws (d).
Reference torque value: 2.8 to 2.9 N∙m
d
a
d
Projection
Model 701983
RACK MOUNTING KIT
For an EIA-compliant Single-housing Rack
c
c
