Preparing The Installation; Wiring Table - Viking C-3000 Product Manual

A. Definitions
Primary Module: The C-3000 module assigned module ID #1. Also, the only module in a single-module system.
Secondary Module(s): Any module(s) in addition to the Primary, in a multi-module C-3000 system. Secondary
modules are assigned module ID numbers in the range of #2 through #8.
"66" Punch Down Terminal Block: A connection peripheral used to interface telephone lines easily. This in-
stallation requires a "split" punch down block.
B. Preparing the Installation
Select an appropriate location in which to install the C-3000 System. It is normally most convenient to install the
C-3000 modules as near as possible to the telco demarcation point; that is, the common point at which all tenant
phone lines enter the building (if applicable). If the tenant phone wiring is not currently cabled though a "66" block
or blocks, it will be necessary to install "66" block(s) at this time to facilitate the installation of the C-3000 system.
Note: See the installation diagram on the following page for recommendations on which "66" block to use.
C. Assigning Module ID Numbers
A C-3000 system consists of at least one (Primary) C-3000 module, and as many as seven (7) Secondary modules.
Multiple C-3000 modules are all interconnected from module to module, using the supplied modular cords, con-
necting the MULTI-MODULE INTERCONNECTS from IN to OUT. If more than one C-3000 module is being in-
stalled, it will be necessary to set module ID numbers at this time. Each C-3000 module must have it's own ID
number to be part of a C-3000 system. Module ID numbers are set using the three-position DIP switches on the
front of the C-3000 modules (see diagram below). Module ID numbers are used to determine which C-3000 module
is responsible for handling a particular range of apartment numbers. As an example, Module #1 (the Primary mod-
ule) handles apartment numbers 1-12, Module #2 handles apartment numbers 13-24 and so forth.

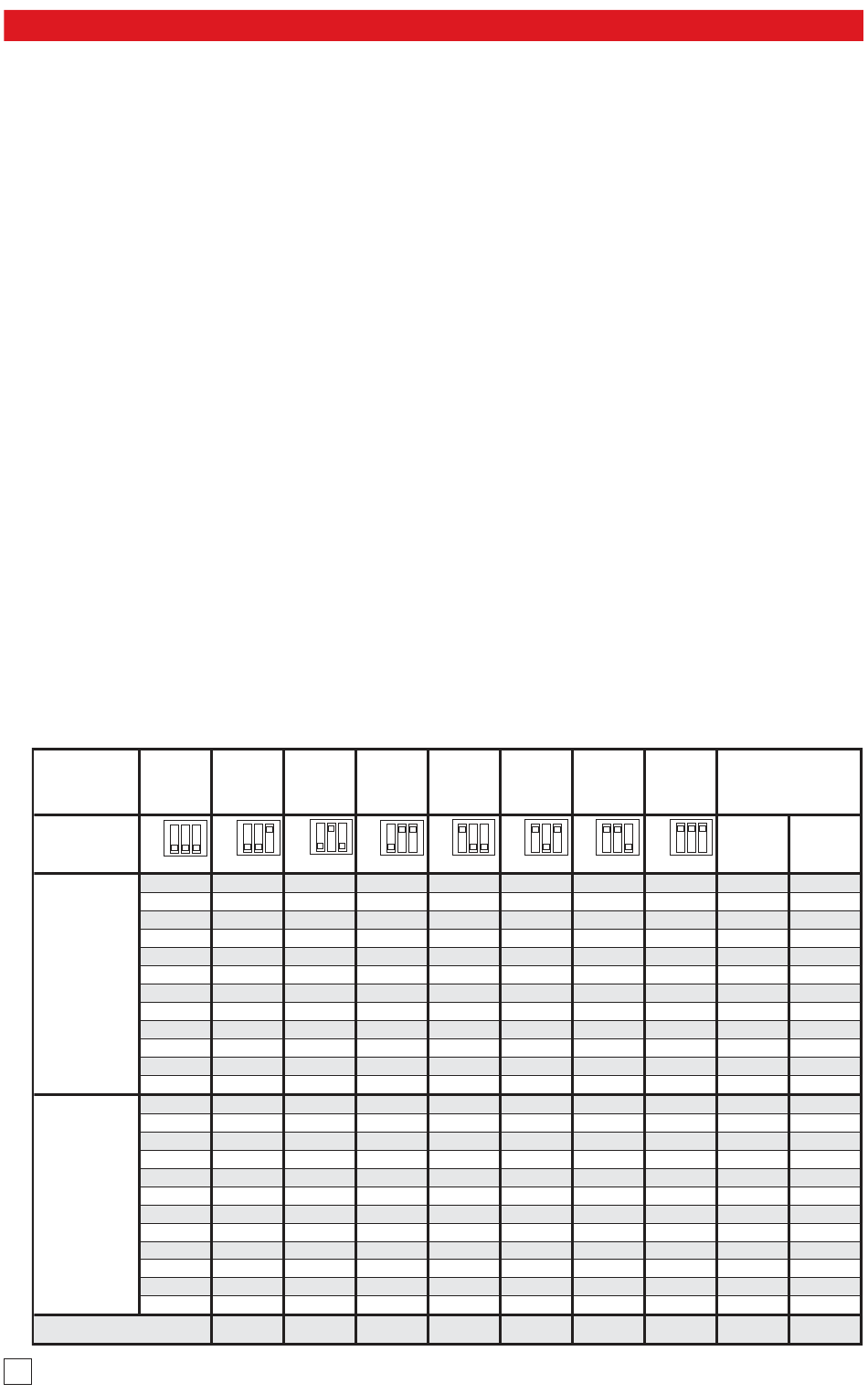

D. Wiring Table
Refer to the wiring table below when installing the cabling for the C-3000 system. Note that tenant line 1 enters
on pins 1 & 26 of the RJ-21X connector, and exits on pins 2 & 27 of the same connector. This also means a visitor
would dial a touch tone 1 to call the tenant connected to line 1. This scheme is used on all 12 lines on the RJ-21X
connector, occupying all pins up thorough the pin 24 & 49 pair, and repeats on up to the 96th tenant on the 8th
module. The last pair on the RJ-21X connector (pins 25 & 50) has a special function. This last pair is used (on
the Primary module only) as a connection for the Building Manager's Programming Phone.
Module
Module ID
Assignment
"Primary"
ON ON
Dip Switch
OFF OFF
Settings
C.O.
Lines In
10
11
12
Lines Out to
Apartment
Phones
(Dial Up
Codes)
10
11
12
Building Mgr Phone
2
Module Module
1 2 3
"Secondary" "Secondary"
ON ON
ON ON
OFF OFF
OFF OFF
1 2 3 1 2 3
1 2 3 1 2 3 1 2 3 1 2 3
1 13 25
2 14 26
3 15 27
4 16 28
5 17 29
6 18 30
7 19 31
8 20 32
9 21 33
22 34
23 35
24 36
1 13 25
2 14 26
3 15 27
4 16 28
5 17 29
6 18 30
7 19 31
8 20 32
9 21 33
22 34
23 35
24 36
n/a n/a
Installation
Module Module Module
4 5
"Secondary" "Secondary" "Secondary"
ON ON ON ON
ON ON
OFF OFF OFF OFF OFF OFF
1 2 3 1 2 3 1 2 3 1 2 3
37 49
38 50
39 51
40 52
41 53
42 54
43 55
44 56
45 57
46 58
47 59
48 60
37 49
38 50
39 51
40 52
41 53
42 54
43 55
44 56
45 57
46 58
47 59
48 60
n/a n/a
Module Module
6 7 8
"Secondary" "Secondary"
ON ON ON ON
OFF OFF OFF OFF
1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3
61 73 85
62 74 86
63 75 87
64 76 88
65 77 89
66 78 90
67 79 91
68 80 92
69 81 93
70 82 94
71 83 95
72 84 96
61 73 85
62 74 86
63 75 87
64 76 88
65 77 89
66 78 90
67 79 91
68 80 92
69 81 93
70 82 94
71 83 95
72 84 96
n/a n/a n/a
RJ-21X
Connector
Tip Ring
26 W/BL 1 BL/W
28 W/G 3 G/W
30 W/S 5 S/W
32 R/O 7 O/R
34 R/BN 9 BN/R
36 BK/BL 11 BL/BK
38 BK/G 13 G/BK
40 BK/S 15 S/BK
42 Y/O 17 O/Y
44 Y/BN 19 BN/Y
46 V/BL 21 BL/V
48 V/G 23 G/V
27 W/O 2 O/W
29 W/BN 4 BN/W
31 R/BL 6 BL/R
33 R/G 8 G/R
35 R/S 10 S/R
37 BK/O 12 O/BK
39 BK/BN 14 BN/BK
41 Y/BL 16 BL/Y
43 Y/G 18 G/Y
45 Y/S 20 S/Y
47 V/O 22 O/V
49 V/BN 24 BN/V
50 V/S 25 S/V
