Viking C-1000B Application Note

APPLICATION
APPLICATION
T
T
E L
E L
Combination from 96 Tenants Up to 288 Tenants
I n s t a l l a t i o
I n s t a l l a t i o
The following steps are to be used in conjunction with the diagram on the following page (page 2).
Step 1. Connect a pair of wires from the AES-2000's C-3000 screw terminals to the C-1000B's LINE OUT TO PHONES screw
terminals.
Step 2. To connect the first group of eight C-3000s: Connect the C-1000B's LINE IN screw terminals to the Master 1 C-3000's
ENTRY 1 screw terminals.
Step 3. To connect the second group of eight C-3000s: Connect the C-1000B's DOOR BOX 1 terminals to Master 2 C-3000's
ENTRY 1screw terminals.
Step 4. To connect the third group of eight C-3000s: Connect the C-1000B's DOOR BOX 2 terminals to Master 3 C-3000's
ENTRY 1 screw terminals.
Step 5. Set DIP switch 3 of the C-1000B to the OFF position.
Step 6. A telephone line can be connected to the AES-2000's CO screw terminals for remote AES-2000 programming or calling
tenants that do not have phone service.
Note:
P r o g r a m m
P r o g r a m m
For the AES-2000 and the C-3000 to work in harmony, program them to have identical phone entry Call Times and Ring Counts. Failure
to do so will result in unexpected disconnect. The AES-2000 Call Time and Ring Count fields are found in the Building Selection's "Setup"
pull down menu, under "Parameters." See the C-3000 Technical Practice, Programming section B for programming the Call Time and
Ring Count on the C-3000s.
When programming the AES-2000's Apartment Selection screen, a "C" in entered before the tenant's phone number to access the first
C-3000 group. The second and third C-3000 groups require a"C" and a "#1" or a "#2" before the tenant's phone number.
For Example: C01 - C96 for group one, C#1,01 - C#1,96 for group two, C#2,01 - C#2,96 for group three.
Important:
S
S
E C O M O L U T I O N
E C O M O L U T I O N
Expand Capacity of the AES-2000/C-3000
Model AES-2000
n
n
C-3000
i n g
i n g
2 1
2 1
S F O R T H E S T
S F O R T H E S T
A bank of eight C-3000's has a 96 tenant capacity. By using
a C-1000B, three groups of eight C-3000's can be com-
bined, expanding tenant capacity up to 288.
Model C-3000
Using the AES-2000
with Multiple C-3000
C
C
E N T U R Y
E N T U R Y

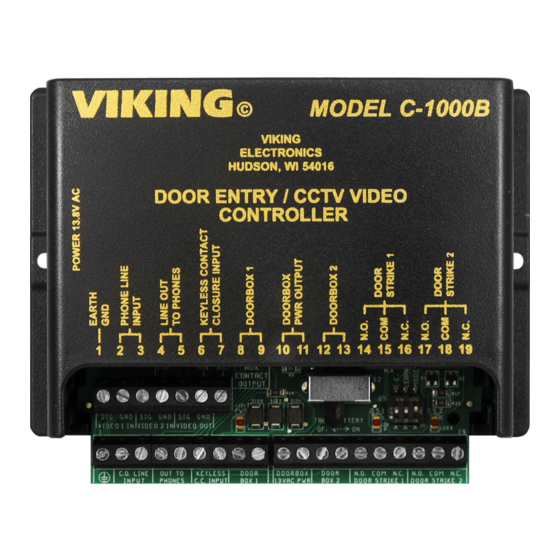

Model C-1000B
C-3000 Technical Practice
C-1000A
Controllers
November 9, 2007
