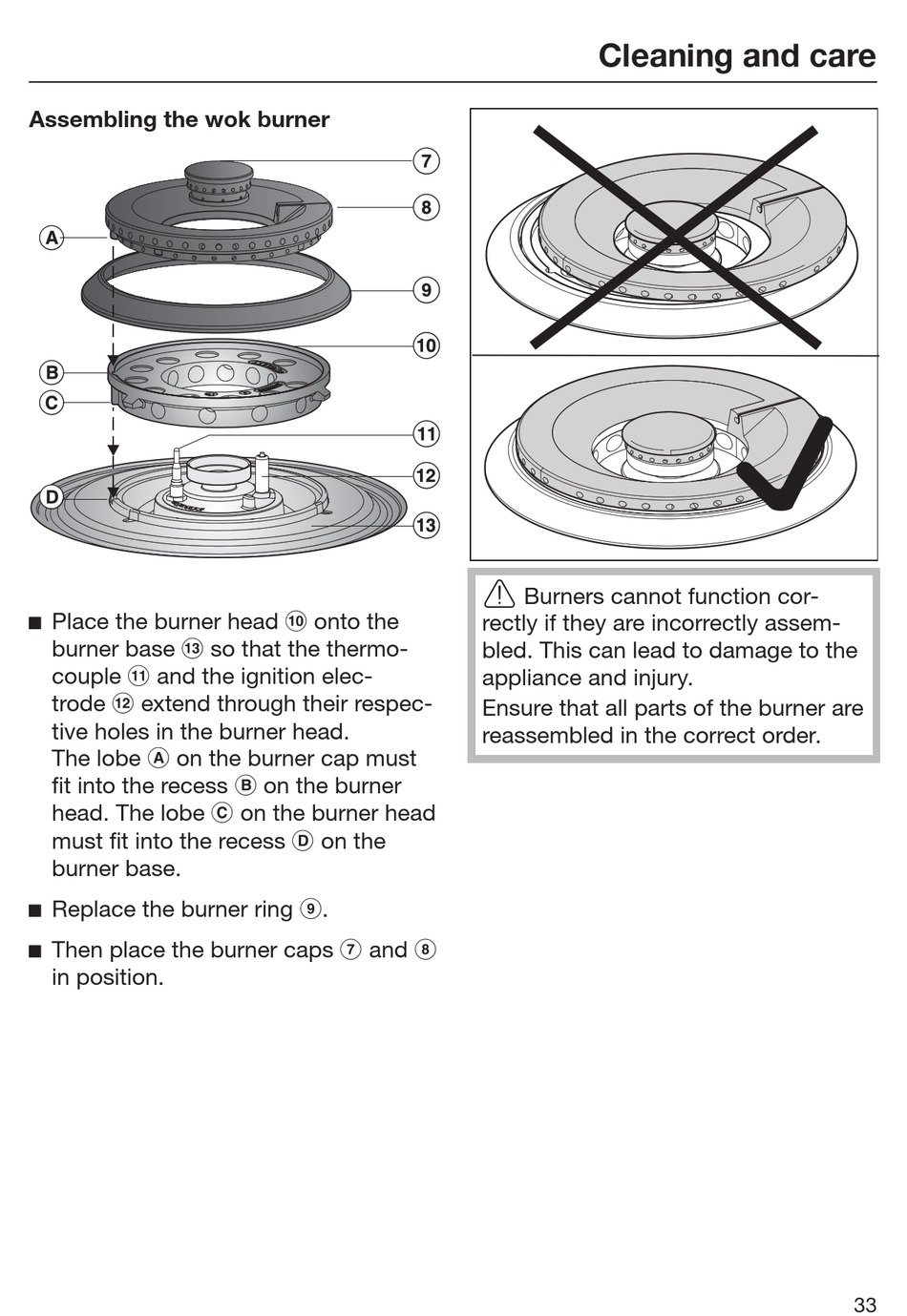

Assembling the wok burner
 Place the burner head  onto the
burner base  so that the thermo-
couple  and the ignition elec-
trode  extend through their respec-
tive holes in the burner head.
The lobe  on the burner cap must
fit into the recess  on the burner
head. The lobe  on the burner head
must fit into the recess  on the
burner base.
 Replace the burner ring .
 Then place the burner caps  and 
in position.
Cleaning and care

Burners cannot function cor-
rectly if they are incorrectly assem-
bled. This can lead to damage to the
appliance and injury.
Ensure that all parts of the burner are
reassembled in the correct order.
