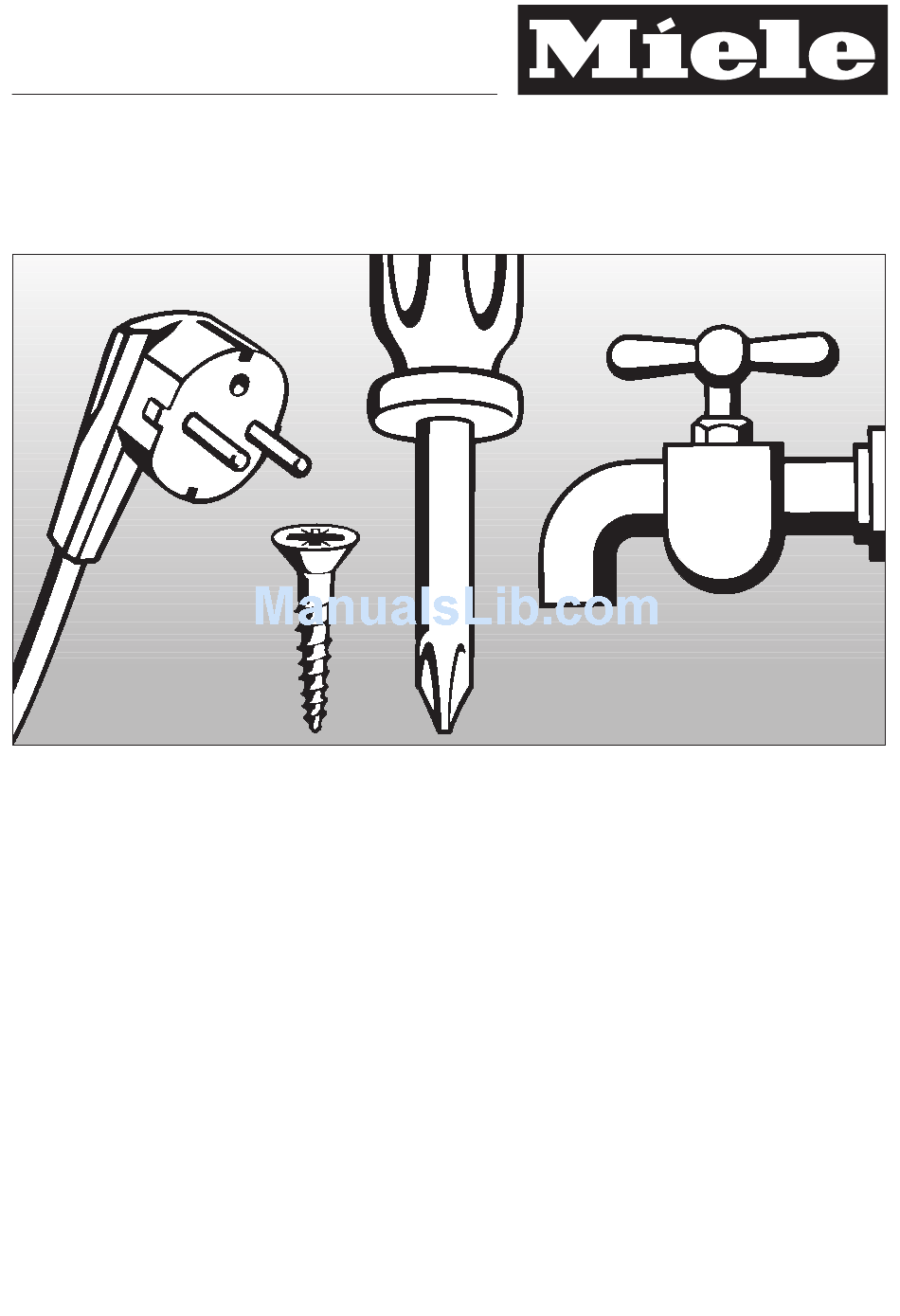

Page 1: Installation Instructions
KM 3464, KM 3465 en - CA KM 3474, KM 3475 KM 3484, KM 3485 Installation, repair and maintenance work should be performed by a Miele authorized service technician in accordance with national and local safety regulations and the provided installation instructions. -
Page 2: Important Safety Instructions
However, under certain conditions it may be possible for not allowed installation in these applications. Please contact the Miele Technical Service Department with specific requirements. -
Page 3: Safety Distances Above The Appliance
IMPORTANT SAFETY INSTRUCTIONS Safety distances above the The cooktop must not be installed over a dishwasher, washer, dryer, appliance refrigerator or freezer. Heat radiated by the cooktop may damage the appliances. Deep fat fryers must not be installed next to gas cooktops. Gas flames can ignite splattering oil. -
Page 4: Appliance Dimensions
Appliance dimensions KM 3464 / KM 3465 5 / 1 6 " " 1 / 1 6 " " 1 / 1 6 3 / 8 ( 5 4 2 m m ) ( 7 6 2 5 / 1 6 6 "... - Page 5 Appliance dimensions KM 3474 / KM 3475 5 / 1 6 " 1 / 1 6 " " 3 / 8 " 1 / 1 6 ( 5 4 2 m m ) ( 9 m m m ) ( 9 1 4 5 / 1 6 "...
- Page 6 Appliance dimensions KM 3484 / KM 3485 5 / 1 6 " 1 / 1 6 " " 1 / 1 6 " 3 / 8 ( 5 4 2 1 / 2 " m m ) m m ) ( 9 m ( 1 0 7 5 / 1 6...
-
Page 7: Installation
Installation ^ Prepare the work top cut-out as shown in the diagram. Rember to maintain the minimum safety distances to combustible surfaces: " (70 mm) between the cut-out and the back wall and - 12" (305 mm) between the cut-out and a side wall or tall unit to the right or left of the cut-out. -
Page 8: Setting The Cooktop Into Place
Installation Setting the cooktop into place Securing the cooktop ^ Secure the cooktop with the included fixing bracket. Countertop " (20 mm) ^ After removing the protective backing, d, stick the supplied seal, c, under the edge of the cooktop. Countertop 1 "... - Page 9 Installation The sealing strip under the edge of the top part of the cooktop provides a sufficient seal for the worktop. Do not let sealant get in between the cooktop frame and the worktop. This could cause difficulties if the cooktop ever needs to be taken out for servicing and possibly result in damage to the cooktop frame or the...
-
Page 10: Electrical Connection
Electrical connection This appliance must be grounded This appliance is equipped with a according to local or national codes. three-prong grounding plug to prevent shock hazards. It should be All electrical work should be plugged directly into a properly performed by a qualified electrician grounded outlet. - Page 11 Electrical connection Wiring diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing.
-
Page 12: Gas Connection
Gas connection Installation and service must be The gas connection must be made performed by a qualified installer, in accordance with local codes or, in service agency or gas supplier. the absence of local codes, with In Massachusetts a licensed the National Fuel Gas Code, plumber / gas fitter is required. -
Page 13: Gas Pressure Regulator
- 4" w.c. LP gas - 10" w.c. Do not use any regulator unless it has been supplied by Miele. Doing so may cause a gas leak. If there is any doubt concerning installation contact the Miele Technical... -
Page 14: Nominal Rating Table
Gas connection Nominal Rating Table KM 3464 / KM 3465 KM 3474 / KM 3475 KM 3484 / KM 3485 NG / LP-Gas NG / LP-Gas NG / LP-Gas Normal burner BTU/hr BTU/hr BTU/hr Max. output 9,000 9,000 9,000 Min. output 1,700 0.50... -
Page 15: Converting To Another Type Of Gas
Converting to another type of gas The cooktop should have been ordered for connection to either natural or LP gas. If the cooktop is not configured for the proper type of gas connection please contact your Miele Dealer. -
Page 16: Help Protect Our Environment
Help protect our environment Disposal of packing materials Disposal of an old appliance The cardboard box and packing Old appliances contain materials that materials are biodegradable and can be recycled. Please contact your recyclable. Please recycle. local recycling center about the possibility of recycling these materials. - Page 20 Alterations rights reserved / 4212 M.-Nr. 06 818 490 / 06 INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL & WARRANTY INFORMATION.
