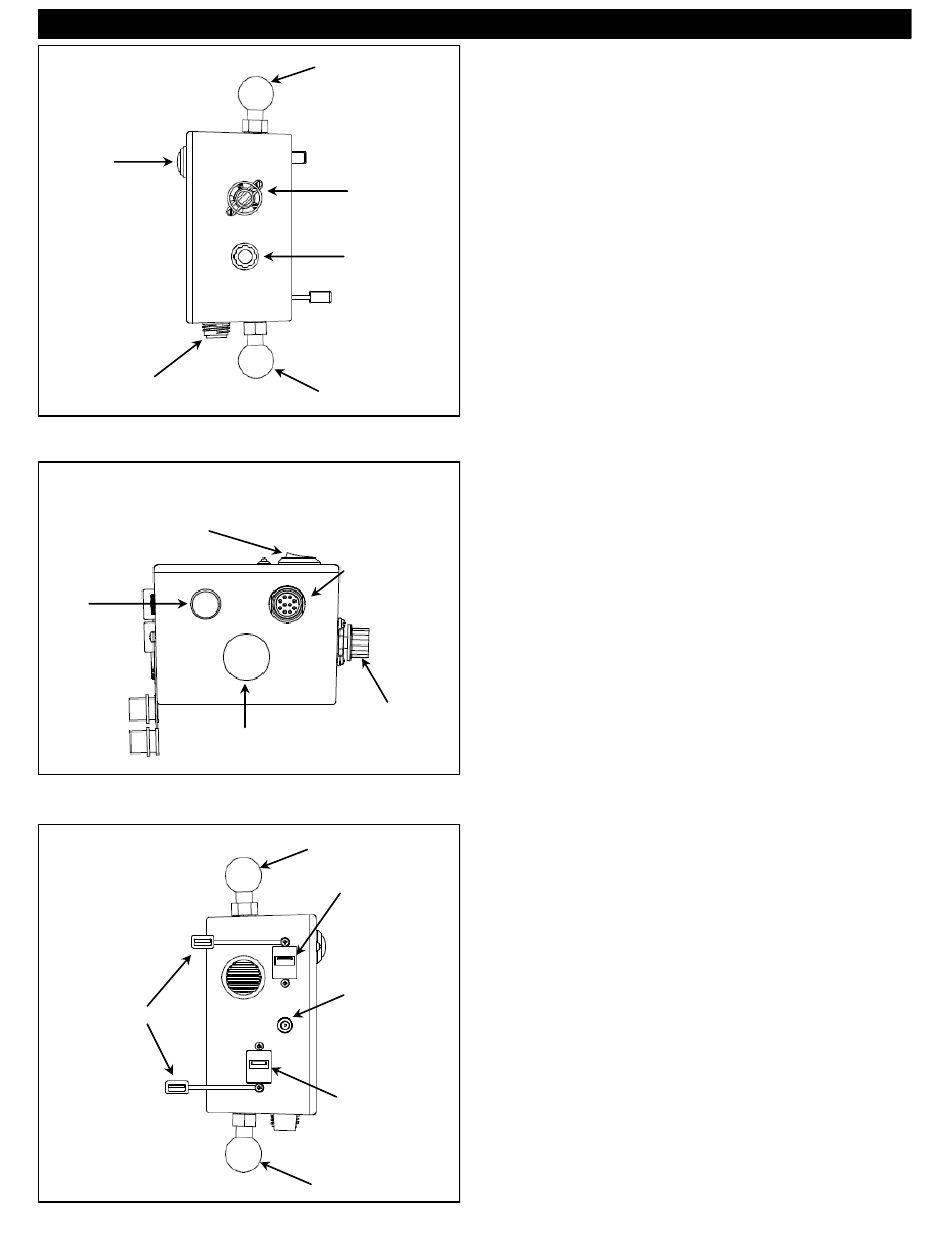

RIGHT SIDE VIEW
Power Switch
10 Pin Reel Connector
BOTTOM VIEW
Power Switch
3A Fuse
Mounting Ball
LEFT SIDE VIEW
Connector Dust Cover
Gen-Eye Prism
Mounting Ball
Cooling Fan
LED Dimmer Control
Mounting Ball
10 Pin Reel Connector
LED Dimmer Control
Mounting Ball
USB Charging
Power Port
AC Power Input
USB Keyboard
Connector
Mounting Ball
5
®
2.0 Video Pipe Inspection/Location System
POWER SWITCH
The Power Switch is located on the front of the Command Module
with an indicator light next to it. Be sure the unit is plugged into a
properly grounded outlet before turning it on.
WI-FI ANTENNA
The Wi-Fi antenna, located behind the window in the Command Mod-
ule, sends video to your tablet or Smartphone. A free App lets you
easily view and record video inspections at a range of up to 500 feet.
Software can be downloaded free from Apple, or Android from Google
Play. See Wi-Fi section for more details.
USB POWER PORT
Charge your tablet, iPad, iPhone, Android, or Apple device as you do
your inspection. Just plug it into the Power Port located on the upper
left side of the Command Module. Do not charge the battery if the air
temperature is below 30° F or above 104° F. Use the Connector Dust
Cover when not in use to keep dirt out of the connector.
AC POWER INPUT
Plug the AC power cord into the AC power input connector on the left
side of the Command Module. Be sure the 120 volt AC outlet you are
using properly grounded to prevent damage to the unit.
LED DIMMER CONTROL
You can adjust the camera LED light level by using the dimmer knob
located on the right side of the Command Module.
REEL SIZE SWITCH
To insure the footage counter is as accurate as possible, be sure the
Reel Size switch is set to match the reel you are using - Standard or
Mini-Reel. The switch is located on the back of the Command Module.
REEL CONNECTOR
Connect the interface cord from standard or mini-reel to 10 pin Reel
Connector, located on the bottom of the Command Module. If using
the Prism with the Gen-Eye POD, use the optional GL-ICP interface
cord. Connect one lead with the RCA plug to the POD Video Out con-
nector and the other lead to the POD Power Inlet connector.
FUSE
The 3 amp line fuse is located on the bottom of the Command Mod-
ule. Should replacement become necessary, replace only with the
same value and type as the original. Never substitute fuses as
damage may occur and will void your warranty. If the fuses con-
tinue to trip for no apparent reason, please consult the factory. Do
not use the system until the problem has been corrected.
EXPANDABLE HOLDER
The holder mounted above the Command Module can safely support
your full size tablet. Just squeeze the pins together to expand the
holder to the size you need. Optional holders for the mini-tablet or
Smartphone are available. Adjust the holder angle to the optimum
viewing angle.
FOOTAGE COUNTER
Lets you keep track of how much push-rod you've fed into the line.
The switch to set the counter for either standard or mini reels is lo-
cated on the back of the Command Module. Plug the Keyboard into
the lower connector on the left side of the Command Module to reset
the counter. See To Set Footage Counter for details.
