Gen-Eye Prism 2.0 Video Pipe Inspection/Location System

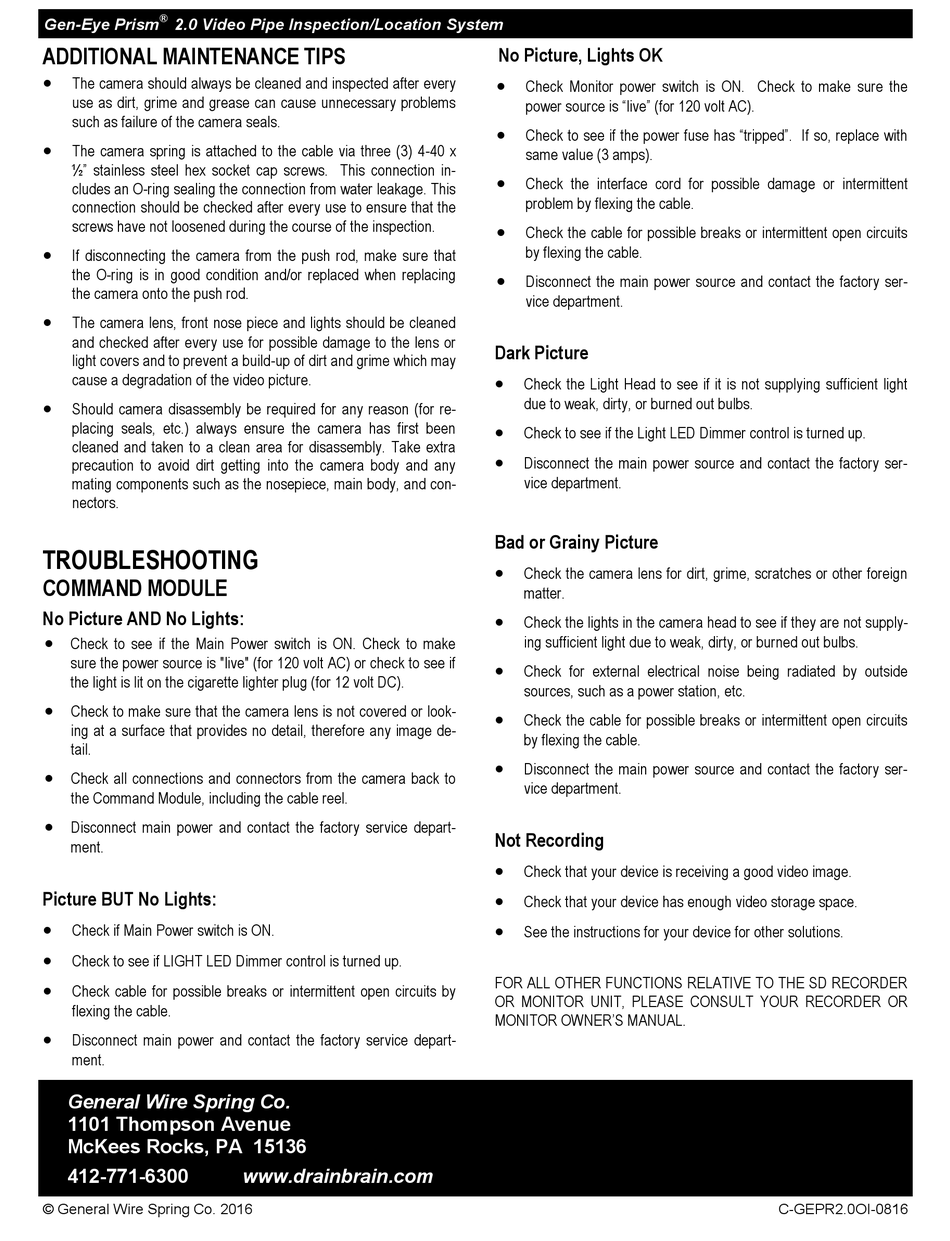

ADDITIONAL MAINTENANCE TIPS


The camera should always be cleaned and inspected after every
use as dirt, grime and grease can cause unnecessary problems
such as failure of the camera seals.

The camera spring is attached to the cable via three (3) 4-40 x
½" stainless steel hex socket cap screws. This connection in-
cludes an O-ring sealing the connection from water leakage. This
connection should be checked after every use to ensure that the
screws have not loosened during the course of the inspection.

If disconnecting the camera from the push rod, make sure that
the O-ring is in good condition and/or replaced when replacing
the camera onto the push rod.

The camera lens, front nose piece and lights should be cleaned
and checked after every use for possible damage to the lens or
light covers and to prevent a build-up of dirt and grime which may
cause a degradation of the video picture.

Should camera disassembly be required for any reason (for re-
placing seals, etc.) always ensure the camera has first been
cleaned and taken to a clean area for disassembly. Take extra
precaution to avoid dirt getting into the camera body and any
mating components such as the nosepiece, main body, and con-
nectors.
TROUBLESHOOTING
COMMAND MODULE
No Picture AND No Lights:

Check to see if the Main Power switch is ON. Check to make
sure the power source is "live" (for 120 volt AC) or check to see if
the light is lit on the cigarette lighter plug (for 12 volt DC).

Check to make sure that the camera lens is not covered or look-
ing at a surface that provides no detail, therefore any image de-
tail.

Check all connections and connectors from the camera back to
the Command Module, including the cable reel.

Disconnect main power and contact the factory service depart-
ment.
Picture BUT No Lights:

Check if Main Power switch is ON.

Check to see if LIGHT LED Dimmer control is turned up.

Check cable for possible breaks or intermittent open circuits by
flexing the cable.

Disconnect main power and contact the factory service depart-
ment.
General Wire Spring Co.
1101 Thompson Avenue
McKees Rocks, PA 15136
412-771-6300
© General Wire Spring Co. 2016
www.drainbrain.com
No Picture, Lights OK

Check Monitor power switch is ON. Check to make sure the
power source is "live" (for 120 volt AC).

Check to see if the power fuse has "tripped". If so, replace with
same value (3 amps).

Check the interface cord for possible damage or intermittent
problem by flexing the cable.

Check the cable for possible breaks or intermittent open circuits
by flexing the cable.

Disconnect the main power source and contact the factory ser-
vice department.
Dark Picture

Check the Light Head to see if it is not supplying sufficient light
due to weak, dirty, or burned out bulbs.

Check to see if the Light LED Dimmer control is turned up.

Disconnect the main power source and contact the factory ser-
vice department.
Bad or Grainy Picture

Check the camera lens for dirt, grime, scratches or other foreign
matter.

Check the lights in the camera head to see if they are not supply-
ing sufficient light due to weak, dirty, or burned out bulbs.

Check for external electrical noise being radiated by outside
sources, such as a power station, etc.

Check the cable for possible breaks or intermittent open circuits
by flexing the cable.

Disconnect the main power source and contact the factory ser-
vice department.
Not Recording

Check that your device is receiving a good video image.

Check that your device has enough video storage space.

See the instructions for your device for other solutions.
FOR ALL OTHER FUNCTIONS RELATIVE TO THE SD RECORDER
OR MONITOR UNIT, PLEASE CONSULT YOUR RECORDER OR
MONITOR OWNER'S MANUAL.
C-GEPR2.0OI-0816
