ScanPal EDA51K Mobile Computer
EDA5 1K-0
Quick Guide
EDA5 1K-1
EDA51K -SC-QS Rev A

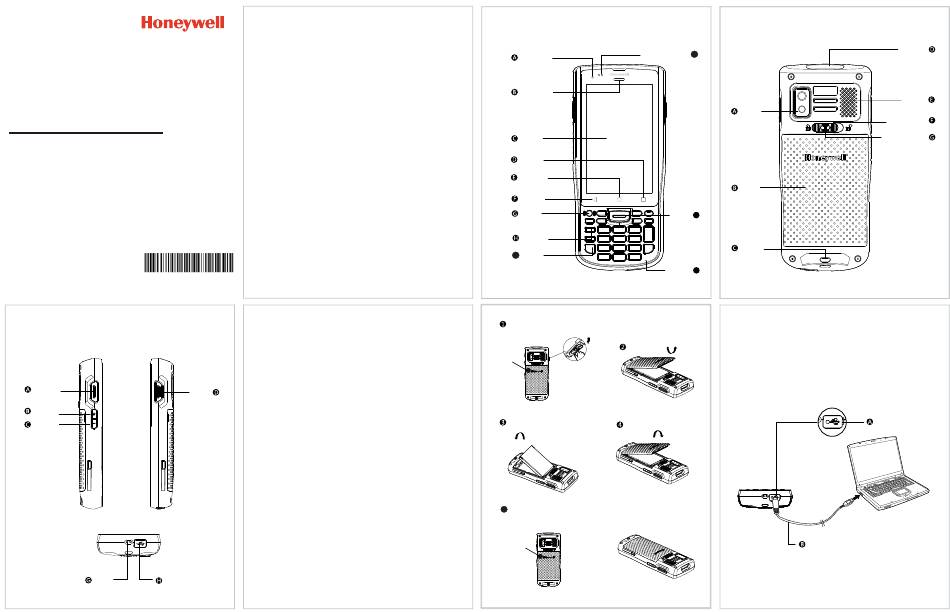

Left side Right side
Scanner key
Scanner
key
Volume +
Volume –
Base
Charging
USB Cover
point
Remove the packing
Please check to see if it contains the following items:
• ScanPal EDA51K Mobile Computer;
• Main battery (3.8V, lithium-ion battery);
• 10W battery adapter;
• Interchangeable adapter plug;
• USB power cable;
• Basic Guide
Note:
If you have ordered accessories for your terminal, please check that the
accessories are also included in the packing. Please retain the original
packing at all times. This is to facilitate return of ScanPal EDA51K terminal
for maintenance or repair.
Disclaimer:
The manufacturer shall not be held responsible for any consequences arising
from the user's failure to follow the above recommendations or erroneous use
of the mobile phone. Our product's operating system supports updates in
official system. If the user adopts a third-party ROM system or make any
revisions to the operating system through for example jail breaking, the
system may be rendered unstable, in which case our company will not
provide support to the user or bear any responsibility.
EDA51K-0/EDA51K-1 is a part of ScanPal EDA51K series
2020/09/09
Mounting Main Battery
Use of wrong model of battery will pose a threat of explosion. Please dispose
used battery according to instructions and local regulations. As far as possible
dispose of the battery as product for recycling; do not dispose of it as normal
thrash.
Please ensure that all the component parts are dry before connecting the
terminal/battery to external equipment. Damage to the equipment due to
connection using wet parts is not covered by warranty.
EDA51K is equipped with a battery which comes in separate packing.
Please install the battery in accordance with the following steps.
1. Press the battery cover's safety button and move it to the right unlocking
position;
2. Remove the battery cover using its locking latch;
3. Insert the battery (first insert the battery at the battery connector end
before pressing the rest of the battery to ensure that the battery is
connected to the mobile phone);
4. Press the battery cover (first insert the part of the battery cover away from
the battery connector before inserting the rest of the battery cover);
5. Move the battery safety to the left side locking position.
Note:
Please refer to the illustration on the next page on installation of battery.
Front panel
Distance/light sensing
Power indicator
light
Scan indicator
light
Display
screen
Function
key
Home key
Return key
Power key
Self-definition
key
I
Function
key
Microphone
jack
Press the battery cover before sliding the battery locking button towards the
right to unlock it
Press
5
5
Press the battery cover before sliding the battery cover locking button towards
the left to lock it
Press
Rear panel
L
Camera
lens
Battery
cover
J
Scanner
key
Cord lock
K
Charging/Synchronization
Synchronizing communication
1. Unlock the USB cover at the base of ScanPal EDA51K;
2. Connect ScanPal EDA51K with the computer using the USB
charging cable
USB charging cable
Scanning
engine
Loudspeaker
Battery cover
safety lock
Batter cover safety
button
USB cover
