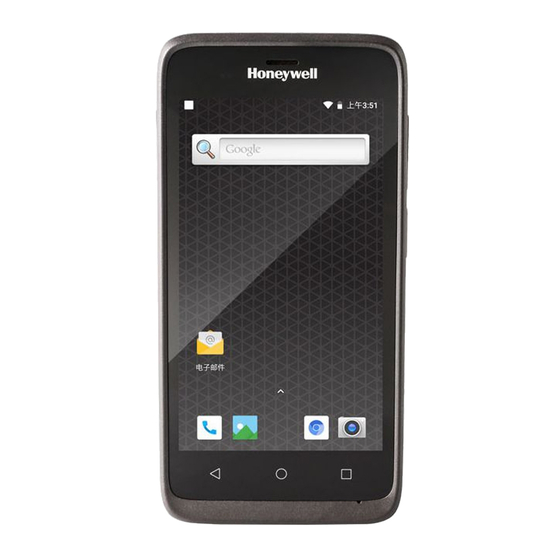

Honeywell ScanPal EDA51 Series Quick Start Manual
Android
Hide thumbs
Also See for ScanPal EDA51 Series:
- User manual (65 pages) ,
- User manual (96 pages) ,
- User manual (100 pages)
Table of Contents
Advertisement
Advertisement
Table of Contents
Related Manuals for Honeywell ScanPal EDA51 Series
Summary of Contents for Honeywell ScanPal EDA51 Series
- Page 1 ScanPal™ EDA51 powered by Android™ Quick Start Guide EDA51-A-EN-QS-01 Rev A 11/19...
-
Page 2: Memory Card Specifications
Note: EDA51-0 models do not include a WWAN radio. Memory Card Specifications Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with ScanPal mobile computers for maximum performance and durability. Contact a Honeywell sales representative for... -
Page 3: Mobile Computer Features
Mobile Computer Features Power Indicator Speaker Scan Status LED Touch Panel Home Key Return Key Function Key Microphone I/O Connector USB Cover... - Page 4 Battery Cover Battery Latch Laser Safety Label Location Speaker Scan Button Volume Button Scan Engine Camera Lens and Flash...
- Page 5 Remove the Battery Cover...
- Page 6 Install a Nano SIM Card Only EDA51-1 (WWAN) models support Nano SIM card use for cellular phone feature. Card Cover SIM Card Note: Always power off the computer before attempting to install or remove a card.
-
Page 7: Install A Microsd Card (Optional)
Install a MicroSD Card (Optional) Note: Format the microSD card before initial use. MicroSD Note: Always power off the computer before attempting to install or remove a card. -
Page 8: About The Battery
Configuration number (CN) is located on the label in the battery well of the mobile computer. We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Ensure all components are dry prior to placing the battery in the computer. - Page 9 Install the Battery Battery (Refer to page...
- Page 10 Install the Hand Strap (Optional)
-
Page 11: Charge The Mobile Computer
4.5 hours. Using the computer while charging the battery increases the time required to reach a full charge. We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty. -
Page 12: Turn Power On/Off
Turn Power On/Off The first time you power on the computer, a Welcome screen appears. You can either scan a configuration bar code or use the Wizard to manually set up the computer. Once setup is complete, the Welcome screen no longer appears on startup and Provisioning mode is automatically turned off (disabled). - Page 13 Adjust the Display Sleep Time To adjust the amount of time before the display sleeps after inactivity: Swipe up on the touch screen. Select Settings > Display > Advanced > Sleep. Select the amount of time before the display goes to sleep. Touch to return to the Home screen.
-
Page 14: About The Home Screen
About the Home Screen Notification / Status Bar Search Bar Home Screen Panel Swipe up access all apps. Favorites Tray To learn how to customize the Home screen, see the User Guide. -
Page 15: Navigation And Function Buttons
Navigation and Function Buttons Button Description Back Return to the previous screen. Home Return to the Home screen. Recent Apps View and switch between recently used apps. Volume Press the top of the button to raise the speaker volume. Press the bottom of button to lower the speaker volume. -
Page 16: About Provisioning Mode
About Provisioning Mode After completing the out-of-box set up process, Provisioning mode is automatically turned off. Scanning a bar code to install applications, certificates, configuration files, and licenses on the computer is restricted unless you enable Provisioning mode in the Settings app. To learn more, see the user guide. Scan a Bar Code with the Scan Demo For optimum performance, avoid reflections by scanning the bar code at a slight angle. - Page 17 Sync Data To move files between your EDA51 and a computer: Connect the EDA51 to your computer using a USB charge/ communication accessory. On the EDA51, swipe down from the top of the screen to see the notifications panel. Touch the Android System USB charging notification twice to open the options menu.
-
Page 18: Restart The Mobile Computer
Restart the Mobile Computer You may need to restart the mobile computer to correct conditions where an application stops responding to the system or the computer seems to be locked up. Press and hold the Power button until the options menu appears. -
Page 19: Limited Warranty
Trademarks Android is a trademark of Google LLC. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
