- Page 1 ScanPal™ EDA51K Series Mobile Computer powered by Android™ Quick Start Guide EDA51K-A-EN-QS-01 Rev A 10/20...
-
Page 2: Memory Card Specifications

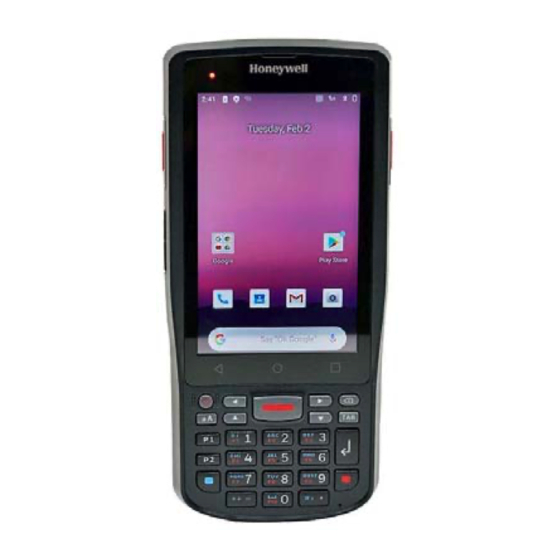

Note: EDA51K-0 models do not include a WWAN radio. Memory Card Specifications Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD™ or microSDHC™ memory cards with ScanPal mobile computers for maximum performance and durability. Contact a Honeywell sales representative for... - Page 3 Mobile Computer Features Scan Engine Power Indicator Handset Receiver Scan Indicator Touch Panel Scan Button s Home Touch Button Back Touch Button Recent Apps Touch Button Power Button Microphone Keyboard (Model Dependent)
- Page 4 Speaker Laser Safety Label Location Camera/ Camera Flash Scan Button Volume Up Button MicroSD Card Cover Volume Down Button Micro SIM Card Cover...
- Page 5 Battery Latch and Button Battery Cover USB Cover, I/O Connector USB Type C Port...
- Page 6 Install a microSD Card (Optional) Note: Format the microSD card before initial use. Note: Always power off the computer before attempting to install or remove a card.
- Page 7 Install a Micro SIM Card Only EDA51K-1 (WWAN) models support micro SIM card use for cellular phone features. Note: Always power off the computer before attempting to install or remove a card.
-
Page 8: Install The Battery
The EDA51K ships with a Li-ion 3.8 V battery manufactured for Honeywell International Inc. We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty. Ensure all components are dry prior to placing the battery in the computer. - Page 11 4.5 hours. Using the computer while charging the battery increases the time required to reach a full charge. We recommend the use of Honeywell accessories and power adapters. Use of any non-Honeywell accessories or power adapters may cause damage not covered by the warranty.
- Page 12 Use the USB cable with the provided Wall Charger to charge the battery from a power outlet. Use only a UL Listed power supply that has been qualified by Honeywell with an output rated at 5VDC and 2A with the device.
- Page 13 Option 2: Charging From a USB Port on a Host Device...
-
Page 14: Turn Power On/Off
Turn Power On/Off The first time you power on the computer, a Welcome screen appears. You can either scan a configuration barcode or use the Wizard to manually set up the computer. Once setup is complete, the Welcome screen no longer appears on startup and Provisioning mode (see page 17) is automatically turned off (disabled). - Page 15 Sleep Mode (Screen Timeout) Sleep mode automatically turns the touch panel display off and locks the computer to save battery power when the computer is inactive for a programmed period of time. • Press and release the Power button to wake the computer. Adjust the Screen Timeout To adjust the amount of time before the display turns off after inactivity:...
-
Page 16: About The Home Screen
About the Home Screen Notification / Status Bar Search Bar Home Screen Panel Swipe up from bottom of screen to view all apps. Favorites Tray... -
Page 17: Navigation And Function Buttons
Navigation and Function Buttons For button locations, see Mobile Computer Features. Button Description Back Return to the previous screen. Home Return to the Home screen. Recent Apps View and switch between recently used apps. Scan Left, right and front scan buttons to trigger the barcode scanner. - Page 18 About Provisioning Mode After completing the out-of-box set up process, Provisioning mode is automatically turned off. Scanning a barcode to install applications, certificates, configuration files, and licenses on the computer is restricted unless you enable Provisioning mode in the Settings app. To learn more, see the user guide. Scan a Barcode with the Scan Demo For optimum performance, avoid reflections by scanning the...
- Page 19 Sync Data To move files between your EDA51K and your computer: Connect the EDA51K to your computer using a USB type C cable. On the EDA51K, swipe down from the top of the screen to see the notifications panel. Select the Android System notification twice to open the options menu.
-
Page 20: Limited Warranty
Restart the Mobile Computer You may need to restart the mobile computer to correct conditions where an application stops responding to the system or the computer seems to be locked up. Press and hold the Power button until the options menu appears. - Page 21 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.
