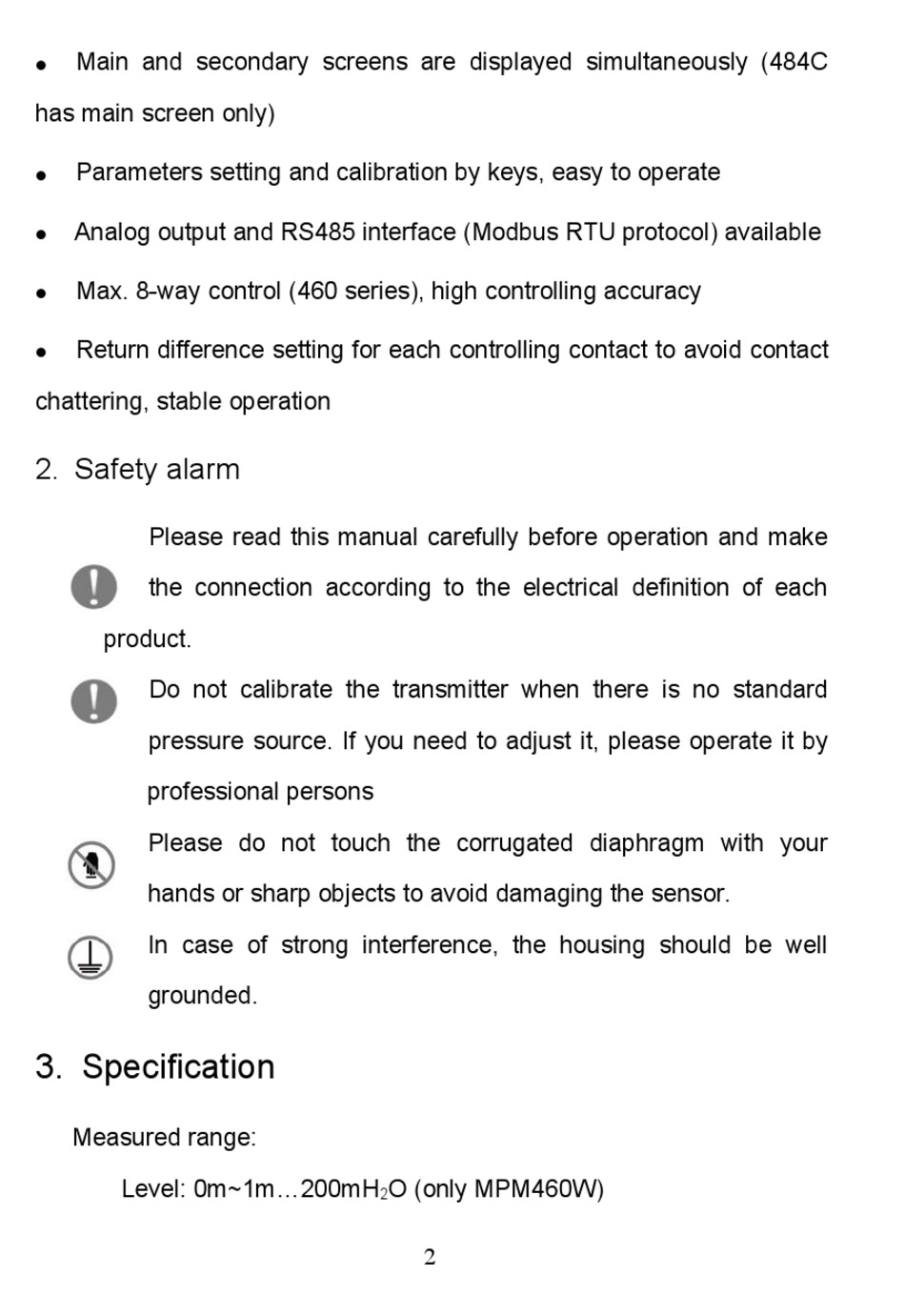

Safety Alarm; Specification - Microsensor MPM Series Operation Manual

Main and secondary screens are displayed simultaneously (484C

has main screen only)
Parameters setting and calibration by keys, easy to operate

Analog output and RS485 interface (Modbus RTU protocol) available

Max. 8-way control (460 series), high controlling accuracy

Return difference setting for each controlling contact to avoid contact

chattering, stable operation

2. Safety alarm

Please read this manual carefully before operation and make
the connection according to the electrical definition of each
product.
Do not calibrate the transmitter when there is no standard
pressure source. If you need to adjust it, please operate it by
professional persons
Please do not touch the corrugated diaphragm with your
hands or sharp objects to avoid damaging the sensor.
In case of strong interference, the housing should be well
grounded.

3. Specification

Measured range:
Level: 0m~1m...200mH O (only MPM460W)
2
2
