Microsensor MPM Series Operation Manual page 12

16,17,18: NC, NO and COM of relay 4;
7, 8: analog output terminal;
9,10: RS485 communication terminal;
11,12: AC/DC supply terminal;
Notes: if the relay qty. is <2, there is no dotted box part (13~24).

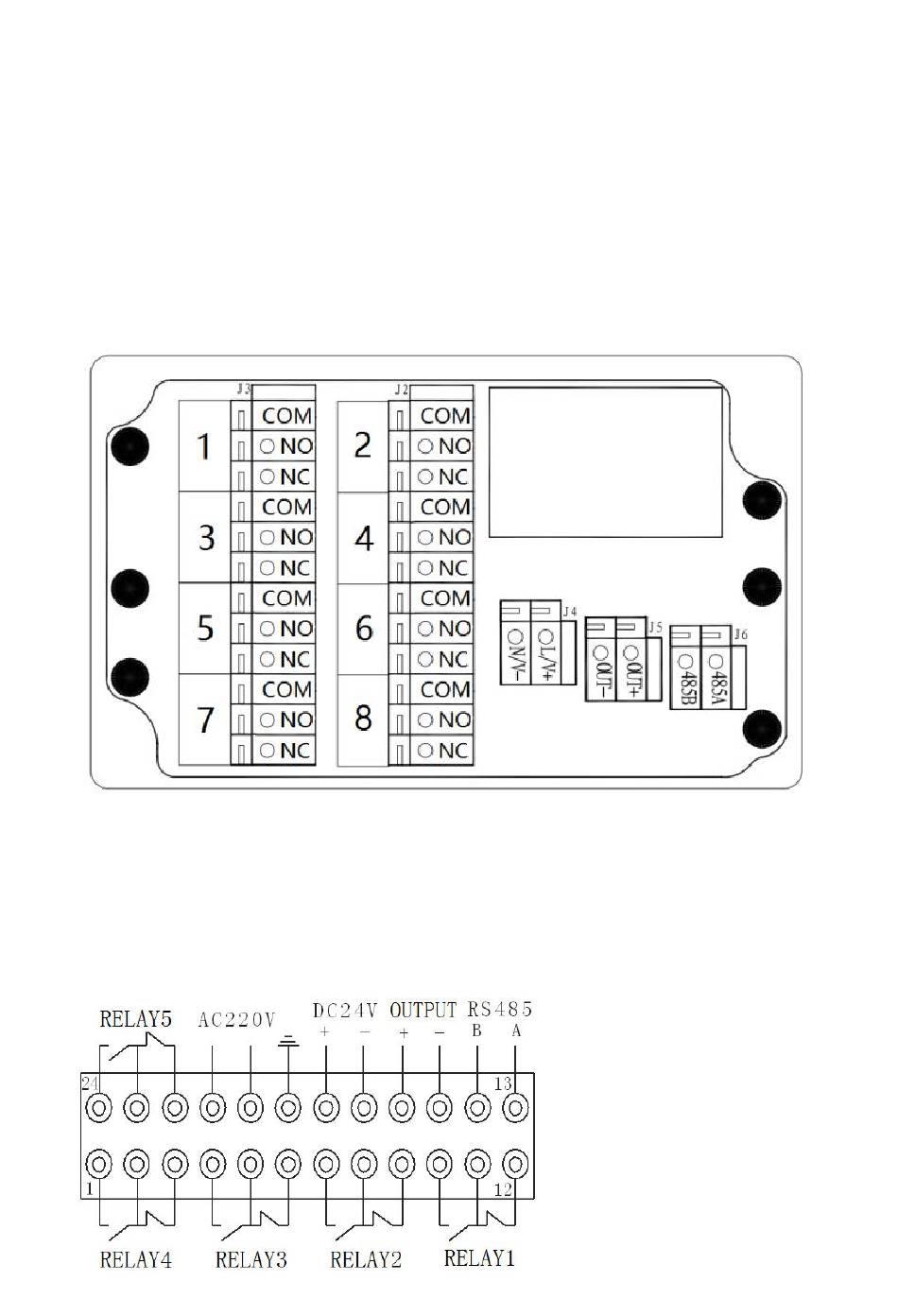

5.2 MPM460, MPM460W, MDM460 inner electric connection
Note: 1. After the wiring is completed, lock the cable and restore the front panel as it
is to maintain the original protection level of the product.
2.Wire diameter of connection terminal is 0.2 mm
5.3 MPM/MDM484ZL
~1.5mm
2
10
.
2
