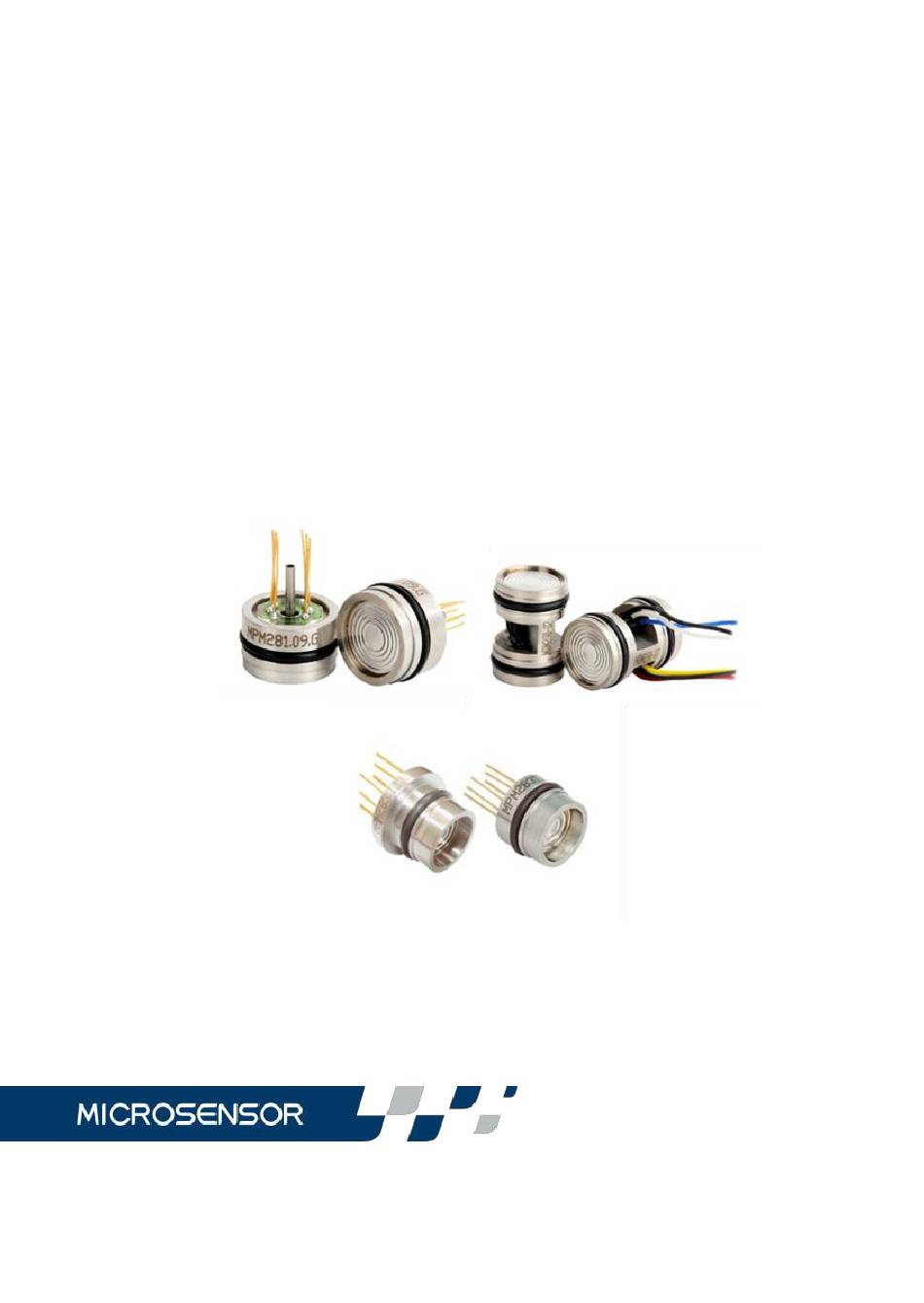

- Page 1 MPM/MDM Series Pressure Sensor Operation Manual V1.2...
- Page 2 Thank you very much for choosing pressure sensors of Micro Sensor CO., LTD. To use it better, please read the instructions carefully before using. Suggested Installation Dimension( Unit: mm) Product R(max.) model MPM270 Φ19 +0.05 ≥15.5 +0.02 MPM280 MPM281 Φ12.6 ≥12.5 +0.12 +0.08...
- Page 3 Electrical Connection The following six types of pin definitions are available for reference. Definition Wire Color Definition Wire Color +OUT +OUT Black Yellow(White) Yellow(White) Black -OUT Blue -OUT Blue The rest pins are useless. The rest pins are useless. Definition Wire Color Definition Wire Color...
- Page 4 White The rest pins are useless. Black Note: The actual electric connection method, please check the parameter label enclosed with products. Attentions 1. Please be sure the pressure sensor' construction material is compatible with measuring media. 2. please pay attention to the normal usage conditions of this product: Power Supply: ≤2.0mADC or ≤10VDC.
- Page 5 conductive items to avoid any possible damages. And also please do not pull or bend the pins; 7. Please pay attention to the pressure measurement range, and don't act large pressure over FS for a long time. If the pressure exceeds the overpressure, the sensor may be destroyed;...
