Microsensor MPM Series Operation Manual page 14

at measurement status; displays current parameter virtual value at setup
status. In all states, the secondary display shows the current system
status or limit value and cannot be changed individually. There are three
keys on frond board, ▲, SET, and ▼ keys.

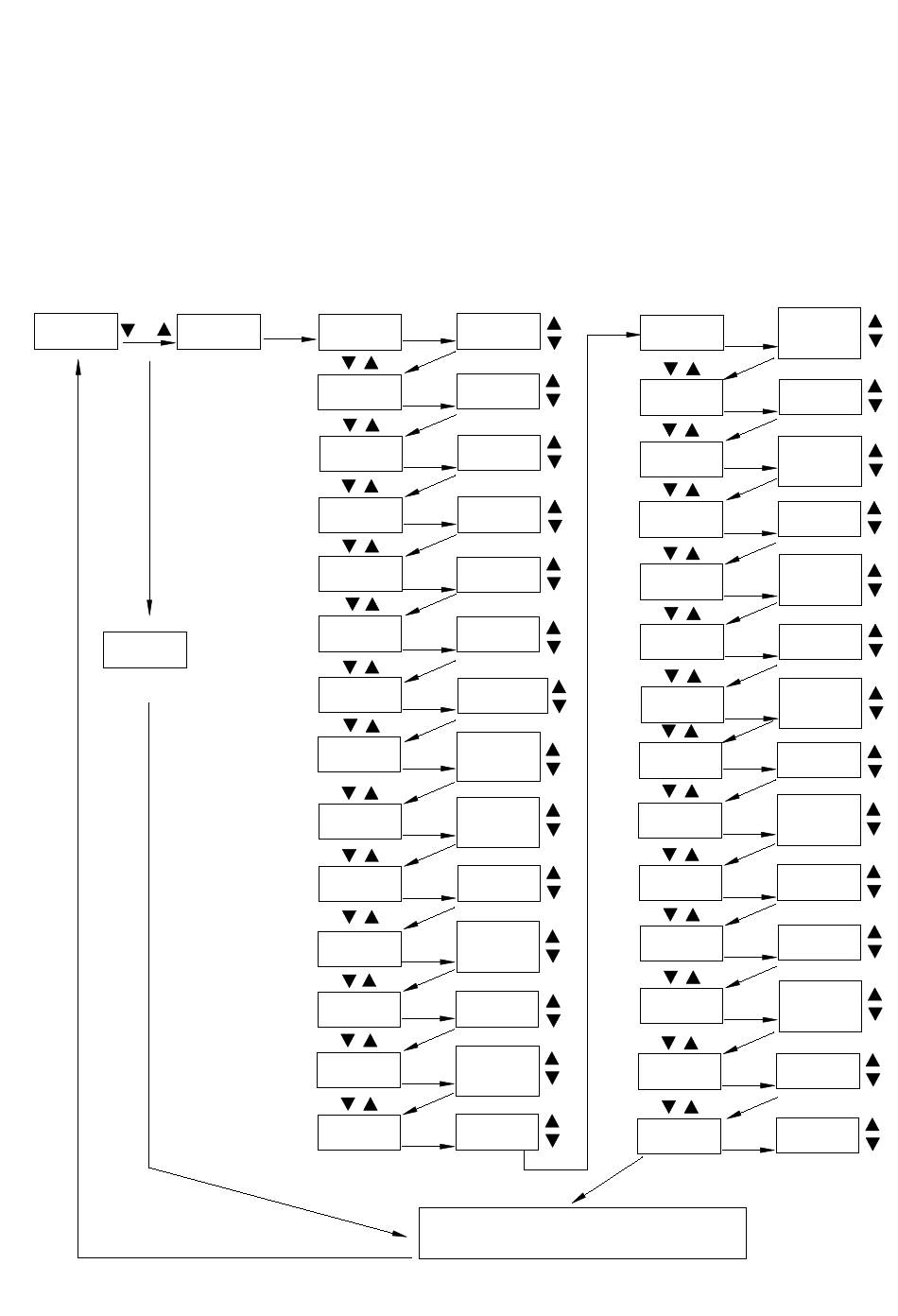

6.2 Key operation flow
or
PASS
1993
XXXX
long press key"Set"for 3s
Unit
Unit
Address
Addr
Baud rate
bAUd
Decimal
-dP-
Point
Zero
P-SL
Display
Full span
P-SH
Display
Zero output
P-OL
Display
Full span
P-OH output
Display
Relay 1
control
AL-1
point
Relay 1
AL1F
Property
Relay 2
control
AL-2
point
Relay 2
AL2F
Property
Relay 3
control
AL-3
point
Relay 3
AL3F
Property
normal measurement
12
Relay 4
control
AL-4
point
Relay 4
AL4F
Property
Relay 5
AL-5
control
point
Relay 5
AL5F
Property
Relay 6
control
AL-6
point
Relay 6
AL6F
Property
Relay 7
control
AL-7
point
Relay 7
AL7F
Property
Relay 8
control
AL-8
point
Relay 8
AL8F
Property
common
S--c
Hysterisis
Second
screen
F--L
Display
Return
FAct
Factory
END
-End
