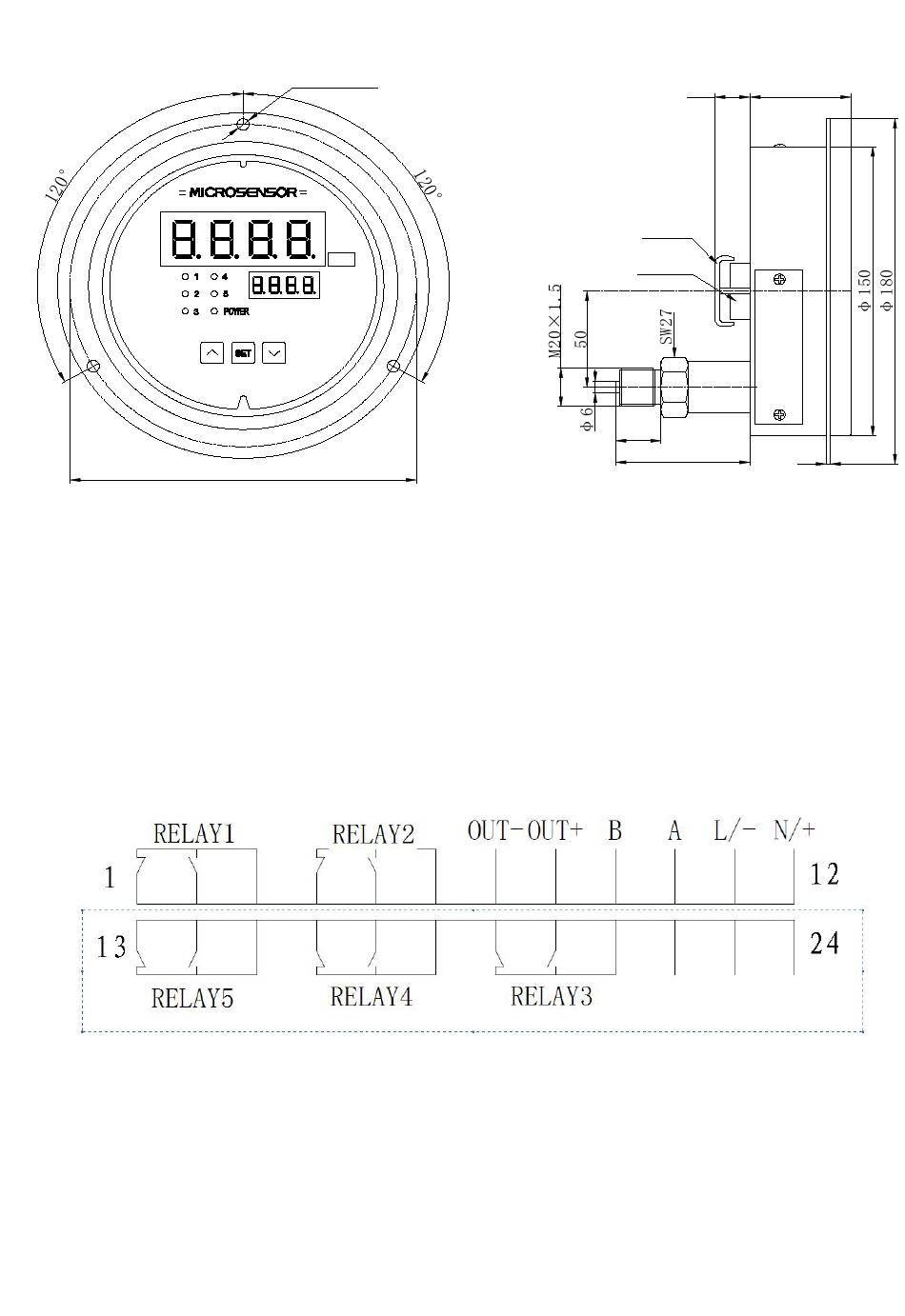

MPM484ZL Pressure Transmitting Controller (horizontal mounting)
Note: The pressure port dimension of controllers for vertical and horizontal
mountings is the same.
5. Electric connection
5.1 MPM/MDM484C series
1, 2, 3: NC, NO and COM of relay 1;
4, 5, 6: NC, NO and COM of relay 2;
19, 20, 21: NC, NO and COM of relay 3;
13,14,15: NC, NO and COM of relay 5;
3-φ6 EQS
MPa
φ168
9
15
50
cover
terminal
name
plate
22
(68)
2
