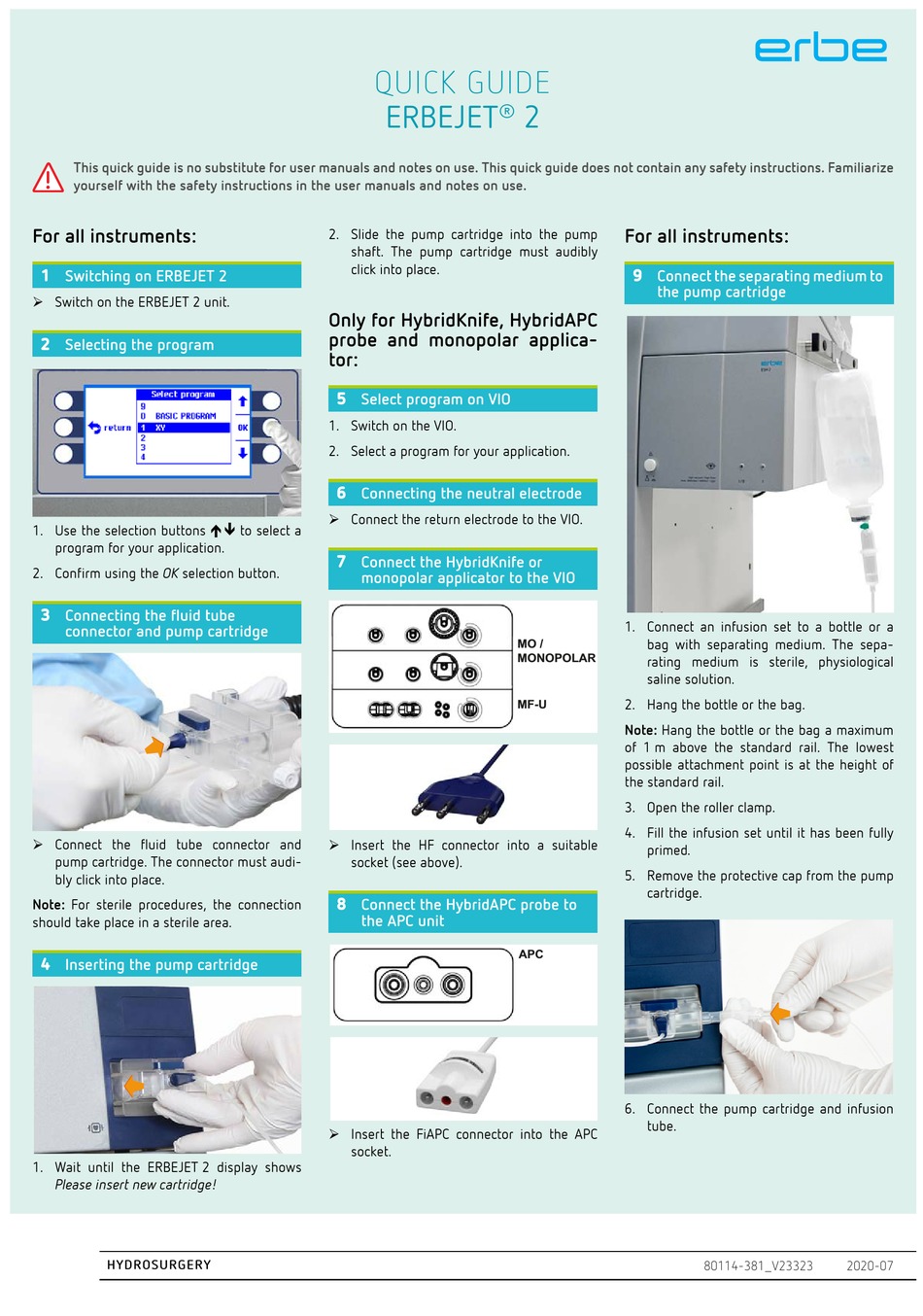

Erbe ERBEJET 2 Quick Manual

This quick guide is no substitute for user manuals and notes on use. This quick guide does not contain any safety instructions. Familiarize
yourself with the safety instructions in the user manuals and notes on use.
For all instruments:
1

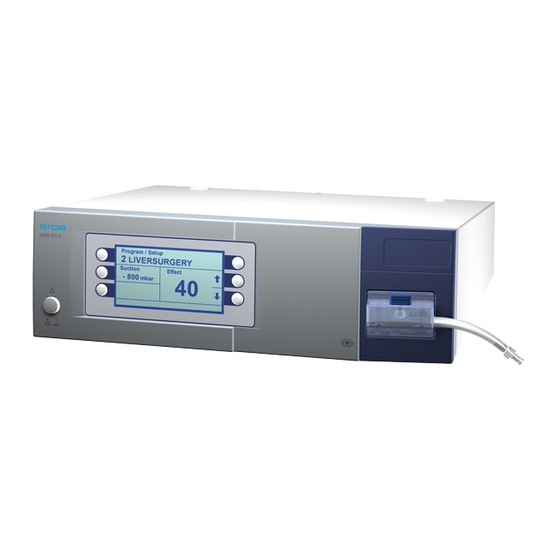

Switching on ERBEJET 2
 Switch on the ERBEJET 2 unit.
2
Selecting the program
1. Use the selection buttons  to select a
program for your application.
2. Confirm using the OK selection button.
3
Connecting the fluid tube
connector and pump cartridge
 Connect the fluid tube connector and
pump cartridge. The connector must audi-
bly click into place.
Note: For sterile procedures, the connection
should take place in a sterile area.
4
Inserting the pump cartridge
1. Wait until the ERBEJET 2 display shows
Please insert new cartridge!
HYDROSURGERY
QUICK GUIDE
ERBEJET
®
2. Slide the pump cartridge into the pump
shaft. The pump cartridge must audibly
click into place.
Only for HybridKnife, HybridAPC
probe and monopolar applica-
tor:
5
Select program on VIO
1. Switch on the VIO.
2. Select a program for your application.
6
Connecting the neutral electrode
 Connect the return electrode to the VIO.
7
Connect the HybridKnife or
monopolar applicator to the VIO
 Insert the HF connector into a suitable
socket (see above).
8
Connect the HybridAPC probe to
the APC unit
 Insert the FiAPC connector into the APC
socket.
2
For all instruments:
9
Connect the separating medium to
the pump cartridge
1. Connect an infusion set to a bottle or a
bag with separating medium. The sepa-
MO /
MONOPOLAR
rating medium is sterile, physiological
saline solution.
2. Hang the bottle or the bag.
MF-U
Note: Hang the bottle or the bag a maximum
of 1 m above the standard rail. The lowest
possible attachment point is at the height of
the standard rail.
3. Open the roller clamp.
4. Fill the infusion set until it has been fully
primed.
5. Remove the protective cap from the pump
cartridge.
APC
6. Connect the pump cartridge and infusion
tube.
80114-381_V23323 2020-07
