PA 5 – Battery Exchange

1 Battery Exchange of PA 5

You purchased an exchange battery (mat. no. 106781) for your PA 5. To carry out the battery exchange, please

follow the instructions given in this product information.

1. Before exchanging the battery, switch off the PA 5.

NOTICE

When removing the cover, never turn the cover completely because the cables inside the manometer may unplug

or twist.

2. Open the PA 5 by carefully moving the cover back and forth.

3. In the opened PA 5 manometer is a small plug as shown in Figure 1. The plug connects the battery to the

PA 5.

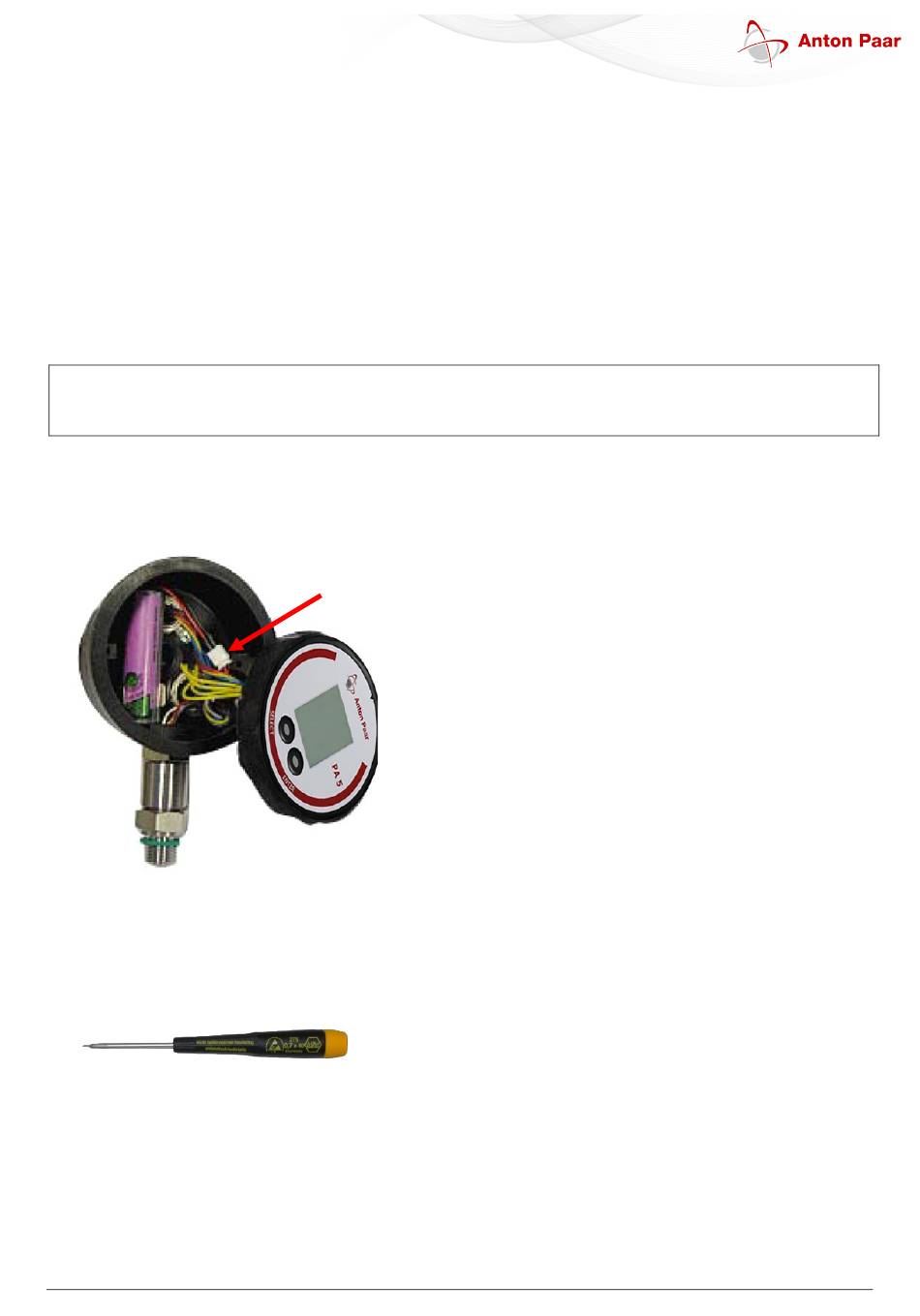

Figure 1: Plug for the battery

4. To remove the battery, disconnect the battery first.

To disconnect the battery open the plug soldered to the battery. Use the screwdriver supplied with the PA 5

as shown in Figure 2.

Figure 2: Screwdriver to open the plug soldered to the battery

5. To open the plug push the tip of the screwdriver into the central flange and push the two parts of the plug

apart as shown in Figure 3.

www.anton-paar.com | Created by Kreisel, Gudrun 22.03.18 | H17IE006EN-A_ProdInfo_OBA1_BatteryExchange.docx

Plug

page 1 of 2

Table of Contents

Do you have a question about the PA 5 and is the answer not in the manual?

Page 1 2. Open the PA 5 by carefully moving the cover back and forth. 3. In the opened PA 5 manometer is a small plug as shown in Figure 1. The plug connects the battery to the PA 5.
Page 2 After exchanging the battery, you have to synchronize the manometer time with the computer time. When no synchronization was carried out, subsequent tests cannot be read out from the PA 5, because the manometer time and date cannot be processed by the PetroNet software.
