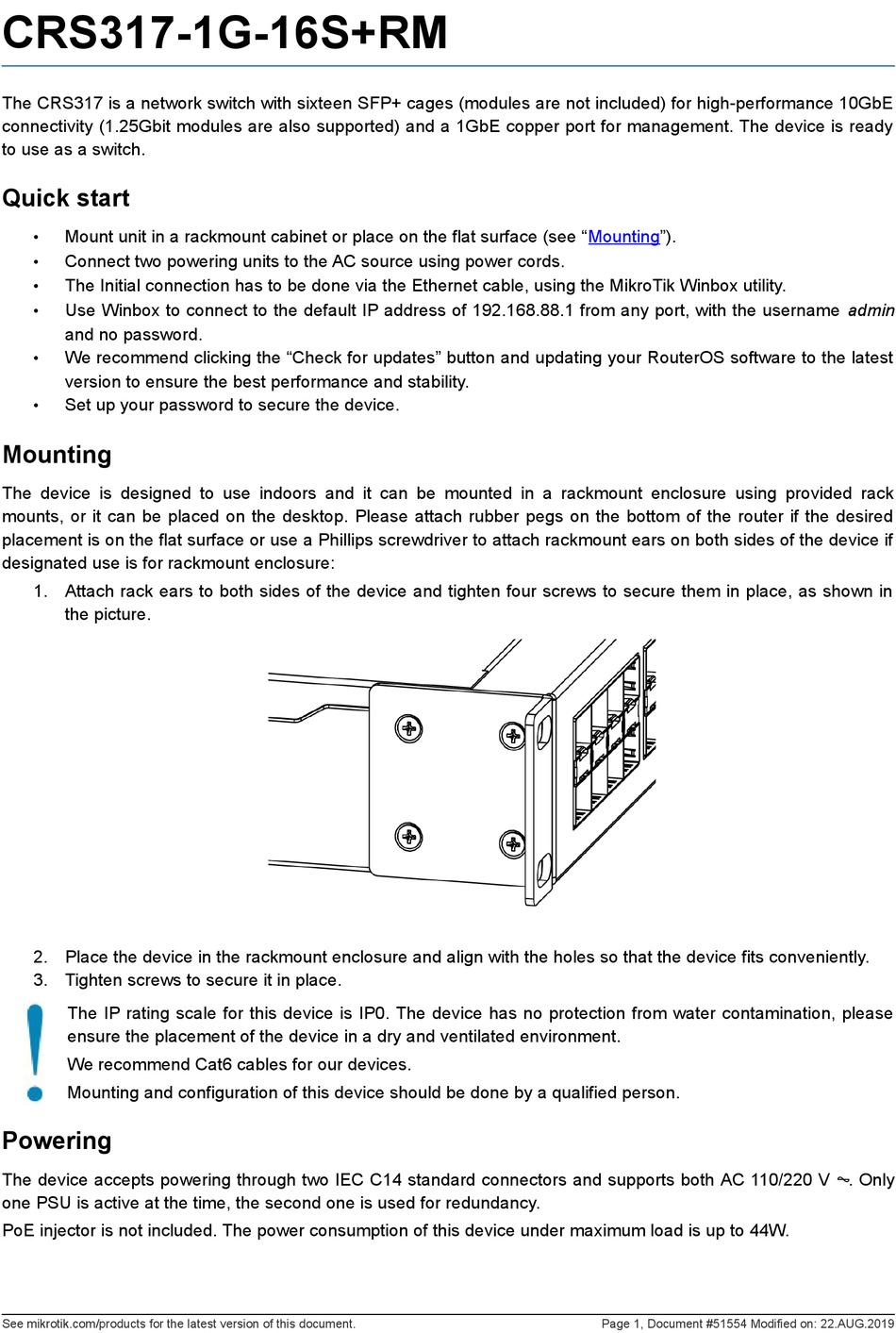

CRS317-1G-16S+RM

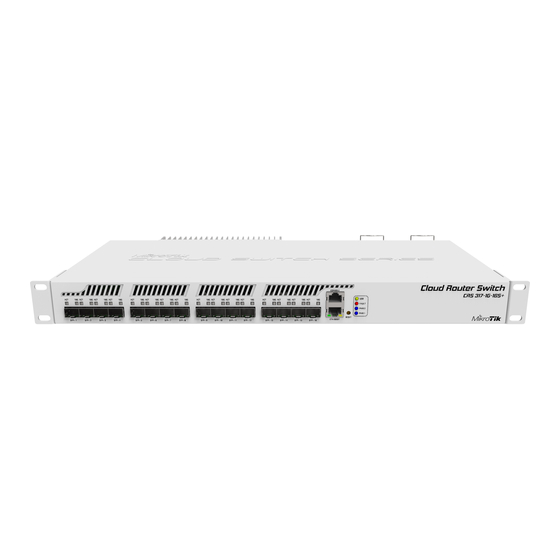

The CRS317 is a network switch with sixteen SFP+ cages (modules are not included) for high-performance 10GbE
connectivity (1.25Gbit modules are also supported) and a 1GbE copper port for management. The device is ready
to use as a switch.

Quick start

Mount unit in a rackmount cabinet or place on the flat surface (see "Mounting").
•
Connect two powering units to the AC source using power cords.
•
The Initial connection has to be done via the Ethernet cable, using the MikroTik Winbox utility.
•
Use Winbox to connect to the default IP address of 192.168.88.1 from any port, with the username admin
•
and no password.
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest
•
version to ensure the best performance and stability.
Set up your password to secure the device.
•

Mounting

The device is designed to use indoors and it can be mounted in a rackmount enclosure using provided rack
mounts, or it can be placed on the desktop. Please attach rubber pegs on the bottom of the router if the desired
placement is on the flat surface or use a Phillips screwdriver to attach rackmount ears on both sides of the device if
designated use is for rackmount enclosure:
1. Attach rack ears to both sides of the device and tighten four screws to secure them in place, as shown in
the picture.
2. Place the device in the rackmount enclosure and align with the holes so that the device fits conveniently.
3. Tighten screws to secure it in place.
The IP rating scale for this device is IP0. The device has no protection from water contamination, please
ensure the placement of the device in a dry and ventilated environment.
We recommend Cat6 cables for our devices.
Mounting and configuration of this device should be done by a qualified person.

Powering

The device accepts powering through two IEC C14 standard connectors and supports both AC 110/220 V ⏦. Only
one PSU is active at the time, the second one is used for redundancy.
PoE injector is not included. The power consumption of this device under maximum load is up to 44W.
See mikrotik.com/products for the latest version of this document.
Page 1, Document #51554 Modified on: 22.AUG.2019
